User Manual for Elgato Thunderbolt 3 Dock Click to enlarge the picture
Contents of the user manual for the Elgato Thunderbolt 3 Dock
- Product category: Docking Stations & Port Replicators Elgato
- Brand: Elgato
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Elgato Docking Stations & Port Replicators
 |
User manual for the Elgato Thunderbolt 3 Dock contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Elgato product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Elgato user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Elgato product will considerably shorten its lifespan!
|

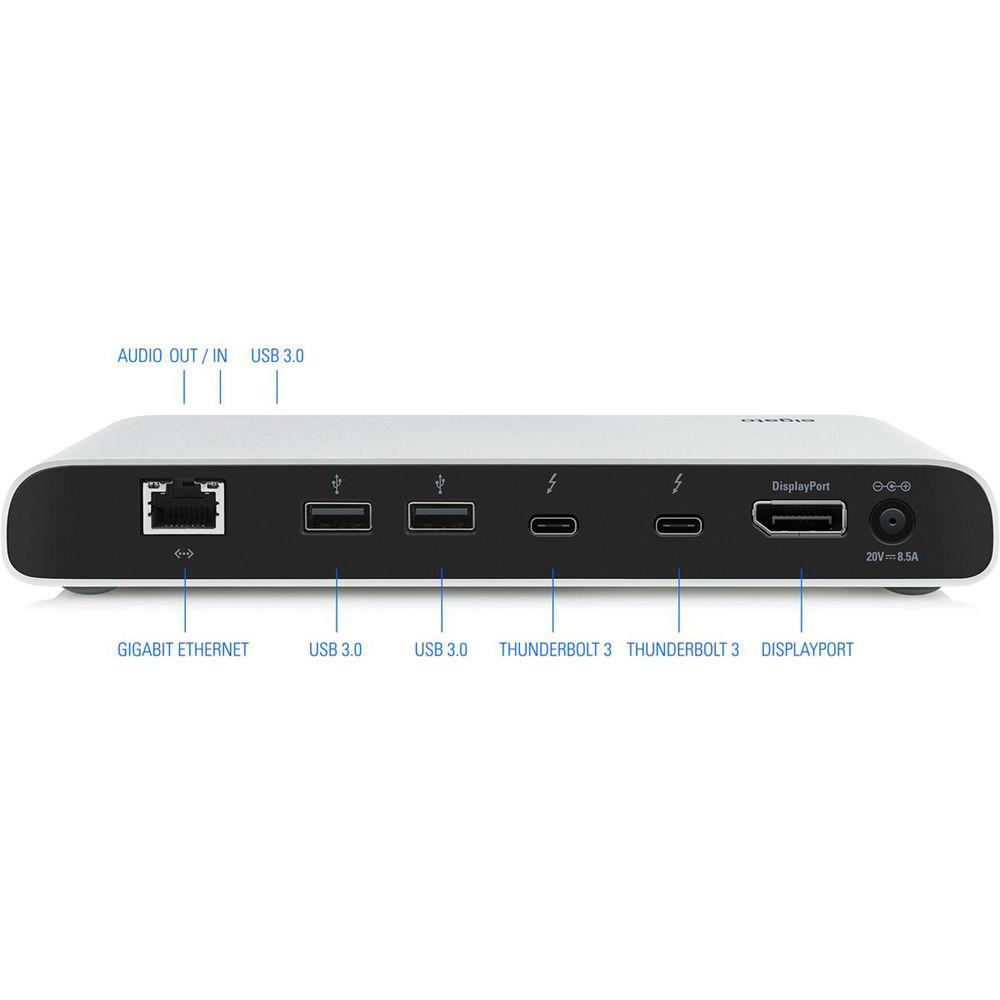

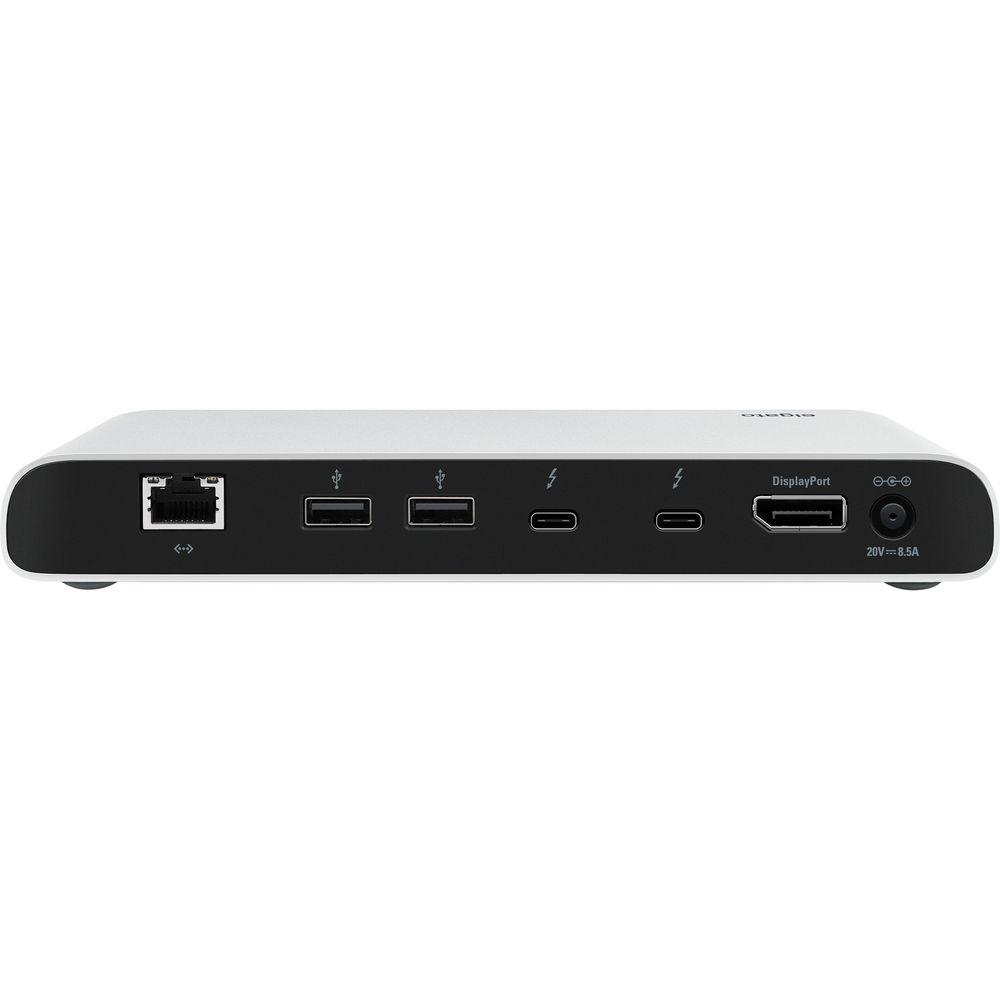

Product description With the Thunderbolt 3 Dock from Elgato you can connect multiple displays, connect external storage drives, connect to a LAN, and more all by running a single cable to your computers Thunderbolt 3 port. This dock comes equipped with three USB 3.0 ports, two Thunderbolt 3 ports, one DisplayPort input, one RJ45 Ethernet port, one 3.5mm headphone output, and one 3.5mm microphone input.

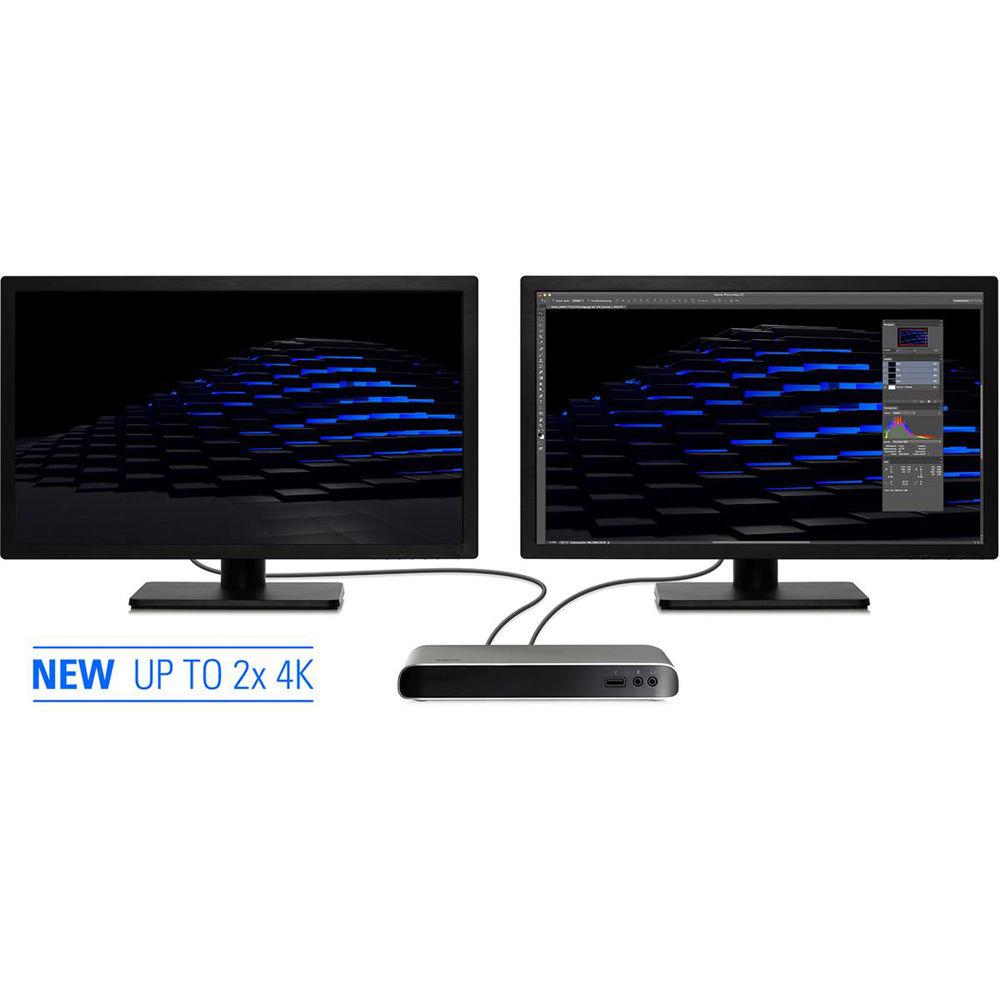

With the Thunderbolt 3 Dock you can drive two 4K displays using the DisplayPort and USB Type-C inputs or connect a single 5K display to the USB Type-C port. In addition to connecting a variety of displays to this dock, you can also power your USB Type-C equipped MacBook Pro as the Thunderbolt 3 Dock provides up to 85W of power. To ensure all of your devices can connect to your Mac or Windows laptop, Elgato has included three USB 3.0 ports into the dock. Rounding out the list of connectivity options offered by this Thunderbolt 3 Dock are the 3.5mm audio jacks making it easy to plug in both headphones and a microphone for enhanced audio playback and clear audio transmission. - 4K Display Support
- The Elgato Thunderbolt 3 Dock features a built-in DisplayPort that can drive any display up to 4K resolution. Better yet, simultaneously connect a second 4K display to the USB Type-C port and enjoy enhanced productivity.
- Provides up to 85 Watts of Power
- Providing up to 85W of power, the Elgato Thunderbolt 3 Dock charges your MacBook Pro through the same cable you use to connect it. Gone are the days of lugging around your power brick, or running out of juice if you forgot to pack it.
- Improved Power Management
- Your USB devices will also benefit from improved power management, USB Type-C accessories are always properly powered with up to 15W, while the built-in USB 3.0 ports can even charge your iPad, boost your iPhone charge, or power your Apple SuperDrive.

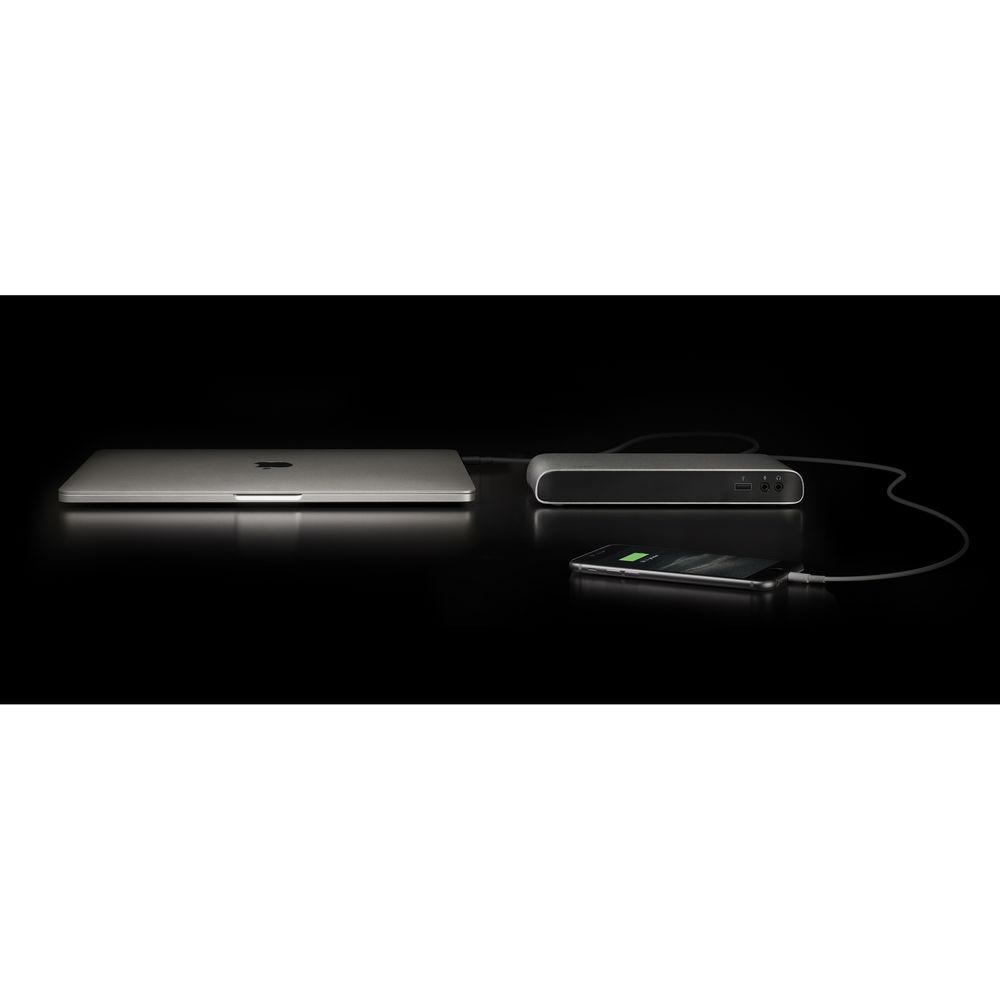

The Elgato Thunderbolt 3 Dock will even charge your devices regardless of whether your computer is off or disconnected. To enable high-power USB support on your Mac, simply download and install the free Elgato Thunderbolt Dock Utility. - SuperSpeed USB 3.0 Ports
- With three SuperSpeed USB 3.0 ports, your workspace remains organized even when you unplug your notebook. Rest assured that your backup drive is there to provide safety in the background, and don't keep re-plugging your devices in and out because of your computer's limitations. Even better, an easily accessible USB port on the front of Elgato Thunderbolt 3 Dock makes plugging in that client's thumb drive a breeze, without having to deal with adapters or unreliable connections.
- Thunderbolt 3 Connectivity
- The Elgato Thunderbolt 3 Dock offers two Thunderbolt 3 ports, one to connect and charge your computer, and one to extend the versatility of Thunderbolt even further. Connect accessories such as a 5K Thunderbolt 3 display, an ultra-fast storage solution, or an adapter for your legacy Thunderbolt 2 devices. And thanks to the versatility of USB Type-C, you can also opt to connect your USB accessories or an additional display to the same port - just as you would on your MacBook Pro or Windows laptop, minus the cable mess.
- Gigabit Ethernet
- Wired network connections are faster and more reliable than any Wi-Fi network, and with Elgato Thunderbolt 3 Dock, you can tap into the full performance of Gigabit Ethernet. Enjoy speedy connections to your servers, uninterrupted downloads from the internet and reliable file transfers with your co-workers - without an additional adapter dangling awkwardly from the side of your notebook.
- Free Elgato Thunderbolt Dock Utility
- When it's time to leave, individually ejecting external drives can be a hassle. With the free Elgato Thunderbolt Dock Utility, avoiding data loss is just a click in your menu bar away: conveniently eject all storage devices at once and immediately see when it's safe to disconnect your Elgato Thunderbolt 3 Dock.
- Audio Connectivity
- Even your headphones can stay connected with the built-in, amplified, stereo audio port. An additional, independent audio input port enables you to simultaneously connect a high-quality microphone for crystal-clear conference calls, or any other project that profits from having your voice heard.
UPC: 813180020498 In the Box Elgato Thunderbolt 3 Dock Thunderbolt 3 Cable Power Supply Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Elgato Thunderbolt 3 Dock in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersElgato 10DAA4101 Specs | | | USB | 3 x USB 3.1 Gen 1 Type-A (1.5 A) | | Thunderbolt | 1 x Thunderbolt 3 | | Ethernet | 1 x RJ45 (10/100/1000 Mbps) | | FireWire | None | | Display | 1 x DisplayPort | | Audio | 1 x 1/8" / 3.5 mm Headphone
1 x 1/8" / 3.5 mm Microphone | | Memory Card Slots | None | | | | System Connection | 1 x Thunderbolt 3 Female | | | | Maximum Resolution Supported | 4096 x 2160 | | Operating System Support | Windows, macOS/OS X | | | | DC Input Power | 20 VDC at 8.5 A | | | | Package Weight | 2.9 lb | | Box Dimensions (LxWxH) | 9.0 x 6.7 x 4.9" |
