Product description - Elgato Thunderbolt 3 Mini Dock Introduction and Overview

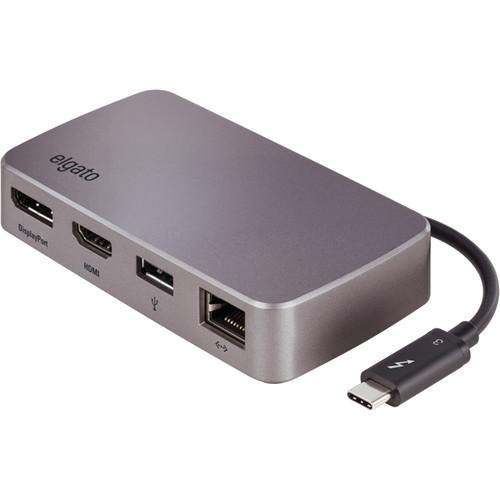

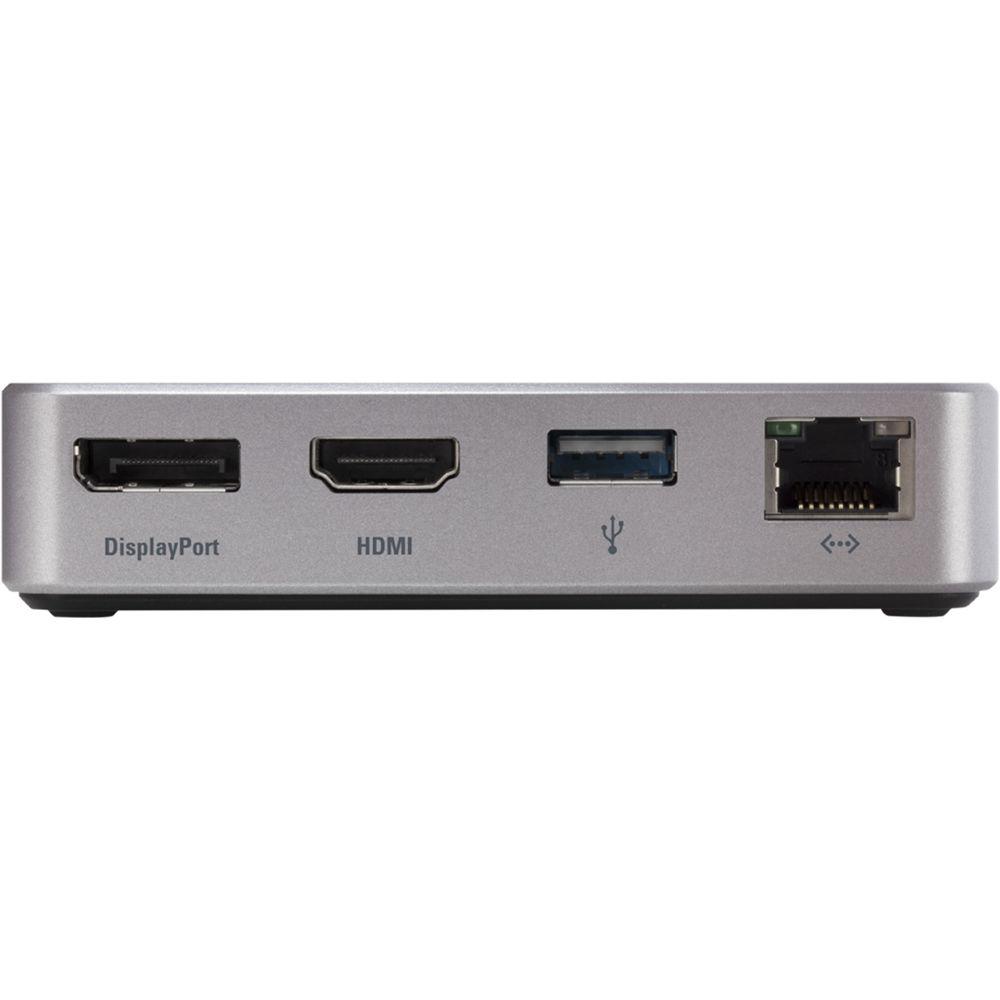

Expand the connectivity of your Thunderbolt 3 enabled Windows or Mac system with the Elgato Thunderbolt 3 Mini Dock from Corsair. This dock connects to your host system using an integrated 4.7" Thunderbolt 3 cable and offers one DisplayPort 1.2 port, one HDMI 2.0 port, one USB 3.1 Gen 1 Type-A port, and one Gigabit Ethernet port. The DisplayPort and HDMI port both support resolutions up to 4096 x 2160 at 60 Hz and the HDMI port is also HDCP 2.2 compliant. Both the DisplayPort and HDMI port can be used simultaneously to support dual 4K displays. The USB 3.1 Gen 1 port supports data transfer speeds of up to 5 Gb/s, 1.1A of power, and UASP compliance.

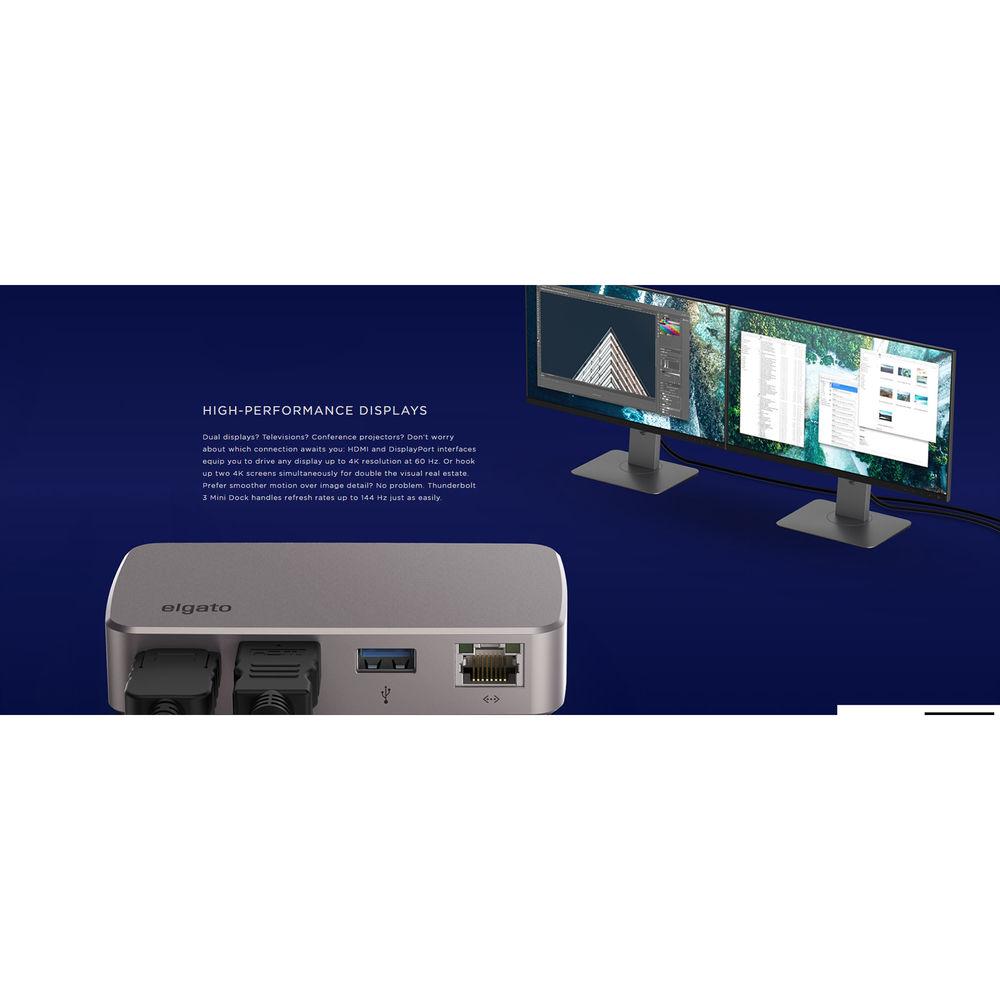

Please note that this dock requires Windows 10, macOS 10.13 or later, and a Thunderbolt 3 port. General Features - High-Performance Displays
- Dual displays? Televisions? Conference projectors? Don't worry about which connection awaits you, as HDMI and DisplayPort interfaces equip you to drive most displays with resolutions up to 4K at 60 Hz. Or, hook up two 4K screens simultaneously for double the visual real estate. If you prefer smoother motion over image detail, the Thunderbolt 3 Mini Dock handles refresh rates up to 144 Hz.

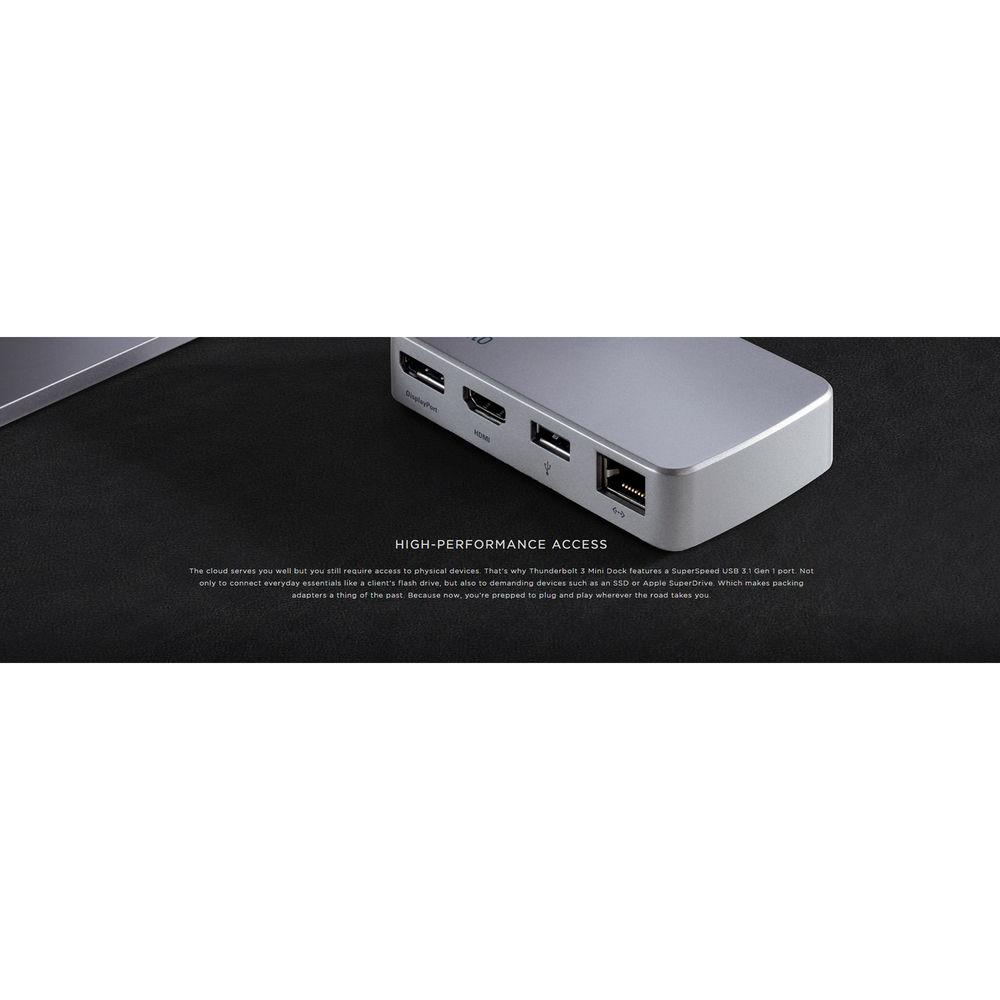

- High-Performance Access
- The cloud serves you well, but you still require access to physical devices. That's why the Thunderbolt 3 Mini Dock features a 5 Gb/s USB 3.1 Gen 1 port that let you connect everyday essentials like a client's flash drive, but also to demanding devices such as an SSD or Apple SuperDrive, which makes packing adapters a thing of the past. Now, you're prepped to plug and play wherever the road takes you.
- High-Performance Networking
- The Thunderbolt 3 Mini Dock features a Gigabit Ethernet port, so you can capitalize on the speed and reliability of a wired connection. Stream high-bandwidth media without interference, transfer critical files without interruption, and get the job done quickly, so you can tackle the next.

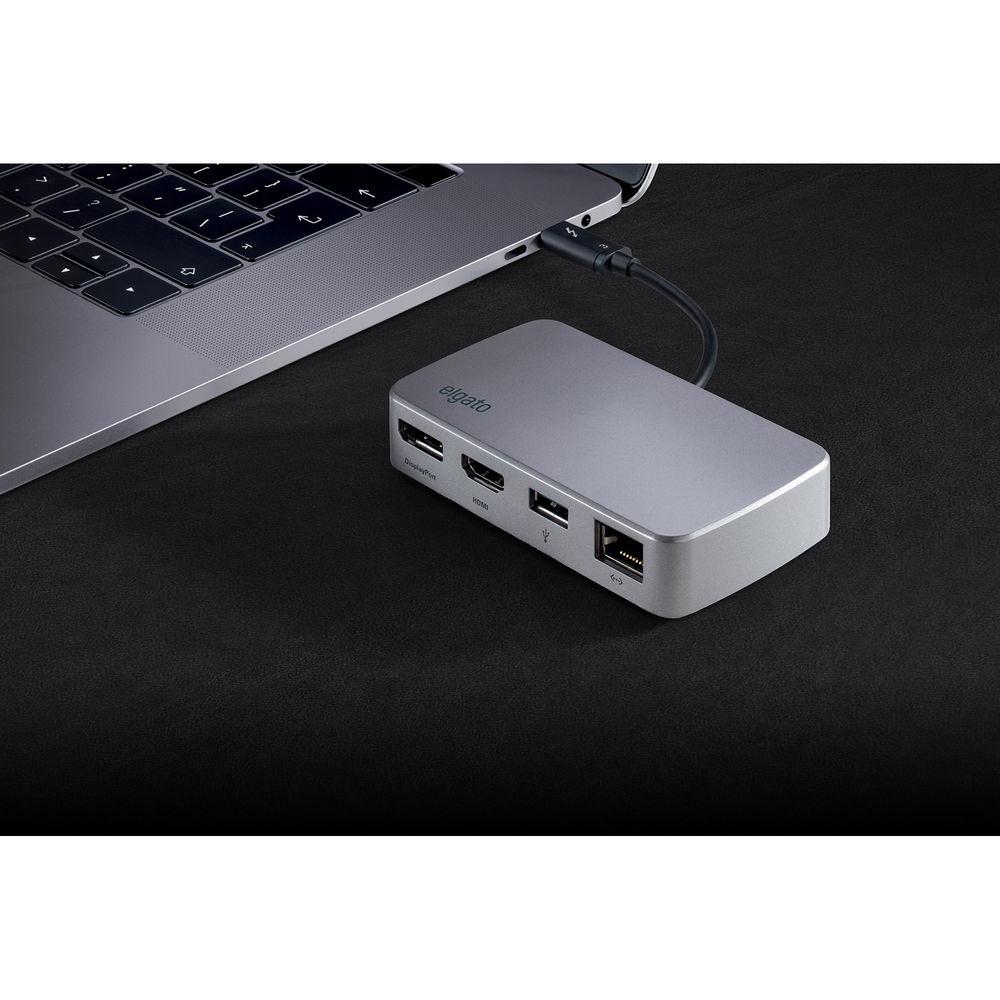

- High-Performance Workflow

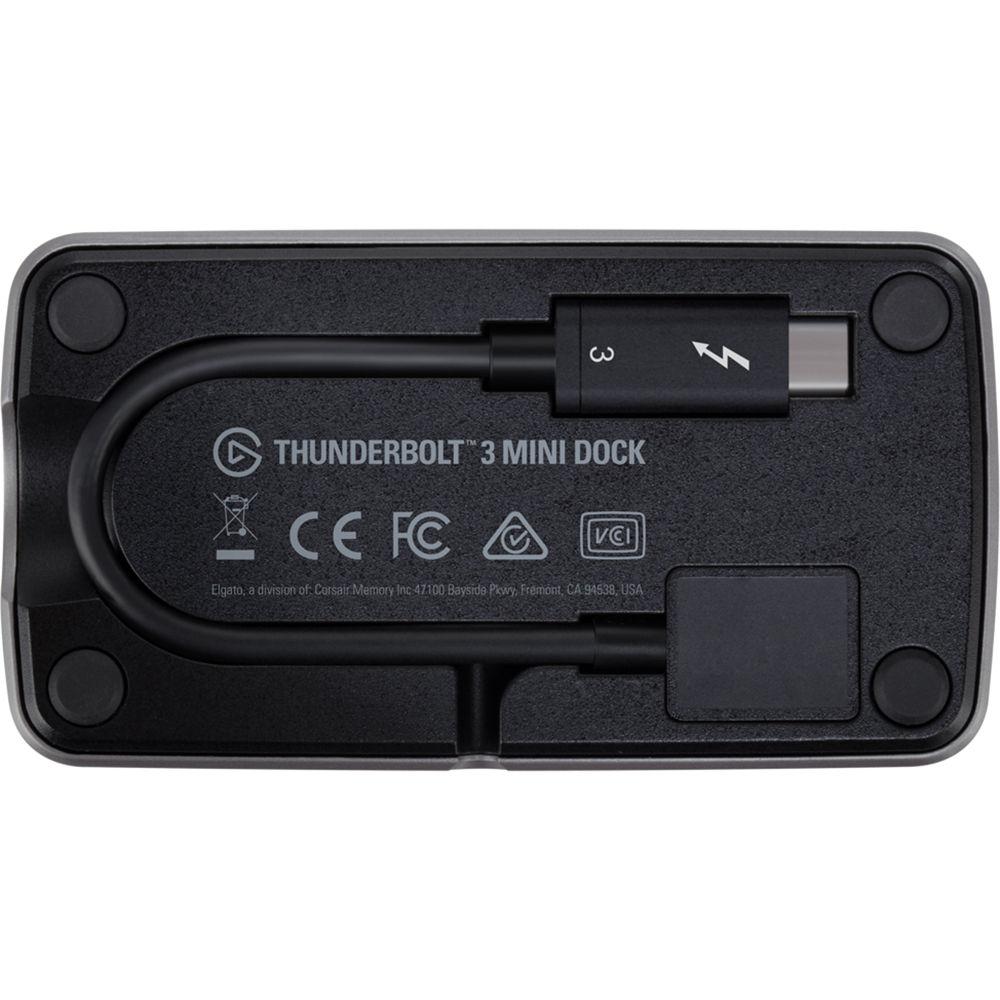

- High-caliber dock are primarily deskbound, forcing you to part with performance the moment you move. However, the Thunderbolt 3 Mini Dock is portable and lightweight, with a pocket-size footprint and built-in 4.7" Thunderbolt 3 cable. This allows you disconnect safely in a snap, slip it into your bag, and take your pro-grade connectivity with you.
- High-Performance Standards

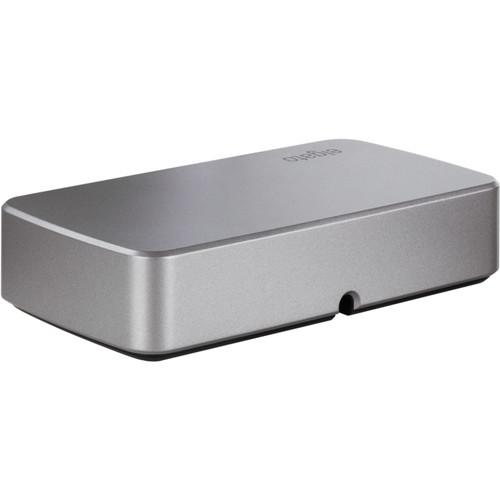

- The Thunderbolt 3 Mini Dock puts all the ports you need in a sleek, space gray enclosure that fits in the palm of your hand. This converts your portable notebook into a portable workstation. So, you can cut loose, keep productive, and be ready for anything.
UPC: 843591022699 In the Box Elgato Thunderbolt 3 Mini Dock Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Elgato Thunderbolt 3 Mini Dock in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersElgato Mini Dock Specs | | | USB | 1 x USB 3.1 Gen 1 Type-A (1.1 A) | | Thunderbolt | None | | Ethernet | 1 x RJ45 (10/100/1000 Mbps) | | FireWire | None | | Display | 1 x DisplayPort 1.2 (Female)
1 x HDMI 2.0 (Female) | | Audio | None | | Memory Card Slots | None | | | | System Connection | 1 x Thunderbolt 3 Male | | Connection Type | Integrated Cable | | | | Number of Displays Supported | 2 | | Maximum Resolution Supported | 4096 x 2160 at 60 Hz | | Data Transfer Rate | 40 Gb/s Thunderbolt 3 | | Operating System Support | Windows, macOS/OS X | | UASP Support | Yes | | | | Power Source | Bus Powered | | Power Port | USB Type-C | | | | Cable Length | 4.7" / 11.94 cm | | Lock Slot | No | | Dimensions | 4.1 x 2.2 x 1" / 10.41 x 5.59 x 2.54 cm | | Weight | 4.4 oz / 125 g | | | | Package Weight | 0.5 lb | | Box Dimensions (LxWxH) | 6.0 x 4.25 x 1.5" |
