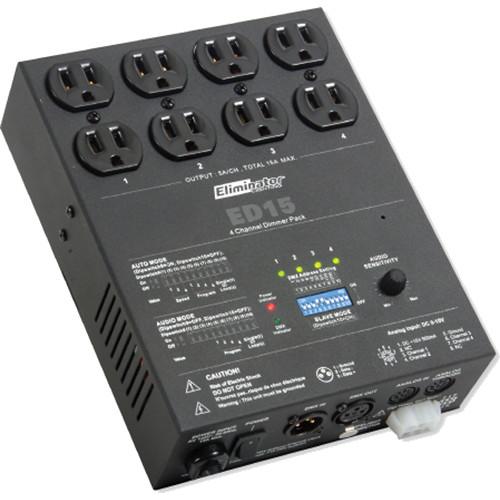

User Manual for Eliminator Lighting ED-15 4-Channel Dimmer Click to enlarge the picture
Contents of the user manual for the Eliminator Lighting ED-15 4-Channel Dimmer
- Product category: Dimmers Eliminator Lighting
- Brand: Eliminator Lighting
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Eliminator Lighting Dimmers
|
User manual for the Eliminator Lighting ED-15 4-Channel Dimmer contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Eliminator Lighting product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Eliminator Lighting user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Eliminator Lighting product will considerably shorten its lifespan!
|
Product description The ED-15 4-Channel Dimmer from Eliminator Lighting is designed to control your light fixtures movement. This 15A controller features 16 automatic and sound activated built-in programs. All four channels are user assignable between Dimmer and Switch modes while there are LED indicators for each channel. Among the ED-15's features are DMX and Analog input/output connection, Slave, Auto and Audio functions, a ropelight connection and an audio sensitivity knob. Four 6A fuses are provided for overload protection. - 4-channel digital dimmer with dual Edison sockets per channel
- 16 built-in programs; supports single/loop programming
- Features various function modes like Slave, Auto, and Audio
- DMX and analog input/output connector
- All four channels are user assignable between Dimmer and Switch modes
- Features ropelight connection and audio sensitivity adjusting knob
- Supports DMX address setting
- On / Off power switch with power indicator
- LED-indicators for all channels
- Four 6A fuses for overloading protection
UPC: 855666000662 In the Box Eliminator Lighting ED-15 4-Channel Dimmer Hanging Bracket Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Eliminator Lighting ED-15 4-Channel Dimmer in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersEliminator Lighting ED15 Specs | Channels | 4 | | Power Input | 120 VAC; 50/60 Hz, 15 A maximum | | Power Output | 5 A per channel; total 15 A maximum | | Fuse | Loading: 4x F6 A 250 V; 0.2 x 0.8" (0.5 x 2.0 cm)
Electronic: F1 A 250 V; 0.2 x 0.8" (0.5 x 2.0 cm) | | Dimensions | 10.3 x 6.8 x 2.4" (26.1 x 17.3 x 6.2 cm) | | Weight | Approximately 3.7 lb (1.7 kg) | | | | Package Weight | 4.95 lb | | Box Dimensions (LxWxH) | 11.0 x 9.4 x 3.4" |
