User Manual for Eliminator Lighting Electro Disc LED Fixture Click to enlarge the picture
Contents of the user manual for the Eliminator Lighting Electro Disc LED Fixture
- Product category: DJ & Effect Lights Eliminator Lighting
- Brand: Eliminator Lighting
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Eliminator Lighting DJ & Effect Lights
 |
User manual for the Eliminator Lighting Electro Disc LED Fixture contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Eliminator Lighting product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Eliminator Lighting user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Eliminator Lighting product will considerably shorten its lifespan!
|

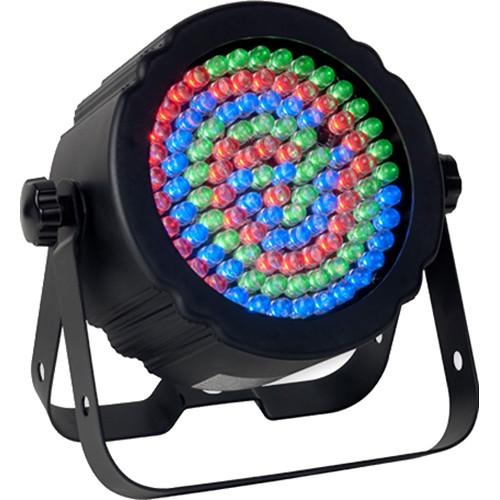

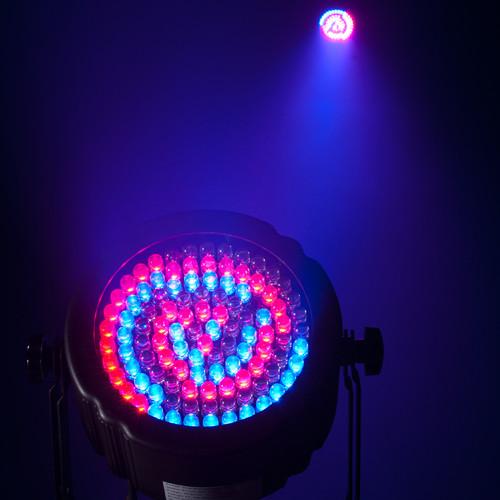

Product description The Electro Disc LED Fixture from Eliminator features 107 RGB LEDs and delivers a high-output wash with high color saturation. The fixture supports various effects like strobe, fade, or color mix (in stand alone mode). Additionally, the fixture can be linked together via the XLR and AC connections. Electro Disc LED fixture is suitable for stage performances where traditional PAR cans emit a lot of heat onto the performers. - Compatible with Eliminator Electro IR wireless remote control (sold separately)
- Supports stand-alone or master/slave configuration
- LED color pulse and strobe effect
- Includes dual mounting brackets to hang on truss, mount on a wall, or set on the ground
- Can be used as an architectural wall wash or for stage performances where traditional stage lighting emit a lot of heat onto the performers
UPC: 817175010075 In the Box Eliminator Lighting Electro Disc LED Fixture Dual Mounting Bracket Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Eliminator Lighting Electro Disc LED Fixture in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersEliminator Lighting Electro Disc LED Specs | LEDs | 107 RGB 0.4" (1.0 cm) LEDs

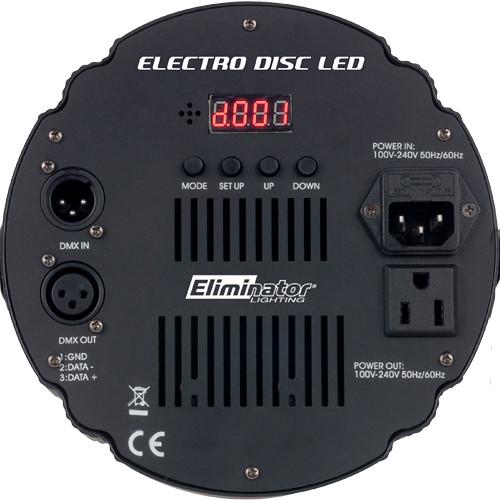

(36 red, 36 green, and 35 blue LEDs) | | Lifetime | 50,000 hours | | Beam Angle | 30° | | DMX Channels | 4-channel with DMX-512 protocol | | Electronic Dimming | 0 to 100% | | Operational Modes | 6 modes; auto-mode and sound active feature with built-in programs | | Configuration | Stand alone or master/slave configuration | | Input & Output | IEC AC input and output on rear to daisy chain power (up to 40 Electro Disc LEDs) | | Operating Voltage | 100 to 240 VAC; 50/60 Hz | | Power Consumption | 14 W | | Fuse | 1 A | | Dimensions | 10.3 x 9.5 x 4.0" (25.5 x 23.5 x 10.0 cm) | | Weight | 3.0 lb (1.2 kg) |
Rating80% users recommend this product to others. And what about you?
This product has already been rated by 62 owners. Add your rating and experience with the product.
