User Manual for Eliminator Lighting Katana LED Fixture Click to enlarge the picture
Contents of the user manual for the Eliminator Lighting Katana LED Fixture
- Product category: DJ & Effect Lights Eliminator Lighting
- Brand: Eliminator Lighting
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Eliminator Lighting DJ & Effect Lights
 |
User manual for the Eliminator Lighting Katana LED Fixture contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Eliminator Lighting product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Eliminator Lighting user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Eliminator Lighting product will considerably shorten its lifespan!
|

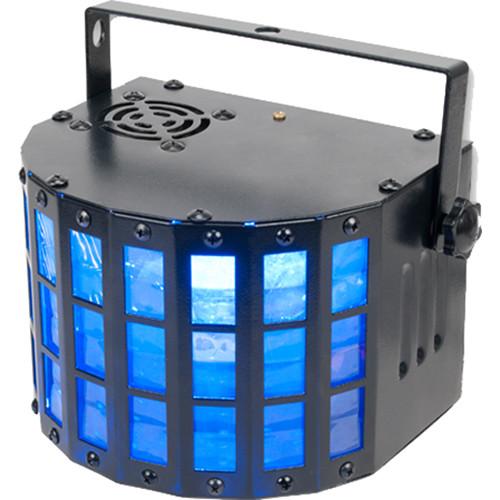

Product description The Katana LED Fixture from Eliminator Lighting is a compact and lightweight derby fixture powered by four 3W RGBW LEDs (1 red, 1 green, 1 blue, 1 white). It covers a wide area on the dance floor and offers seven DMX channels that give you the ability to control color intensity individually. But don't worry if short with time, just plug it in and let it run to the beat of the music in Sound Active mode. Furthermore, to facilitate easy installation, you can daisy chain multiple Katana LEDs utilizing just one power source. - DMX, Master/Slave, and Sound Active modes
- Individual color dimming: 0 - 100%
UPC: 817175010273 Table of Contents
|
Upload User Manual
Have you got an user manual for the Eliminator Lighting Katana LED Fixture in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

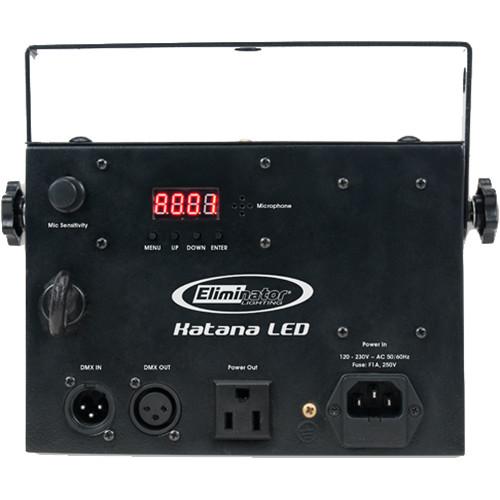

Technical parametersEliminator Lighting Katana LED Specs | LEDs | 4 x 3 W RGBW LEDs (1 x red, 1 x green, 1 x blue, 1 x white) | | Beam Angle | 123° | | Operating Modes | DMX, Master/Slave, or Sound Active | | DMX Channels | 7 | | DMX Connectors | 1 x XLR 3-pin input
1 x XLR 3-pin output | | Dimming Range | Individual Color Dimming: 0 to 100% | | Multi Voltage | 100 to 230 VAC, 50/60 Hz | | Power Connectors | 1 x IEC input
1 x Edison output | | Power Cord Daisy Chain | Yes; maximum fixtures not specified by manufacturer | | Power Consumption | 36 W | | Dimensions (L x W x H) | 9.5 x 7 x 6.5" (24.1 x 18 x 16.5 cm) | | Weight | 4.4 lb (2.0 kg) | | | | Package Weight | 4.15 lb | | Box Dimensions (LxWxH) | 10.3 x 9.1 x 8.0" |
