User Manual for Eliminator Lighting Trio PAR LED Multi-Effect Fixture Click to enlarge the picture
Contents of the user manual for the Eliminator Lighting Trio PAR LED Multi-Effect
- Product category: DJ & Effect Lights Eliminator Lighting
- Brand: Eliminator Lighting
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Eliminator Lighting DJ & Effect Lights
 |
User manual for the Eliminator Lighting Trio PAR LED Multi-Effect contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Eliminator Lighting product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Eliminator Lighting user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Eliminator Lighting product will considerably shorten its lifespan!
|

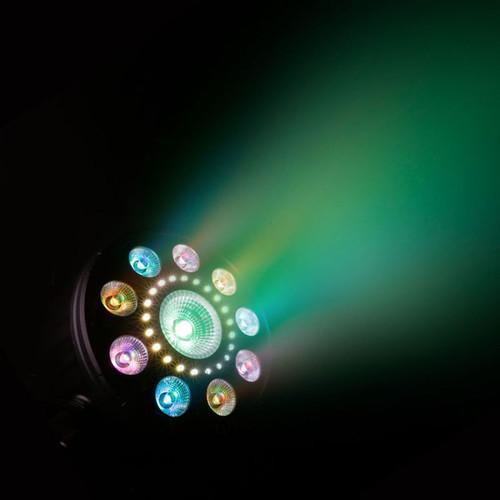

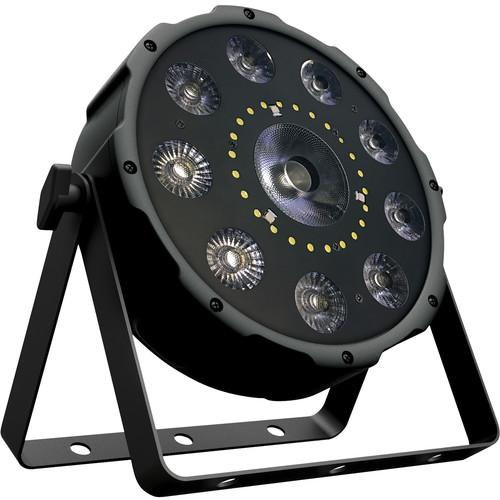

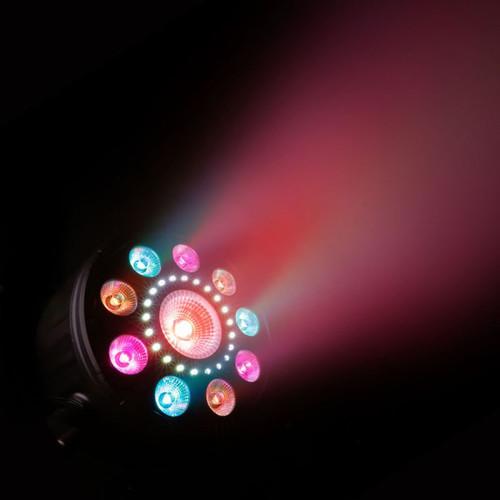

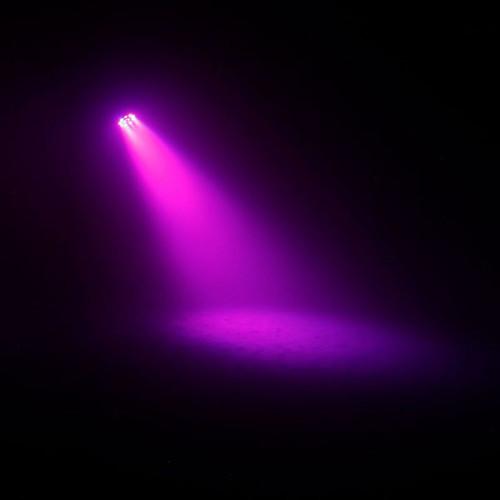

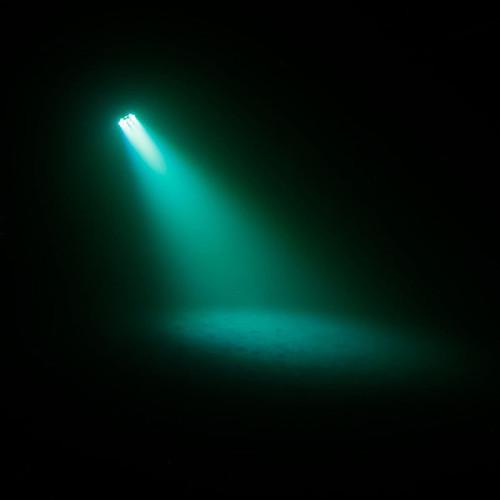

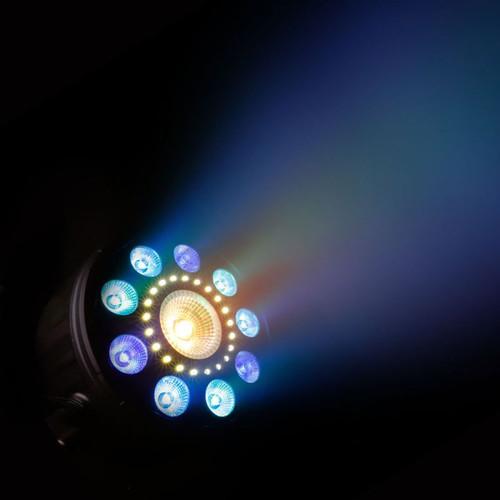

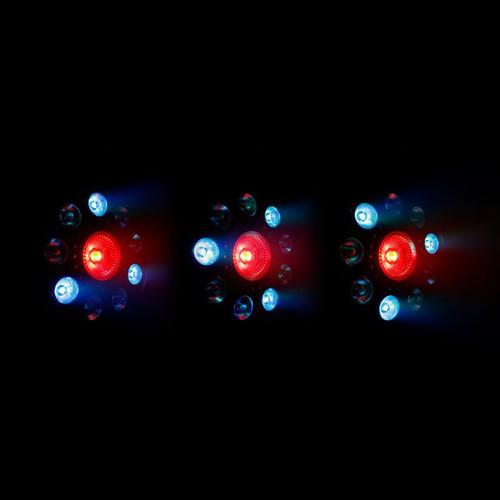

Product description The Trio PAR LED Multi-Effect Fixture from Eliminator Lighting is a low-profile RGB / Strobe / RG LED light source with a wide variety of DMX controllable and manual effects that will add excitement to any entertainment event. The Trio has six RGB LEDs that produce almost any color in the spectrum that suits your needs. It also has 72 strobe LEDs that will make your event pop, while red and green lasers pierce the ambient illumination with sharp rays of light. DMX control functions include master dimmer, laser, laser rotation, sound control, single RGB LED control, strobe, and auto program control. The Trio PAR LED Fixture is ready for worldwide use thanks to its 100-240 VAC power supply. UPC: 817175010587 In the Box Eliminator Lighting Trio PAR LED Multi-Effect Fixture Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Eliminator Lighting Trio PAR LED Multi-Effect Fixture in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersEliminator Lighting Trio Par LED Specs | Light Source | 6 x 9 W RGB LEDs
72 x strobe LEDs | | DMX | Control:
Master dimmer, laser, rotate laser, sound control, single RGB laser,
auto programs, strobe, auto program speed, strobe speed laser, color macro | | DMX 512 Connectors | Input: 3-pin male XLR
Output: 3-pin female XLR | | Modes | Standalone sound programs, master/slave, auto programs, static | | Display | 4-button LED | | Movement | Adjustable bracket/yoke | | Remote Control | Via DMX or optional wireless remote | | Voltage | 100-240 VAC, 50/60 Hz | | Power Connector | IEC input and output | | Power Consumption | 65 W | | Fuse | T5.0 A | | Cooling | Fan | | Material of Construction | ABS plastic | | Dimensions | 8.6 x 8.6 x 2.87" / 21.8 x 21.8 x 7.3 cm | | Weight | 3.0 lb / 1.36 kg |
Rating70% users recommend this product to others. And what about you?
This product has already been rated by 28 owners. Add your rating and experience with the product.
