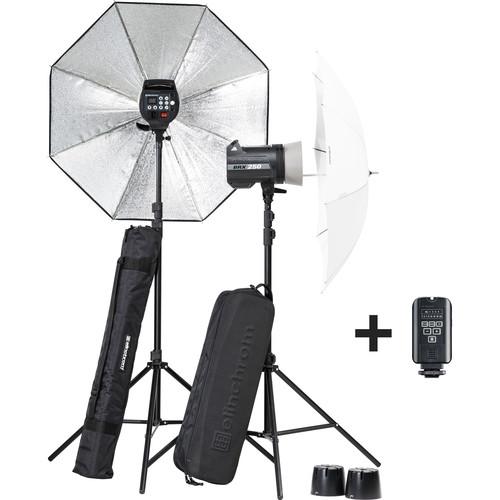

User Manual for Elinchrom BRX 250 250 Umbrella To Go Kit

• Product category: Monolights Elinchrom
• Brand: Elinchrom
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for Elinchrom Monolights

Product description

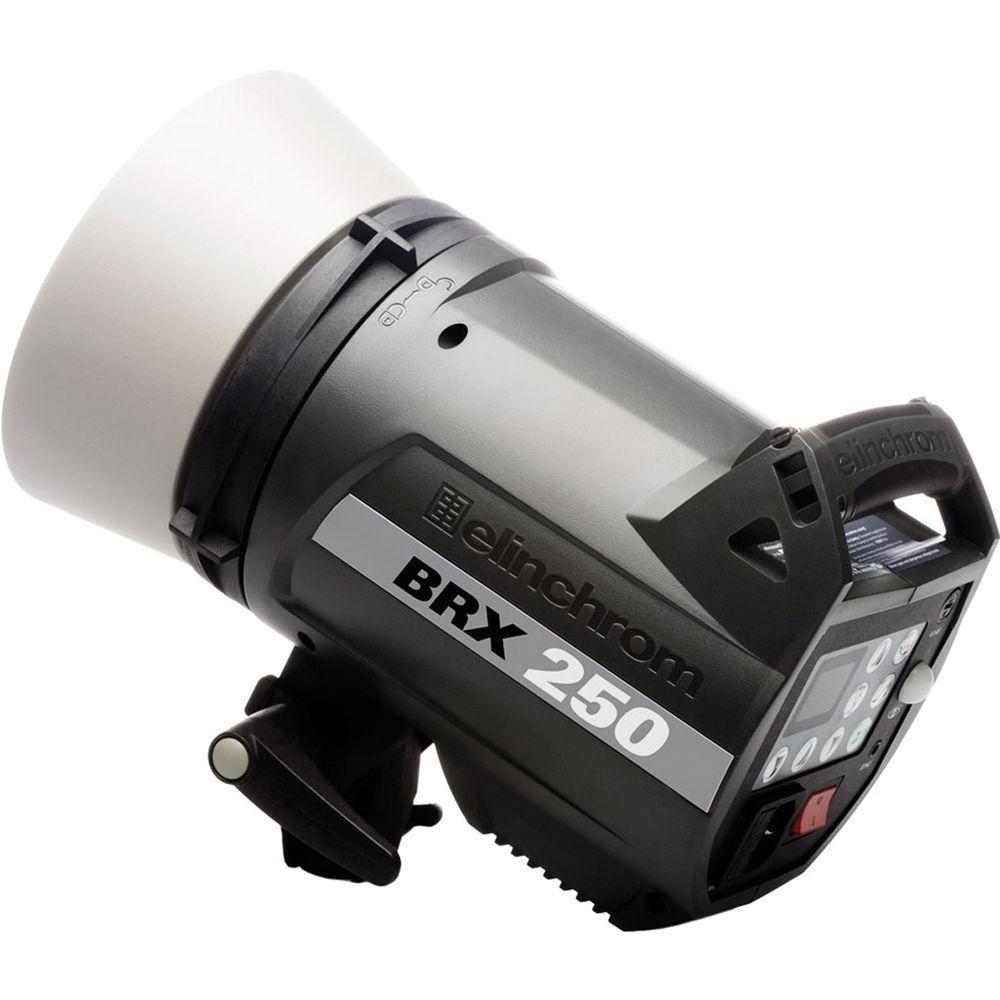

• BRX 250 Monolight The Elinchrom BRX 250 Monolight is packed with professional and convenience features you'd expect from a company of Elinchrom's caliber. Forget about tripping over PC cords. Although this head accepts one, it also has a built-in EL-Skyport Receiver with 8 frequency channels that can handle 4 distinct groups of flashes. The optional transmitter not only allows you to trigger your flash at distances up to 393' but gives you control of power, on/off, modeling light functions and Speed Sync activation. Free software for Mac and PC computers is available with the transmitter, adding additional features such as Flash-Delay for strobing effects. Add an optional USB Wi-Fi module for computer control. You can even use specially designed apps that allow full remote control via your for iPhone, iPad or iPod Touch. The BRX 250 offers very fast recycling rates of 0.27- 1.02 seconds @ 115V with action-stopping flash durations as short as 1/2,762 sec. The auto-sensing, multi-voltage BRX 250 recognizes any AC power source from 90-260 VAC, allowing you to use it anywhere in the world. Note: The head ships with a 115V modeling lamp. Swap it out with a 230V bulb for use in a nominal 230V environment. For complete specs on select items included in this kit please click on the links below: Modeling Lampubwvxxbwewbawzwxxcdsvbdybcq
  Flash Tube
  Sync Cord
  Protective Cap
  The Facts
  • Built-in EL-Skyport receiver for triggering
  • 8 Frequency channels with 4 groups
  • EL-Skyport Speed Sync mode for synchronization up to a 1/320 sec on enabled SLR cameras
  • Pre-flash detector system to enable the use of BRX with speedlights
  • Visual Flash Confirmation option. The modeling lamp comes on to confirm the flash has been triggered
  • Proportional, maximum, minimum and independent adjustment of the modeling lamp
  • Variable f-stop steps: 1/1, 5/10, 4/10, 3/10, 2/10 or 1/10 steps are available
  • Programmable ready beep function
  • Power Auto-dump
  • Automatic temperature controlled ventilation
  • Action flashtube for sharper images
  • Multi-voltage auto-detection: 90-260 VAC (excluding modeling lamp)
  • 5V sync socket for maximum protection of digital cameras
  • High impact resistant body shell
  • Accessory bayonet allowing the complete range of light modifiers
  • Rubberized handgrip with built-in fuse storage
  Enhancements
  • Take full control of your units settings with the EL-Skyport App for iPhone, iPad and iPod Touch via the optional Wi-Fi module
  • Additional features such as Flash-Delay for strobing effects are available with the EL-Skyport Software
  • Firmware update option
  • Improved electronics for better performance
  UPC: 719821354567

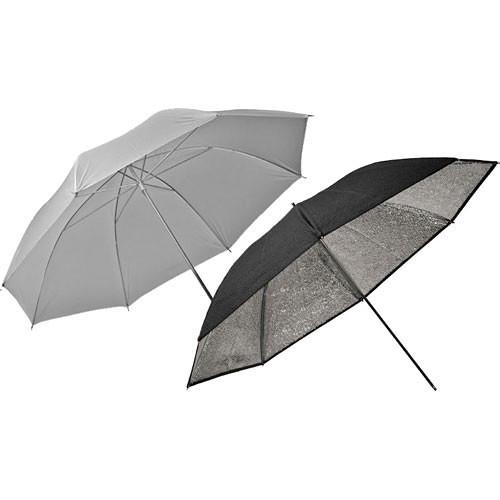

• Two Piece Umbrella Set - 33" The Elinchrom Two Piece Umbrella Set consists of two umbrellas - one silver, for soft bouncelight with a little sparkle, and one translucent soft -- for softening light. Both umbrellas are 33", and are best suited for 1 - 2 person portraits, or small set ups. UPC: 719821283188

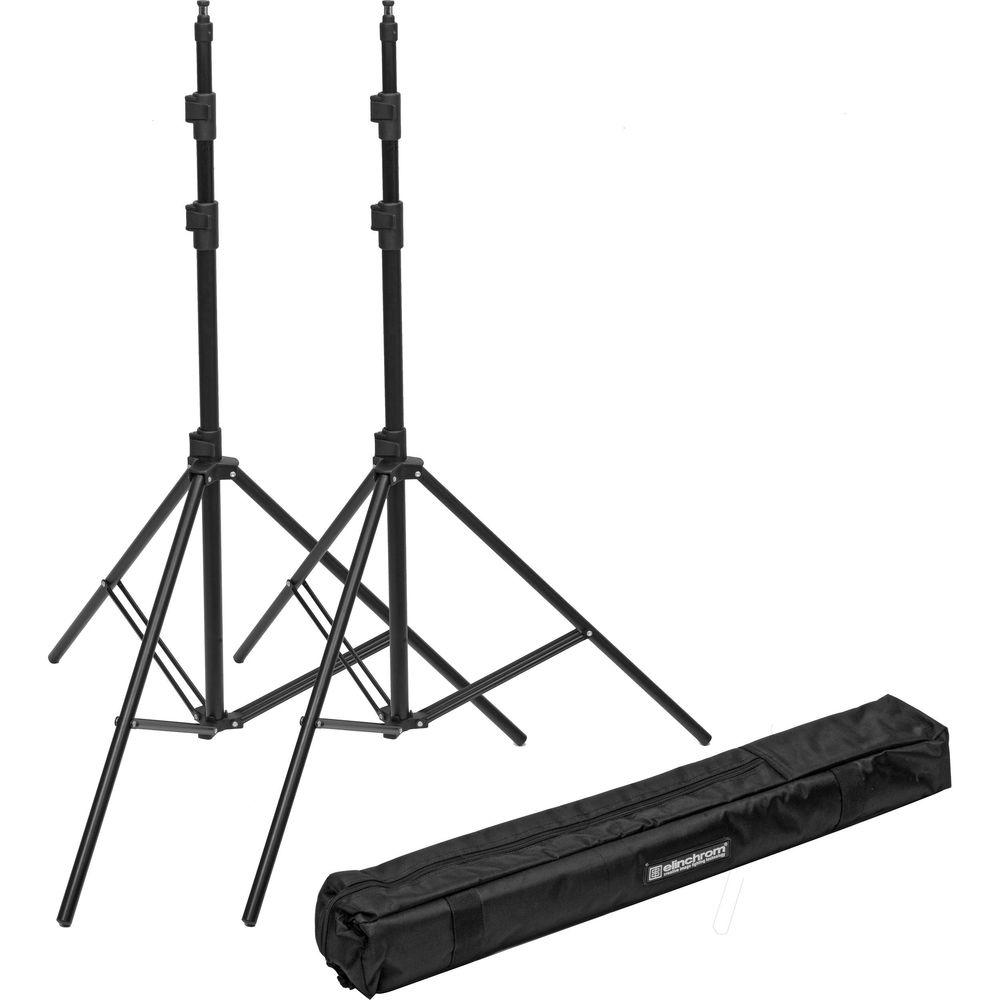

• Stand Kit with Case (7.7') The 2 stands in this Elinchrom Stand Kit with Case are designed to support compact and standard flash heads. They have 5/8" top studs, and rise to a maximum height of 92.5" with a minimum height of 34.6". They will support up to 11 lb, and are stored and transported in the included nylon case with shoulder strap. UPC: 719821386155
• EL-Skyport Transmitter Plus The EL-Skyport Transmitter Plus from Elinchrom is a wireless radio trigger with sixteen channels: 8 in normal and 8 in speed mode, with 4 discrete groups for different or sequentially triggered lighting setups at distances up to 656'. Channels 1, 3, and 7 are compatible with all enabled EL-Skyport units, while channels 1, 3, 7, 9, 12, 15, 18, and 20 are only compatible with the ELC Pro HD flash head and the ELB 400 battery pack system. A 2.5mm sync socket extends the transmitter's versatility to cameras without hot shoes or for hard-wired flash units. The EL-Skyport Transmitter Plus runs on easily sourced AA batteries. The transmitter does not come with batteries.
  Details
  • • Trigger reliably and adjust flash power up to 656' away
    • 4 groups and all selection
    • 16 different channels available (8 in Normal mode and 8 in Speed mode)
    • Quick increase or decrease of the flash power per group with Elinchrom studio strobes with built-in Elinchrom radio receivers
    • Metal hot-shoe connector with screw lock
    • 2.5mm sync socket
    • Normal and Speed sync mode (for leaf shutter cameras)
    • All functions can be easily adjusted
  Benefits
  • • Reliable and consistent triggering
    • Enhanced swivel function for improved reception
    • Continued choices when setting up your strobes
    • Multiple channels for more options when working with or in multiple setups
    • Control light power at the camera
    • No fussing with button batteries, uses AA batteries available everywhere
    • Locking functionality while connected to your camera
    • Flexibility of use with a 2.5mm sync socket

• Flashtube (250/500 W/S) for BXRi and Quadra A Flash Heads

• Modeling Lamp - 100 watts/90 volts - for EL250, EL250C

• Power Cord

• PC to 3.5 mm Sync Cord (16'/5.0 m)

• Protective Cap for Glass Dome, for Elinchrom

• Limited 2-Year Warranty

• Umbrella - Translucent - 33"

• Umbrella - Silver - 33"

• Limited 1-Year Warranty

• Limited 1-Year Warranty

• 2.5mm to PC Sync Cord

• Wrist Strap

• Limited 2-Year Warranty

Also Includes

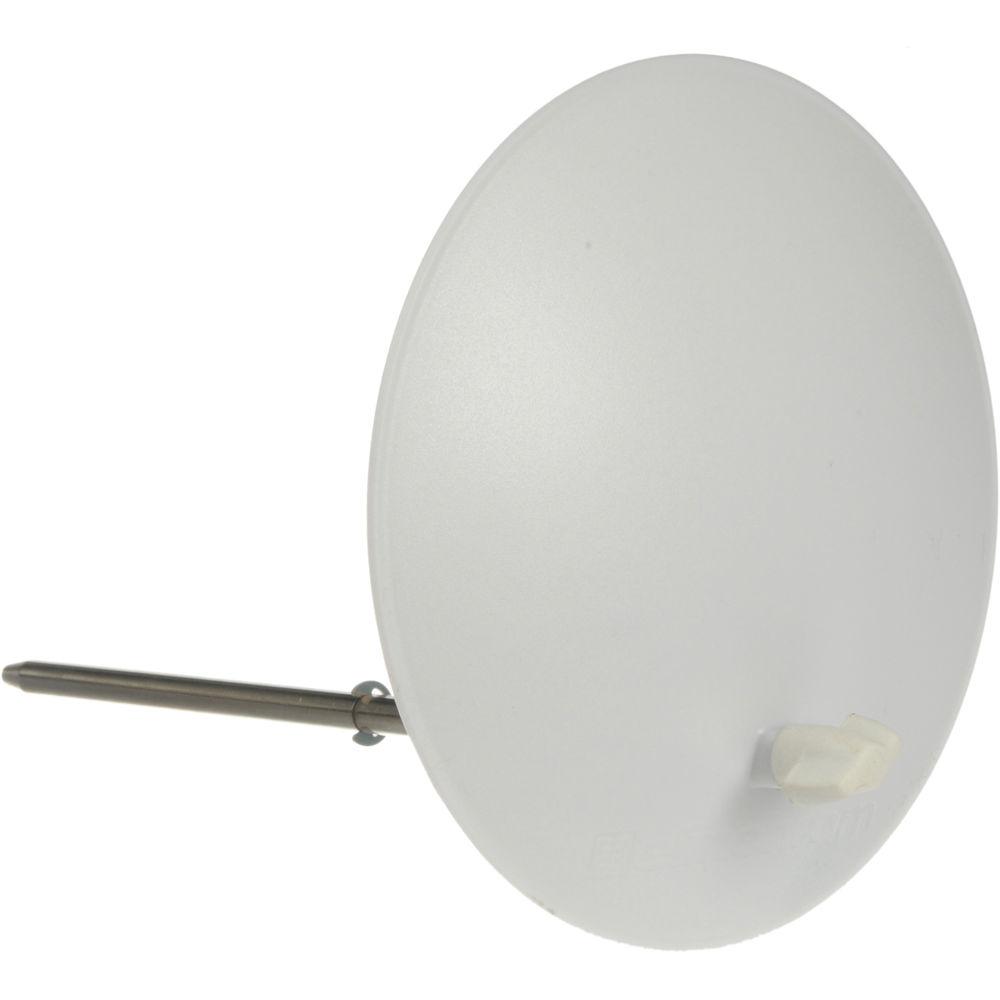

• Translucent Deflector
• Storage Bag

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• BRX 250 Monolight

  Maximum Power	16 to 250 Ws
  Power Control	5 Stops
  Flash Duration	t.5: 1/2762 to 1/2165 Sec
  Recycle Time	0.27 to 1.02 Sec ()
  Color Temperature	5360K
  Flash Ready Indicator	Audio, Visual
  Reflector	Changeable
  Accessory Fitting Type	Elinchrom Umbrella Shaft

  Type	Tungsten
  Wattage	100 W

  Sync Type	Cable, Optical, Radio
  Wireless Range	393' / 120 m (Radio)
  Sync Voltage	5 V

  AC Input Voltage	90to260 VAC, 50 / 60 Hz
  Circuit Protection	Fuse

  Display	None
  Auto Dump	Yes
  Fan Cooled	Yes
  Dimensions	H: 5.5 x W: 7.5 x L: 10.2" / H: 14.0 x W: 19.0 x L: 26.0 cm
  Weight	4.0 lb / 1.85 kg

  Box Dimensions (LxWxH)	14.9 x 8.5 x 7.2"

• Two Piece Umbrella Set - 33"

  Size	33.0" / 83.8 cm
  Interior	Silver, White (Translucent)
  Exterior	Black

  Box Dimensions (LxWxH)	21.89 x 3.465 x 2.756"

• Stand Kit with Case (7.7')

  Load Capacity	11 lb / 5 kg
  Mounting Options	5/8" Stud
  Maximum Working Height	92.5" / 235 cm
  Minimum Working Height	34.6" / 88 cm
  Footprint Diameter	3.14" / 8 cm
  Air Cushioned	No
  Detachable Base	No
  Leveling Leg	No
  Reverse Legs	No
  Finish	Black
  Material	Aluminum
  Weight	3.2 lb / 1.4 kg

  Box Dimensions (LxWxH)	34.5 x 6.2 x 4.0"

• EL-Skyport Transmitter Plus

  Channels	8 (Normal) 8 (Speed)
  Groups	4
  Wireless Range	656' / 200 m
  Radio Frequency	2.4 GHz

  Ports	1 x 2.5 mm (Camera)

  Battery Type	2 x AA

  Dimensions	3.7 x 2 x 1.5" / 94.9 x 49.9 x 38.3 mm (Transmitter)
  Weight	2.2 oz / 63.5 g

  Box Dimensions (LxWxH)	4.5 x 3.6 x 2.3"
