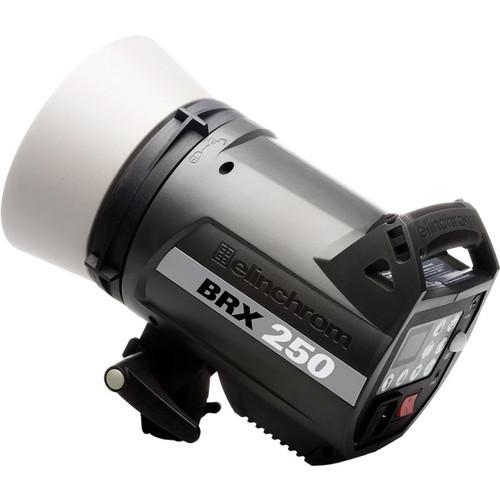

Product description The Elinchrom BRX 250 Monolight is packed with professional and convenience features you'd expect from a company of Elinchrom's caliber. Forget about tripping over PC cords. Although this head accepts one, it also has a built-in EL-Skyport Receiver with 8 frequency channels that can handle 4 distinct groups of flashes. The optional transmitter not only allows you to trigger your flash at distances up to 393' but gives you control of power, on/off, modeling light functions and Speed Sync activation. Free software for Mac and PC computers is available with the transmitter, adding additional features such as Flash-Delay for strobing effects. Add an optional USB Wi-Fi module for computer control. You can even use specially designed apps that allow full remote control via your for iPhone, iPad or iPod Touch. The BRX 250 offers very fast recycling rates of 0.27- 1.02 seconds @ 115V with action-stopping flash durations as short as 1/2,762 sec. The auto-sensing, multi-voltage BRX 250 recognizes any AC power source from 90-260 VAC, allowing you to use it anywhere in the world. Note: The head ships with a 115V modeling lamp. Swap it out with a 230V bulb for use in a nominal 230V environment. For complete specs on select items included in this kit please click on the links below: Modeling Lamp
Flash Tube
Sync Cord
Protective Cap - The Facts
-
- Built-in EL-Skyport receiver for triggering
- 8 Frequency channels with 4 groups
- EL-Skyport Speed Sync mode for synchronization up to a 1/320 sec on enabled SLR cameras
- Pre-flash detector system to enable the use of BRX with speedlights
- Visual Flash Confirmation option. The modeling lamp comes on to confirm the flash has been triggered
- Proportional, maximum, minimum and independent adjustment of the modeling lamp
- Variable f-stop steps: 1/1, 5/10, 4/10, 3/10, 2/10 or 1/10 steps are available
- Programmable ready beep function
- Power Auto-dump
- Automatic temperature controlled ventilation
- Action flashtube for sharper images
- Multi-voltage auto-detection: 90-260 VAC (excluding modeling lamp)
- 5V sync socket for maximum protection of digital cameras
- High impact resistant body shell

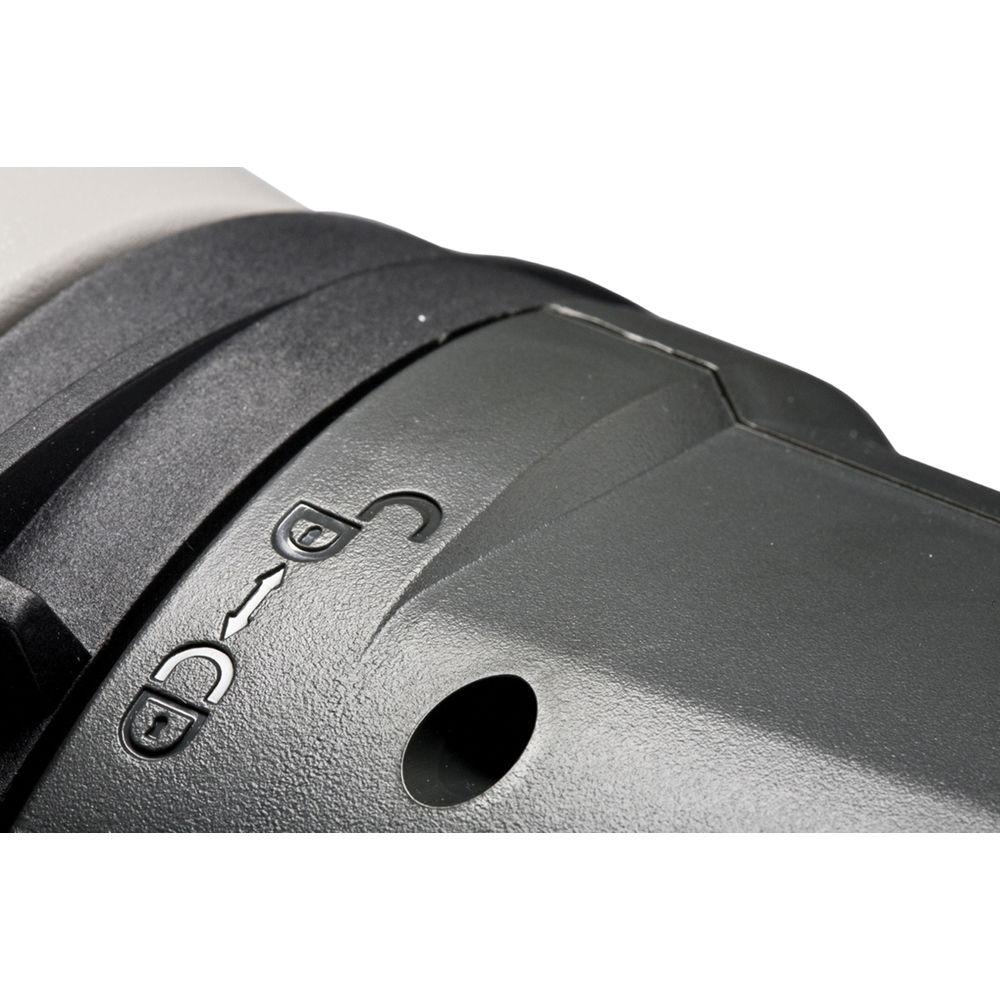

- Accessory bayonet allowing the complete range of light modifiers
- Rubberized handgrip with built-in fuse storage
- Enhancements
-
- Take full control of your units settings with the EL-Skyport App for iPhone, iPad and iPod Touch via the optional Wi-Fi module
- Additional features such as Flash-Delay for strobing effects are available with the EL-Skyport Software
- Firmware update option
- Improved electronics for better performance
UPC: 719821354567 In the Box Elinchrom BRX 250 Monolight Flashtube (250/500 W/S) for BXRi and Quadra A Flash Heads Modeling Lamp - 100 watts/90 volts - for EL250, EL250C Power Cord PC to 3.5 mm Sync Cord (16'/5.0 m) Protective Cap for Glass Dome, for Elinchrom Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Elinchrom BRX 250 Monolight in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersElinchrom BRX 250 Specs | | | Maximum Power | 16 to 250 Ws | | Power Control | 5 Stops | | Flash Duration | t.5: 1/2762 to 1/2165 Sec | | Recycle Time | 0.27 to 1.02 Sec () | | Color Temperature | 5360K | | Flash Ready Indicator | Audio, Visual | | Reflector | Changeable | | Accessory Fitting Type | Elinchrom Umbrella Shaft | | | | Type | Tungsten | | Wattage | 100 W | | | | Sync Type | Cable, Optical, Radio | | Wireless Range | 393' / 120 m (Radio) | | Sync Voltage | 5 V | | | | AC Input Voltage | 90to260 VAC, 50 / 60 Hz | | Circuit Protection | Fuse | | | | Display | None | | Auto Dump | Yes | | Fan Cooled | Yes | | Dimensions | H: 5.5 x W: 7.5 x L: 10.2" / H: 14.0 x W: 19.0 x L: 26.0 cm | | Weight | 4.0 lb / 1.85 kg | | | | Package Weight | 6.9 lb | | Box Dimensions (LxWxH) | 14.9 x 8.5 x 7.2" |
