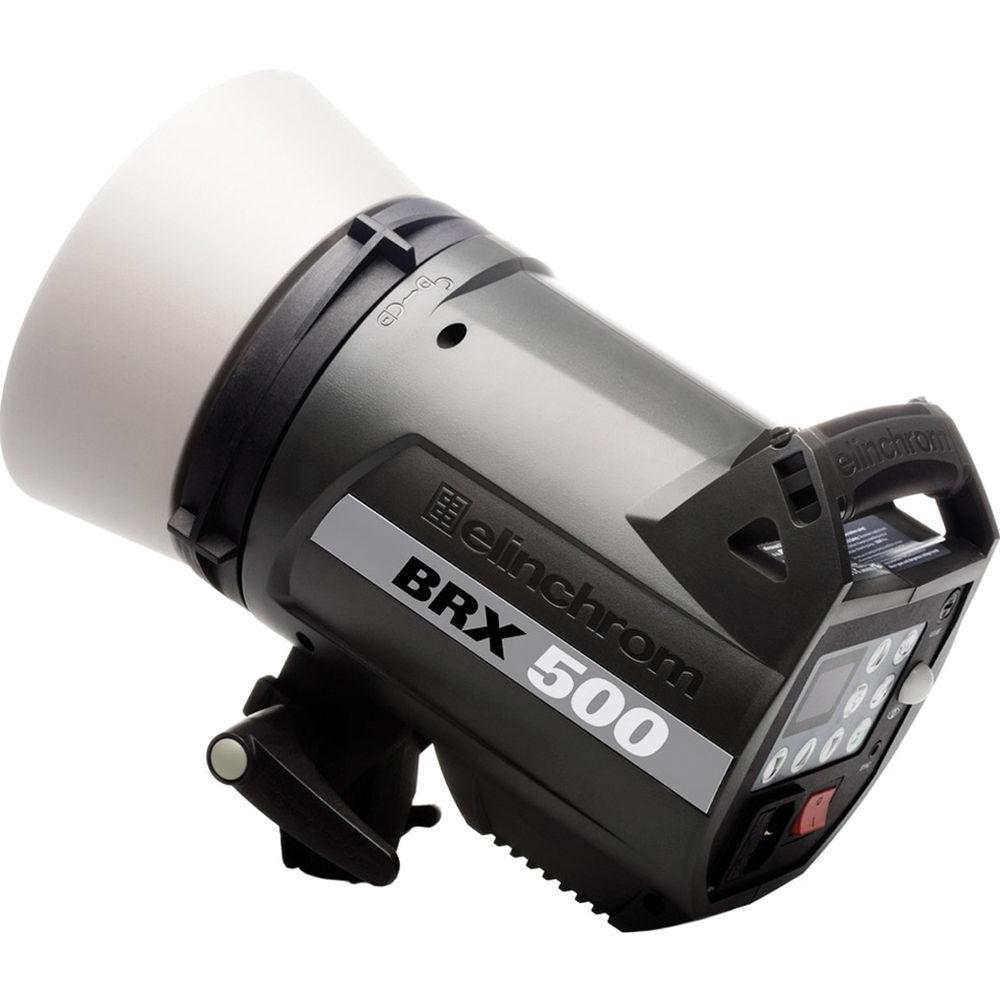

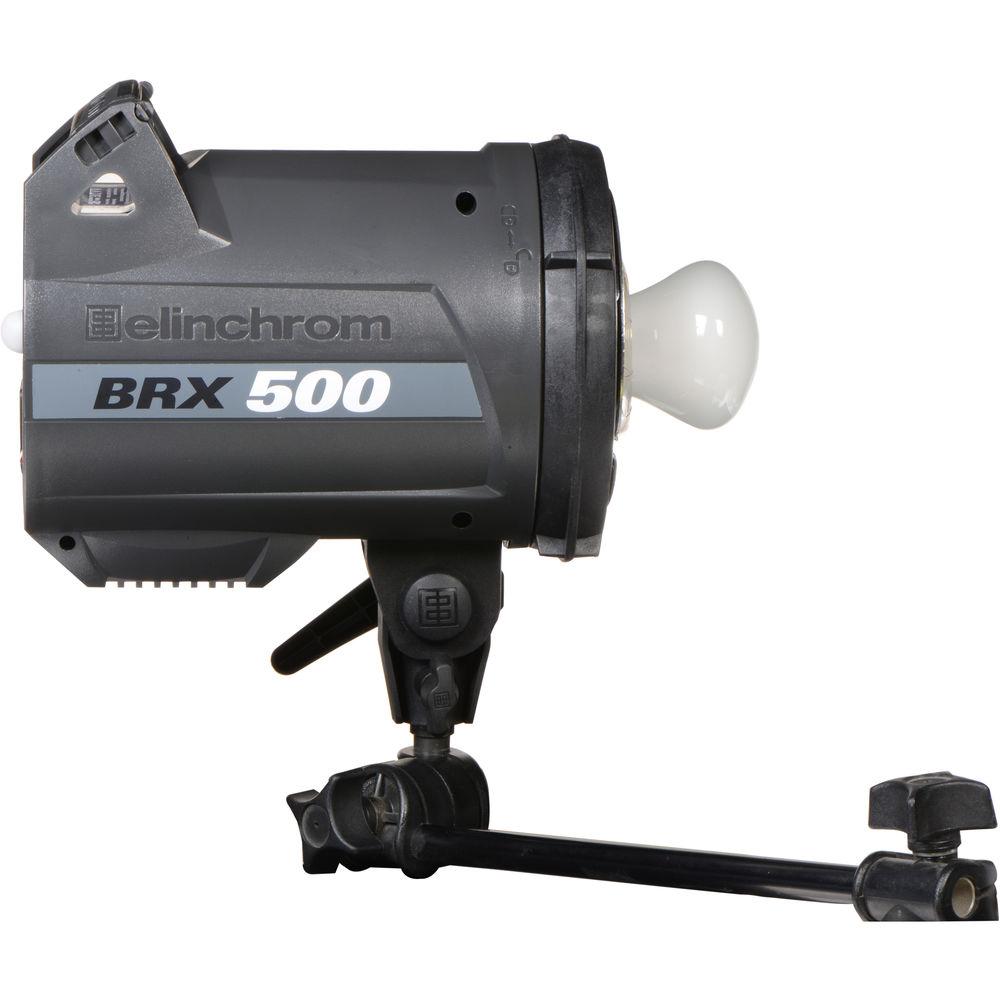

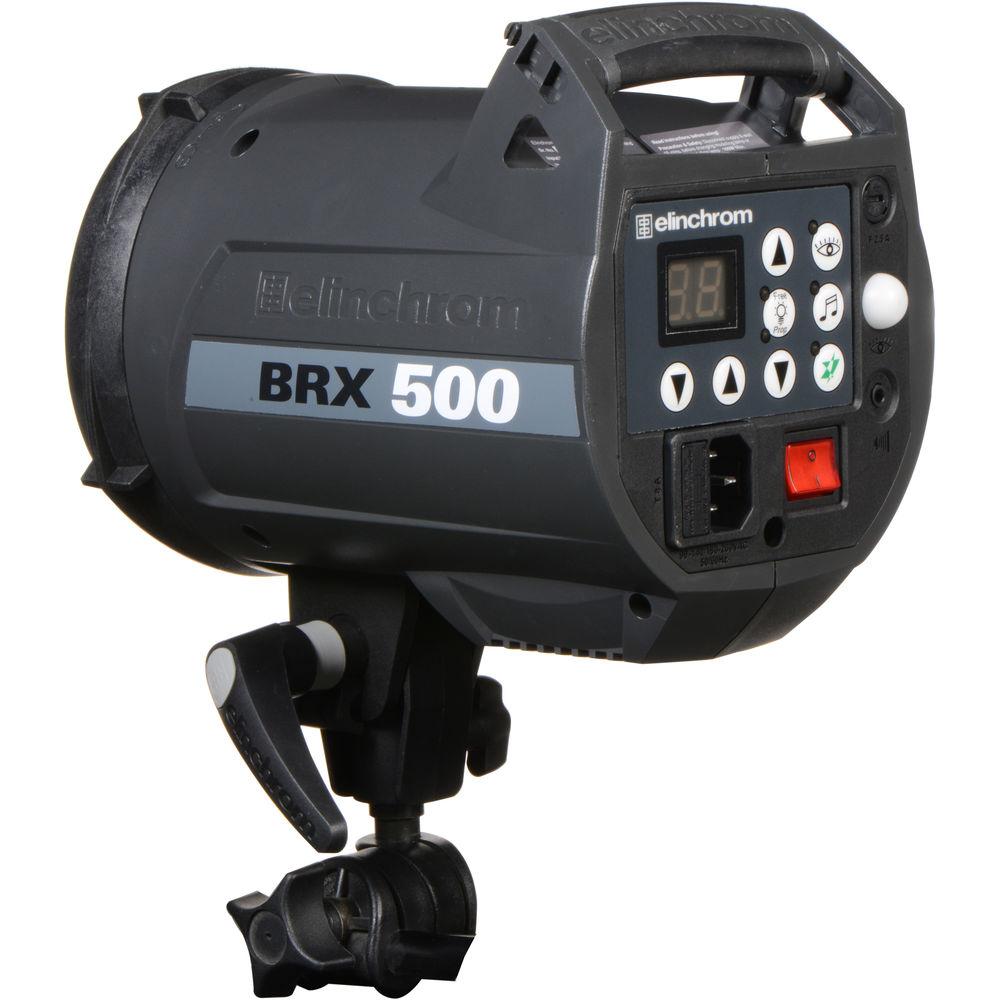

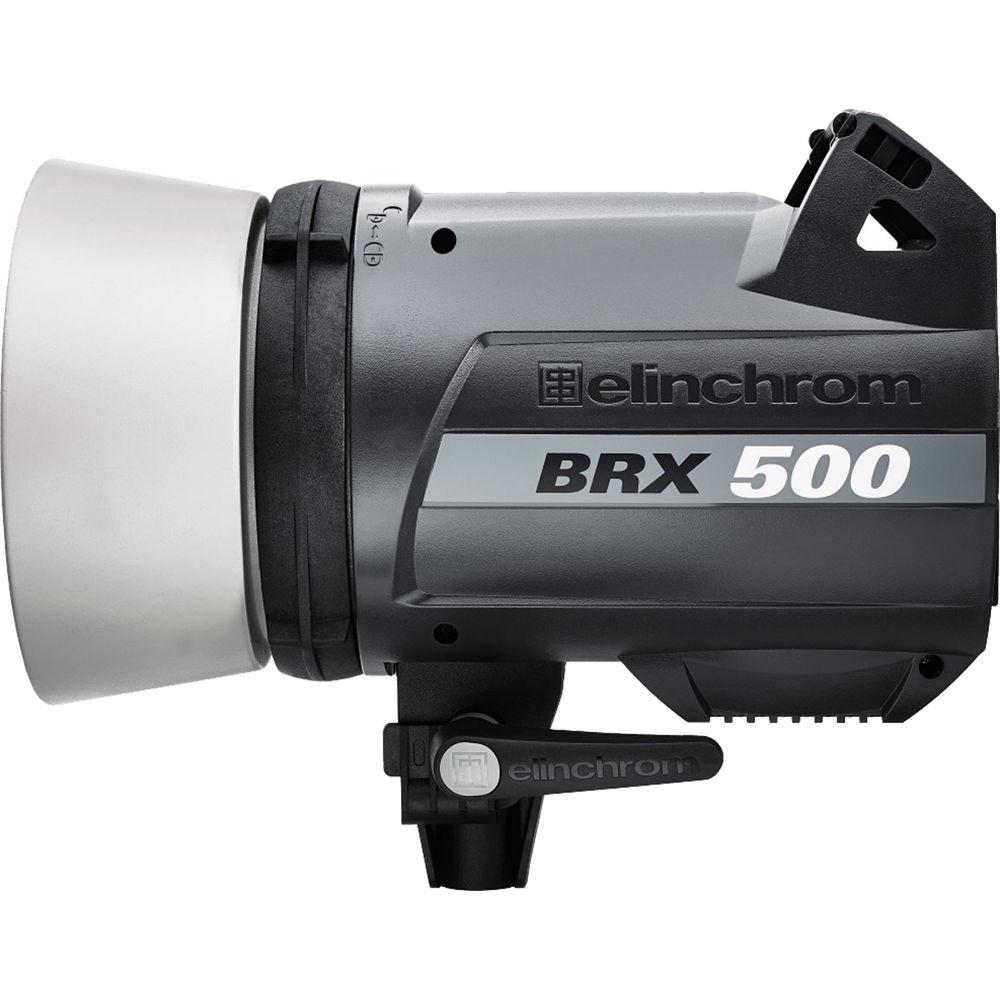

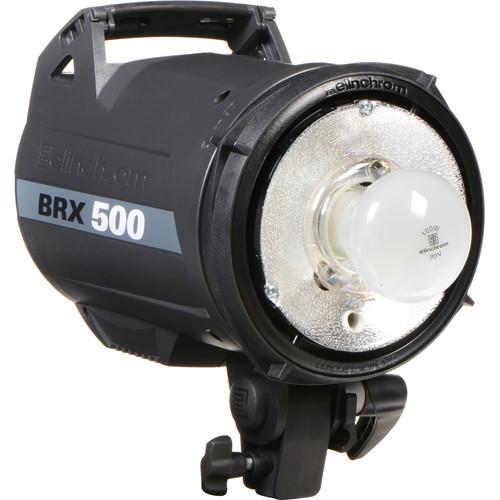

User Manual for Elinchrom BRX 500 Monolight Click to enlarge the picture
Contents of the user manual for the Elinchrom BRX 500 Monolight
- Product category: Monolights Elinchrom
- Brand: Elinchrom
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Elinchrom Monolights
 |
User manual for the Elinchrom BRX 500 Monolight contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Elinchrom product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Elinchrom user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Elinchrom product will considerably shorten its lifespan!
|
Product description The Elinchrom BRX 500 Monolight is packed with professional and convenience features you'd expect from a company of Elinchrom's caliber. Forget about tripping over PC cords. Although this head accepts one, it also has a built-in EL-Skyport Receiver with eight frequency channels that can handle four distinct groups of flashes. The optional transmitter not only allows you to trigger your flash at distances up to 393' but gives you control of power, on/off, modeling light functions and Speed Sync activation. Free software for Mac and PC computers is available with the transmitter, adding additional features such as Flash-Delay for strobing effects. Add an optional USB Wi-Fi module for computer control. You can even use specially designed apps that allow full remote control via your for iPhone, iPad or iPod Touch. The BRX 500 offers very fast recycling rates of 0.34- 1.45 seconds @ 115V with action-stopping flash durations of 1/1,558 sec. The auto-sensing, multi-voltage BRX 500 recognizes any AC power source from 90-260VAC, allowing you to use it anywhere in the world. Note: The head ships with a 115V modeling lamp. Swap it out for use in a nominal 230V environment. - The Facts
-
- Built-in EL-Skyport receiver for triggering
- 8 Frequency channels with 4 groups
- EL-Skyport Speed Sync mode for synchronization up to a 1/320 sec. on enabled SLR cameras
- Pre-flash detector system to enable the use of BRX with speedlights
- Visual Flash Confirmation option. The modeling lamp comes on to confirm the flash has been triggered
- Proportional, maximum, minimum and independent adjustment of the modeling lamp
- Variable f-stop steps: 1/1, 5/10, 4/10, 3/10, 2/10 or 1/10 steps are available
- Programmable ready beep function
- Power Auto-dump
- Automatic temperature controlled ventilation
- Action flashtube for sharper images
- Multi-voltage auto-detection: 90-260VAC (excluding modeling lamp)
- 5V sync socket for maximum protection of digital cameras
- High impact resistant body shell
- Accessory bayonet allowing the complete range of light modifiers
- Rubberized handgrip with built-in fuse storage
- Enhancements
-
- Take full control of your units settings with the EL-Skyport App for iPhone, iPad and iPod Touch via the optional Wi-Fi module
- Additional features such as Flash-Delay for strobing effects are available with the EL-Skyport Software
- Firmware update option
- Improved electronics for better performance
UPC: 719821354598 In the Box Elinchrom BRX 500 Monolight Flashtube (250/500 W/S) for BXRi and Quadra A Flash Heads Modeling Lamp - 100 watts/90 volts - for EL250, EL250C Power Cord PC to 3.5 mm Sync Cord (16'/5.0 m) Protective Cap for Glass Dome, for Elinchrom Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Elinchrom BRX 500 Monolight in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersElinchrom BRX 500 Specs | | | Maximum Power | 31 to 500 Ws | | Power Control | 5 Stops | | Flash Duration | t.5: 1/1558 to 1/1395 Sec | | Recycle Time | 0.34 to 1.45 Sec () | | Color Temperature | 5410K | | Flash Ready Indicator | Audio, Visual | | Reflector | Changeable | | Accessory Fitting Type | Elinchrom Umbrella Shaft | | | | Type | Tungsten | | Wattage | 100 W | | | | Sync Type | Cable, Optical, Radio | | Wireless Range | 393' / 120 m (Radio) | | Sync Voltage | 5 V | | | | AC Input Voltage | 90to260 VAC, 50 / 60 Hz | | Circuit Protection | Fuse | | | | Display | None | | Auto Dump | Yes | | Fan Cooled | Yes | | Dimensions | H: 5.5 x W: 7.5 x L: 10.2" / H: 14.0 x W: 19.0 x L: 26.0 cm | | Weight | 4.5 lb / 2.05 kg | | | | Package Weight | 7.35 lb | | Box Dimensions (LxWxH) | 15.0 x 8.4 x 7.3" |
