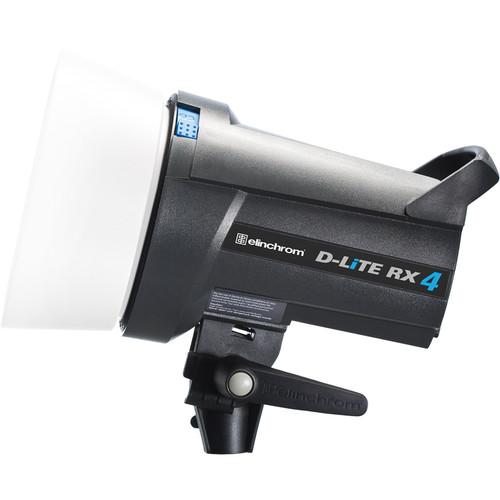

Product description The Elinchrom D-Lite 400W/s RX 4 Flash Head raises the bar on the capabilities of a lightweight, portable strobe. The auto-sensing, multi-voltage flash D-Lite RX 4 recognizes any AC power source from 90-260VAC, allowing power variability over 5.0 stops in 1/10 stop increments. Recycling is a lightning-fast 0.35-1.6 sec. (115V) with flash durations as short as an action-stopping 1/800 sec at full power. But that's just the beginning. The D-Lite 400W/s RX 4 is packed with professional and convenience features usually found in flash heads twice its price. Forget about tripping over PC cords. Although this head accepts one it also has a built-in EL-Skyport Receiver with eight frequency channels that can handle four distinct groups of flashes. Separate purchase of the EL Skyport ELS Speed Transmitter not only allows you to trigger your flash at distances up to 393' but gives you control of power on/off, modeling light functions and Speed Sync activation. Free software for Mac and PC computers is available, providing additional features such as Flash-Delay for strobing effects. Add an optional Wi-Fi module to the transmitter and you can use specially designed apps that allow full remote control via your for iPhone, iPad or iPod Touch. D-Lite 400W/s RX 4's bayonet mount accepts all Elinchrom accessories and softboxes up to 53" (135 cm). It comes with a power cord with a U.S. plug, sync cord, flash tube and protective cap. The included 120V 100W modeling lamp must be swapped out when using the unit in nominal 230V electrical environments. Reflector not included - Basic Features
-
- Built-in EL-Skyport receiver for triggering
- 8 Frequency channels with 4 groups
- Speed Sync mode for synchronization up to a 1/320 sec. on enabled SLR cameras
- Pre-Flash detector system to enable the use of D-Lite RX with speedlights
- Power Auto-dump
- 5V sync socket for maximum protection of digital cameras
- Automatic temperature controlled ventilation
- Multi-voltage auto-detection: 90-260VAC (excluding modeling lamp)
- Lightweight but strong housing. Robust, functional and elegant

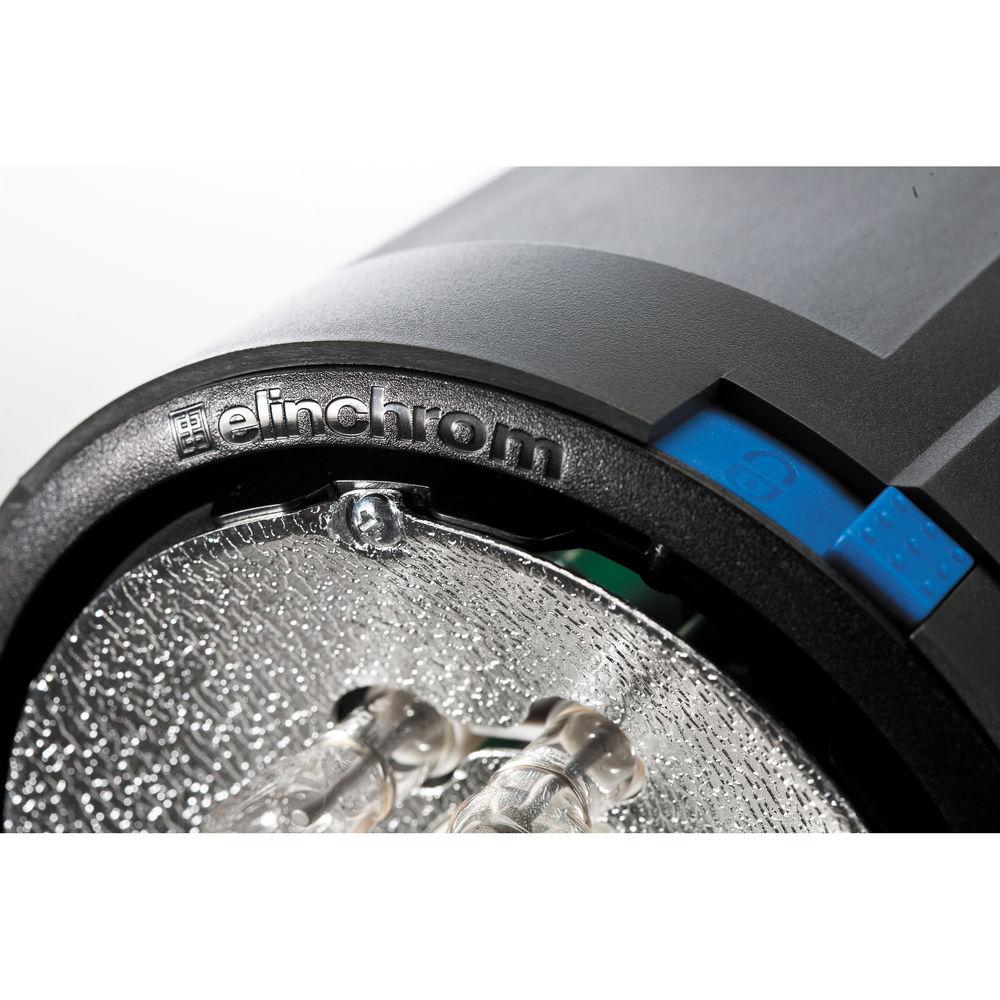

- Accessory bayonet accepts all accessories and Rotalux softboxes up to 53" (135 cm)

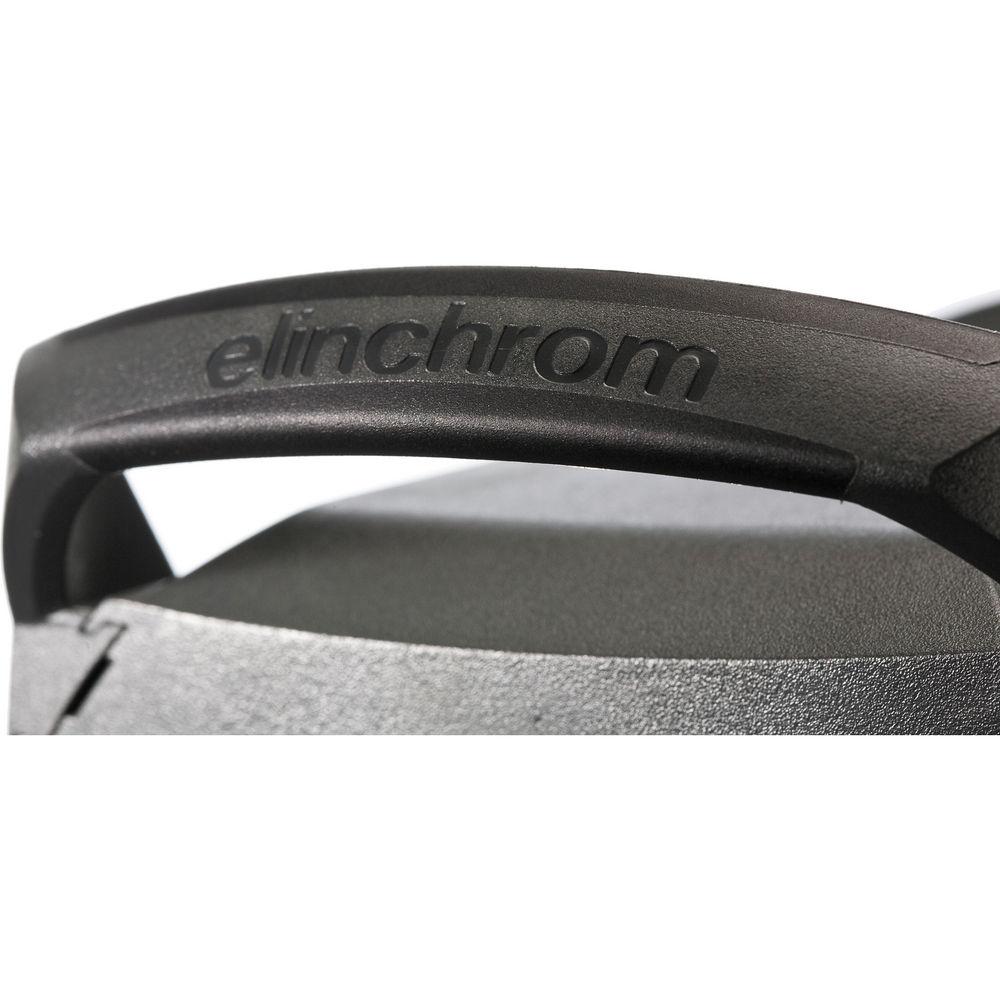

- Rubberized large handle with spare fuse storage

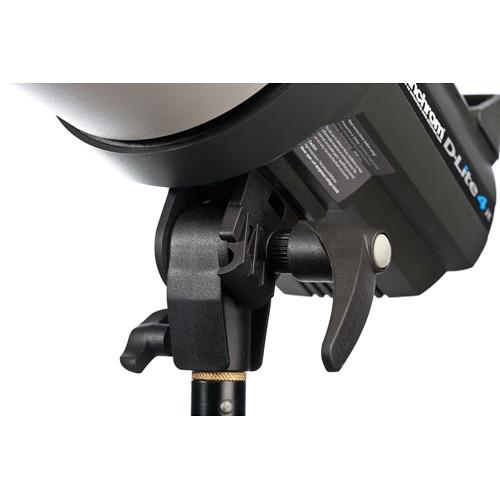

- Stand bracket with extra umbrella fitting for larger umbrella shafts
- Enhancements
-
- Take full control of your unit's settings with the optional EL-Skyport App for iPhone, iPad and iPod Touch via the optional WiFi module
- Additional features such as Flash-Delay for strobing-effects can be accessed via the free EL-Skyport Software
- Visual Flash Confirmation option. The modeling lamp comes on to confirm the flash has been triggered and goes off when recycling
- Proportional adjustment of the modeling lamp
- Variable f/stop steps: 1/1, 5/10, 4/10, 3/10, 2/10 or 1/10 steps are available
- Programmable ready beep function
- Firmware update option
UPC: 719821354802 In the Box Elinchrom D-Lite 400W/s RX 4 Flash Head Flashtube for D-Lite 2, 4 and Ranger Quadra S Flash Heads Sync Cord Power Cable Protective Cap 2 x Fuse Modeling Light (100W/120V) Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Elinchrom D-Lite 400W s RX 4 Flash Head in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersElinchrom RX 4 Specs | | | Maximum Power | 25 to 400 Ws | | Power Control | 5 Stops in 1/10-Stop Increments | | Flash Duration | 1/800 Sec | | Recycle Time | 0.35 to 1.6 Sec () | | Flash Ready Indicator | Audio, Visual | | Reflector | Changeable | | Accessory Fitting Type | Elinchrom Umbrella Shaft | | | | Type | Tungsten | | Wattage | 100 W | | Control Modes | Full, Off, Proportional | | | | Sync Type | Cable, Optical, Radio | | Wireless Channels / Groups | 8 / 4 | | Wireless Range | 393' / 120 m (Radio) | | Sync Voltage | 5 V | | | | AC Input Voltage | 90to260 VAC, 50 / 60 Hz | | | | Display | None | | Auto Dump | Yes | | Fan Cooled | Yes | | Dimensions | H: 5.5 x W: 7.5 x L: 10.2" / H: 14.0 x W: 19.0 x L: 26.0 cm | | Weight | 3.3 lb / 1.5 kg | | | | Package Weight | 5.605 lb | | Box Dimensions (LxWxH) | 15.1 x 8.45 x 7.15" |
