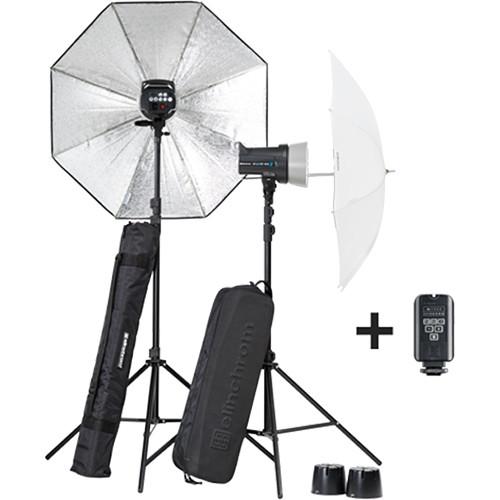

User Manual for Elinchrom D-Lite RX 2 2 Umbrella To Go Kit

• Product category: Monolights Elinchrom
• Brand: Elinchrom
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for Elinchrom Monolights

Product description

• D-Lite 200W/s RX 2 Flash Head The Elinchrom D-Lite 200W/s RX 2 Flash Head raises the bar on the capabilities of a lightweight, portable strobe. The auto-sensing, multi-voltage flash D-Lite RX 2 recognizes any AC power source from 90-260VAC, allowing power variability over 5.0 stops in 1/10 stop increments. Recycling is a lightning-fast 0.2-0.8 sec. (115V) with flash durations as short as an action-stopping 1/1,200 sec at full power. But that's just the beginning. The D-Lite 200W/s RX 2 is packed with professional and convenience features usually found in flash heads twice its price. Although this head accepts one, you won't need a PC cord. It has a built-in EL Skyport Receiver with 8 frequency channels that can handle 4 distinct groups of flashes. Separate purchase of the EL Skyport ELS Speed Transmitter not only allows you to trigger your flash at distances up to 393' but gives you control of power on/off, modeling light functions and Speed Sync activation. Free software for Mac and PC computers is available, providing additional features such as Flash-Delay for strobing effects. Add an optional WiFi module to the transmitter and you can use specially designed apps that allow full remote control via your for iPhone, iPad or iPod Touch. D-Lite 200W/s RX 2's bayonet mount accepts all Elinchrom accessories and softboxes up to 53" (135 cm). It comes with a power cord with a U.S. plug, sync cord, flash tube and protective cap. The included 120V 100W modeling lamp must be swapped out when using the unit in nominal 230V electrical environments.
  Basic Features
  • Built-in EL Skyport receiver for triggering
  • 8 Frequency channels with 4 groups
  • Speed Sync mode for synchronization up to a 1/320 sec. on enabled SLR cameras
  • Pre-Flash detector system to enable the use of D-Lite RX with speedlights
  • Power Auto-dump
  • 5V sync socket for maximum protection of digital cameras
  • Automatic temperature controlled ventilation
  • Multi-voltage auto-detection: 90-260VAC (excluding modeling lamp)
  • Lightweight but strong housing. Robust, functional and elegant
  • Accessory bayonet accepts all accessories and Rotalux softboxes up to 53" (135 cm)
  • Rubberized large handle with spare fuse storage
  • Stand bracket with extra umbrella fitting for larger umbrella shafts
  Enhancements
  • Radio remote control of flash power settings, modeling lamp on/off, speed sync mode and triggering
  • Take full control of your unit's settings with the optional EL Skyport App for iPhone, iPad and iPod Touch via the optional WiFi module
  • Additional features such as Flash-Delay for strobing effects can be accessed via the free EL Skyport Software
  • Visual Flash Confirmation option. The modeling lamp comes on to confirm the flash has been triggered and goes off when recycling
  • Proportional adjustment of the modeling lamp
  • Variable f/stop steps: 1/1, 5/10, 4/10, 3/10, 2/10 or 1/10 steps are available
  • Programmable ready beep function
  • Firmware update option
  UPC: 719821354796
• Wide Angle, Umbrella Reflector, for Elinchrom Gives wide, even umbrella coverage (no center hot spot), even at close flashtube-to-umbrella distance. Supplied with all Location Outfits. A patented, durable bayonet locking system provides positive instant mounting. UPC: 719821150343
• Translucent Deflector This Translucent Deflector for Elinchrom Softlight Reflectors allows some direct, diffused light to reach your subject. It adds a slightly "harder" quality to the light. UPC: 719821204176
• EL-Skyport Transmitter Plus The EL-Skyport Transmitter Plus from Elinchrom is a wireless radio trigger with sixteen channels: 8 in normal and 8 in speed mode, with 4 discrete groups for different or sequentially triggered lighting setups at distances up to 656'. Channels 1, 3, and 7 are compatible with all enabled EL-Skyport units, while channels 1, 3, 7, 9, 12, 15, 18, and 20 are only compatible with the ELC Pro HD flash head and the ELB 400 battery pack system. A 2.5mm sync socket extends the transmitter's versatility to cameras without hot shoes or for hard-wired flash units. The EL-Skyport Transmitter Plus runs on easily sourced AA batteries. The transmitter does not come with batteries.
  Details
  • • Trigger reliably and adjust flash power up to 656' away
    • 4 groups and all selection
    • 16 different channels available (8 in Normal mode and 8 in Speed mode)
    • Quick increase or decrease of the flash power per group with Elinchrom studio strobes with built-in Elinchrom radio receivers
    • Metal hot-shoe connector with screw lock
    • 2.5mm sync socket
    • Normal and Speed sync mode (for leaf shutter cameras)
    • All functions can be easily adjusted
  Benefits
  • • Reliable and consistent triggering
    • Enhanced swivel function for improved reception
    • Continued choices when setting up your strobes
    • Multiple channels for more options when working with or in multiple setups
    • Control light power at the camera
    • No fussing with button batteries, uses AA batteries available everywhere
    • Locking functionality while connected to your camera
    • Flexibility of use with a 2.5mm sync socket
• Umbrella - Translucent - 33" Umbrellas soften, broaden, and diminish the light output of any tungsten or flash light source. Umbrellas with a white interior will soften and weaken light more than an umbrella with a silver lining. This 33" translucent umbrella may also be used as a makeshift softbox, although the use of the light will not be as efficient as with a lightbox.Choosing umbrella size is determined by the size of the subject, and the strength of the light supply being used. Choosing an umbrella surface is as subjecetive as choosing a paint and brush.The material is neutral and allows about 50% transmission.
  • This size is perfect for a 1-2 person head shot, or a 3x5 ft product setup.
  UPC: 719821241829
• Umbrella - Silver - 33" Umbrellas soften, broaden, and diminish the light output of any tungsten or flash light source. Umbrellas with a white interior will soften and weaken light more than an umbrella with a silver lining. A white umbrella without a black backing may also be used as a makeshift softbox, although the use of the light will not be as efficient as with a lightbox.Choosing umbrella size is determined by the size of the subject, and the strength of the light supply being used. Choosing an umbrella surface is as subjective as choosing a paint and brush.
  • Best suited for small group shots when coverage is important.
  UPC: 719821241836
• Stand Kit with Case (7.7') The 2 stands in this Elinchrom Stand Kit with Case are designed to support compact and standard flash heads. They have 5/8" top studs, and rise to a maximum height of 92.5" with a minimum height of 34.6". They will support up to 11 lb, and are stored and transported in the included nylon case with shoulder strap. UPC: 719821386155
• EL 33198 Tube Bag (Black) The Elinchrom EL 33198 Tube Bag (Black) is a replacement case for the case that comes in the Elinchrom D-Lite 2 To Go and D-Lite 4 To Go lighting sets. The case is made from ballistic nylon with rigid sides. It has a clamshell design with wide-mouth opening for easy access to the lights. It can be carried by a sewn-in woven carrying strap with handle or an attached, adjustable shoulder strap.
  • Ballistic nylon case with rigid sides
  • Clamshell design with wide-mouth opening
  Carrying options
  • • Sewn-in woven carrying strap with handle
    • Attached, adjustable shoulder strap
  • Compatible with Elinchrom D-Lite 2 To Go and D-Lite 4 To Go lighting sets
  UPC: 719821280392

• Flashtube for D-Lite 2, 4 and Ranger Quadra S Flash Heads

• PC to 3.5 mm Sync Cord (16'/5.0 m)

• Power Cable

• Protective Cap for Glass Dome, for Elinchrom

• 2 x Fuse

• Modeling Lamp - 100 watts/90 volts - for EL250, EL250C

• Limited 1-Year Warranty

• 2.5mm to PC Sync Cord

• Wrist Strap

• Limited 2-Year Warranty

• Limited 1-Year Warranty

• 1-Year Warranty

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• D-Lite 200W/s RX 2 Flash Head

  Maximum Power	12 to 200 Ws
  Power Control	5 Stops in 1/10-Stop Increments
  Flash Duration	1/1200 Sec
  Recycle Time	0.2 to 0.8 Sec ()
  Flash Ready Indicator	Audio, Visual
  Reflector	Changeable
  Accessory Fitting Type	Elinchrom Umbrella Shaft

  Type	Tungsten
  Wattage	100 W
  Control Modes	Full, Off, Proportional

  Sync Type	Cable, Optical, Radio
  Wireless Channels / Groups	8 / 4
  Wireless Range	393' / 120 m (Radio)
  Sync Voltage	5 V

  AC Input Voltage	90to260 VAC, 50 / 60 Hz

  Display	None
  Auto Dump	Yes
  Fan Cooled	Yes
  Dimensions	H: 5.5 x W: 7.5 x L: 10.2" / H: 14.0 x W: 19.0 x L: 26.0 cm
  Weight	2.9 lb / 1.3 kg

  Box Dimensions (LxWxH)	15.0 x 8.5 x 7.0"

• Wide Angle, Umbrella Reflector, for Elinchrom

  Box Dimensions (LxWxH)	9.0 x 8.0 x 6.0"

• Translucent Deflector

  Box Dimensions (LxWxH)	9.25 x 6.8 x 1.0"

• EL-Skyport Transmitter Plus

  Channels	8 (Normal) 8 (Speed)
  Groups	4
  Wireless Range	656' / 200 m
  Radio Frequency	2.4 GHz

  Ports	1 x 2.5 mm (Camera)

  Battery Type	2 x AA

  Dimensions	3.7 x 2 x 1.5" / 94.9 x 49.9 x 38.3 mm (Transmitter)
  Weight	2.2 oz / 63.5 g

  Box Dimensions (LxWxH)	4.5 x 3.6 x 2.3"

• Umbrella - Translucent - 33"

  Size	33.0" / 83.8 cm
  Interior	White (Translucent)

  Box Dimensions (LxWxH)	22.75 x 1.7 x 1.7"

• Umbrella - Silver - 33"

  Size	33.0" / 83.8 cm
  Interior	Silver
  Exterior	Black

  Box Dimensions (LxWxH)	22.835 x 2.205 x 1.732"

• Stand Kit with Case (7.7')

  Load Capacity	11 lb / 5 kg
  Mounting Options	5/8" Stud
  Maximum Working Height	92.5" / 235 cm
  Minimum Working Height	34.6" / 88 cm
  Footprint Diameter	3.14" / 8 cm
  Air Cushioned	No
  Detachable Base	No
  Leveling Leg	No
  Reverse Legs	No
  Finish	Black
  Material	Aluminum
  Weight	3.2 lb / 1.4 kg

  Box Dimensions (LxWxH)	34.5 x 6.2 x 4.0"

• EL 33198 Tube Bag (Black)

  Closure Type	Zipper
  Carry and Transport Options	Handle Shoulder Strap
  Material of Construction	Nylon
  Exterior Dimensions (W x H x D)	21.5 x 16 x 5.5" / 54.6 x 40.6 x 14.0 cm
  Weight	1 lb / 453.6 g

  Box Dimensions (LxWxH)	26.0 x 9.0 x 9.0"
