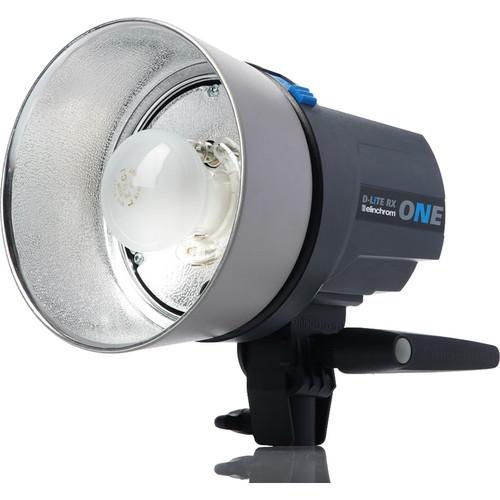

User Manual for Elinchrom D-Lite RX One Flash Head Click to enlarge the picture
Contents of the user manual for the Elinchrom D-Lite RX One Flash Head
- Product category: Monolights Elinchrom
- Brand: Elinchrom
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Elinchrom Monolights
|
User manual for the Elinchrom D-Lite RX One Flash Head contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Elinchrom product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Elinchrom user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Elinchrom product will considerably shorten its lifespan!
|
Product description The Elinchrom D-Lite RX One Flash Head is a 100W/s auto-sensing, multi-voltage monolight that recognizes any AC power source from 90-260VAC, allowing power variability over 5.0 stops in 1/10 stop increments. Recycling is a fast 0.5-2.1 sec. (@115V) with flash durations as short as an action-stopping 1/1,100 sec at full power. The D-Lite RX One is packed with professional and convenience features usually found in flash heads twice its price. Although this head accepts one, you won't need a PC cord. It has a built-in EL Skyport Receiver with 8 frequency channels that can handle 4 distinct groups of flashes. Separate purchase of the EL Skyport Speed Transmitter not only allows you to trigger your flash at distances up to 393' but gives you control of power on/off, modeling light functions and Speed Sync activation. Free software for Mac and PC computers is available, providing additional features such as Flash-Delay for strobing effects. Add an optional WiFi module to the transmitter and you can use specially designed apps that allow full remote control from your for iPhone, iPad or iPod Touch. D-Lite RX One's bayonet mount accepts all Elinchrom accessories and softboxes up to 53" (135 cm). It comes with a power cord with a U.S. plug, sync cord, flash tube and protective cap. The included 115V 100W modeling lamp must be swapped out when using the unit in nominal 230V electrical environments. - Basic Features
-
- Built-in EL Skyport receiver for triggering
- 8 Frequency channels with 4 groups
- Speed Sync mode for synchronization up to a 1/320 sec. on enabled SLR cameras
- Pre-Flash detector system to enable the use with speedlights
- Power Auto-dump
- 5V sync socket for maximum protection of digital cameras
- Automatic temperature controlled ventilation
- Multi-voltage auto-detection: 90-260VAC (excluding modeling lamp)
- Lightweight but strong housing. Robust, functional and elegant
- Accessory bayonet accepts all accessories and Rotalux softboxes up to 53" (135 cm)
- Rubberized large handle with spare fuse storage
- Stand bracket with extra umbrella fitting for larger umbrella shafts
- Enhancements
-
- Radio remote control of flash power settings, modeling lamp on/off, speed sync mode and triggering
- Take full control of your unit's settings with the optional EL Skyport App for iPhone, iPad and iPod Touch via the optional Wi-Fi module
- Additional features such as Flash-Delay for strobing effects can be accessed via the free EL Skyport Software
- Visual Flash Confirmation option. The modeling lamp comes on to confirm the flash has been triggered and goes off when recycling
- Proportional adjustment of the modeling lamp
- Variable f/stop in 1/10 stop increments
- Programmable ready beep function
- Firmware update option
UPC: 719821354789 In the Box Elinchrom D-Lite RX One Flash Head Flashtube for D-Lite 2, 4 and Ranger Quadra S Flash Heads PC to 3.5 mm Sync Cord (16'/5.0 m) Power Cable Protective Cap for Glass Dome, for Elinchrom Modeling Lamp - 100 watts/90 volts - for EL250, EL250C Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Elinchrom D-Lite RX One Flash Head in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersElinchrom RX One Specs | | | Maximum Power | 100 Ws | | Power Control | 5 Stops in 1/10-Stop Increments | | Flash Duration | t.5: 1/2200 to 1/1100 Sec | | Recycle Time | 0.44 to 2.1 Sec () | | Flash Ready Indicator | Audio, Visual | | Reflector | Changeable | | Accessory Fitting Type | Elinchrom Umbrella Shaft | | | | Type | Tungsten | | Wattage | 100 W | | Control Modes | Full, Off, Proportional | | | | Sync Type | Cable, Optical, Radio | | Sync Speed | 1/1/320 Sec | | Wireless Channels / Groups | 8 / 4 | | Wireless Range | 393' / 120 m (Radio) | | Sync Voltage | 5 V | | | | AC Input Voltage | 90to260 VAC, 50 / 60 Hz | | | | Display | None | | Auto Dump | Yes | | Fan Cooled | Yes | | Dimensions | H: 7.0 x W: 5.5 x L: 7.5" / H: 18.0 x W: 14.0 x L: 19.0 cm | | Weight | 1.98 lb / 0.9 kg | | | | Package Weight | 3.755 lb | | Box Dimensions (LxWxH) | 11.25 x 8.4 x 7.05" |
