User Manual for Elinchrom D-Lite RX One One Softbox To Go Kit Click to enlarge the picture
Contents of the user manual for the Elinchrom D-Lite RX One One Softbox
- Product category: Monolights Elinchrom
- Brand: Elinchrom
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Elinchrom Monolights
 |
User manual for the Elinchrom D-Lite RX One One Softbox contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Elinchrom product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Elinchrom user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Elinchrom product will considerably shorten its lifespan!
|

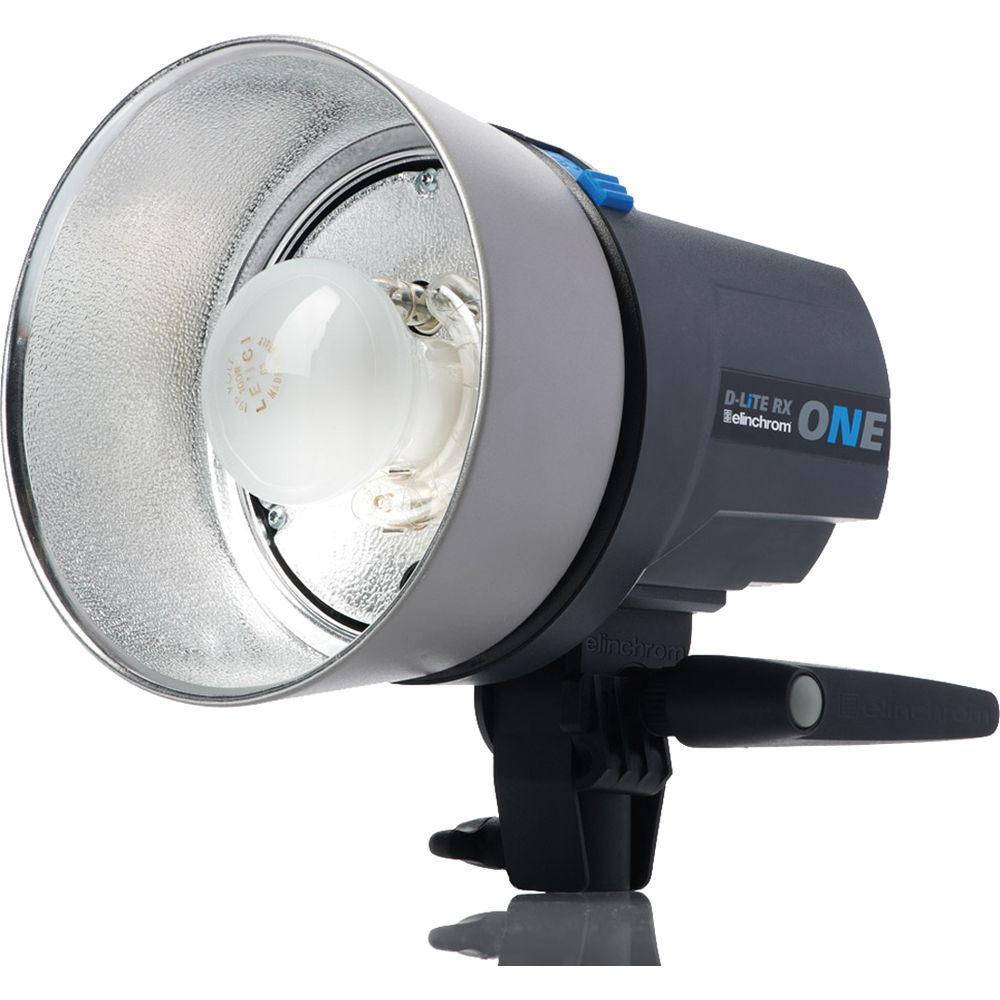

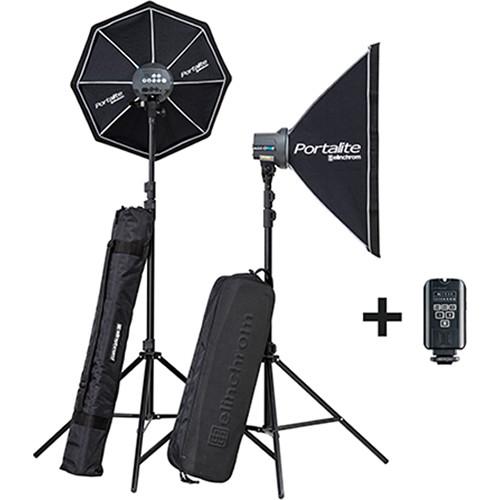

Product description The Elinchrom D-Lite RX One/One Softbox To Go Kit is a quality core or starter kit for portraits or products at home or on location. The kit includes 2 D-Lite RX One 100Ws Flash Heads with built-in wireless EL-Skyport receivers, 90-260 VAC multi-voltage capability and a 0.5 to 2.1-second recycling time. A 16-channel EL-Skyport Transmitter Plus is included for wireless triggering up to 656'. Portalite 26x26" and 22" Octa softboxes are also included to soften the light's output. The kit is rounded out by 2 light stands, a 16' sync cable, and a tube case for the lights. - D-Lite RX One Flash Head The Elinchrom D-Lite RX One Flash Head is a 100W/s auto-sensing, multi-voltage monolight that recognizes any AC power source from 90-260VAC, allowing power variability over 5.0 stops in 1/10 stop increments. Recycling is a fast 0.5-2.1 sec. (@115V) with flash durations as short as an action-stopping 1/1,100 sec at full power. The D-Lite RX One is packed with professional and convenience features usually found in flash heads twice its price. Although this head accepts one, you won't need a PC cord. It has a built-in EL Skyport Receiver with 8 frequency channels that can handle 4 distinct groups of flashes. Separate purchase of the EL Skyport Speed Transmitter not only allows you to trigger your flash at distances up to 393' but gives you control of power on/off, modeling light functions and Speed Sync activation. Free software for Mac and PC computers is available, providing additional features such as Flash-Delay for strobing effects. Add an optional WiFi module to the transmitter and you can use specially designed apps that allow full remote control from your for iPhone, iPad or iPod Touch. D-Lite RX One's bayonet mount accepts all Elinchrom accessories and softboxes up to 53" (135 cm). It comes with a power cord with a U.S. plug, sync cord, flash tube and protective cap. The included 115V 100W modeling lamp must be swapped out when using the unit in nominal 230V electrical environments.
- Basic Features
-
- Built-in EL Skyport receiver for triggering
- 8 Frequency channels with 4 groups
- Speed Sync mode for synchronization up to a 1/320 sec. on enabled SLR cameras
- Pre-Flash detector system to enable the use with speedlights
- Power Auto-dump
- 5V sync socket for maximum protection of digital cameras
- Automatic temperature controlled ventilation
- Multi-voltage auto-detection: 90-260VAC (excluding modeling lamp)
- Lightweight but strong housing. Robust, functional and elegant
- Accessory bayonet accepts all accessories and Rotalux softboxes up to 53" (135 cm)
- Rubberized large handle with spare fuse storage
- Stand bracket with extra umbrella fitting for larger umbrella shafts
- Enhancements
-
- Radio remote control of flash power settings, modeling lamp on/off, speed sync mode and triggering
- Take full control of your unit's settings with the optional EL Skyport App for iPhone, iPad and iPod Touch via the optional Wi-Fi module
- Additional features such as Flash-Delay for strobing effects can be accessed via the free EL Skyport Software
- Visual Flash Confirmation option. The modeling lamp comes on to confirm the flash has been triggered and goes off when recycling
- Proportional adjustment of the modeling lamp
- Variable f/stop in 1/10 stop increments
- Programmable ready beep function
- Firmware update option

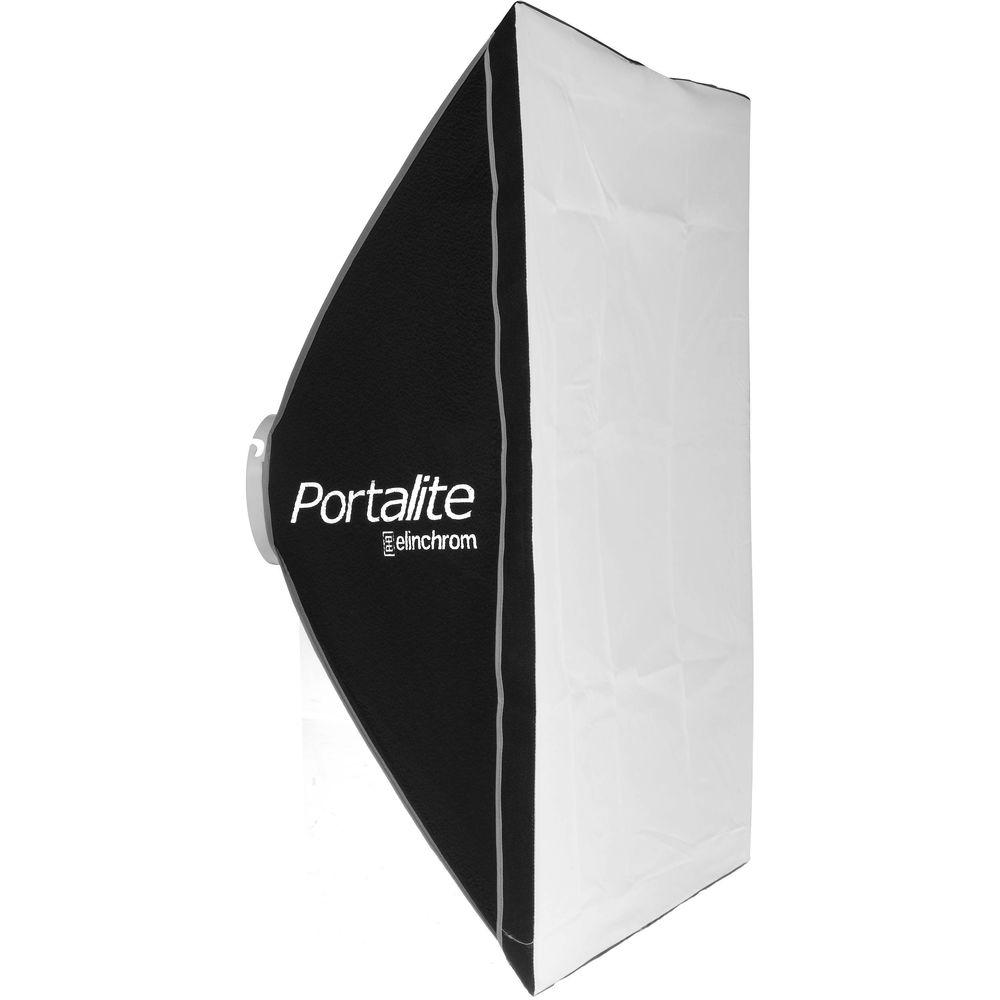

UPC: 719821354789 - Portalite Softbox (26 x 26") This Elinchrom Portalite Softbox (26 x 26") is usually sold as part of a D-Lite 4 or D-Lite 2 Monolight Kit. It has a flush-front diffuser that measures 26 x 26" (66 x 66 cm). UPC: 719821275442

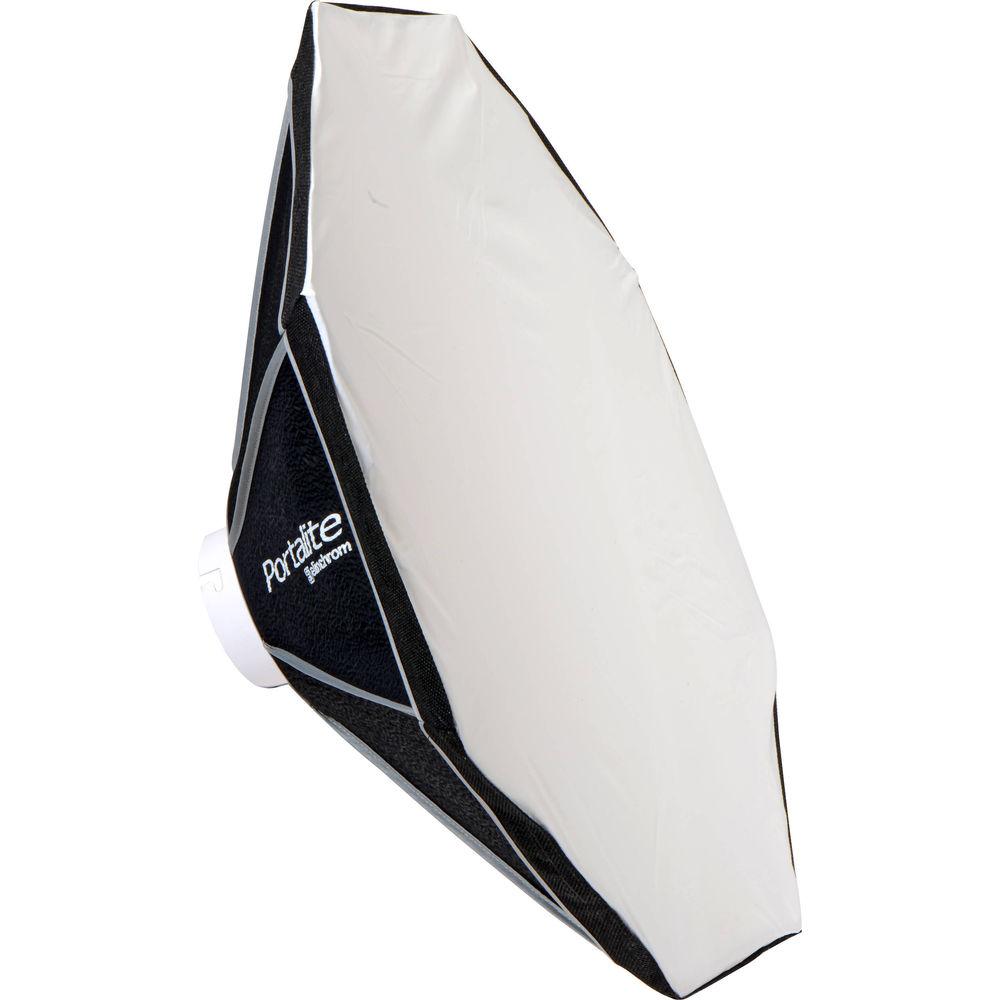

- RQ Portalite Octa Softbox (22") Dramatically soften the light from your Elinchrom Ranger Quadra flash head with this 22" RQ Portalite Octa Softbox. This octagonal-shaped softbox will produce round catchlights while producing a broad, wraparound light for your subject. It comes with the speedring for compatibility with Ranger Quadra heads. Additionally, it's compatible with the optional deflector system to allow you to use the Portalite as a beauty dish with or without the front diffuser.

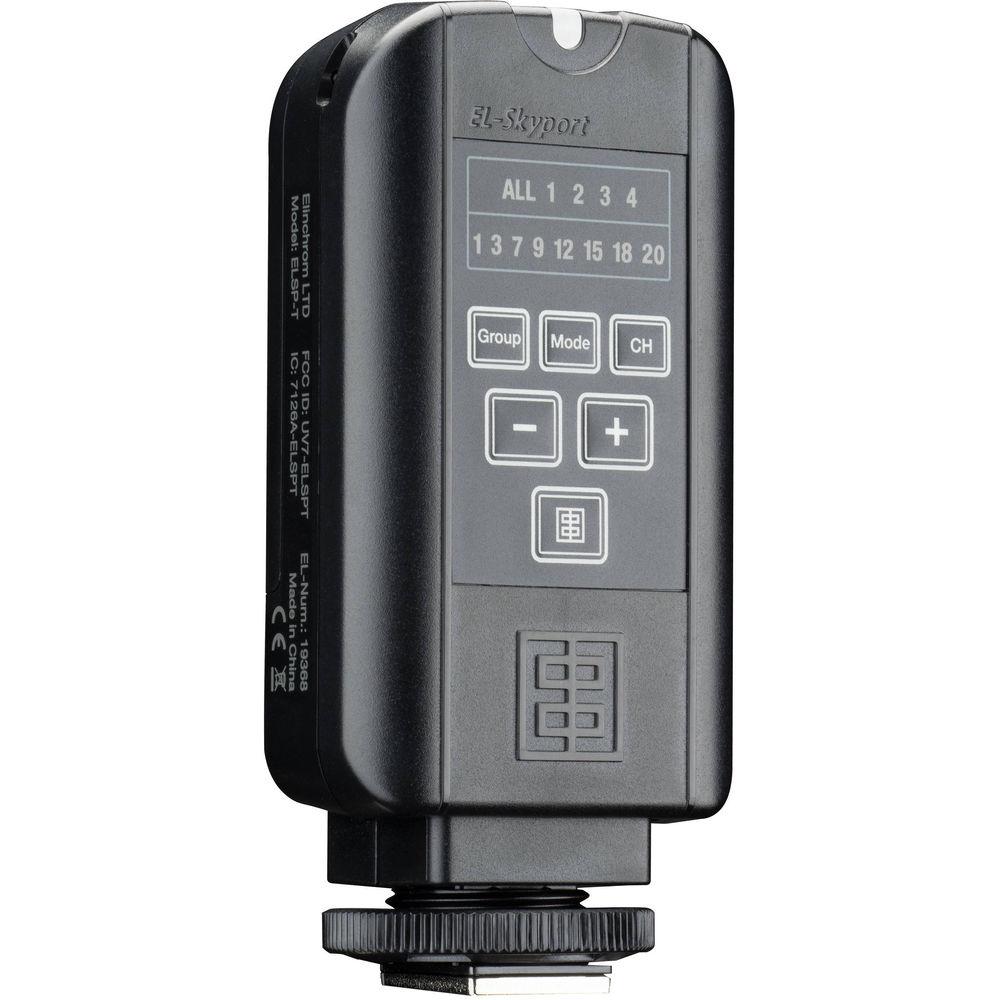

- EL-Skyport Transmitter Plus The EL-Skyport Transmitter Plus from Elinchrom is a wireless radio trigger with sixteen channels: 8 in normal and 8 in speed mode, with 4 discrete groups for different or sequentially triggered lighting setups at distances up to 656'. Channels 1, 3, and 7 are compatible with all enabled EL-Skyport units, while channels 1, 3, 7, 9, 12, 15, 18, and 20 are only compatible with the ELC Pro HD flash head and the ELB 400 battery pack system. A 2.5mm sync socket extends the transmitter's versatility to cameras without hot shoes or for hard-wired flash units. The EL-Skyport Transmitter Plus runs on easily sourced AA batteries. The transmitter does not come with batteries.
- Details
-
- Trigger reliably and adjust flash power up to 656' away
- 4 groups and all selection
- 16 different channels available (8 in Normal mode and 8 in Speed mode)
- Quick increase or decrease of the flash power per group with Elinchrom studio strobes with built-in Elinchrom radio receivers
- Metal hot-shoe connector with screw lock
- 2.5mm sync socket
- Normal and Speed sync mode (for leaf shutter cameras)
- All functions can be easily adjusted
- Benefits
-
- Reliable and consistent triggering
- Enhanced swivel function for improved reception
- Continued choices when setting up your strobes
- Multiple channels for more options when working with or in multiple setups
- Control light power at the camera
- No fussing with button batteries, uses AA batteries available everywhere
- Locking functionality while connected to your camera
- Flexibility of use with a 2.5mm sync socket

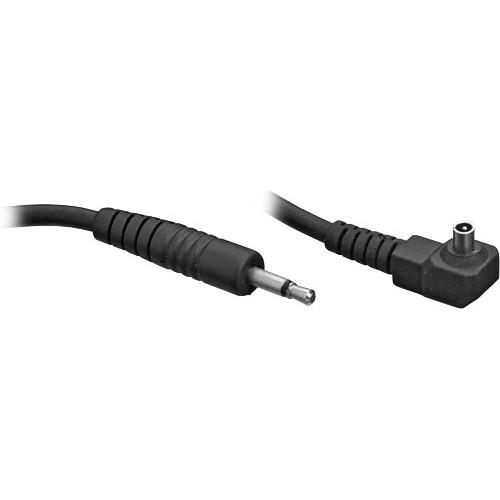

- PC to 3.5 mm Sync Cord (16'/5.0 m) The Elinchrom PC to 3.5 mm Sync Cord (16'/5.0 m) works with their Universal Remote Control. It is compatible with Style, Style S, Style RX, FX, BX, BXRi and D-Lite flash heads. It's also compatible with Chic 1 and 2, Digital 1 and 2, and Digital RX 1200 and 2400 power packs as well as the Ranger Quadra battery pack. UPC: 719821240006
In the Box Bundle Items 2 x D-Lite RX One Flash Head uxryvxxwuwtxtvauuzfusbceczrxyz - Flashtube for D-Lite 2, 4 and Ranger Quadra S Flash Heads
- PC to 3.5 mm Sync Cord (16'/5.0 m)
- Protective Cap for Glass Dome, for Elinchrom
- Modeling Lamp - 100 watts/90 volts - for EL250, EL250C
Portalite Softbox (26 x 26") RQ Portalite Octa Softbox (22") EL-Skyport Transmitter Plus PC to 3.5 mm Sync Cord (16'/5.0 m)
Also Includes - 2 x Light Stand
- Tube Case for D-Lite 2/4
Quick start Guide-RX one PDF 809.9kbuxryvxxwuwtxtvauuzfusbceczrxyz Table of Contents
|
Upload User Manual
Have you got an user manual for the Elinchrom D-Lite RX One One Softbox To Go Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - D-Lite RX One Flash Head
| | | Maximum Power | 100 Ws | | Power Control | 5 Stops in 1/10-Stop Increments | | Flash Duration | t.5: 1/2200 to 1/1100 Sec | | Recycle Time | 0.44 to 2.1 Sec () | | Flash Ready Indicator | Audio, Visual | | Reflector | Changeable | | Accessory Fitting Type | Elinchrom Umbrella Shaft | | | | Type | Tungsten | | Wattage | 100 W | | Control Modes | Full, Off, Proportional | | | | Sync Type | Cable, Optical, Radio | | Sync Speed | 1/1/320 Sec | | Wireless Channels / Groups | 8 / 4 | | Wireless Range | 393' / 120 m (Radio) | | Sync Voltage | 5 V | | | | AC Input Voltage | 90to260 VAC, 50 / 60 Hz | | | | Display | None | | Auto Dump | Yes | | Fan Cooled | Yes | | Dimensions | H: 7.0 x W: 5.5 x L: 7.5" / H: 18.0 x W: 14.0 x L: 19.0 cm | | Weight | 1.98 lb / 0.9 kg | | | | Box Dimensions (LxWxH) | 11.25 x 8.4 x 7.05" | - Portalite Softbox (26 x 26")
| Size | 26 x 26" (66 x 66 cm) | | Shape | Square | | Compatibility | All Prolinca and Elinchrom flash units since 1974
For Quadra heads with separately purchased adapter | | Removable Front Face | No | | Removable Interior Baffle | No | | Accepts Grids | No | | Requires Speed Ring | Included for Elinchrom | | | | Box Dimensions (LxWxH) | 19.8 x 6.7 x 2.8" | - RQ Portalite Octa Softbox (22")
| Shape | Octagon | | Interior | Silver | | Requires Speed Ring | Yes, Included | | Removable Front Face | Yes | | Circular Dimensions |
