User Manual for Elinchrom EL-Skyport Receiver Plus Click to enlarge the picture
Contents of the user manual for the Elinchrom EL-Skyport Receiver Plus
- Product category: Radio & Infrared Transmitters Elinchrom
- Brand: Elinchrom
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Elinchrom Radio & Infrared Transmitters
 |
User manual for the Elinchrom EL-Skyport Receiver Plus contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Elinchrom product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Elinchrom user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Elinchrom product will considerably shorten its lifespan!
|

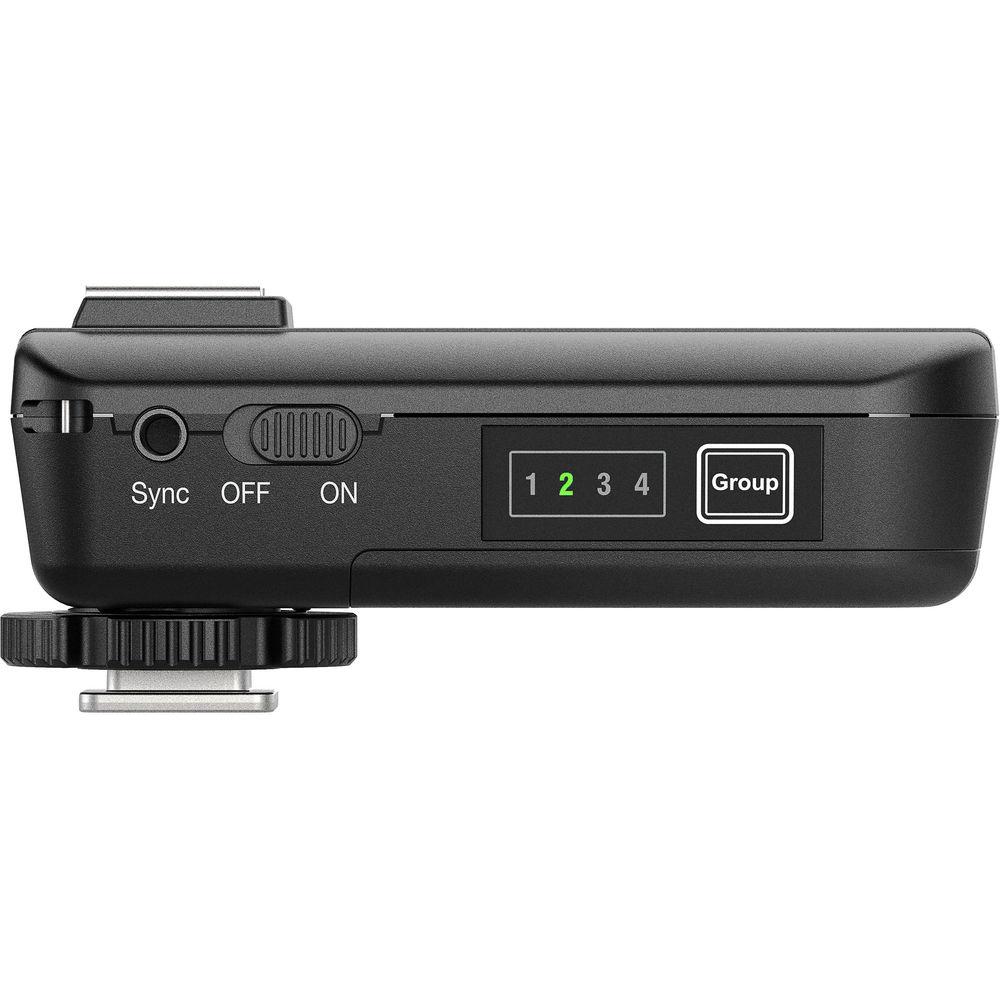

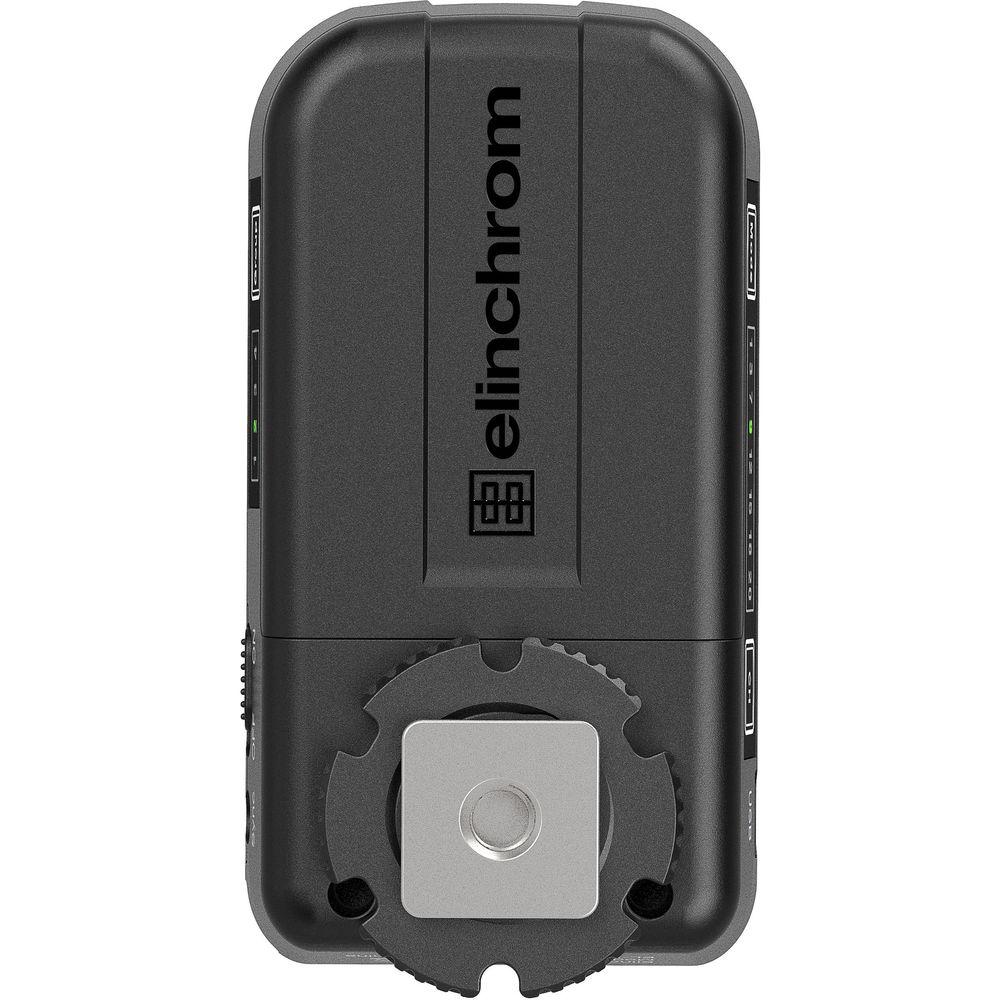

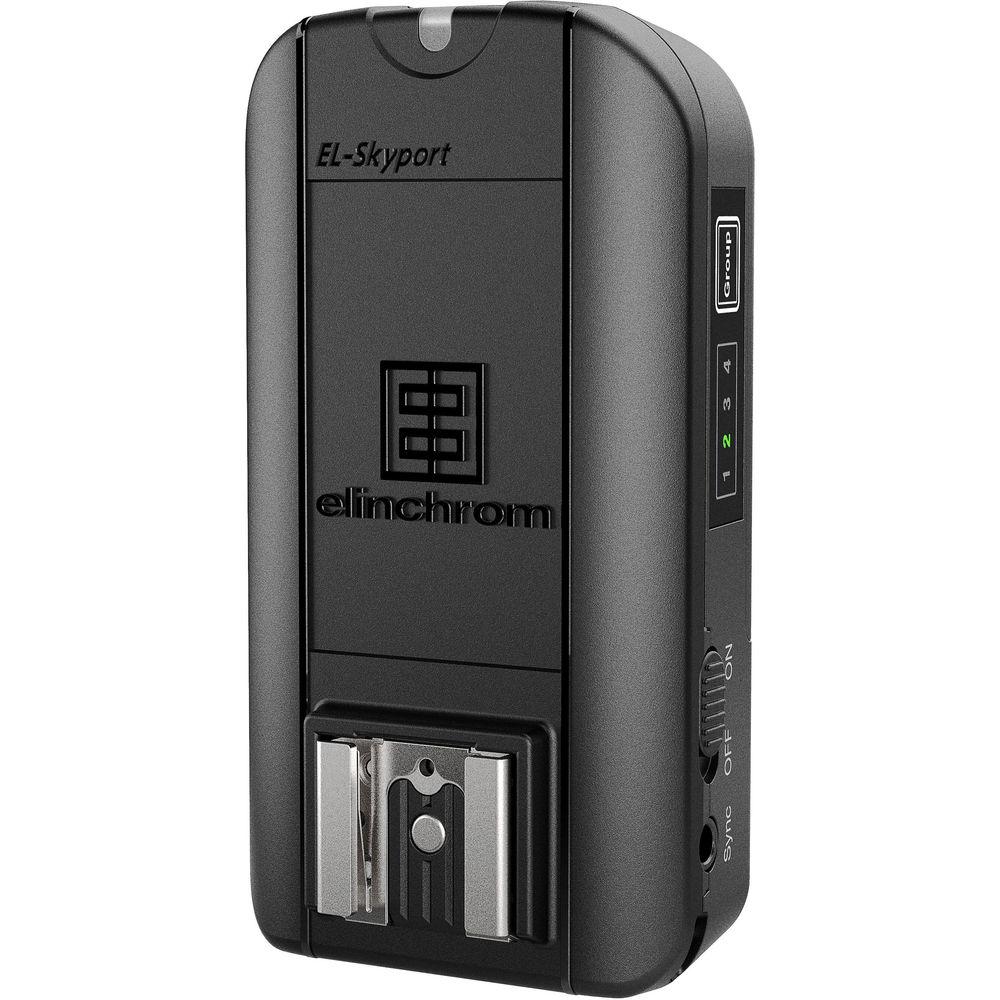

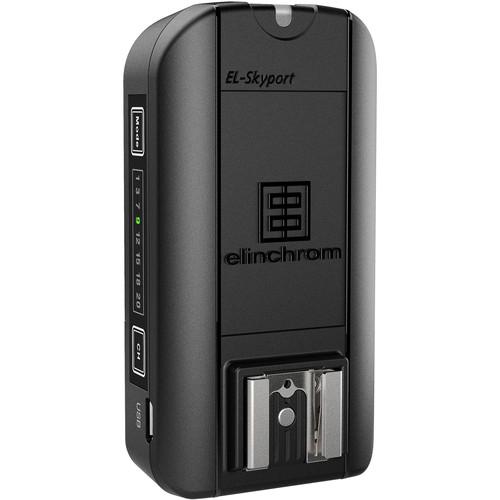

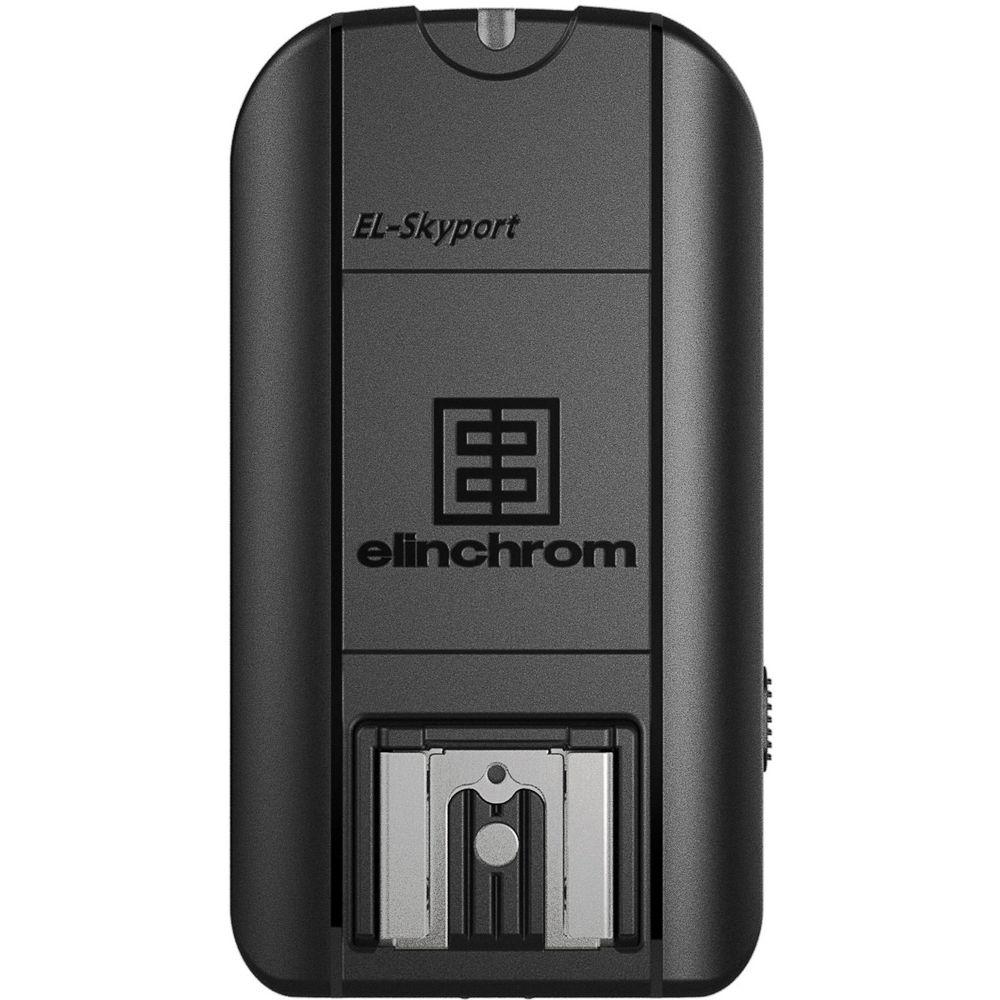

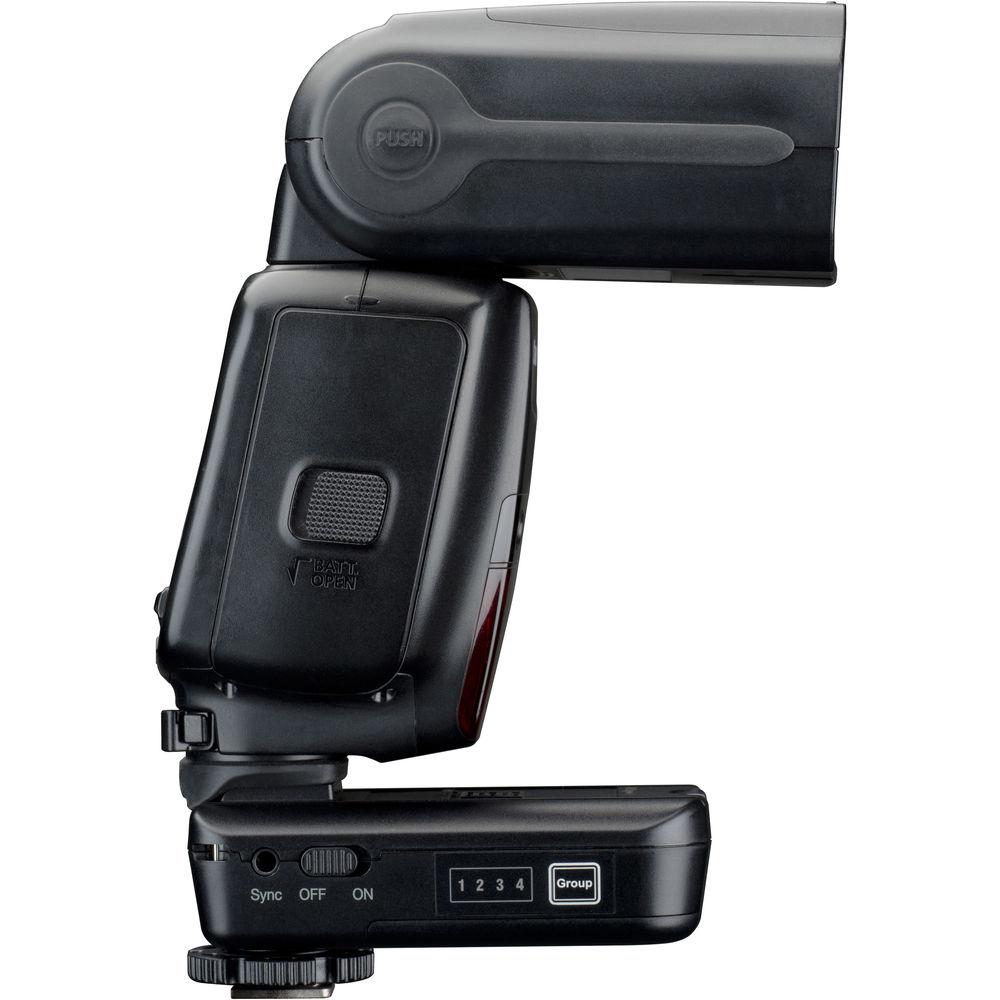

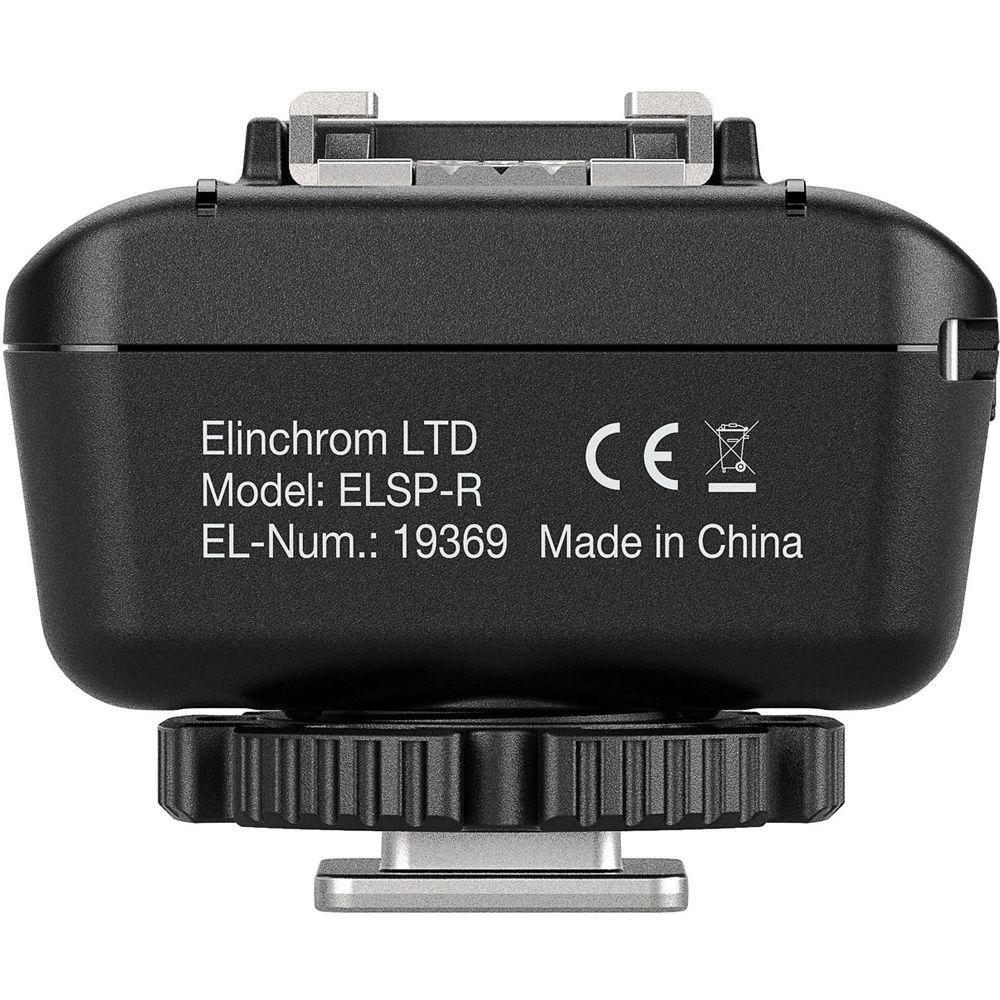

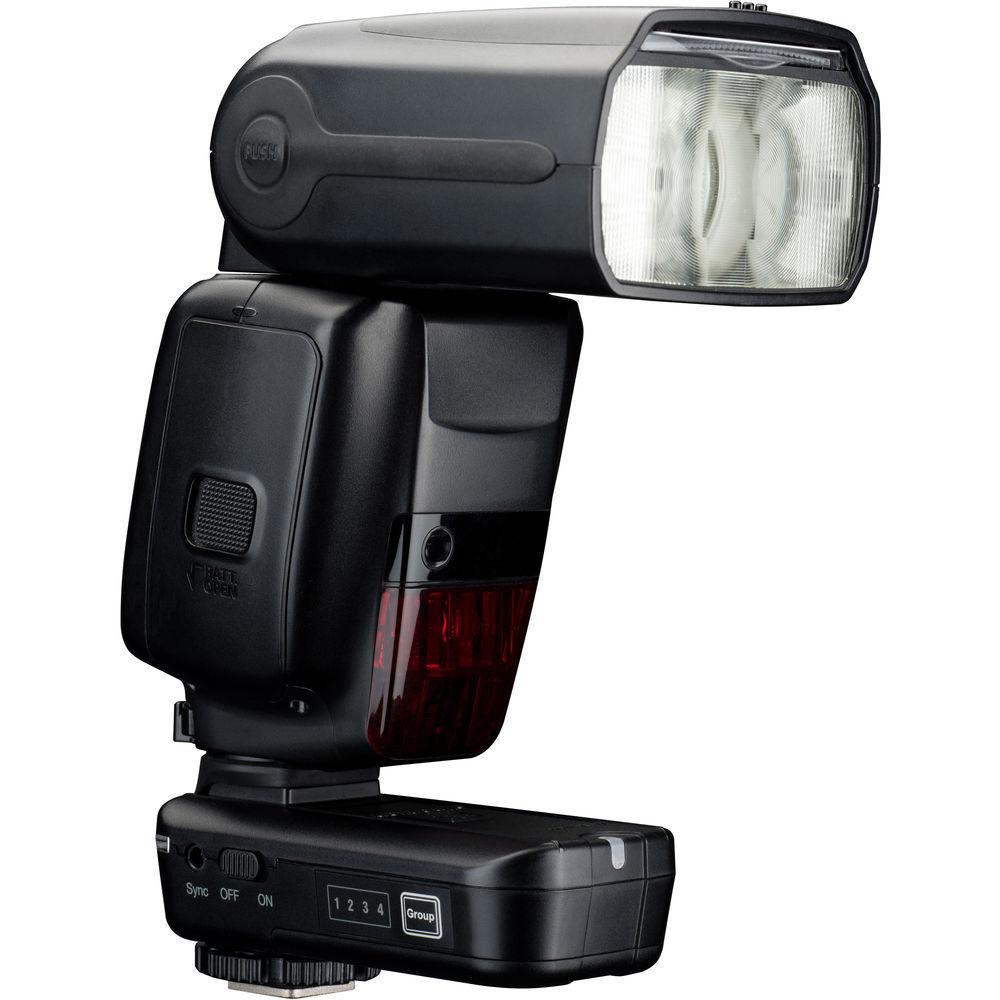

Product description The EL-Skyport Receiver Plus from Elinchrom has sixteen channels: 8 in Normal and 8 in Speed mode, with 4 discrete groups for different or sequentially triggered lighting setups at distances up to 656'. Channels 1, 3, and 7 are compatible with all enabled EL-Skyport units, while channels 1, 3, 7, 9, 12, 15, 18, and 20 are compatible with the EL-Skyport Transmitter Plus and EL-Skyport Transmitter Plus HS. A micro-USB is on-board for firmware updates. The EL-Skyport Receiver Plus runs on easily sourced AA batteries that are available separately.The receiver has a hot shoe on top for remotely firing shoe-mount flashes and a cold shoe on the bottom to attach to a light stand equipped with a swivel or other accessory. This listing is for the receiver only. It must be triggered by an EL-Skyport transmitter. - Details
-
- Trigger reliably at distances up to up to 656'
- 4 selectable groups
- 16 different channels available (8 in Normal mode and 8 in Speed mode)
- Metal hot-shoe connector with screw lock on top of receiver, cold shoe on bottom
- 3.5mm sync socket
- Normal and Speed sync mode (for leaf shutter cameras)
- All functions easily adjusted
- Benefits
-
- Reliable and consistent triggering
- Continued choices when setting up your strobes
- Multiple channels giving options when working with or in multiple setups
- No more fussing with button batteries, uses AA batteries available everywhere
In the Box Elinchrom EL-Skyport Receiver Plus 3.5mm to 3.5mm Sync Cord 3.5mm to 1/4" Adapter Wrist Strap Limited 2-Year Warranty Quick start Guide PDF 679.9kbxxqbacyaerwyvu Table of Contents
|
Upload User Manual
Have you got an user manual for the Elinchrom EL-Skyport Receiver Plus in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersElinchrom EL19369 Specs | | | Channels | 8 (Normal)
8 (Speed) | | Groups | 4 | | Wireless Range | 656' / 200 m | | Radio Frequency | 2.4 GHz | | | | Ports | 1 x 3.5 mm (Flash)
1 x Micro-USB | | | | Dimensions | 3.74 x 1.96 x 1.64" / 94.9 x 49.9 x 41.6 mm (Receiver) | | Weight | 2.68 oz / 76 g (Receiver) | | | | Package Weight | 0.385 lb | | Box Dimensions (LxWxH) | 15.8 x 5.45 x 2.25" |
Rating82% users recommend this product to others. And what about you?
This product has already been rated by 12 owners. Add your rating and experience with the product.
