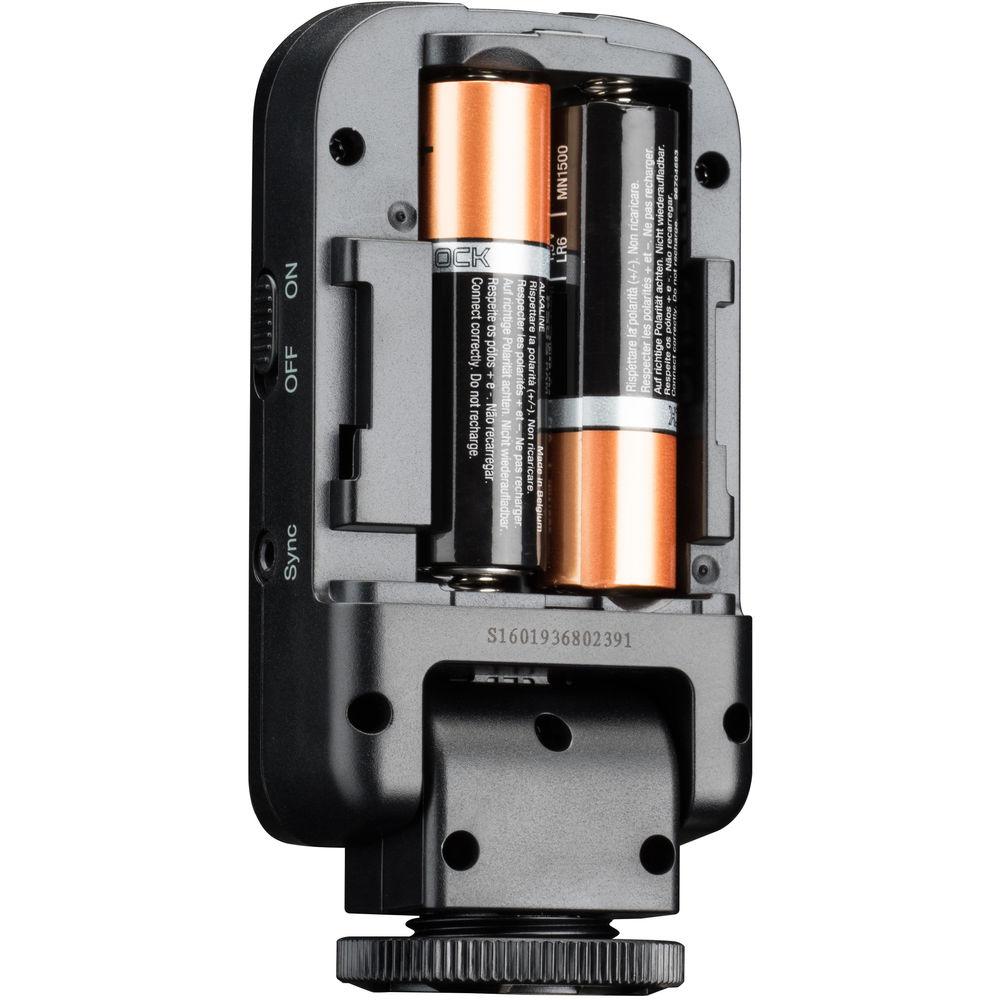

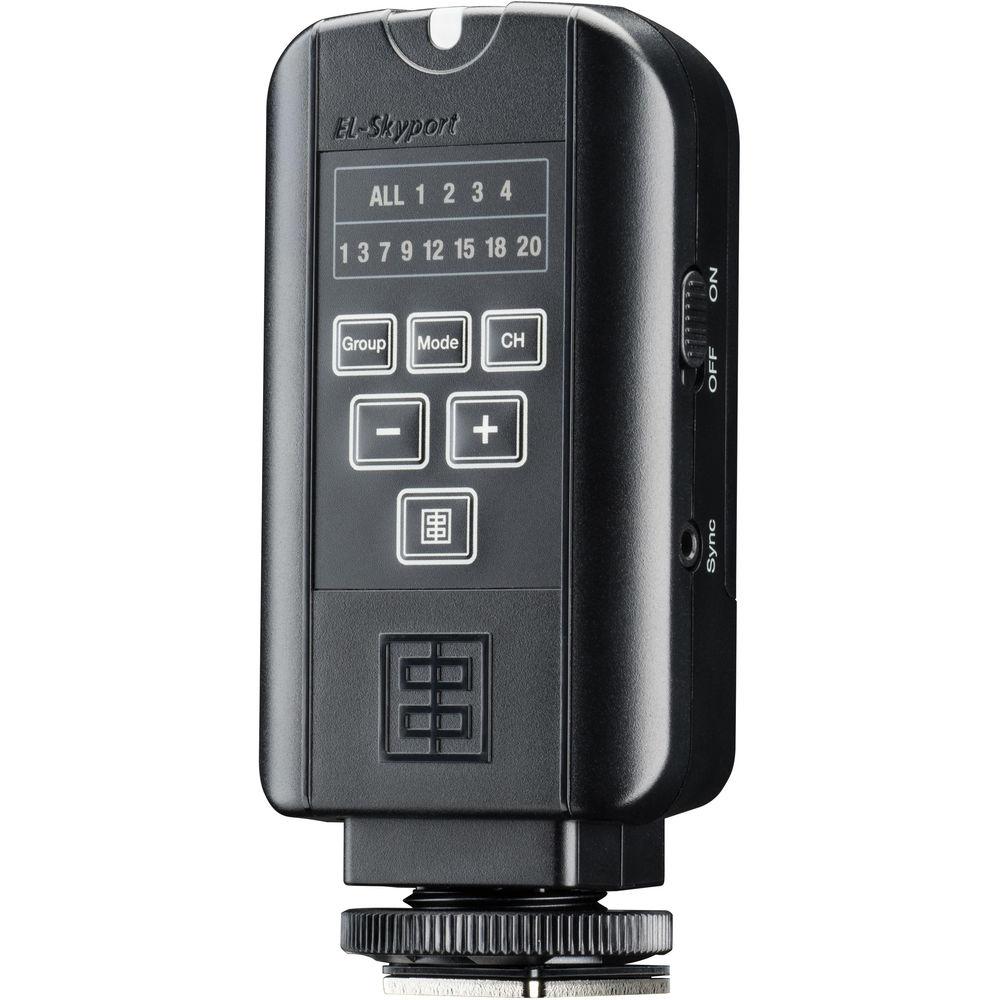

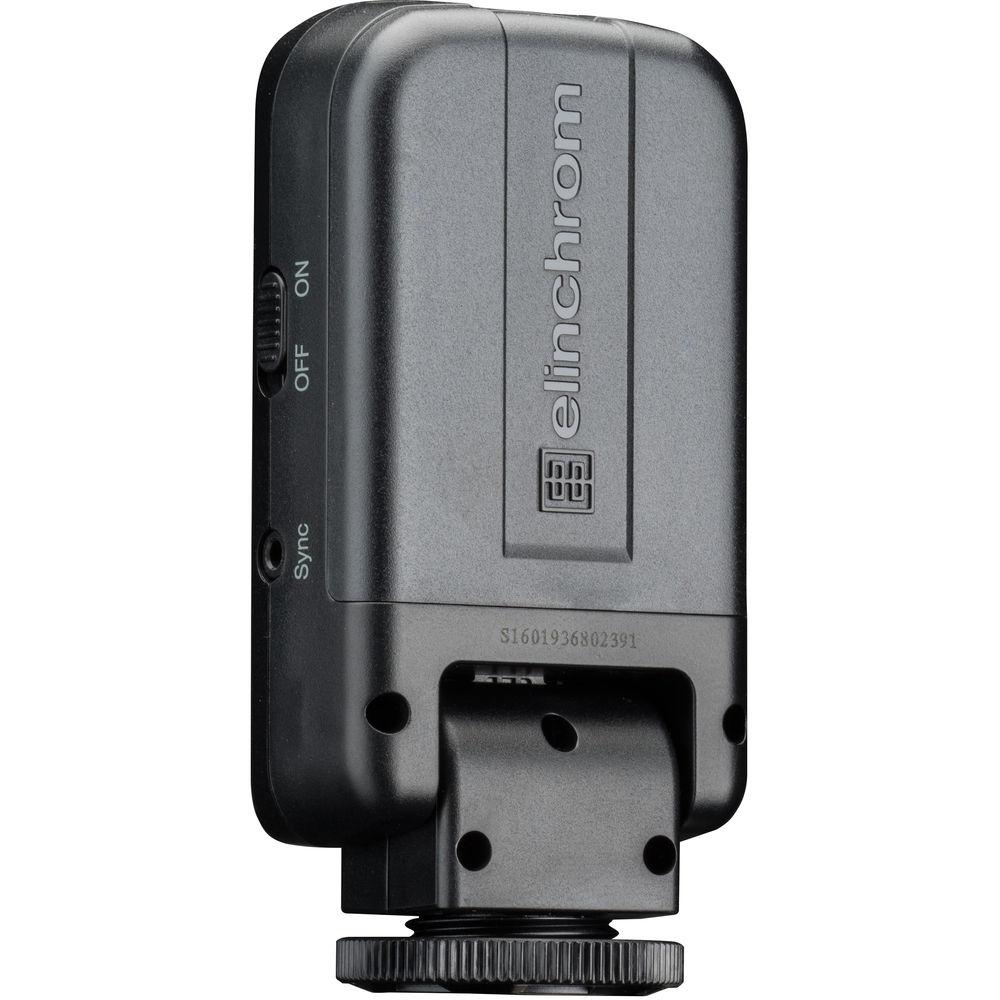

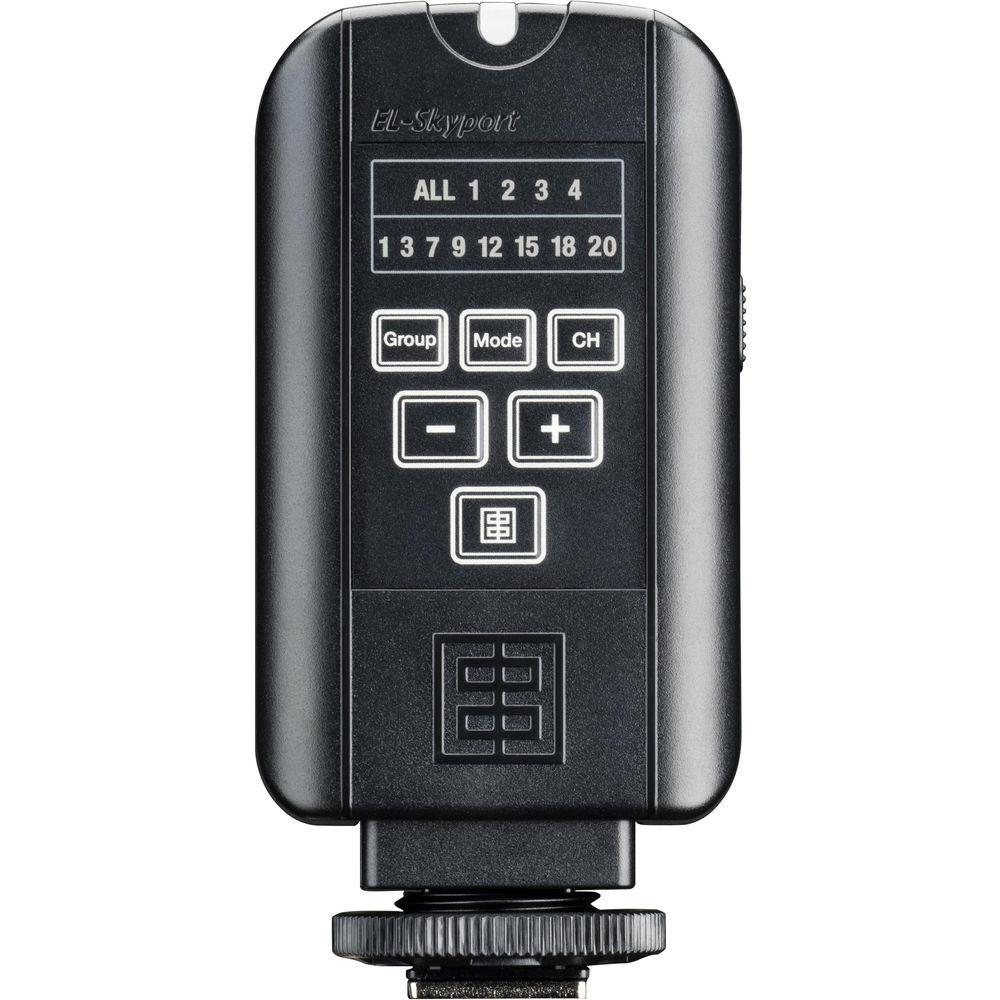

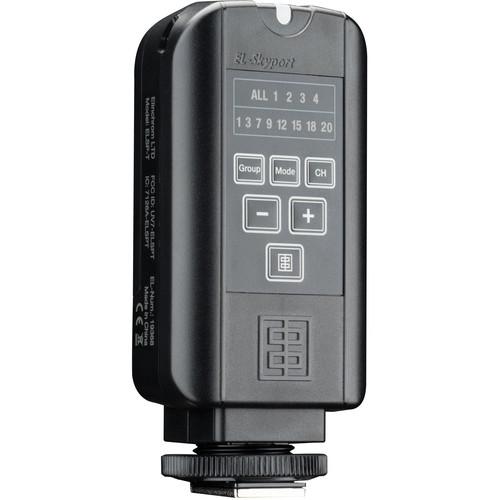

Product description The EL-Skyport Transmitter Plus from Elinchrom is a wireless radio trigger with sixteen channels: 8 in normal and 8 in speed mode, with 4 discrete groups for different or sequentially triggered lighting setups at distances up to 656'. Channels 1, 3, and 7 are compatible with all enabled EL-Skyport units, while channels 1, 3, 7, 9, 12, 15, 18, and 20 are only compatible with the ELC Pro HD flash head and the ELB 400 battery pack system. A 2.5mm sync socket extends the transmitter's versatility to cameras without hot shoes or for hard-wired flash units. The EL-Skyport Transmitter Plus runs on easily sourced AA batteries. The transmitter does not come with batteries. - Details
-
- Trigger reliably and adjust flash power up to 656' away
- 4 groups and all selection
- 16 different channels available (8 in Normal mode and 8 in Speed mode)
- Quick increase or decrease of the flash power per group with Elinchrom studio strobes with built-in Elinchrom radio receivers

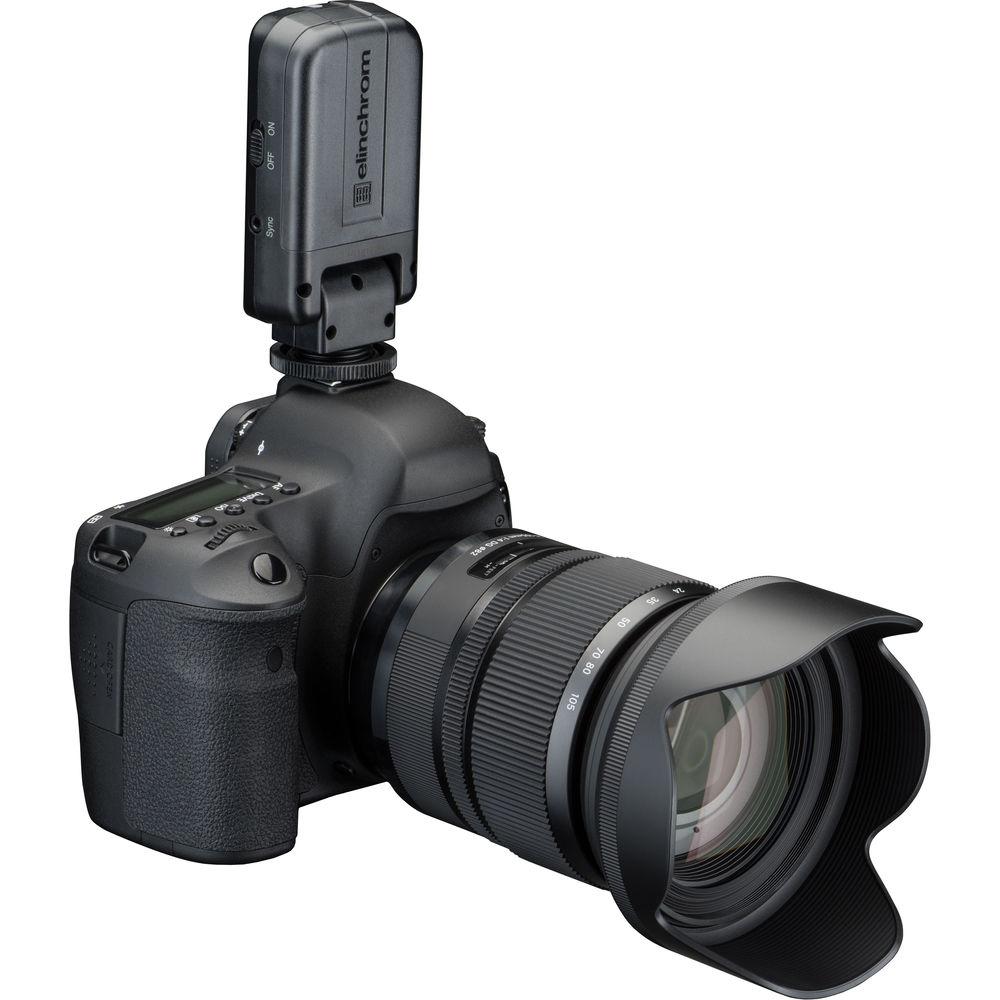

- Metal hot-shoe connector with screw lock

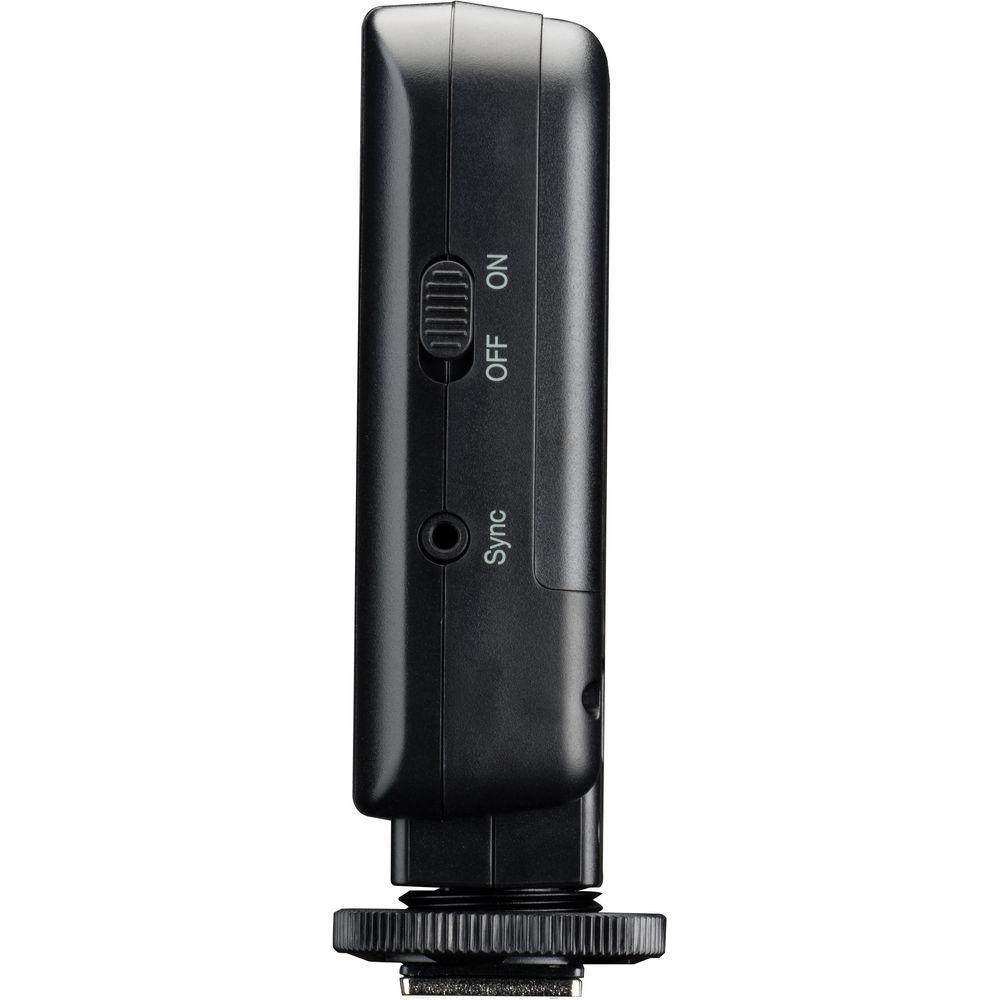

- 2.5mm sync socket
- Normal and Speed sync mode (for leaf shutter cameras)
- All functions can be easily adjusted
- Benefits
-
- Reliable and consistent triggering

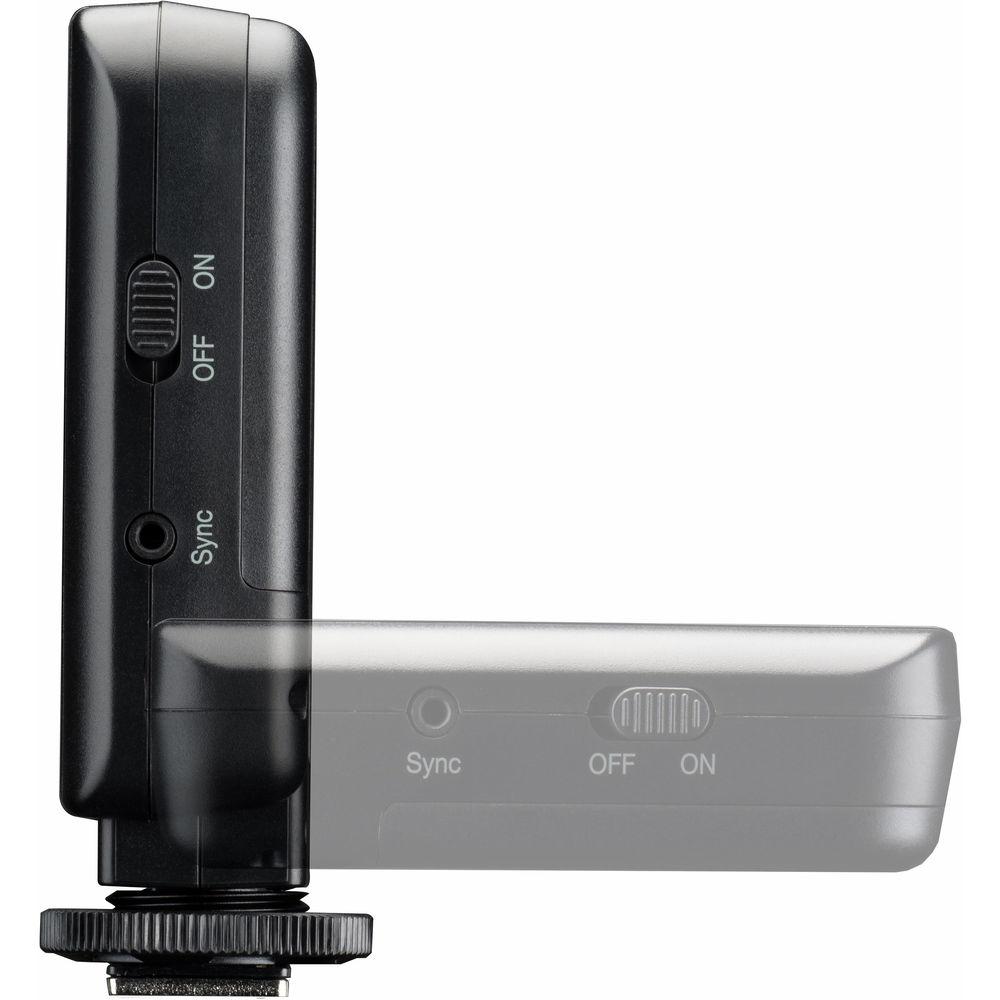

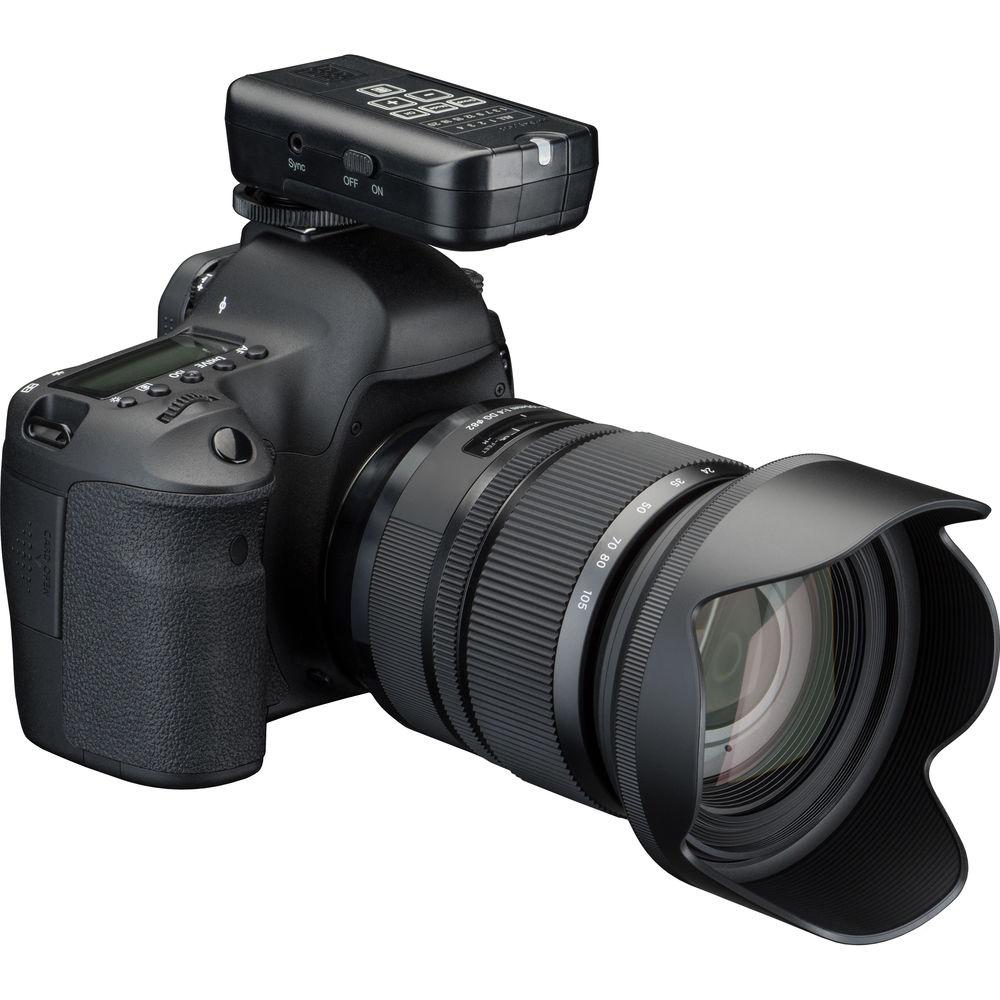

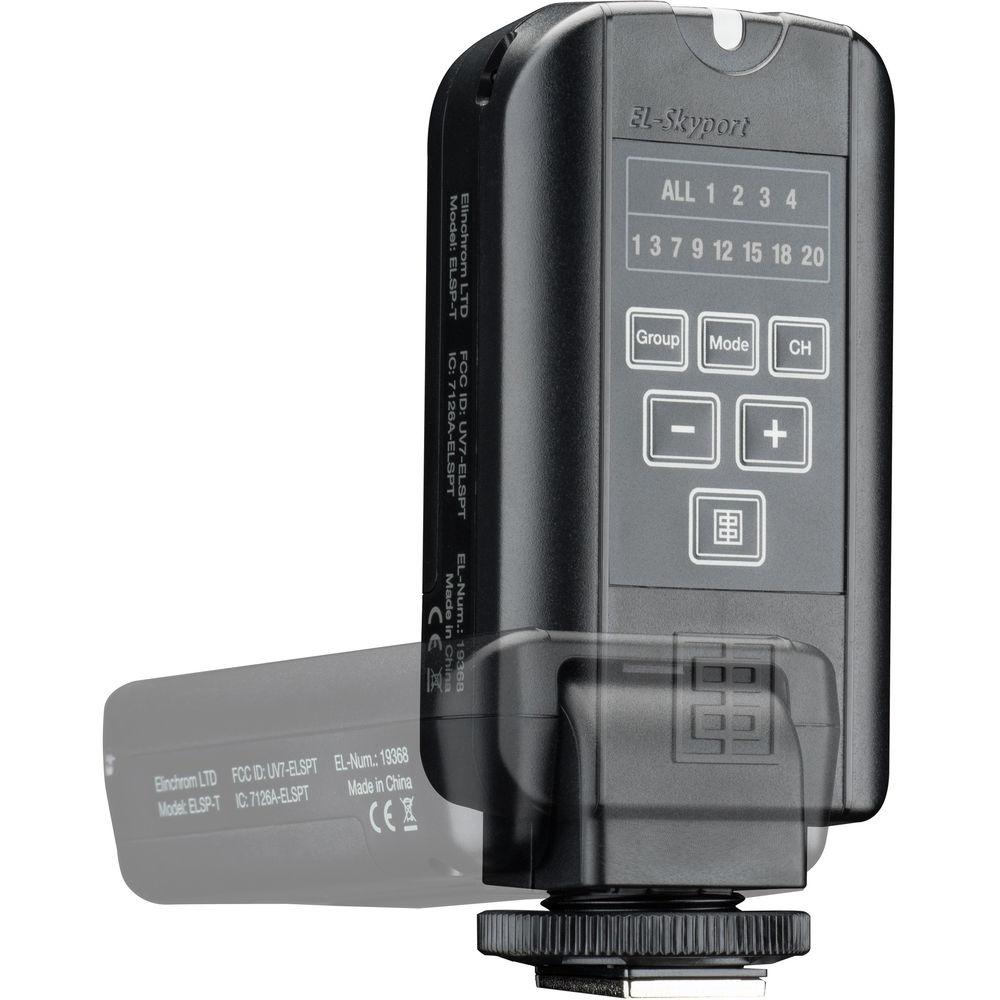

- Enhanced swivel function for improved reception
- Continued choices when setting up your strobes
- Multiple channels for more options when working with or in multiple setups
- Control light power at the camera
- No fussing with button batteries, uses AA batteries available everywhere
- Locking functionality while connected to your camera
- Flexibility of use with a 2.5mm sync socket
In the Box Elinchrom EL-Skyport Transmitter Plus 2.5mm to PC Sync Cord Wrist Strap Limited 2-Year Warranty Quick start Guide PDF 642.5kb Table of Contents
|
Upload User Manual
Have you got an user manual for the Elinchrom EL-Skyport Transmitter Plus in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersElinchrom EL19368 Specs | | | Channels | 8 (Normal)
8 (Speed) | | Groups | 4 | | Wireless Range | 656' / 200 m | | Radio Frequency | 2.4 GHz | | | | Ports | 1 x 2.5 mm (Camera) | | | | Dimensions | 3.7 x 2 x 1.5" / 94.9 x 49.9 x 38.3 mm (Transmitter) | | Weight | 2.2 oz / 63.5 g | | | | Package Weight | 0.37 lb | | Box Dimensions (LxWxH) | 4.5 x 3.6 x 2.3" |
