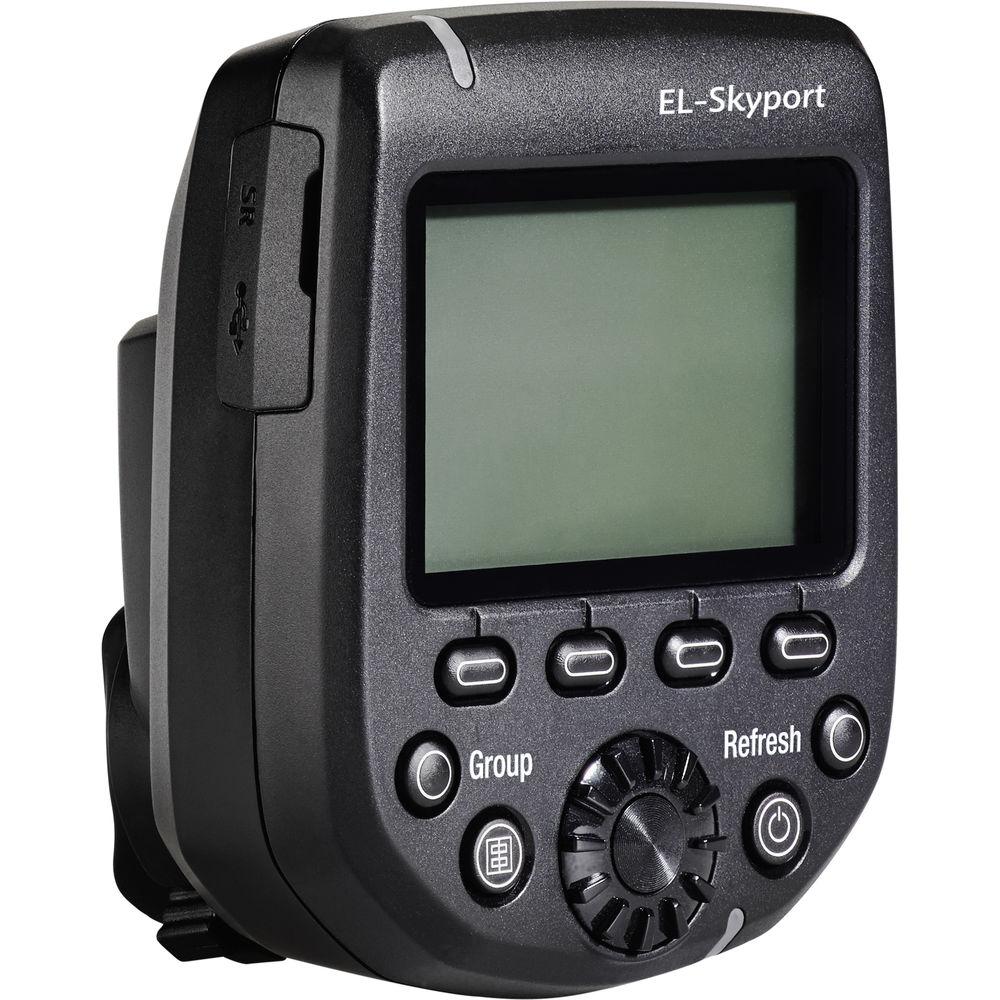

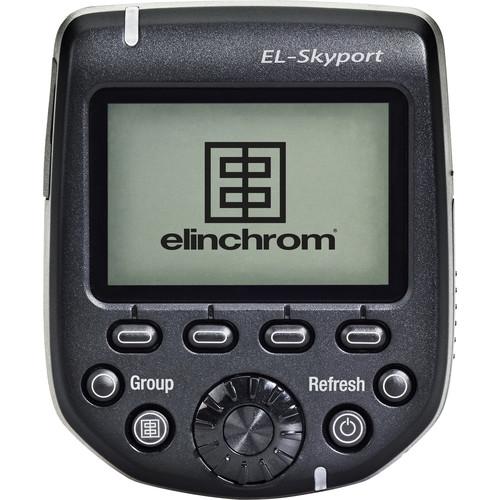

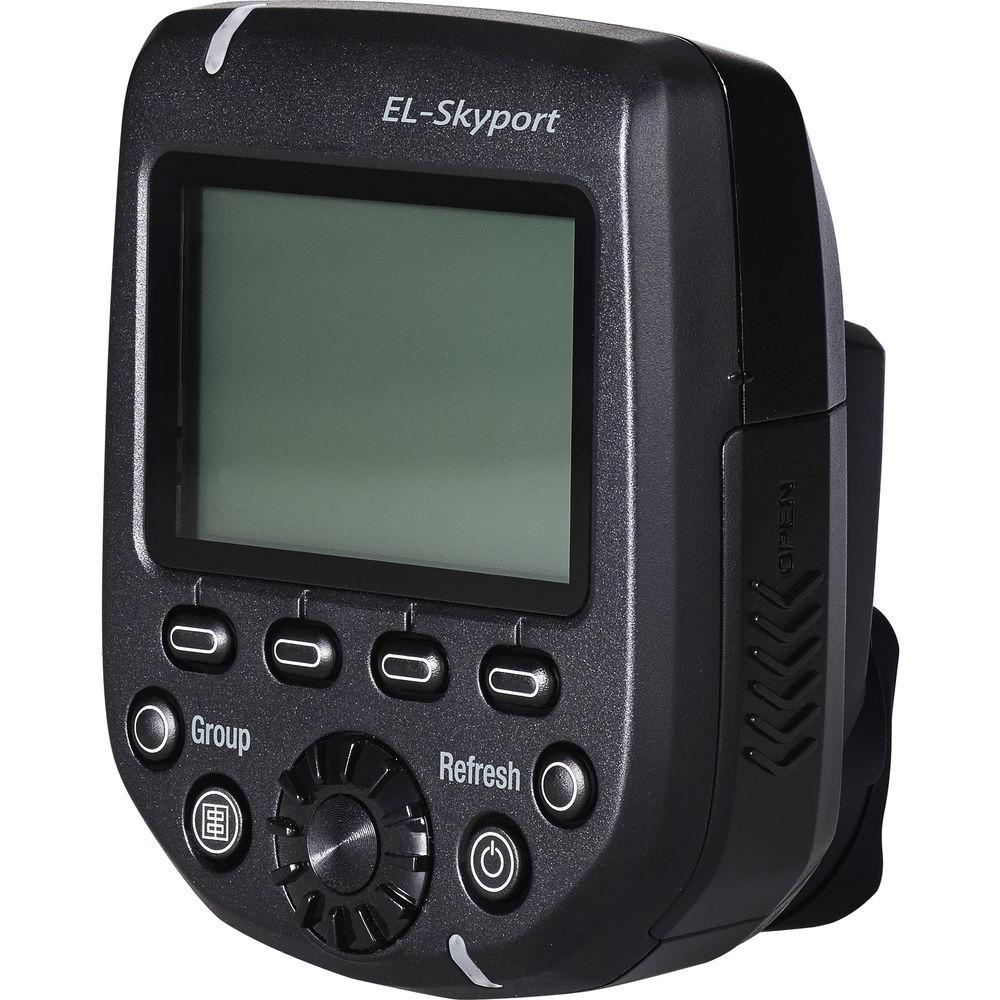

User Manual for Elinchrom EL-Skyport Transmitter Pro for Nikon Click to enlarge the picture
Contents of the user manual for the Elinchrom EL-Skyport Transmitter Pro for Nikon
- Product category: Radio & Infrared Transmitters Elinchrom
- Brand: Elinchrom
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Elinchrom Radio & Infrared Transmitters
 |
User manual for the Elinchrom EL-Skyport Transmitter Pro for Nikon contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Elinchrom product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Elinchrom user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Elinchrom product will considerably shorten its lifespan!
|
Product description - Elinchrom - EL-Skyport Plus HS
With the EL-Skyport Transmitter Pro for Nikon, Elinchrom introduced a game-changing wireless solution that's compatible with three generations of transceivers and flash heads and offers Hi-Sync flash sync speeds up to 1/8000 sec.The 20-channel transmitter is immediately recognizable by its large LCD screen that displays every light in your setup. The Skyport Pro will control the modeling light and flash intensity of BRX, D-Lite RX, ELC Pro HD, and ELB flash heads as well as the EL-Skyport Transceiver RX for the Style RX, Digital RX, and Ranger RX systems. Operating on the 2.4 GHz frequency, it has an enhanced wireless range too, triggering and controlling your flash heads at a distance of 196' indoors and 656' outdoors.One of the transceivers most exciting features is Hi-Sync technology that lets you use shutter speeds up to 1/8000 of a second, far shorter than your camera's standard sync speed. Whether you use it to overpower the sun, freeze action, darken backgrounds, or select wider apertures, Hi-Sync opens up a new realm of exposure possibilities. You can even fine tune the transmitter's trigger signal with ODS (Over Drive Sync) for optimal exposures at high shutter speeds.The EL-Skyport Transmitter Pro runs on AA batteries and has a future-proofing mini-USB connection for firmware updates. - Visual Feedback Interface
- The large LCD display of the Skyport Pro features two-way control via a Visual Feedback Interface that lets you see the exact power of every light in your setup right on the transmitter. Users control each light's power level and modeling lamp setting directly from the Skyport transmitter, which instantly shows the updated power settings.
- Hi-Sync Technology
- Go beyond the X-Sync of your camera. Photographers can simply switch to Hi-Sync mode and access sync speeds up to 1/8000s to freeze motion, overpower the sun, darken backgrounds, or use a wider aperture. The new ODS (Over Drive Sync) enables users to fine tune the Skyport plus HS transmitter's trigger signal to optimize exposure at high shutter speeds while gaining up to two more f-stops of light.
- Impressive Wireless Range
- The Skyport Pro has 20 frequency channels that can be used for either Normal or Speed mode, and a wireless range of 656' outdoors and 196' indoors. It also features a mini-USB socket for firmware updates. Users can instantly distinguish what sync mode they are in since the backlit display glows green for normal sync mode, and red for speed sync mode.
- Compatibility
- The Skyport Pro represents a seamless extension of the EL-Skyport family since it is also compatible with the three previous generations of flash units including the EL- Skyport Transceiver RX module for Style RX, Digital RX, and Ranger RX systems and the integrated EL-Skyport modules for the BRX, D-Lite RX, ELC Pro HD, and ELB series. The Skyport Pro adds synchronization capability and two-way control functionality to all Elinchrom lights with EL-Skyport capability.
- LCD Display
- The LCD display shows each strobe unit's power settings and allows for full control of all strobes right on top of the Skyport Pro. The individual strobes show up automatically on the screen, and you can adjust the settings on top of the transceiver or on the strobe itself. You can see and control up to 10 different EL strobes with the HS transmitter.
- AF Assist Light
- The Skyport Pro also includes an autofocus assist feature to help cameras focus in low light situations. This avoids using the flash unit's modeling light which drains battery power.
In the Box Elinchrom EL-Skyport Transmitter Pro for Nikon Limited 1-Year Warranty User Manual PDF 1mbcawrqcazefxyuacfabw Table of Contents
|
Upload User Manual
Have you got an user manual for the Elinchrom EL-Skyport Transmitter Pro for Nikon in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersElinchrom EL19367 Specs | | | Channels | 20 (Normal)
20 (Speed) | | Groups | 4 | | Wireless Range | 164 to 656' / 50 to 200 m | | Radio Frequency | 2.4 GHz | | | | Sync Speed | 1/8000 Sec (High-Speed) | | | | Ports | 1 x 2.5 mm (Camera Shutter)
1 x Mini-USB | | | | Dimensions | 3.3 x 2.7 x 2.3" / 84 x 68 x 58 mm (Transmitter) | | Weight | 4.3 oz / 122.5 g | | | | Package Weight | 0.58 lb | | Box Dimensions (LxWxH) | 16.0 x 4.75 x 2.85" |
Rating86% users recommend this product to others. And what about you?
This product has already been rated by 48 owners. Add your rating and experience with the product.
