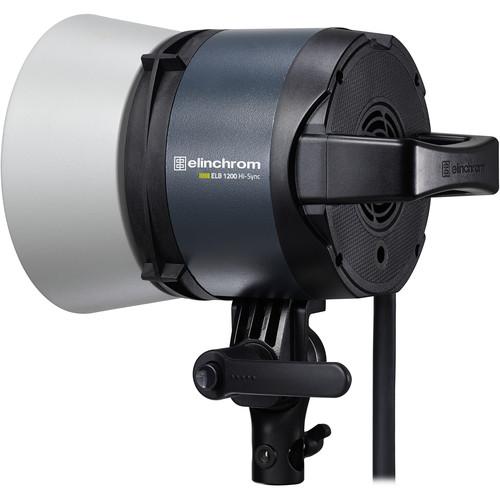

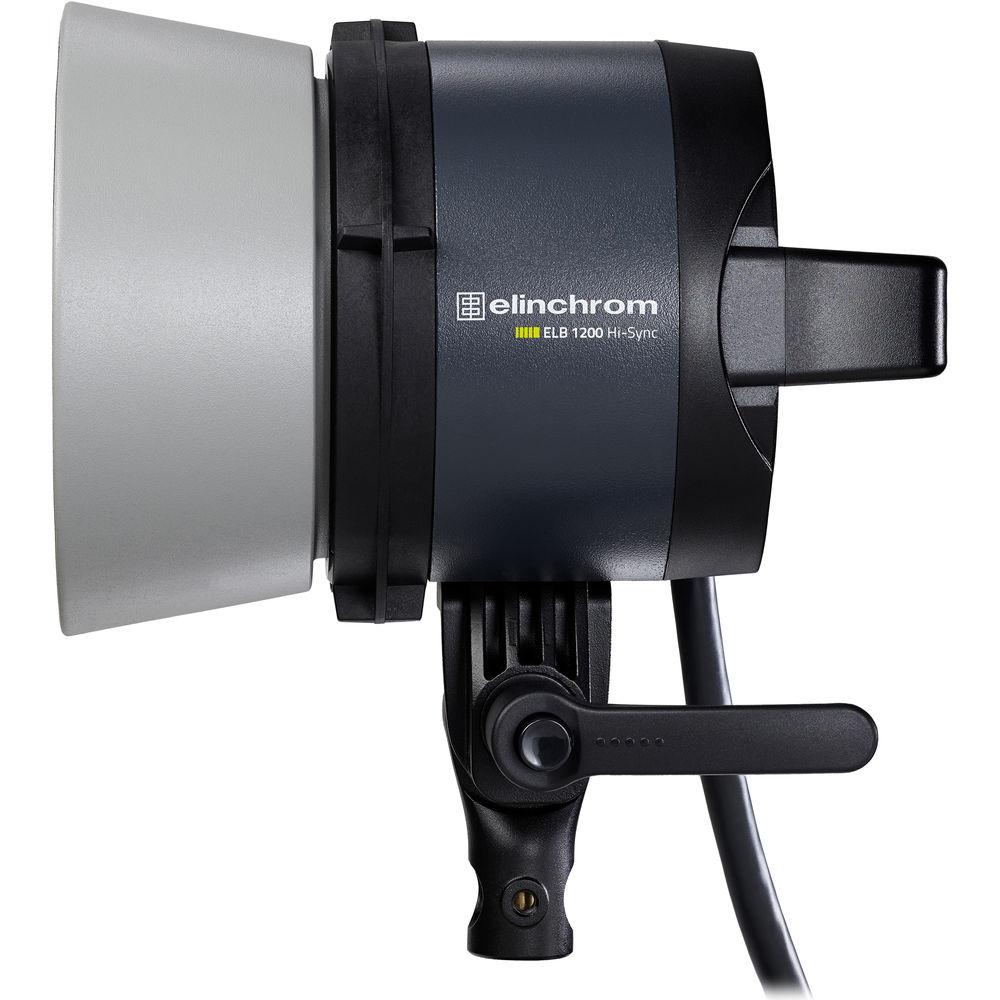

User Manual for Elinchrom ELB 1200 Hi-Sync Flash Head Click to enlarge the picture
Contents of the user manual for the Elinchrom ELB 1200 Hi-Sync Flash Head
- Product category: Battery Powered Heads Elinchrom
- Brand: Elinchrom
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Elinchrom Battery Powered Heads
 |
User manual for the Elinchrom ELB 1200 Hi-Sync Flash Head contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Elinchrom product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Elinchrom user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Elinchrom product will considerably shorten its lifespan!
|

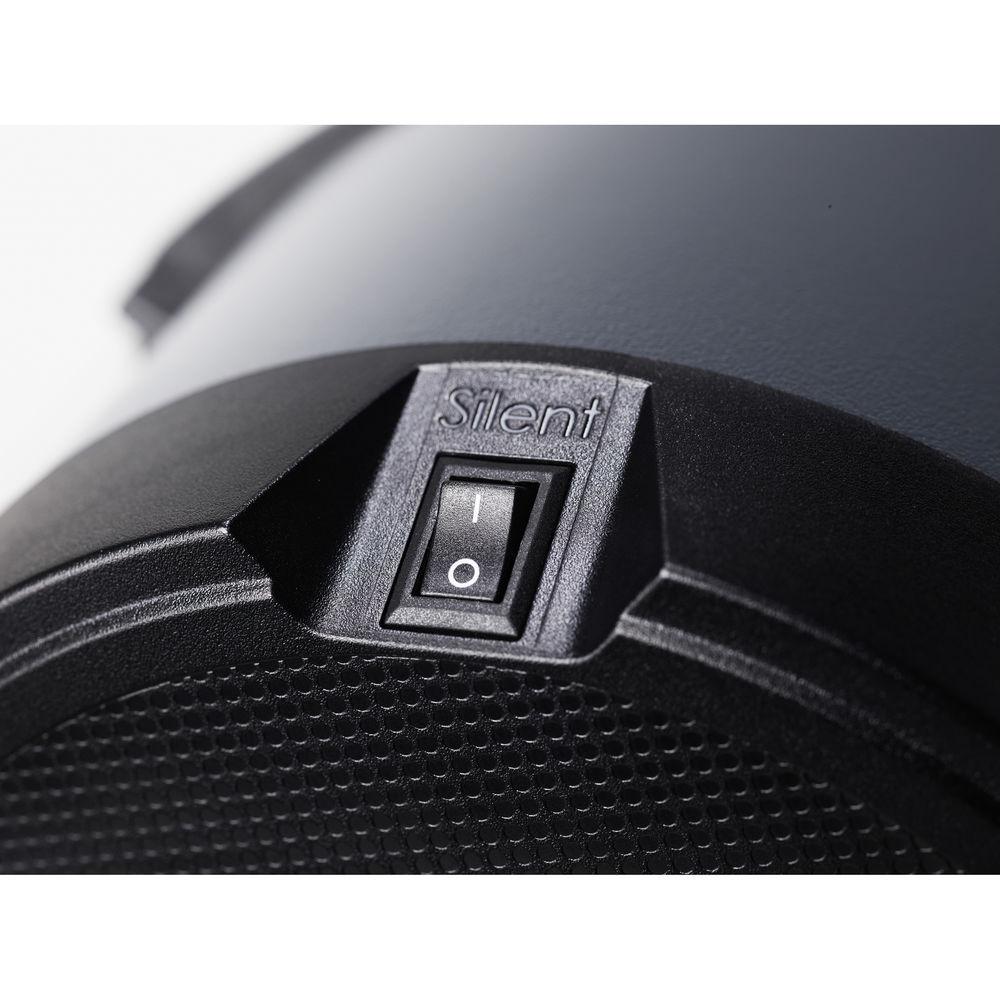

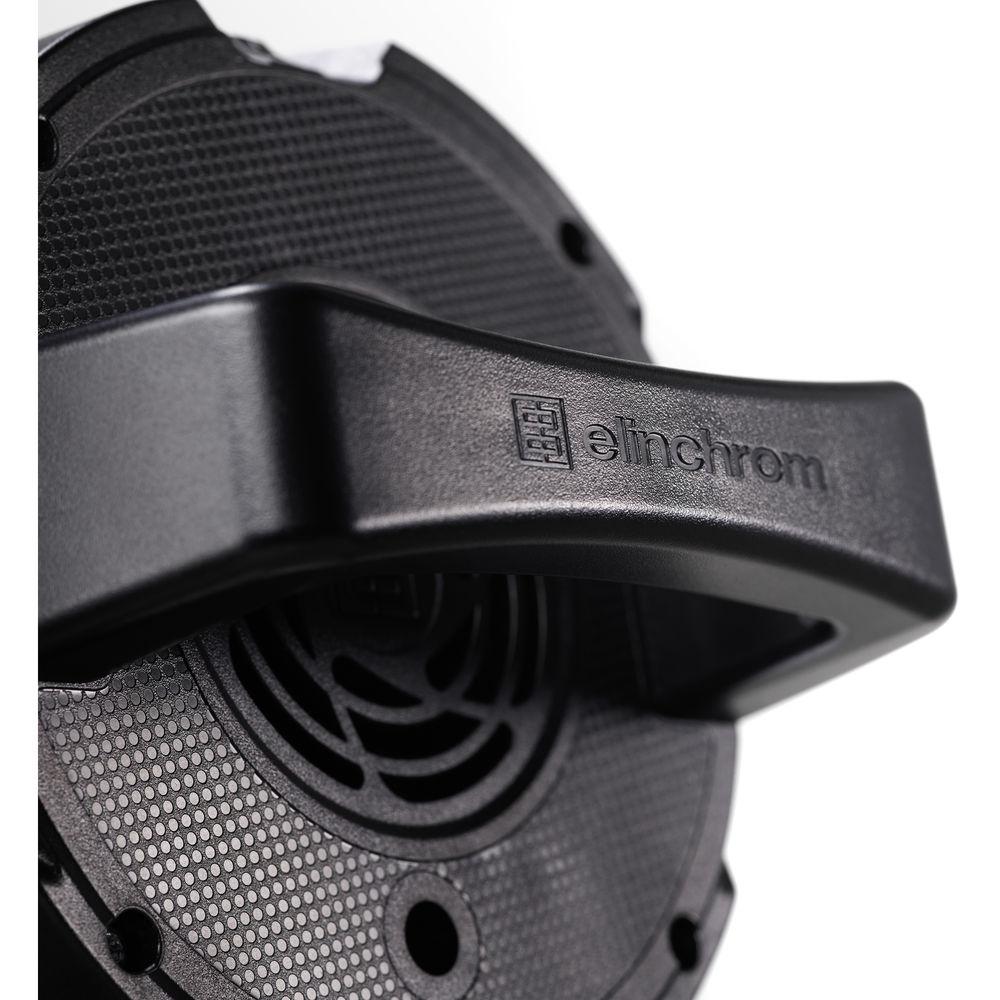

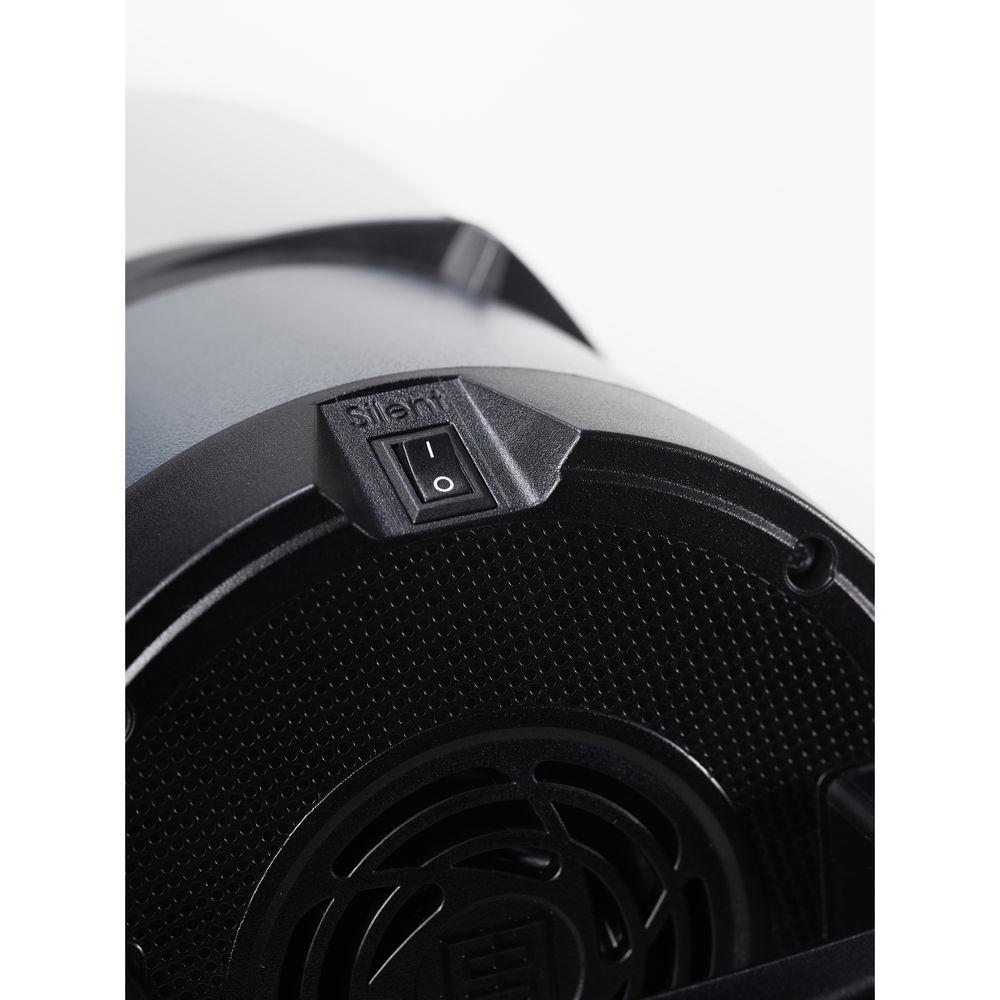

Product description The ELB 1200 Hi-Sync Flash Head from Elinchrom is one of 3 flash heads redesigned for use with the ELB 1200 battery-powered pack. If you're using High-Speed Sync to control ambient light, freeze action or to use wide apertures for shallow depth-of-field, the Hi-Sync head is for you. When combined with the separately purchased EL-Skyport Plus HS Transmitter, shutter speeds as short as 1/8000 sec are possible. Featuring aluminum construction, the head conserves battery power with the use of a 50 W LED modeling light with a tungsten equivalent of 250 W. The lamp is daylight balanced with a high CRI of 92 allowing it to be used for video if desired. The lamp gets 80 minutes of run time with the standard ELB 1200 battery. The fan-cooled head has a Silent Video Mode for sound-sensitive venues. Modeling light settings include On, Free (user-selectable) Proportional (to selected power level), Dimming and a 1-60 second Timer. A VFC (Visual Flash Control) shuts down the light after exposure and turns it back on when the pack has recycled. The ELB 1200 Hi-Sync Flash Head has a 5/8" receiver for light stands and will accept both 7 and 8 mm umbrella shafts. In the Box Elinchrom ELB 1200 Hi-Sync Flash Head 13' Cable Flash Tube Protective Cap Glass Dome Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Elinchrom ELB 1200 Hi-Sync Flash Head in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersElinchrom ELB 1200 Specs | Maximum Watt/Seconds | 1200 Ws | | Color Temperature | Flashtube: 5500K, Modeling Light: Daylight balanced | | Modeling Light Wattage | 50 W LED (250 W tungsten equivalent) | | CRI | Modeling Lamp: 92 | | Flash Duration | Optimized for HS up to 1/8000 sec | | Modeling Light Control | On, Free (selectable level), Proportionate (to power selected), Timer (1-60 sec), VFC (Visual Flash Control - modeling light turns off until pack recycles), Dimming | | High Speed Sync | Optimized for HS | | Changeable Reflector | Yes | | User Replaceable Flashtube | Yes | | Circuit Protection | Yes | | Power Stability | +/- 0.03% | | Power Specifications | f/Stop at 3.28' (1.0 m), ISO 100 with 48° reflector
f/128 at 100% power, f/90 at 50% power | | Cable Length | 13' (4.0 m) | | Protective Glass Dome | Yes, clear | | Fan Cooled | Yes, with Silent Video Mode for LED modeling lamp | | Mount | 5/8" (16 mm) receiver
7 and 8 mm umbrella fitting | | Dimensions | HxLxW: 9.0 x 8.8 x 5.5" (23.1 x 22.5 x 14 cm) | | Weight | 4.8 lb (2.2 kg) | | | | Package Weight | 7.35 lb | | Box Dimensions (LxWxH) | 1.0 x 1.0 x 1.0" |
Rating90% users recommend this product to others. And what about you?
This product has already been rated by 33 owners. Add your rating and experience with the product.
