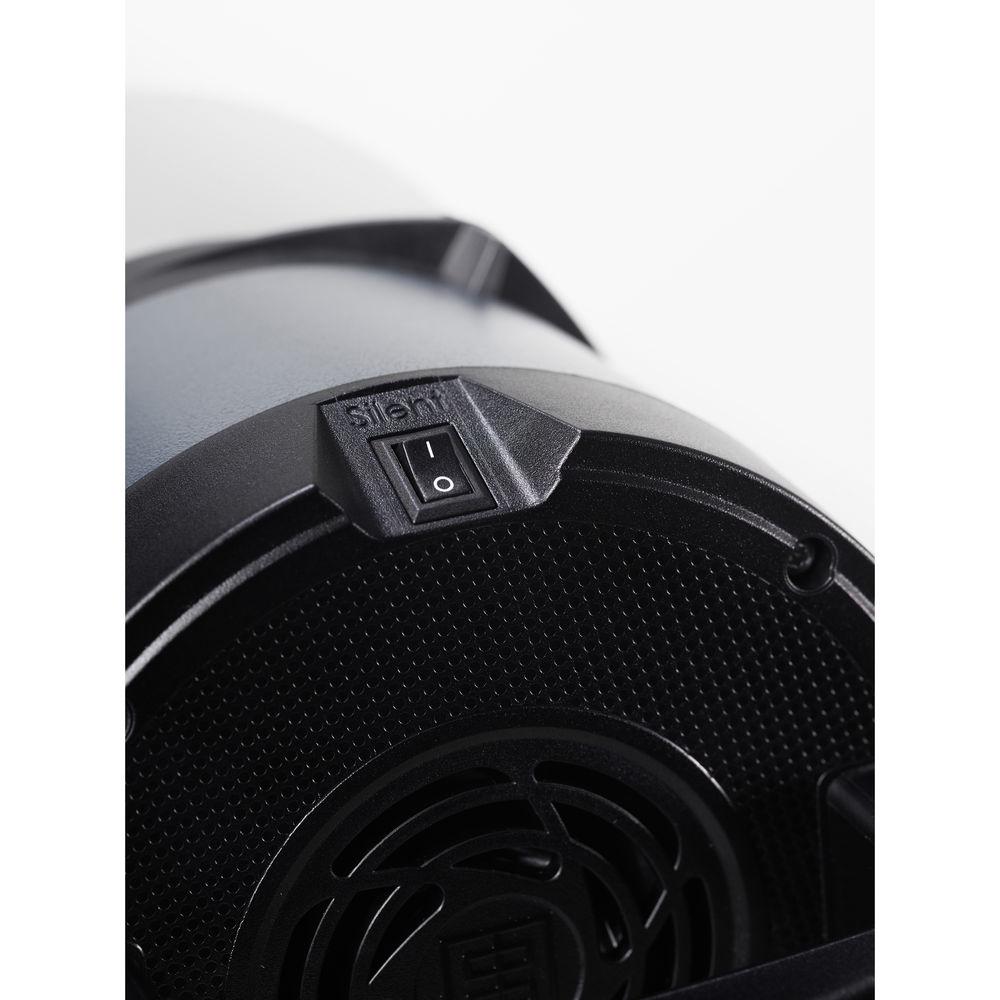

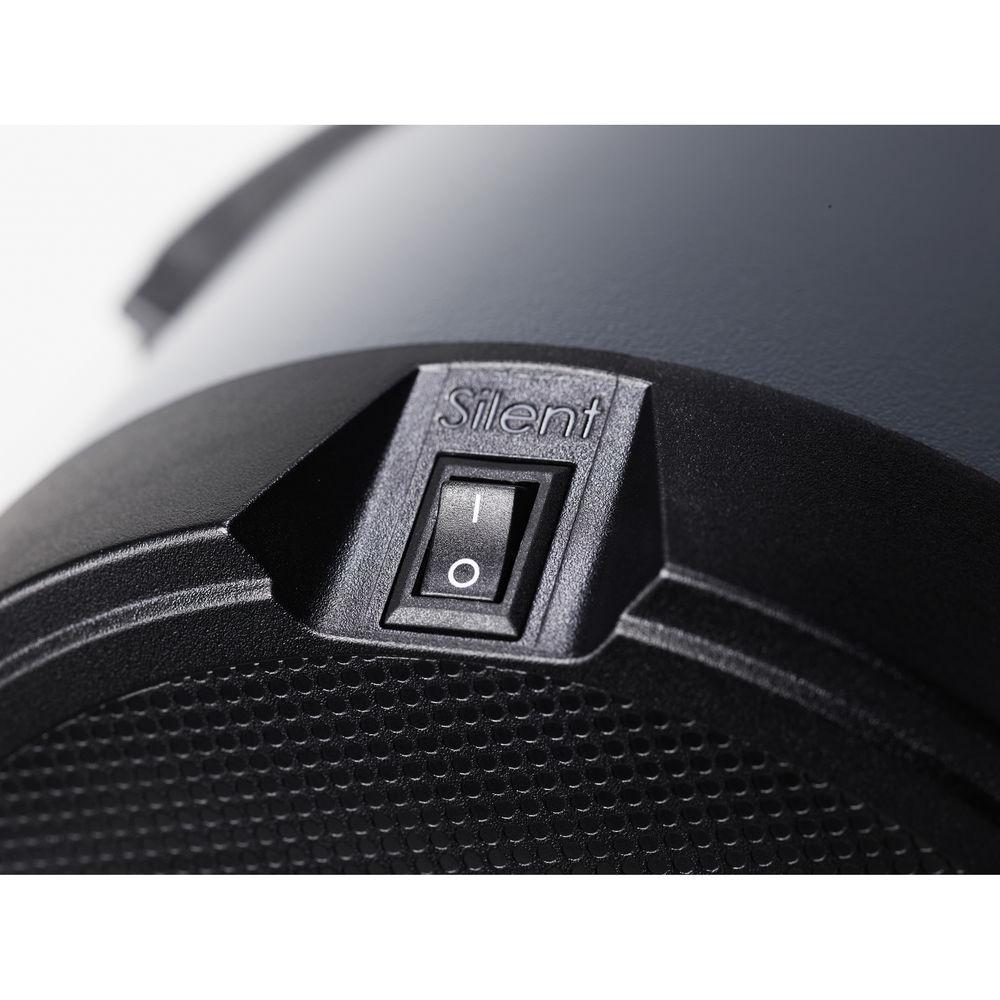

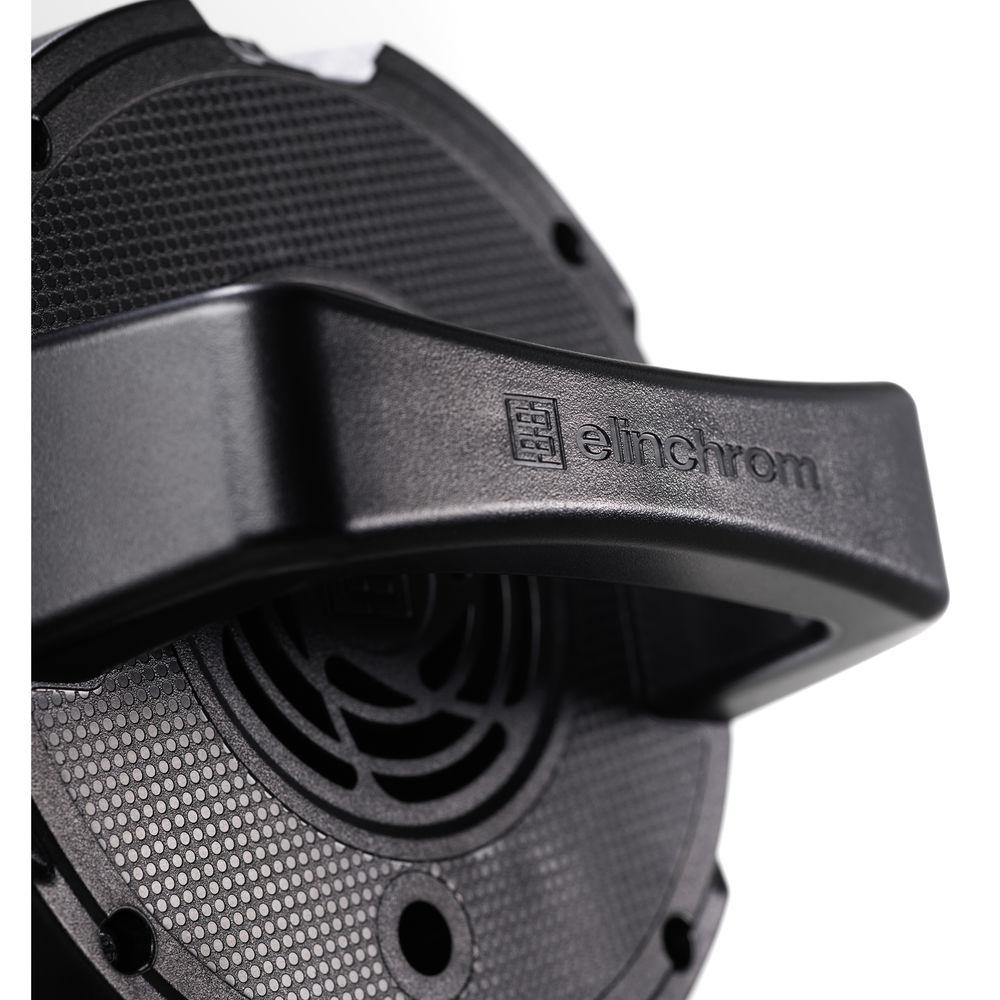

Product description The ELB 1200 Pro Flash Head from Elinchrom is one of 3 flash heads redesigned for use with the ELB 1200 battery-powered pack. A great all-around head, the Pro has a short flash duration of 1/5050 with the power pack set at 140Ws. Featuring aluminum construction, the head conserves battery power with the use of a 50 W LED modeling light with a tungsten equivalent of 250 W. The lamp is daylight balanced with a high CRI of 92 allowing it to be used for video if desired. The lamp gets 80 minutes of run time with the standard ELB 1200 battery. The fan-cooled head has a Silent Video Mode for sound-sensitive venues. Modeling light settings include On, Free (user-selectable) Proportional (to selected power level), Dimming and a 1-60 second Timer. A VFC (Visual Flash Control) shuts down the light after exposure and turns it back on when the pack has recycled. The ELB 1200 Pro Flash Head has a 5/8" receiver for light stands and will accept both 7 and 8 mm umbrella shafts. In the Box Elinchrom ELB 1200 Pro Flash Head 13' Cable Flash Tube Protective Cap Glass Dome Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Elinchrom ELB 1200 Pro Flash Head in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersElinchrom ELB 1200 Specs | Maximum Watt/Seconds | 1200 Ws | | Color Temperature | Flashtube: 5500K, Modeling Light: Daylight balanced | | Modeling Light Wattage | 50 W LED (250 W tungsten equivalent) | | CRI | Modeling Lamp: 92 | | Flash Duration | 1/5050 at setting 4.4, 140Ws | | Modeling Light Control | On, Free (selectable level), Proportionate (to power selected), Timer (1-60 sec), VFC (Visual Flash Control - modeling light turns off until pack recycles), Dimming | | High Speed Sync | Camera dependent | | Changeable Reflector | Yes | | User Replaceable Flashtube | Yes | | Circuit Protection | Yes | | Power Stability | +/- 0.03% | | Power Specifications | f/Stop at 3.28' (1.0 m), ISO 100 with 48° reflector
f/128 at 100% power, f/90 at 50% power | | Cable Length | 13' (4.0 m) | | Protective Glass Dome | Yes, clear | | Fan Cooled | Yes, with Silent Video Mode for LED modeling lamp | | Mount | 5/8" (16 mm) receiver
7 and 8 mm umbrella fitting | | Dimensions | HxLxW: 9.0 x 8.8 x 5.5" (23.1 x 22.5 x 14 cm) | | Weight | 4.8 lb (2.2 kg) |
