Product description

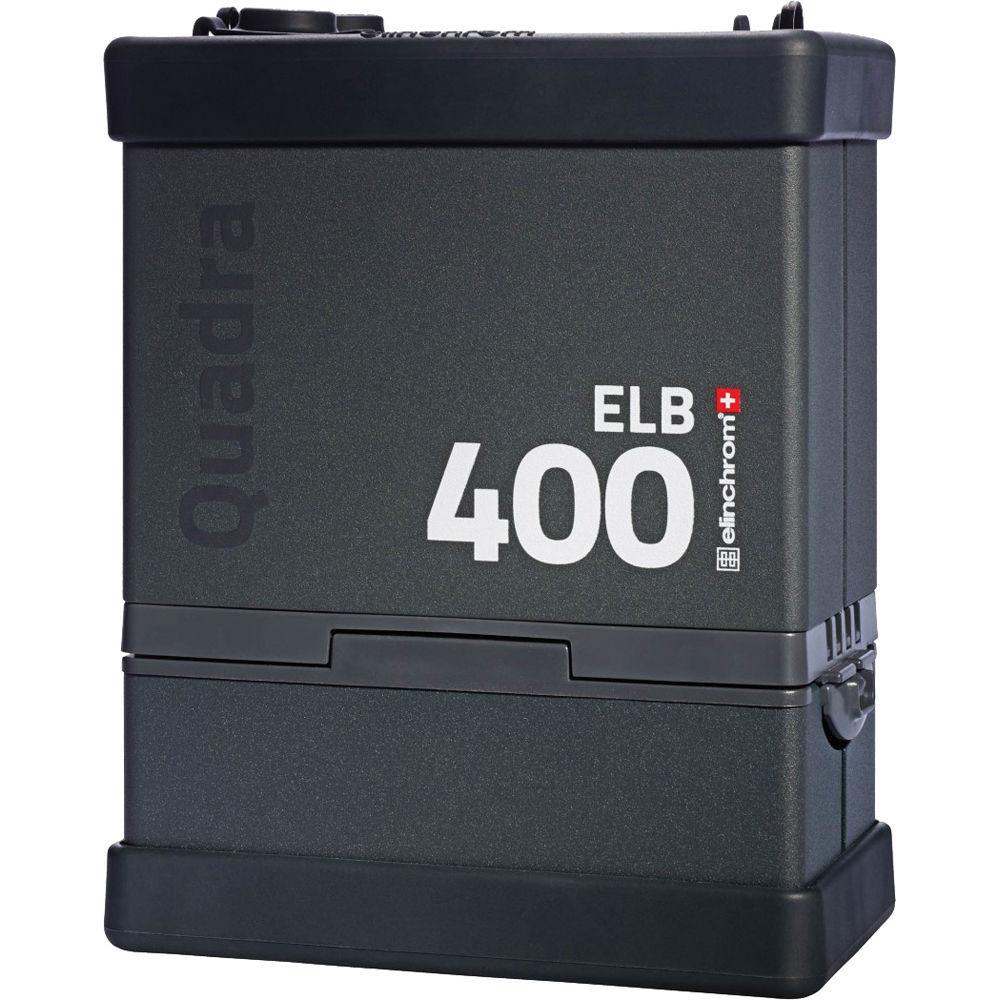

• ELB 400 Quadra Power Pack with Battery
  • Elinchrom - ELB 400
  Exceptionally compact, the ELB 400 Quadra Power Pack from Elinchrom provides a portable flash option for users of Quadra heads. Its size makes it easy to carry around, either on a belt or using the included shoulder strap. It boasts a 424Ws output and 6.9-stop power range as well as asymmetrical 2:1 outlets for two flash heads. Another advantage of this system is the integrated EL-Skyport radio receiver, which allows users to pick up an optional remote to gain remote triggering and high-sync support. Additionally, it can produce up to 350 full-power flashes from the included battery pack.

  In terms of speed, the ELB 400 boasts recycle times of 0.17-3.5 seconds and flash durations of 1/1200-1/2800 when at 100% power. The pack also features an OLED display for clearly viewing settings as well as a 3.5mm sync port for a conventional wired setup. The ELB 400 can even have the modeling light set up with programmable timers in addition to the on, off, and continuous modes. And, for those on the move, the pack only weighs 4.4 lb with the included battery.

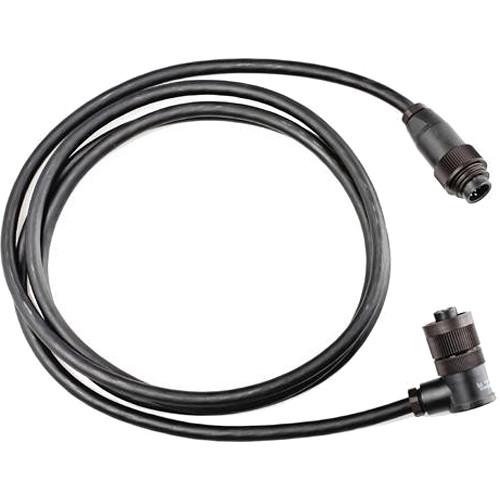

• EL 11001 8' Head Cable for Quadra The Elinchrom EL 11001 8' Head Cable for Quadra RQ Flashhead connects the RQ A / S Heads with the Ranger Quadra battery power pack. The standard flashhead cable supplied with each RQ Flashhead is 8' (2.5 m).
  • Efficient high quality flash cable, with low inner resistance for maximum performance
  • Very flexible and lightweight
  UPC: 719821303558

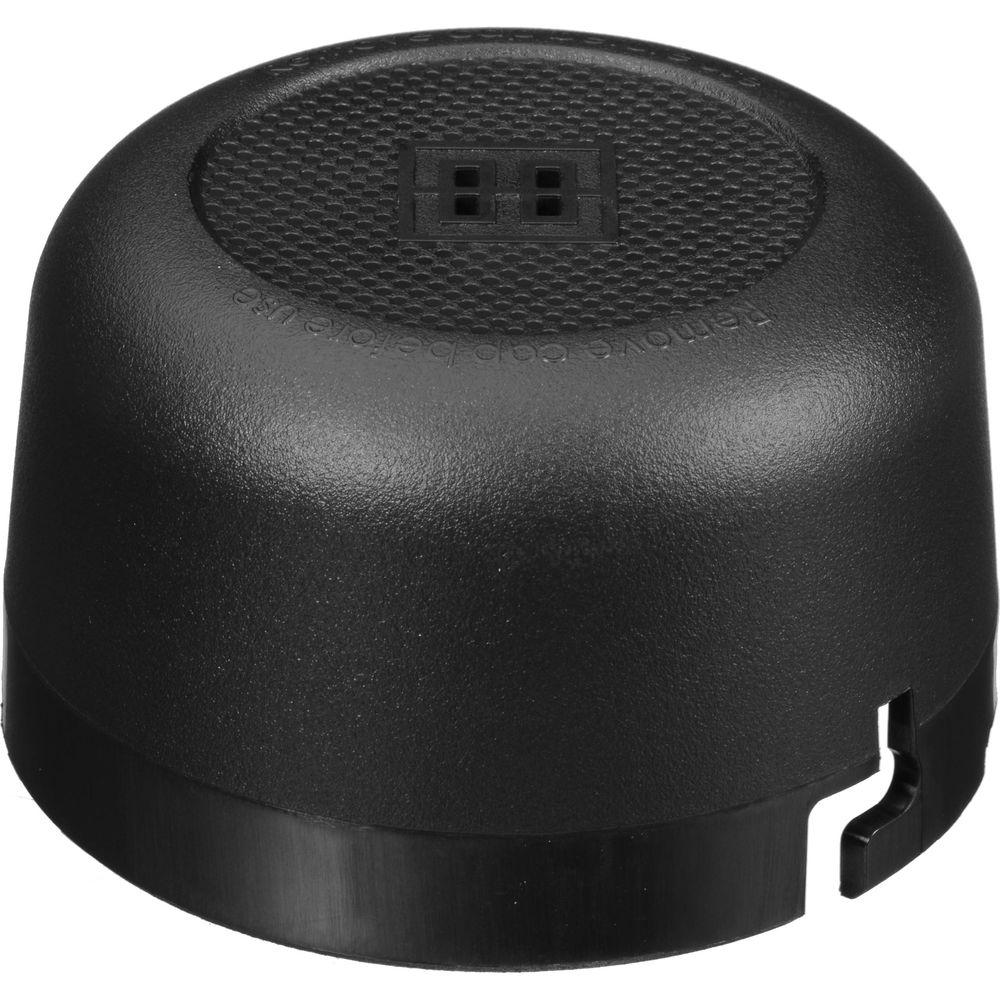

• Protective Cap for Quadra Head The Protective Cap for Quadra Head from Elinchrom is a preventative measure against shock or impact damage to the strobe head's flashtube and modeling lamp. Made of lightweight polymer, the cap bayonets securely on the head in place of a reflector. As a safety measure, the embossed Elinchrom logo can be seen clearly in case the modeling light is turned on.

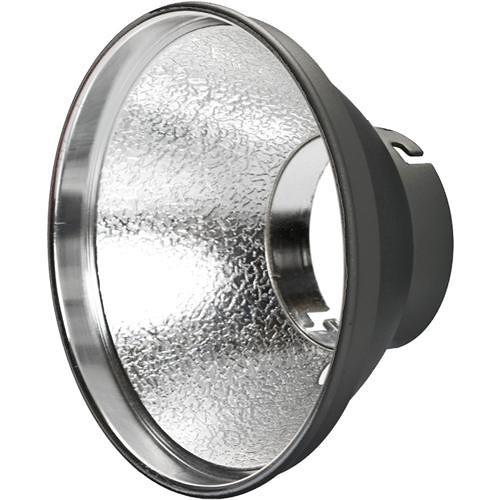

• 7" (17.8 cm) Grid Reflector for Quadra Heads The Elinchrom 7" (17.8 cm) Grid Reflector for Quadra Heads bayonets directly on the RQ S or RQ A head and accepts 7 inch (17.8 cm) 12, 20 or 30 degree Elinchrom grids to narrow the beam diameter. UPC: 719821303626

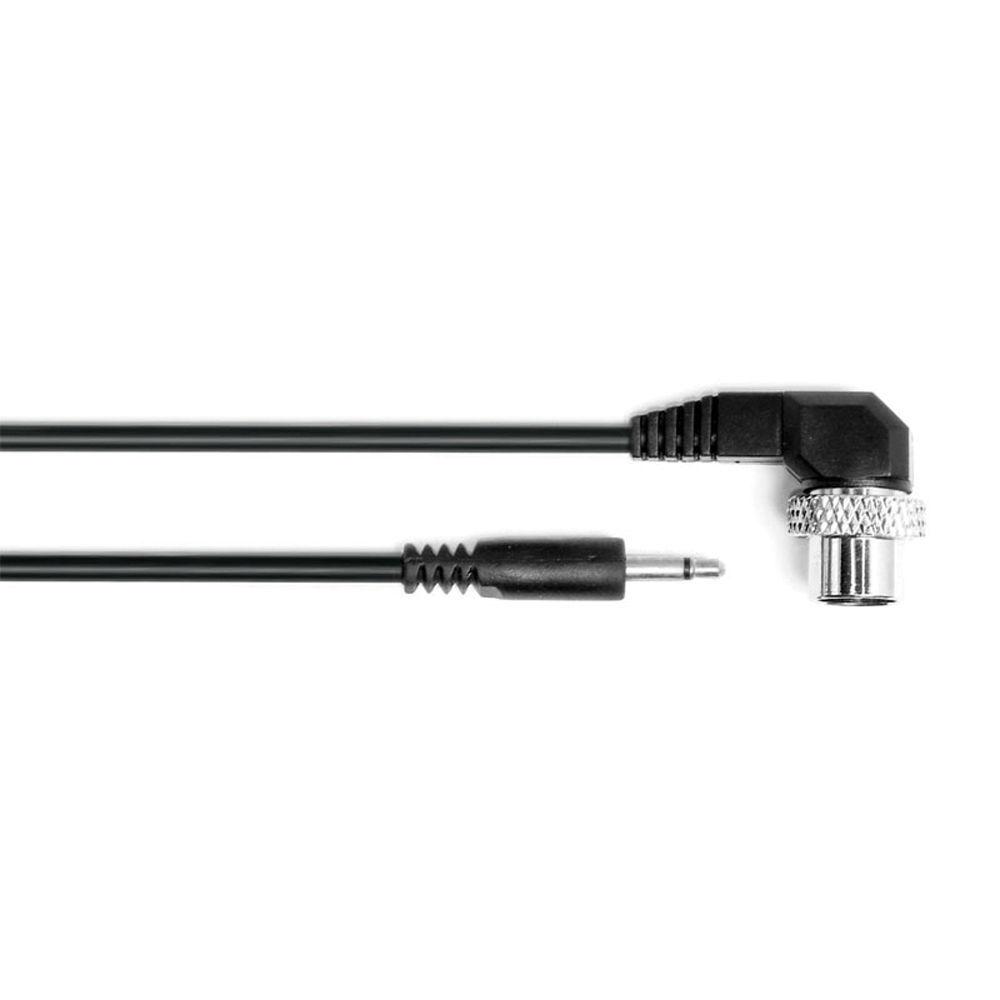

• Elinchrom Sync Cable 3.5mm to Amphenol - 15.75" (40 cm) This is an Elinchrom Sync Cable 3.5mm to Amphenol - 15.75" (40 cm) that fits older Elinchrom packs and monolights that have the lock-ring style of sync connection. This cable connects the EL-Skyport Universal Receiver to Classic Elinchrom flash units with the EL-Amphenol Syncron socket. The mono jack is 3.5mm. The cable measures 15.75" (40 cm). UPC: 719821281771

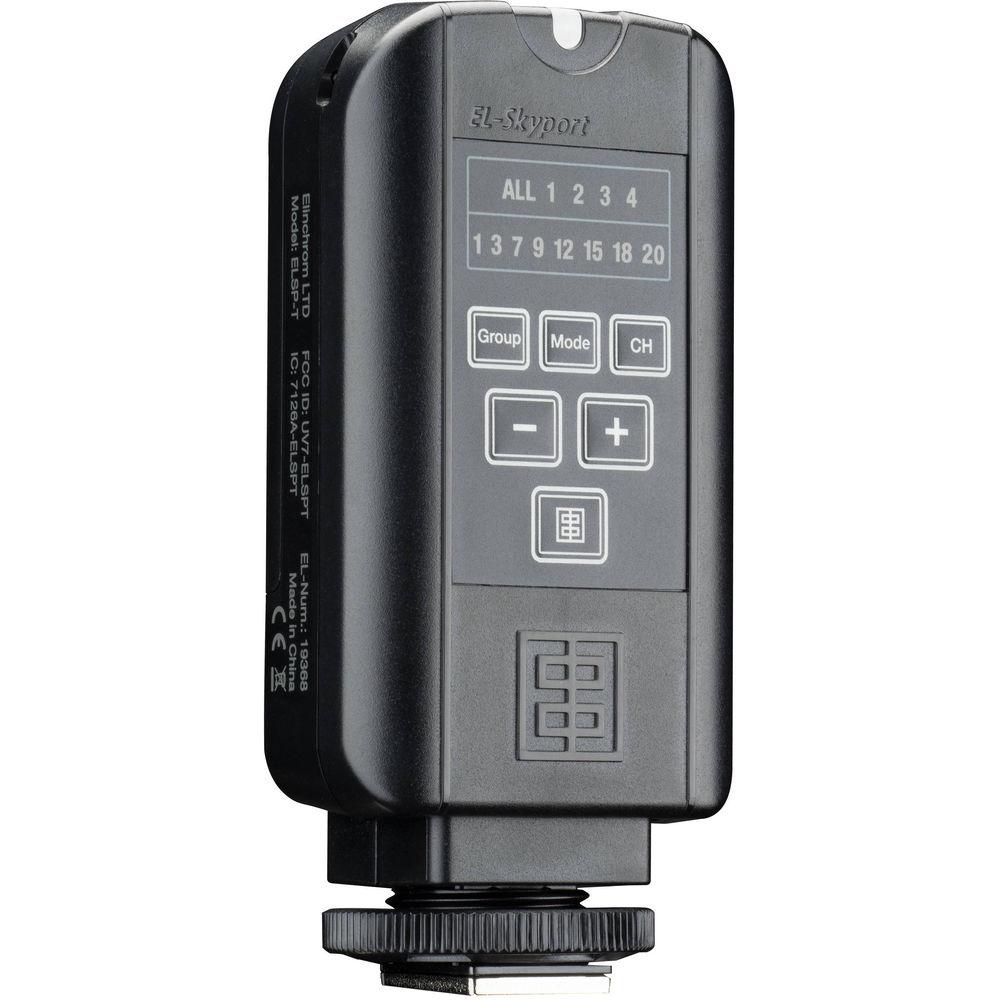

• EL-Skyport Transmitter Plus The EL-Skyport Transmitter Plus from Elinchrom is a wireless radio trigger with sixteen channels: 8 in normal and 8 in speed mode, with 4 discrete groups for different or sequentially triggered lighting setups at distances up to 656'. Channels 1, 3, and 7 are compatible with all enabled EL-Skyport units, while channels 1, 3, 7, 9, 12, 15, 18, and 20 are only compatible with the ELC Pro HD flash head and the ELB 400 battery pack system. A 2.5mm sync socket extends the transmitter's versatility to cameras without hot shoes or for hard-wired flash units. The EL-Skyport Transmitter Plus runs on easily sourced AA batteries. The transmitter does not come with batteries.
  Details
  • • Trigger reliably and adjust flash power up to 656' away
    • 4 groups and all selection
    • 16 different channels available (8 in Normal mode and 8 in Speed mode)
    • Quick increase or decrease of the flash power per group with Elinchrom studio strobes with built-in Elinchrom radio receivers
    • Metal hot-shoe connector with screw lock
    • 2.5mm sync socket
    • Normal and Speed sync mode (for leaf shutter cameras)
    • All functions can be easily adjusted
  Benefits
  • • Reliable and consistent triggering
    • Enhanced swivel function for improved reception
    • Continued choices when setting up your strobes
    • Multiple channels for more options when working with or in multiple setups
    • Control light power at the camera
    • No fussing with button batteries, uses AA batteries available everywhere
    • Locking functionality while connected to your camera
    • Flexibility of use with a 2.5mm sync socket

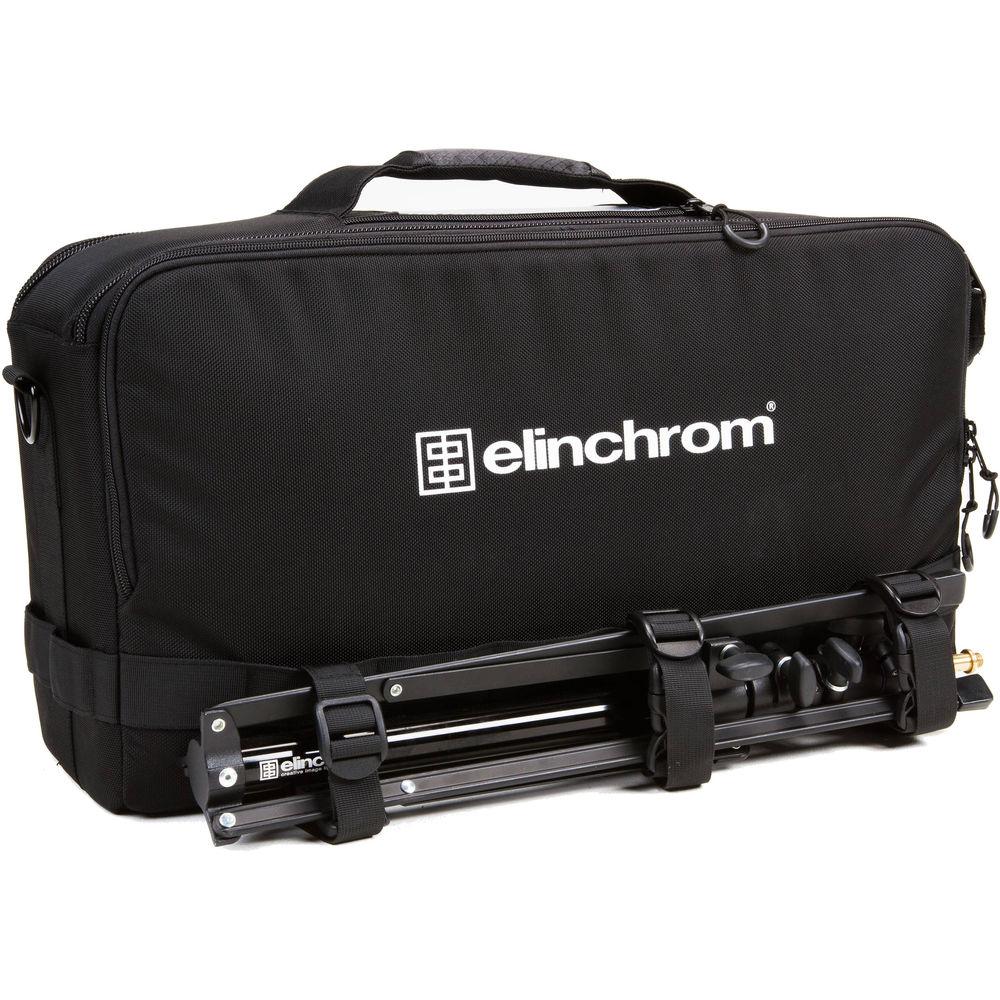

• ProTec Location Bag The ProTec Location Bag from Elinchrom is designed for the ELB 400 or previous Quadra series flash system. Made of high-quality nylon, the 23.8 x 8.5 x 12.3" padded bag features YKK zippered closure and movable dividers in a light-colored interior that makes it easy to find black photo gear in dim light. There's plenty of room for an ELB pack and 2 Quadra flash heads. The bag has 2 side pockets for accessories and a smart sleeve for securing it to your luggage. A rain cover is included for inclement weather while touch-fastener straps on the exterior hold light stands, tripods, or umbrellas. Carrying options include a hand strap plus an adjustable shoulder strap.
  Benefits
  • • 2 side pockets for documents and small items
    • YKK zippers for extra durability
    • High-quality nylon
    • Rain protective cover
    • Adjustable and comfortable shoulder strap
    • 4 vertical and 4 horizontal dividers for flexibility
    • 4 touch-fastener straps to securely attach tripodsor umbrellas
    • Smart sleeve to secure the bag to your luggage
    • Light gray interior makes it easy to find black photographic items when working in dark environments

• Quadra Li-Ion Battery

• Ranger Quadra Li-Ion Battery Charger

• PC to 3.5 mm Sync Cord (16'/5.0 m)

• Shoulder Strap for Quadra and ELB Power Pack

• Limited 2-Year Warranty

• Limited 1-Year Warranty

• Limited 1-Year Warranty

• Two Year Manufacturer's Warranty

• 2.5mm to PC Sync Cord

• Wrist Strap

• Limited 2-Year Warranty

• Shoulder Strap

• Limited 1-Year Warranty

Also Includes

• Quadra Action Flash Head
• Limited 2-Year Warranty
