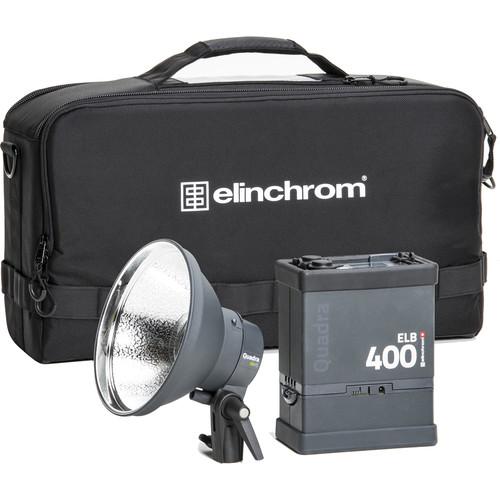

Product description Overpower the sun and embrace high shutter speeds with the ELB 400 Hi-Sync To Go Kit from Elinchrom. This kit packs together the portable, battery-powered ELB 400 Quadra Pack with the Quadra HS head which is optimized for high-speed sync up to 1/8000 second. These revamped kits also bundle in the 7" Quadra Grid Reflector which provides an additional boost to light output. Additionally, it comes with a ProTec Location Bag that can protect and organize all of your gear during transport and storage.

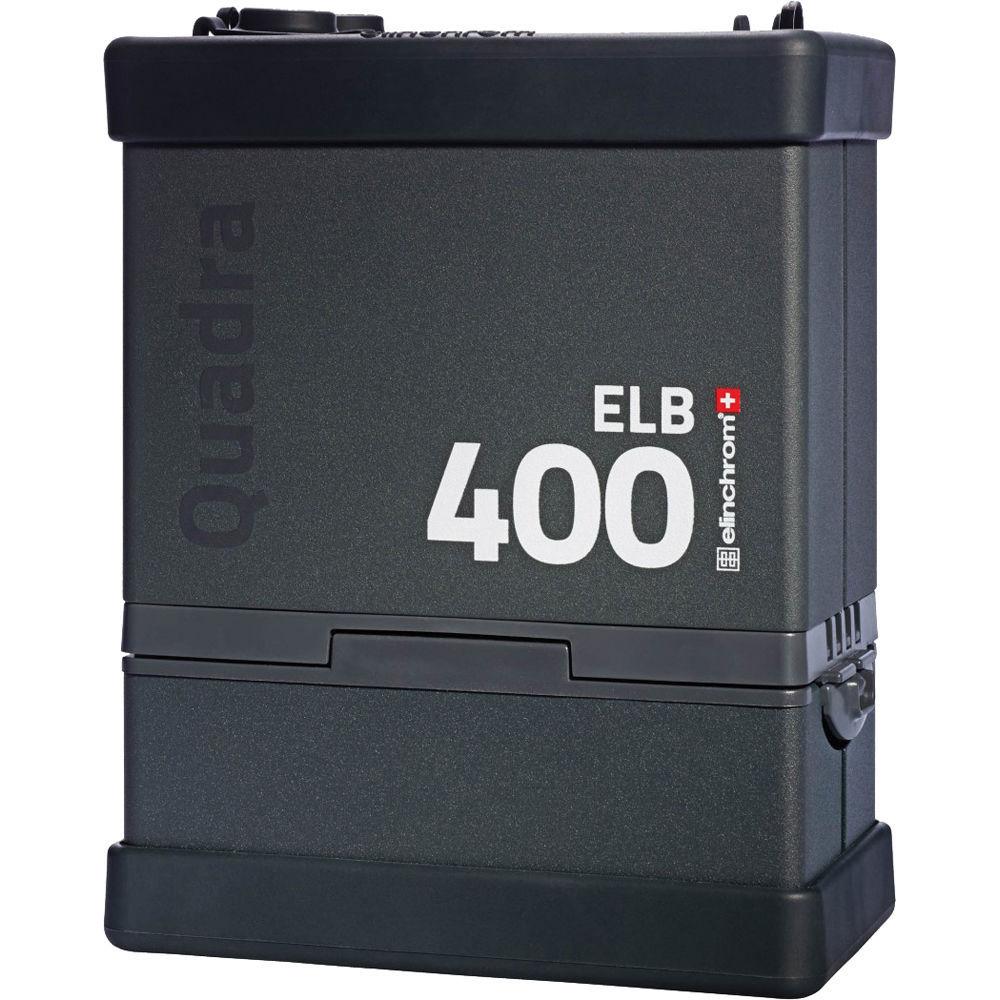

Designed for both power and portability, the ELB 400 Quadra Pack is run off a rechargeable Li-ion battery that can deliver an impressive 424Ws of power while keeping the weight to just 2.8 lb. The pack can recycle as fast as 1.6 seconds at full power and works with the Quadra HS Flash Head to accurately work with high-speed sync modes of select cameras. The ELB 400 is also characterized by its integrated EL-Skyport receiver, which is compatible with optional EL-Skyport Transmitter Plus HS for achieving high-speed sync up to 1/8000 second with certain camera systems. - ELB 400 Quadra Power Pack with Battery Exceptionally compact, the ELB 400 Quadra Power Pack from Elinchrom provides a portable flash option for users of Quadra heads. Its size makes it easy to carry around, either on a belt or using the included shoulder strap. It boasts a 424Ws output and 6.9-stop power range as well as asymmetrical 2:1 outlets for two flash heads. Another advantage of this system is the integrated EL-Skyport radio receiver, which allows users to pick up an optional remote to gain remote triggering and high-sync support. Additionally, it can produce up to 350 full-power flashes from the included battery pack.

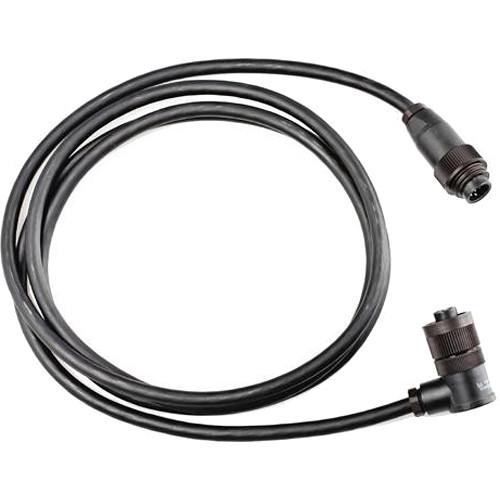

In terms of speed, the ELB 400 boasts recycle times of 0.17-3.5 seconds and flash durations of 1/1200-1/2800 when at 100% power. The pack also features an OLED display for clearly viewing settings as well as a 3.5mm sync port for a conventional wired setup. The ELB 400 can even have the modeling light set up with programmable timers in addition to the on, off, and continuous modes. And, for those on the move, the pack only weighs 4.4 lb with the included battery. - EL 11001 8' Head Cable for Quadra The Elinchrom EL 11001 8' Head Cable for Quadra RQ Flashhead connects the RQ A / S Heads with the Ranger Quadra battery power pack. The standard flashhead cable supplied with each RQ Flashhead is 8' (2.5 m).
- Efficient high quality flash cable, with low inner resistance for maximum performance
- Very flexible and lightweight

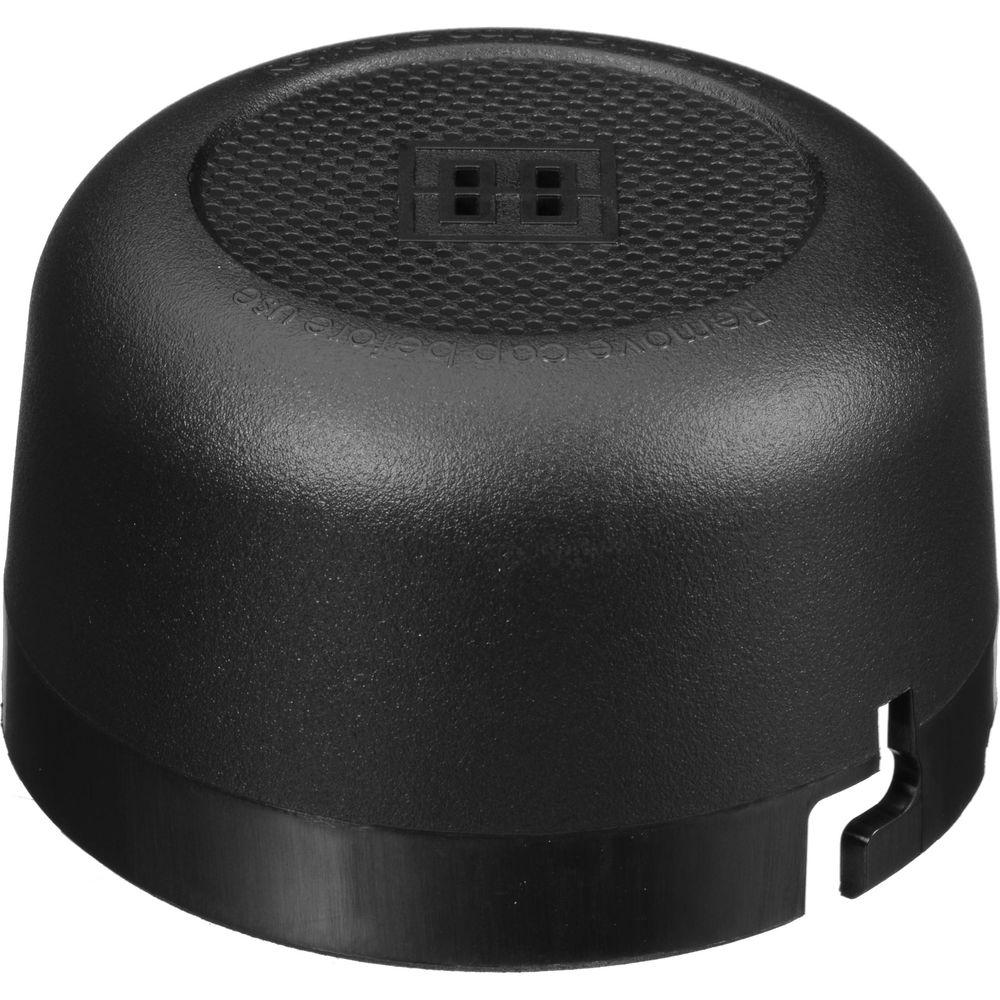

UPC: 719821303558 - Protective Cap for Quadra Head The Protective Cap for Quadra Head from Elinchrom is a preventative measure against shock or impact damage to the strobe head's flashtube and modeling lamp. Made of lightweight polymer, the cap bayonets securely on the head in place of a reflector. As a safety measure, the embossed Elinchrom logo can be seen clearly in case the modeling light is turned on.

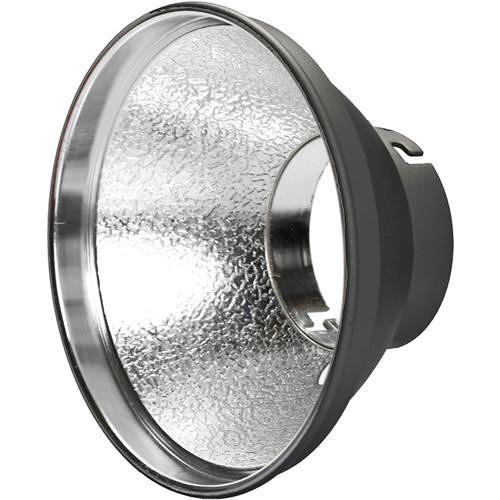

- 7" (17.8 cm) Grid Reflector for Quadra Heads The Elinchrom 7" (17.8 cm) Grid Reflector for Quadra Heads bayonets directly on the RQ S or RQ A head and accepts 7 inch (17.8 cm) 12, 20 or 30 degree Elinchrom grids to narrow the beam diameter. UPC: 719821303626

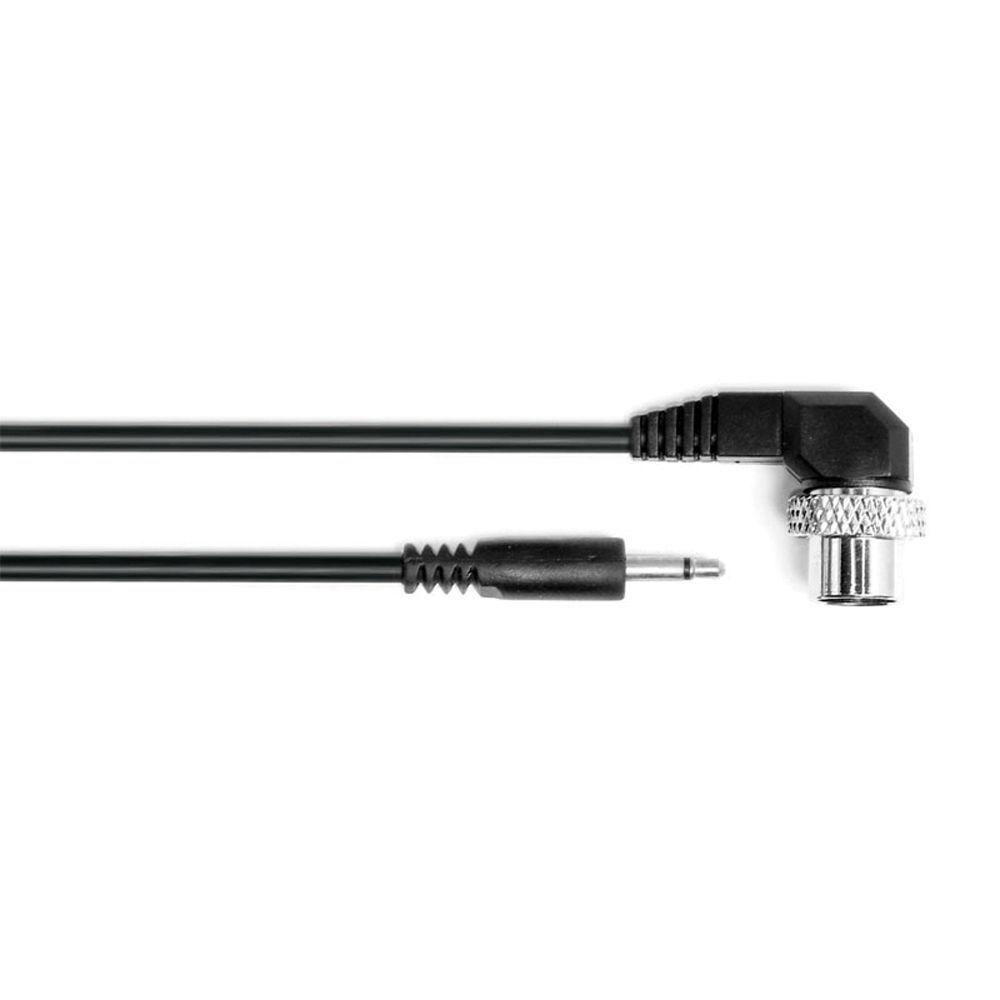

- Elinchrom Sync Cable 3.5mm to Amphenol - 15.75" (40 cm) This is an Elinchrom Sync Cable 3.5mm to Amphenol - 15.75" (40 cm) that fits older Elinchrom packs and monolights that have the lock-ring style of sync connection. This cable connects the EL-Skyport Universal Receiver to Classic Elinchrom flash units with the EL-Amphenol Syncron socket. The mono jack is 3.5mm. The cable measures 15.75" (40 cm). UPC: 719821281771
- ProTec Location Bag The ProTec Location Bag from Elinchrom is designed for the ELB 400 or previous Quadra series flash system. Made of high-quality nylon, the 23.8 x 8.5 x 12.3" padded bag features YKK zippered closure and movable dividers in a light-colored interior that makes it easy to find black photo gear in dim light. There's plenty of room for an ELB pack and 2 Quadra flash heads. The bag has 2 side pockets for accessories and a smart sleeve for securing it to your luggage. A rain cover is included for inclement weather while touch-fastener straps on the exterior hold light stands, tripods, or umbrellas. Carrying options include a hand strap plus an adjustable shoulder strap.
- Benefits
-
- 2 side pockets for documents and small items
- YKK zippers for extra durability
- High-quality nylon
- Rain protective cover
- Adjustable and comfortable shoulder strap
- 4 vertical and 4 horizontal dividers for flexibility
- 4 touch-fastener straps to securely attach tripodsor umbrellas
- Smart sleeve to secure the bag to your luggage
- Light gray interior makes it easy to find black photographic items when working in dark environments
In the Box Bundle Items ELB 400 Quadra Power Pack with Battery aqvxtuqz - Ranger Quadra Li-Ion Battery Charger
- PC to 3.5 mm Sync Cord (16'/5.0 m)
- Shoulder Strap for Quadra and ELB Power Pack
EL 11001 8' Head Cable for Quadra aqvxtuqz Protective Cap for Quadra Head 7" (17.8 cm) Grid Reflector for Quadra Heads Elinchrom Sync Cable 3.5mm to Amphenol - 15.75" (40 cm) - Two Year Manufacturer's Warranty
ProTec Location Bag

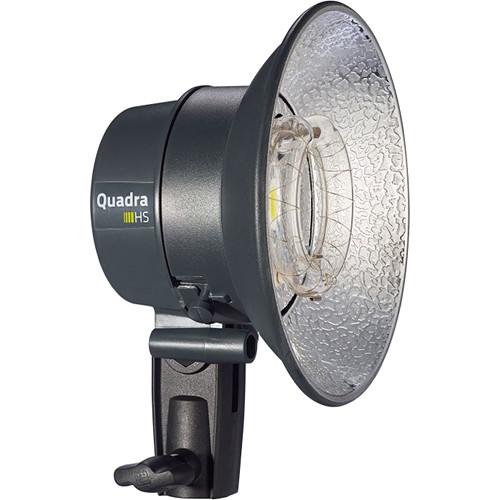

Also Includes - Quadra HS Flash Head
- Limited 2-Year Warranty
Table of Contents
|
Upload User Manual
Have you got an user manual for the Elinchrom ELB 400 Hi-Sync To Go Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - ELB 400 Quadra Power Pack with Battery
| Maximum Watt/Seconds | 424 Ws | | Flash Variability | 6.9 stops
7-424 Ws | | Guide Number | f/64.5 with 48° reflector at 3.3' / 1 m and ISO 100 | | Recycle Time | 0.17-3.5 seconds | | Flash Duration | 1/2800 sec at full power with Action head | | Distribution | 2:1 asymmetric | | Head Outlets | 2 | | Color Temperature | 5500K | | Sync Voltage | 5 V | | Sync Socket | 3.5 mm | | Battery | Li-Ion Battery Pack (14.4 V / 4.1 Ah) | | Battery Life | 350 full-power flashes | | Dimensions | 5.9 x 3.3 x 7.3" / 15.0 x 8.5 x 18.5 cm | | Weight | 4.4 lb / 2 kg with battery | | | | Box Dimensions (LxWxH) | 10.5 x 8.2 x 7.9" | - EL 11001 8' Head Cable for Quadra
| | | Box Dimensions (LxWxH) | 9.5 x 7.0 x 2.5" | - Protective Cap for Quadra Head
| | | Box Dimensions (LxWxH) | 4.45 x 3.45 x 2.5" | - 7" (17.8 cm) Grid Reflector for Quadra Heads
| | | Box Dimensions (LxWxH) | 7.65 x 7.25 x 4.1" | - Elinchrom Sync Cable 3.5mm to Amphenol - 15.75" (40 cm)
| | | Box Dimensions (LxWxH) | 4.5 x 4.0 x 1.0" | - ProTec Location Bag
| | | Closure Type | Zipper | | Carry and Transport Options | Handle
Shoulder Strap | | Material of Construction | Nylon | | Exterior Dimensions (W x H x D) | 23.8 x 8.5 x 12.3" / 60.5 x 21.7 x 31.4 cm | | Weight | 6.8 lb / 3.1 kg | | | | Box Dimensions (LxWxH) | 23.1 x 15.7 x 9.1" |
