Elinchrom ELB 500 TTL

Search your instruction manual in PDF to download

User Manual for Elinchrom ELB 500 TTL

Click to enlarge the picture
Elinchrom ELB 500 TTL Contents of the user manual for the Elinchrom ELB 500 TTL
  • Product category: Battery Power Packs Elinchrom
  • Brand: Elinchrom
  • Description and content of package
  • Technical information and basic settings
  • Frequently asked questions – FAQ
  • Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
  • Authorized service for Elinchrom Battery Power Packs

Elinchrom ELB 500 TTL Elinchrom ELB 500 TTL
User manual for the Elinchrom ELB 500 TTL contain basic instructions that need to be followed during installation and operation. Before starting your appliance, the user manual should be read through carefully. Follow all the safety instructions and warnings, and be guided by the given recommendations. User manual is an integral part of any Elinchrom product, and if it is sold or transferred, they should be handed over jointly with the product. Following the instructions for use is an essential prerequisite for protecting health and property during use, as well as recognition of liability on the part of the manufacturer for possible defects should you make a warranty claim. Download an official Elinchrom user manual in which you will find instructions on how to install, use, maintain and service your product.

And do not forget – unsuitable use of a Elinchrom product will considerably shorten its lifespan!



Product description

Elinchrom Combines Power and Portability in ELB 500 TTL Flash Read More cautybbxfrczsvtvxffrvbqytcvcutvfe
  • Elinchrom ELB 500 TTL
  • Elinchrom ELB 500 TTL - Quick Start Guide

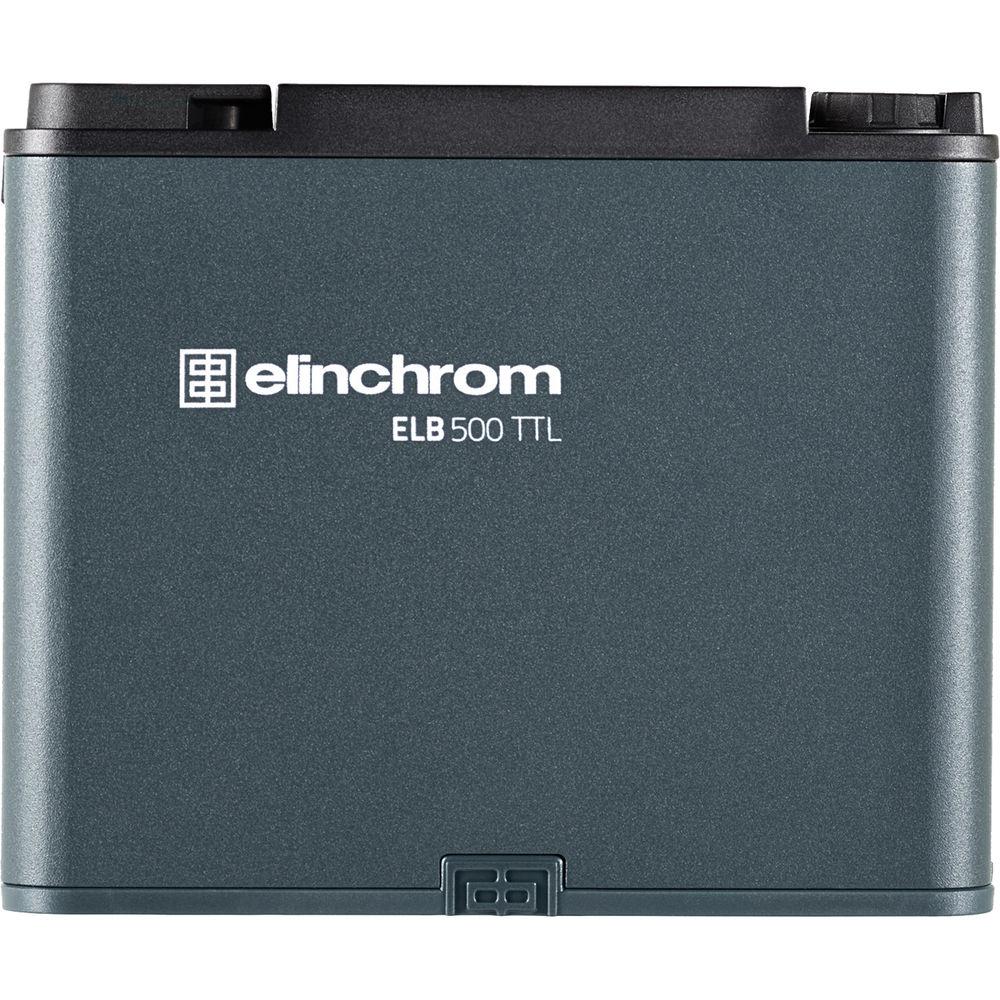

Elinchrom steps into the TTL arena with the introduction of the ELB 500 TTL battery-powered pack. Measuring 6.4 x 7.12 x 3.6" and weighing just 5.5 lb with its separately sold battery, the ELB 500 is ideal for the traveling or location photographer shooting fashion, portraits, or editorial work. Using an optional Elinchrom Skyport Pro or the Phottix Odin II transmitter, the ELB 500 TTL greatly reduces setup delays, shortening the time between inspiration and execution by using your camera's flash exposure system. With asymmetrical power distribution over 7 stops to 2 ELB flash heads, photographers can make TTL power adjustments at distances from 328 to 656' depending on the transmitter they use. There's also a Manual Lock mode that allows you to get a TTL initial exposure "lock", and subsequently switch to manual mode to fine-tune exposure. While the ELB 500 TTL outputs about 10 times the power as a speedlite, it has features that you'd only find on an advanced on-camera flash. The pack is High Speed Sync compatible, for example, allowing you to trigger it at shutter speeds as short as 1/8000 sec to control background brightness, freeze action, or to use wide lens apertures. These advanced exposure features are backed by solid performance specs. Recycling is a very fast 0.05 to 2 seconds and flash duration is 1/3400 sec in Normal mode. There's also an Action mode with flash durations as short as a lightning-fast 1/20,000 sec - ideal for freezing water spray, splashes, and other effects. The ELB 500 is powered by a separately sold removable lithium-ion battery that will give you 400 full-power flashes and an impressive 28,000 minimum-power flashes on a full charge. Convenience features include Active Charging, which allows you to charge the battery while shooting with AC power for an uninterrupted workflow. Power, performance, and TTL exposure control make the ELB 500 TTL hard to beat.
    The Speed and Simplicity of TTL
  • The ELB 500 TTL is ideal for photographers in time sensitive shooting situations where the speed of TTL lets them capture fast-breaking images or for those who simply prefer the convenience of TTL. The pack's Manual Lock functionality allows photographers to get an initial "lock" on their exposure in TTL and then switch to manual mode to further adjust their exposure as they need or to explore different creative effects.
    Wireless Convenience and Control of Skyport and Phottix Odin II
  • The ELB 500 TTL features a built-in Skyport receiver, Elinchrom's reliable and easy to use wireless system. Existing Skyport Plus HS for Canon and Nikon owners will be able to upgrade their transmitters to work with the ELB 500 TTL via a firmware upgrade with more brands to follow. Via their ongoing technology alliance, the ELB 500 is also compatible with the Phottix Odin II protocol. This lets a photographer trigger and control virtually any light or combination of lights in their collection with either Elinchrom or Phottix transmitters right from their camera.
    Power and Performance
  • The ELB 500 TTL is powerful enough to overpower the sun, delivers 400 full-power flashes on a single charge and has a fast recycling time of 2 seconds at maximum power. The ELB 500 head is smaller than a speedlite yet delivers 10 times more power. It is lightweight enough to be mounted on a camera bracket or boom arm while on location.
    High Speed Sync, Asymmetry and Active Charging
  • High Speed Sync lets photographers freeze motion with impressive sharpness, create a shallow depth of field, or control or darken bright backgrounds using shutter speeds as short as 1/8000 sec
  • Full asymmetry across two flash head connections provides a broad range of creative control
  • Active Charging provides the freedom to charge the battery while actively shooting in studio, making possible uninterrupted workflow
    Photographer-Friendly Interface

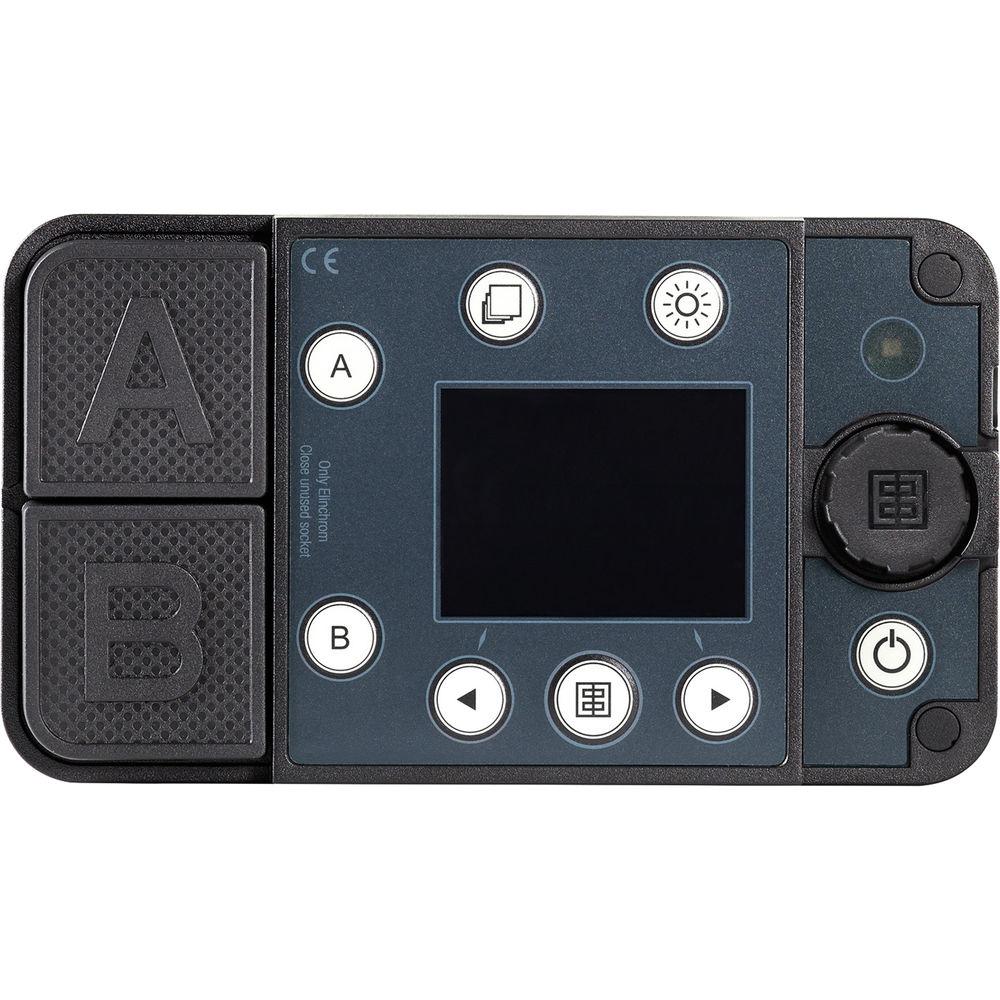

  • The large OLED display and intuitive controls of the ELB 500 TTL makes using the pack a pleasure.
In the Box Elinchrom ELB 500 TTL
  • Limited 2-Year Warranty
  • Table of Contents




    Upload User Manual

    Have you got an user manual for the Elinchrom ELB 500 TTL in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

    To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
    Upload PDF user manual Upload DOC user manual
    Please enter here the link to the user manual of this product:





    OR

    Enter here the file with the user manual of this product from your computer/phone:
    (60MB max; Permitted formats: PDF)

    0%


    Technical parameters

    Elinchrom ELB 500 TTL Specs

    Maximum Watt/Seconds 500 Ws
    Flash Variability 7 Stops (in 1/10 increments)
    Recycle Time 0.05-3.5 sec
    Flash Duration Action Mode: 1/20,000 sec
    Normal Mode: 1/3400 sec
    Distribution Asymmetric
    Head Outlets 2
    Battery Separately sold lithium-ion battery pack (14.4 V/72 Wh)
    Battery Life 400 full-power flashes
    28,000 minimum-power flashes
    Dimensions 6.4 x 5.4 x 3.6" / 16.3 x 13.8 x 9 cm
    With Battery: 6.4 x 7.12 x 3.6" / 16.3 x 18.1 x 9 cm
    Weight 3.83 lb / 1.8 kg
    With Battery: 5.5 lb / 2.5 kg
    Package Weight 4.79 lb
    Box Dimensions (LxWxH) 11.65 x 9.4 x 7.35"
