User Manual for Elinchrom ELB 500 TTL Dual To Go Kit Click to enlarge the picture
Contents of the user manual for the Elinchrom ELB 500 TTL Dual To
- Product category: Battery Powered Heads Elinchrom
- Brand: Elinchrom
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Elinchrom Battery Powered Heads
 |
User manual for the Elinchrom ELB 500 TTL Dual To contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Elinchrom product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Elinchrom user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Elinchrom product will considerably shorten its lifespan!
|
Product description Elinchrom Combines Power and Portability in ELB 500 TTL Flash Read More The ELB 500 TTL Dual To Go Kit was put together by the esteemed lighting manufacturer Elinchrom for photographers who require a small form factor, light weight, and superlative performance backed by the convenience of TTL exposure control. The kit includes a 500Ws ELB500 TTL pack with a lithium-ion battery, charger, and sync cord. Two ELB 500 flash heads with 8' cables, a 7" Q-Reflector, a wide reflector, Snappy Carrying Bag with shoulder strap, and a sturdy, nylon ProTec Location Bag with protective rain cover are also included. - ELB 500 TTL
- Elinchrom ELB 500 TTL
- Elinchrom ELB 500 TTL - Quick Start Guide

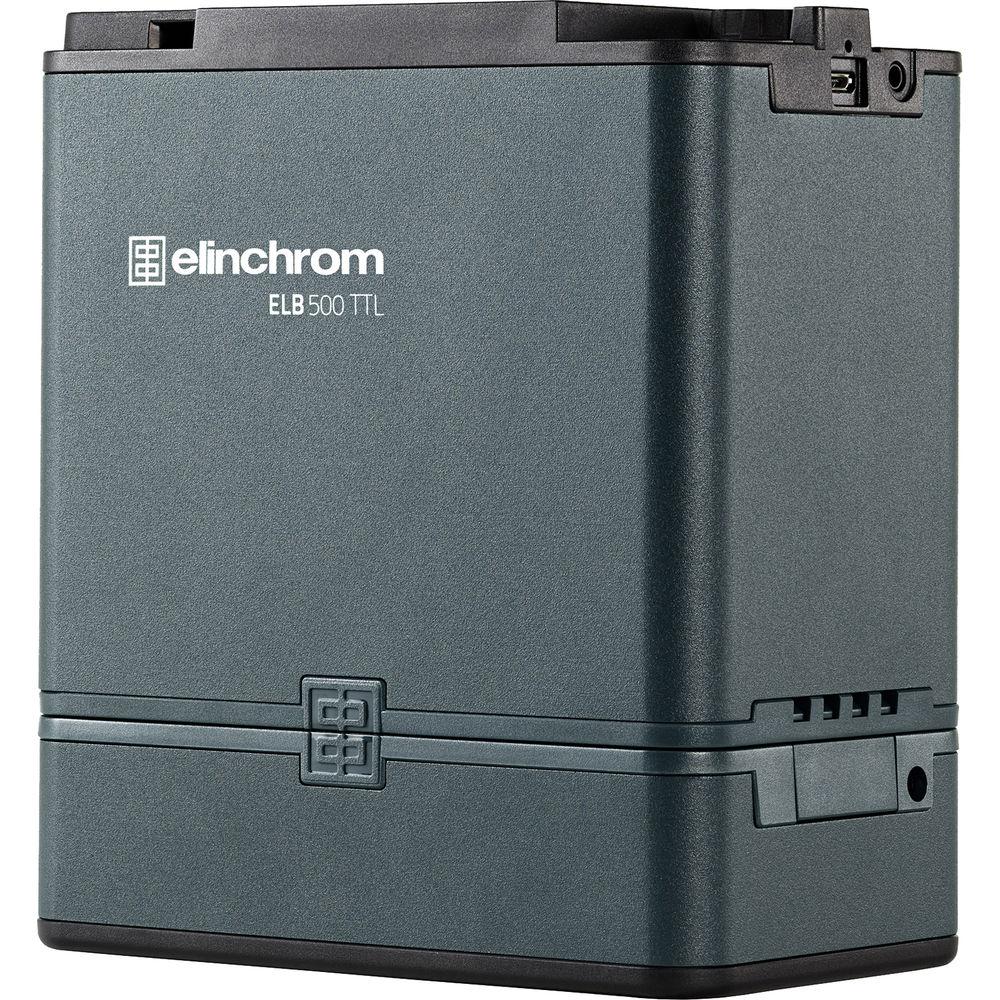

Elinchrom steps into the TTL arena with the introduction of the ELB 500 TTL battery-powered pack. Measuring 6.4 x 7.12 x 3.6" and weighing just 5.5 lb with its separately sold battery, the ELB 500 is ideal for the traveling or location photographer shooting fashion, portraits, or editorial work. Using an optional Elinchrom Skyport Pro or the Phottix Odin II transmitter, the ELB 500 TTL greatly reduces setup delays, shortening the time between inspiration and execution by using your camera's flash exposure system. With asymmetrical power distribution over 7 stops to 2 ELB flash heads, photographers can make TTL power adjustments at distances from 328 to 656' depending on the transmitter they use. There's also a Manual Lock mode that allows you to get a TTL initial exposure "lock", and subsequently switch to manual mode to fine-tune exposure. While the ELB 500 TTL outputs about 10 times the power as a speedlite, it has features that you'd only find on an advanced on-camera flash. The pack is High Speed Sync compatible, for example, allowing you to trigger it at shutter speeds as short as 1/8000 sec to control background brightness, freeze action, or to use wide lens apertures. These advanced exposure features are backed by solid performance specs. Recycling is a very fast 0.05 to 2 seconds and flash duration is 1/3400 sec in Normal mode. There's also an Action mode with flash durations as short as a lightning-fast 1/20,000 sec - ideal for freezing water spray, splashes, and other effects. The ELB 500 is powered by a separately sold removable lithium-ion battery that will give you 400 full-power flashes and an impressive 28,000 minimum-power flashes on a full charge. Convenience features include Active Charging, which allows you to charge the battery while shooting with AC power for an uninterrupted workflow. Power, performance, and TTL exposure control make the ELB 500 TTL hard to beat. - The Speed and Simplicity of TTL
- The ELB 500 TTL is ideal for photographers in time sensitive shooting situations where the speed of TTL lets them capture fast-breaking images or for those who simply prefer the convenience of TTL. The pack's Manual Lock functionality allows photographers to get an initial "lock" on their exposure in TTL and then switch to manual mode to further adjust their exposure as they need or to explore different creative effects.
- Wireless Convenience and Control of Skyport and Phottix Odin II
- The ELB 500 TTL features a built-in Skyport receiver, Elinchrom's reliable and easy to use wireless system. Existing Skyport Plus HS for Canon and Nikon owners will be able to upgrade their transmitters to work with the ELB 500 TTL via a firmware upgrade with more brands to follow. Via their ongoing technology alliance, the ELB 500 is also compatible with the Phottix Odin II protocol. This lets a photographer trigger and control virtually any light or combination of lights in their collection with either Elinchrom or Phottix transmitters right from their camera.
- Power and Performance
- The ELB 500 TTL is powerful enough to overpower the sun, delivers 400 full-power flashes on a single charge and has a fast recycling time of 2 seconds at maximum power. The ELB 500 head is smaller than a speedlite yet delivers 10 times more power. It is lightweight enough to be mounted on a camera bracket or boom arm while on location.
- High Speed Sync, Asymmetry and Active Charging
-
- High Speed Sync lets photographers freeze motion with impressive sharpness, create a shallow depth of field, or control or darken bright backgrounds using shutter speeds as short as 1/8000 sec
- Full asymmetry across two flash head connections provides a broad range of creative control
- Active Charging provides the freedom to charge the battery while actively shooting in studio, making possible uninterrupted workflow
- Photographer-Friendly Interface
- The large OLED display and intuitive controls of the ELB 500 TTL makes using the pack a pleasure.
- Li-Ion Battery for ELB 500 TTL The removable Li-Ion Battery for ELB 500 TTL from Elinchrom is a power source that provides 400 full-power flashes or 28,000 minimum-power flashes on a full charge. The pack's Active Charging ability allows the battery to be charged when shooting while powered by AC current. The battery has no memory effect, making it immune to partial charging and discharging. A built-in Automatic Fault Detection System will disconnect the battery if temperature, voltage, or current levels exceed safe ranges.

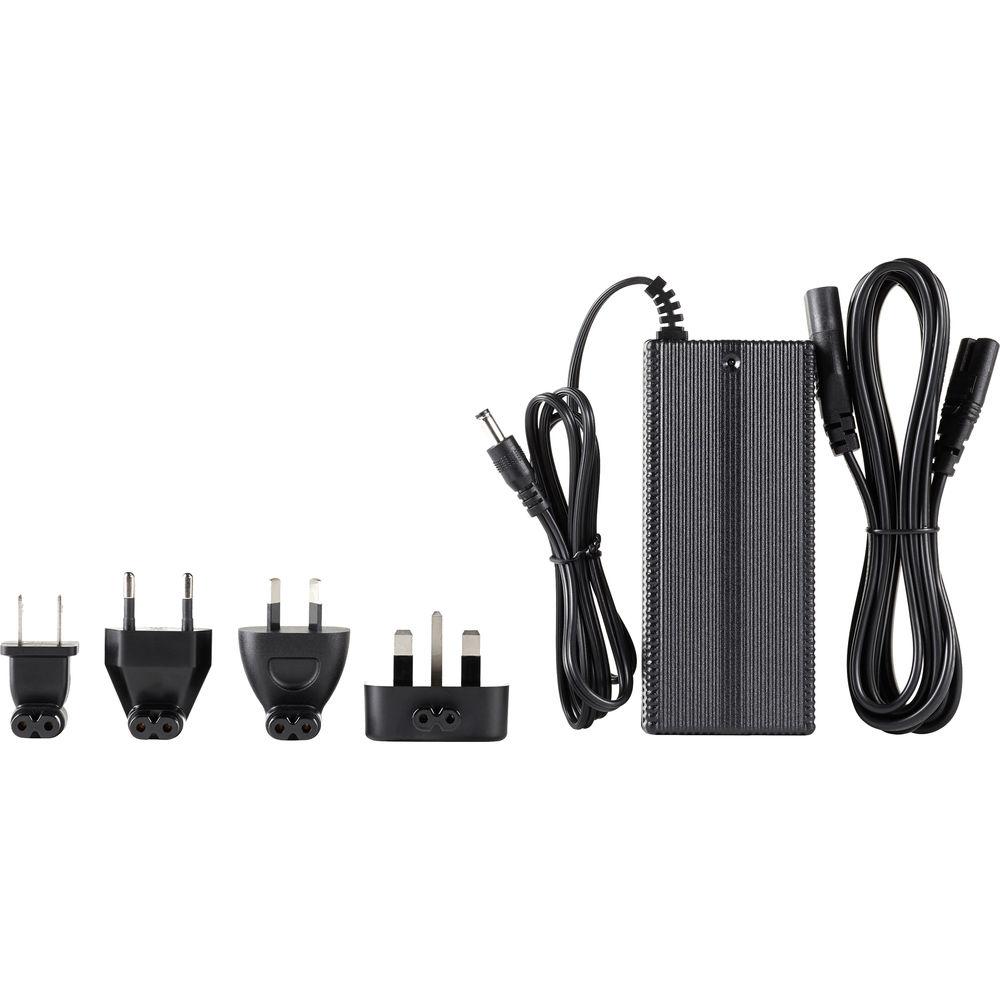

- Battery Charger for ELB 400 and ELB 500 TTL The Battery Charger for ELB 400 and ELB 500 TTL from Elinchrom accepts 100-240 VAC current to charge the pack's lithium-ion battery. The charger supports an Active Charging feature that allows you to plug in and charge the battery while shooting with AC power in the studio. An 80% charge takes 50 minutes, while a 100% charge is accomplished in 100 minutes.

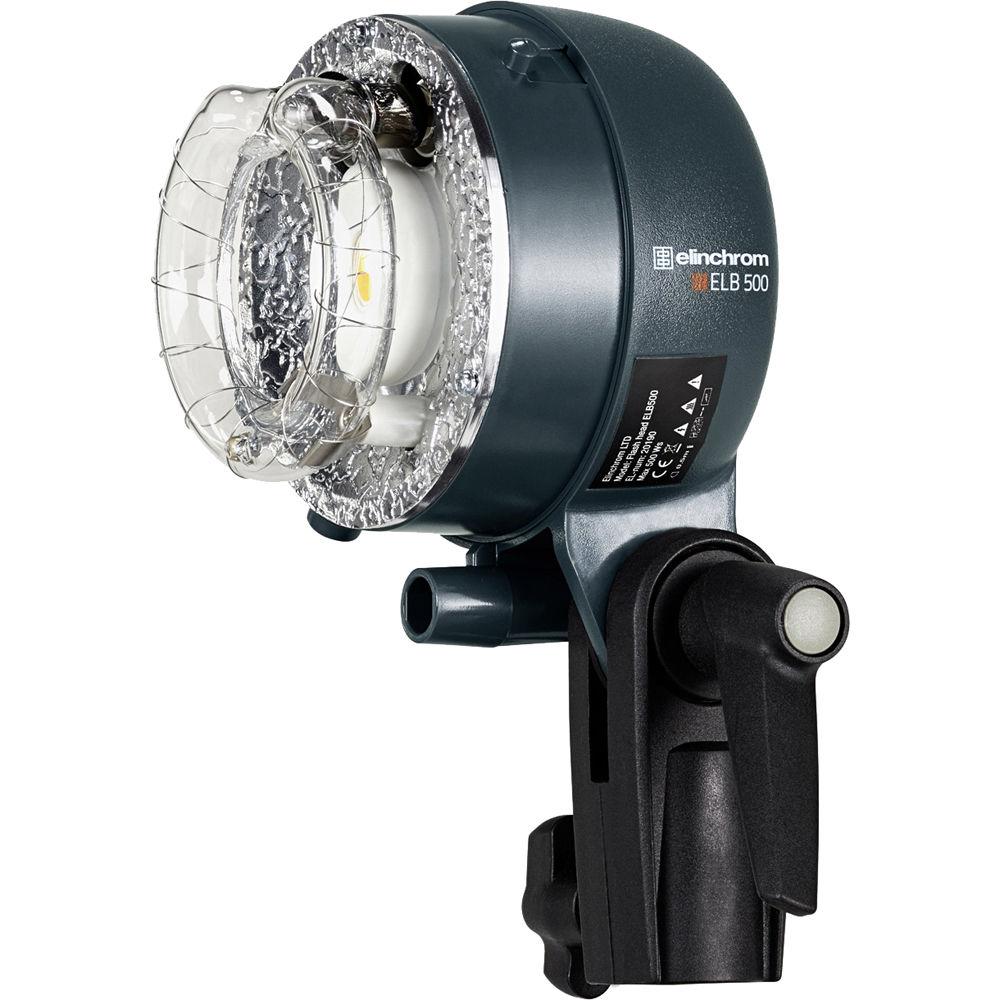

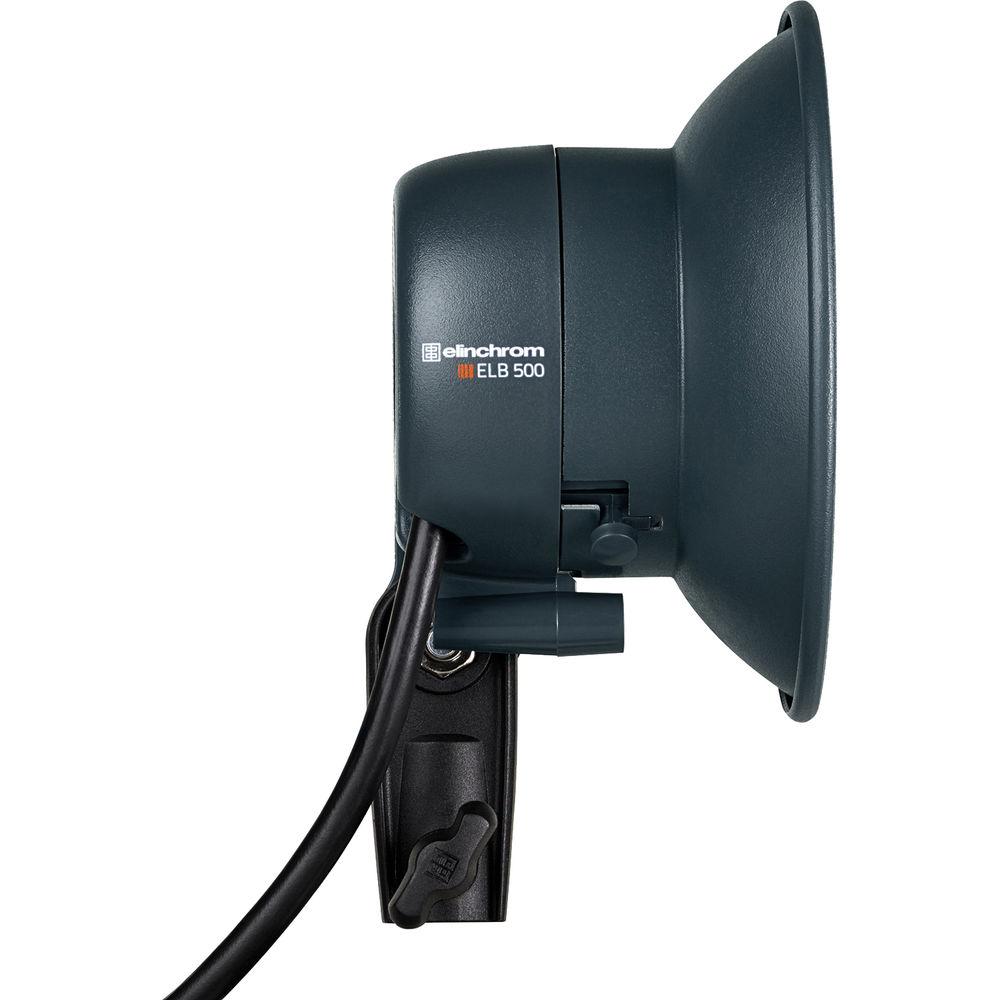

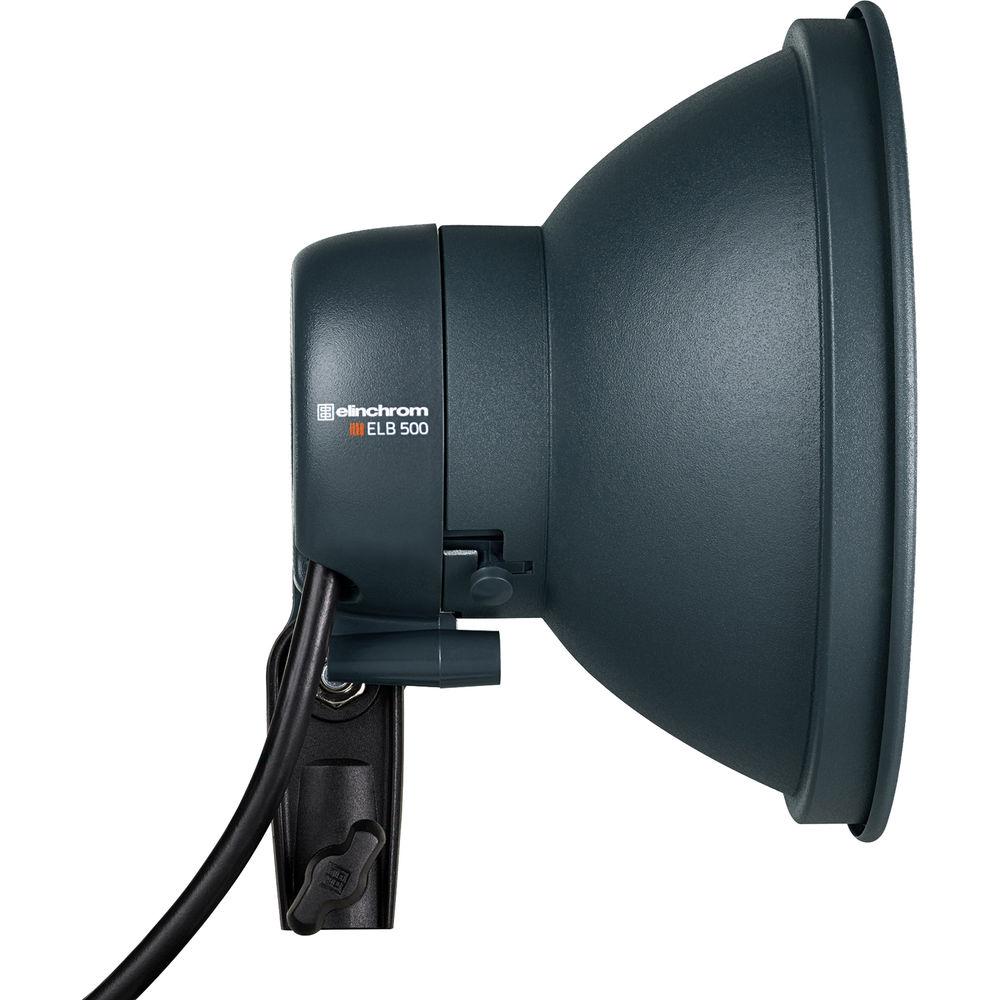

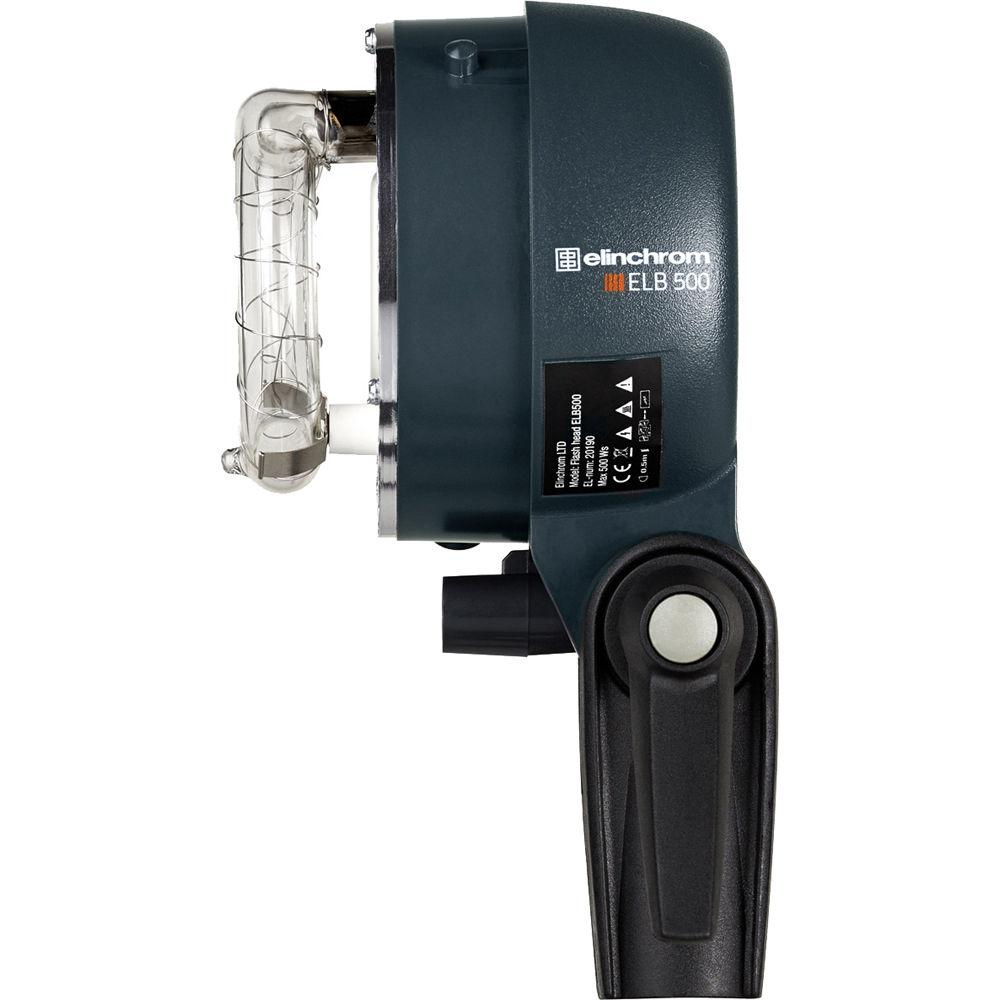

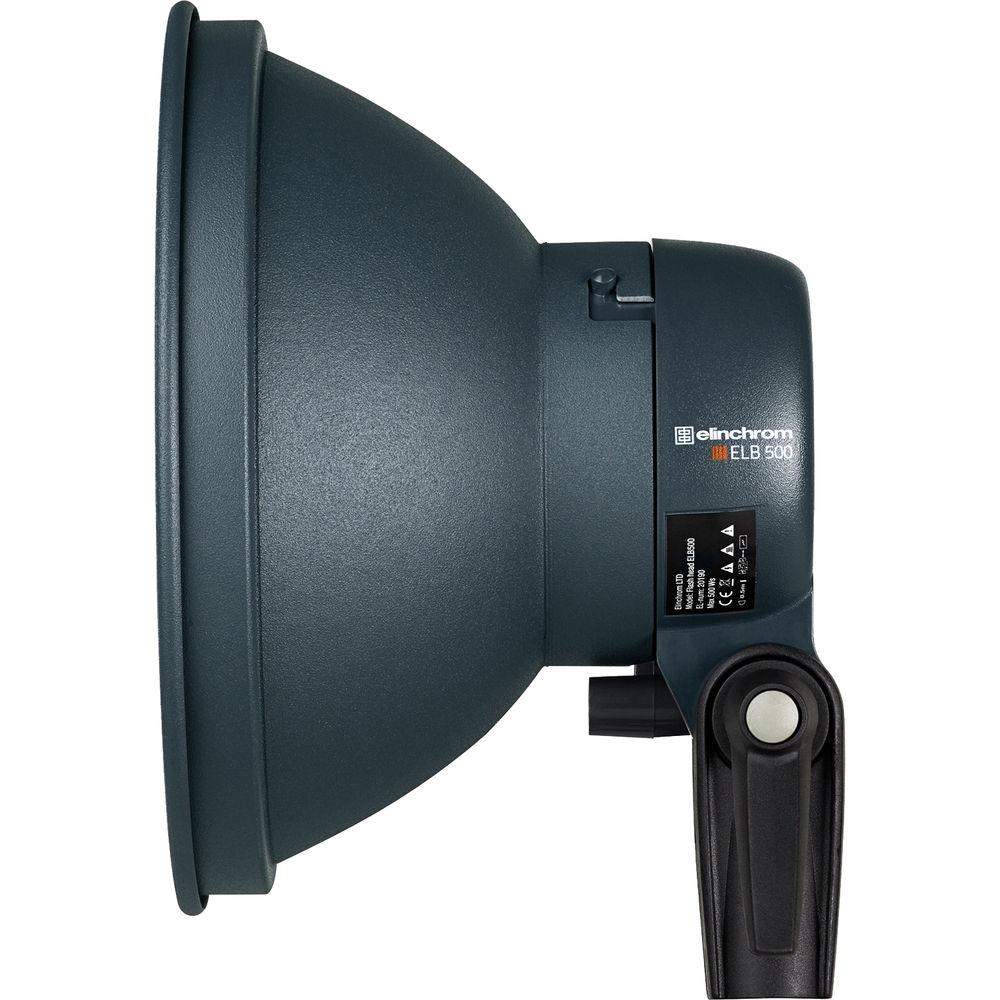

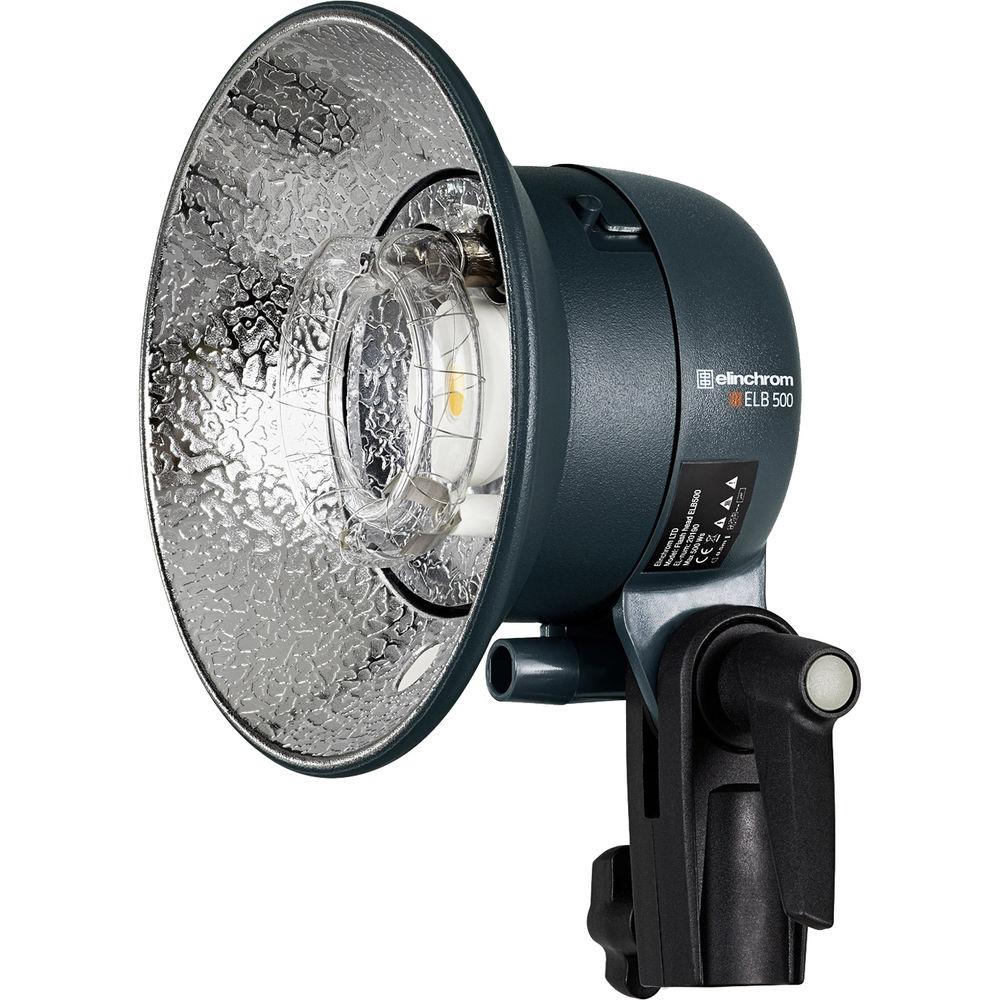

- ELB 500 TTL Flash Head Made exclusively for the ELB 500 TTL battery-powered pack, the ELB 500 TTL Flash Head from Elinchrom has a compact form factor of 3.5 x 3.1 x 6.3" and weighs just 1.5 lb making it ideal for hand-holding or mounting overhead on supports such as a boom. Its Quadra front accessory mount (Q-Mount) is compatible with Portalite softboxes, and can also use full-sized Elinchrom or Profoto softboxes with an optional adapter. The flash head is capable of achieving flash durations as short as 1/3400 sec. in Normal Mode and 1/20,000 sec in Action Mode for special effects. It has a 14W LED modeling light that draws minimal power from the pack's battery, a 5/8" receiver for stand mounting, and comes with an 8' cable for connection to the ELB 500 TTL.
- Snappy Carry Bag with Shoulder Strap for ELB 500 TTL Made from rugged ballistic nylon, the Snappy Carry Bag with Shoulder Strap for ELB 500 TTL from Elinchrom is designed for storage and transport of the battery-powered pack. The included shoulder strap is an easy way for the photographer to carry the pack but it can also be used to hang it from a light stand thanks to the bag's reinforced D-rings. The bag has a water-resistant bottom to protect the ELB 500 TTL from the elements.
- 7" (17.8 cm) Grid Reflector for Quadra Heads The Elinchrom 7" (17.8 cm) Grid Reflector for Quadra Heads bayonets directly on the RQ S or RQ A head and accepts 7 inch (17.8 cm) 12, 20 or 30 degree Elinchrom grids to narrow the beam diameter. UPC: 719821303626
- ProTec Location Bag The ProTec Location Bag from Elinchrom is designed for the ELB 400 or previous Quadra series flash system. Made of high-quality nylon, the 23.8 x 8.5 x 12.3" padded bag features YKK zippered closure and movable dividers in a light-colored interior that makes it easy to find black photo gear in dim light. There's plenty of room for an ELB pack and 2 Quadra flash heads. The bag has 2 side pockets for accessories and a smart sleeve for securing it to your luggage. A rain cover is included for inclement weather while touch-fastener straps on the exterior hold light stands, tripods, or umbrellas. Carrying options include a hand strap plus an adjustable shoulder strap.
- Benefits
-
- 2 side pockets for documents and small items
- YKK zippers for extra durability
- High-quality nylon
- Rain protective cover
- Adjustable and comfortable shoulder strap
- 4 vertical and 4 horizontal dividers for flexibility
- 4 touch-fastener straps to securely attach tripodsor umbrellas
- Smart sleeve to secure the bag to your luggage
- Light gray interior makes it easy to find black photographic items when working in dark environments
- 5.3" (13.5 cm) Standard Reflector for Quadra Flash Head This Elinchrom 5.3" (13.5 cm) Standard Reflector for Quadra Flash Heads comes standard with Quadra RQ S or RQ A flash heads. It accepts Elinchrom umbrellas or others up to 41.3" (105 cm) with a 7 mm shaft and is compatible with the Elinchrom deflector system for enhancing the quality of light.

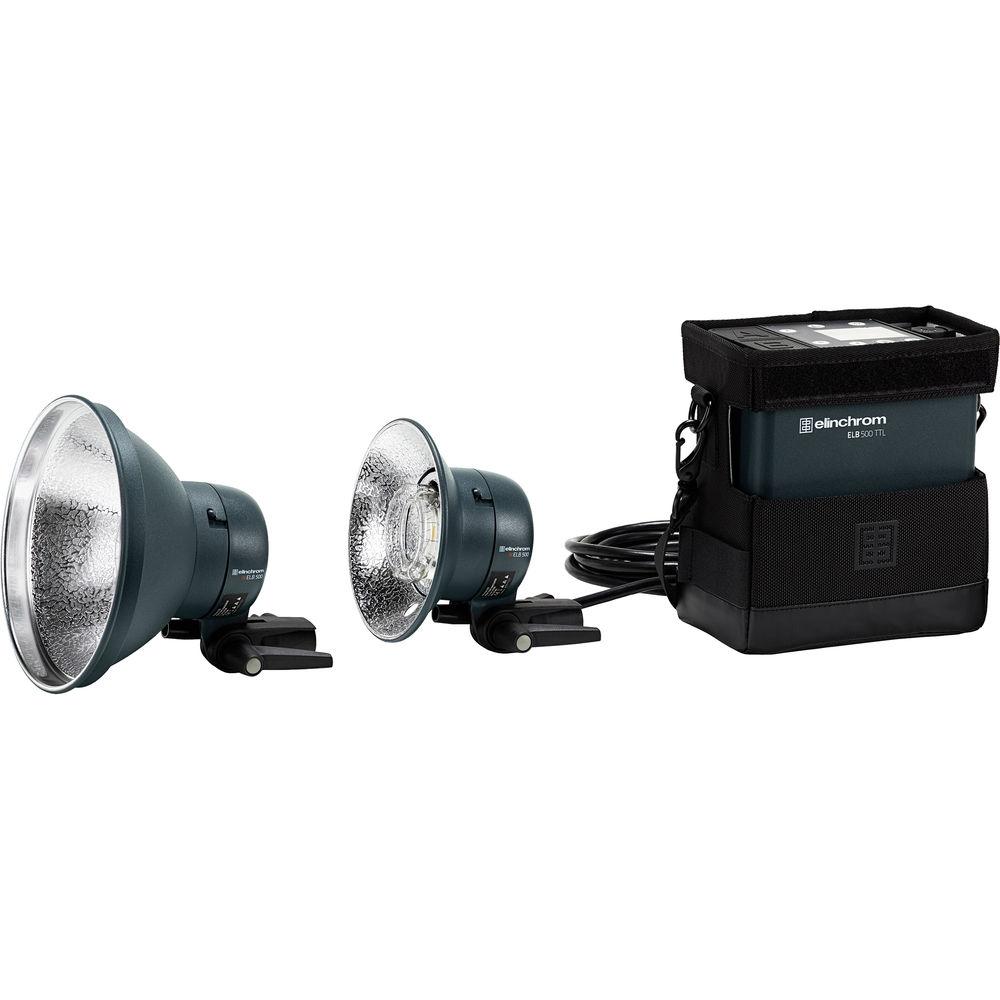

In the Box Bundle Items ELB 500 TTL bfsfqddaruztxassdydybty Li-Ion Battery for ELB 500 TTL Battery Charger for ELB 400 and ELB 500 TTL 2 x ELB 500 TTL Flash Head Snappy Carry Bag with Shoulder Strap for ELB 500 TTL bfsfqddaruztxassdydybty 7" (17.8 cm) Grid Reflector for Quadra Heads ProTec Location Bag 5.3" (13.5 cm) Standard Reflector for Quadra Flash Head
Also Includes Table of Contents
|
Upload User Manual
Have you got an user manual for the Elinchrom ELB 500 TTL Dual To Go Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - ELB 500 TTL
| Maximum Watt/Seconds | 500 Ws | | Flash Variability | 7 Stops (in 1/10 increments) | | Recycle Time | 0.05-3.5 sec | | Flash Duration | Action Mode: 1/20,000 sec
Normal Mode: 1/3400 sec | | Distribution | Asymmetric | | Head Outlets | 2 | | Battery | Separately sold lithium-ion battery pack (14.4 V/72 Wh) | | Battery Life | 400 full-power flashes
28,000 minimum-power flashes | | Dimensions | 6.4 x 5.4 x 3.6" / 16.3 x 13.8 x 9 cm
With Battery: 6.4 x 7.12 x 3.6" / 16.3 x 18.1 x 9 cm | | Weight | 3.83 lb / 1.8 kg
With Battery: 5.5 lb / 2.5 kg | | | | Box Dimensions (LxWxH) | 11.65 x 9.4 x 7.35" | - Li-Ion Battery for ELB 500 TTL
| | | Charging Time | 1.6 Hours | | Dimensions | 6.4 x 3.6 x 1.9" / 16.26 x 9.14 x 4.83 cm | | Weight | 1.6 lb / 0.7 kg | | | | Chemistry | Lithium-Ion | | Flashes Per Charge | 400 Flashes (Full Power) | | | | Box Dimensions (LxWxH) | 15.7 x 6.95 x 5.1" | - Battery Charger for ELB 400 and ELB 500 TTL
| | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz at 1.5 A | | Number of Battery Bays | 1 | | | | Box Dimensions (LxWxH) | 11.25 x 8.25 x 2.4" | - ELB 500 TTL Flash Head
| Maximum Watt/Seconds | 500 | | Changeable Reflector | Yes, Quadra Mount (Q-Mount) | | Color Temperature | Flash Head: 5500K @ full power (+/-200K over 7 stops)
Flash Head Power Stability: 0.05%
Modeling Light: 5200K @ full power (CRI 90) | | Flash Duration | Action Mode: 1/20,000 sec
Normal Mode: 1/3400 sec | | Cable Length | 8.0' / 2.4 m | | Modeling Light | 14 W LED (50 W halogen equivalent)
Modes: On/Off, free adjustment, proportional, timer, visual confirmation
Control: on ELB 500 TTL pack | | Fan Cooled | No | | Mount | 5/8" (16 mm) Receiver
7.0 mm Umbrella fitting | | Dimensions | 3.5 x 3.1 x 6.3" / 9.0 x 8.0 x 16 cm | | Weight | 1.5 lb / 0.68 kg | | | | Box Dimensions (LxWxH) | 1.0 x 1.0 x 1.0" | - Snappy Carry Bag with Shoulder Strap for ELB 500 TTL
| Material of Construction | Ballistic nylon | | Carrying Options | Shoulder strap | | | | Box Dimensions (LxWxH) | 9.75 x 8.7 x 4.75" | - 7" (17.8 cm) Grid Reflector for Quadra Heads
| | | Box Dimensions (LxWxH) | 7.65 x 7.25 x 4.1" | - ProTec Location Bag
| | | Closure Type | Zipper | | Carry and Transport Options | Handle
Shoulder Strap | | Material of Construction | Nylon | | Exterior Dimensions (W x H x D) | 23.8 x 8.5 x 12.3" / 60.5 x 21.7 x 31.4 cm | | Weight | 6.8 lb / 3.1 kg | | | | Box Dimensions (LxWxH) | 23.1 x 15.7 x 9.1" | - 5.3" (13.5 cm) Standard Reflector for Quadra Flash Head
| | | Box Dimensions (LxWxH) | 6.6 x 6.4 x 6.2" |
