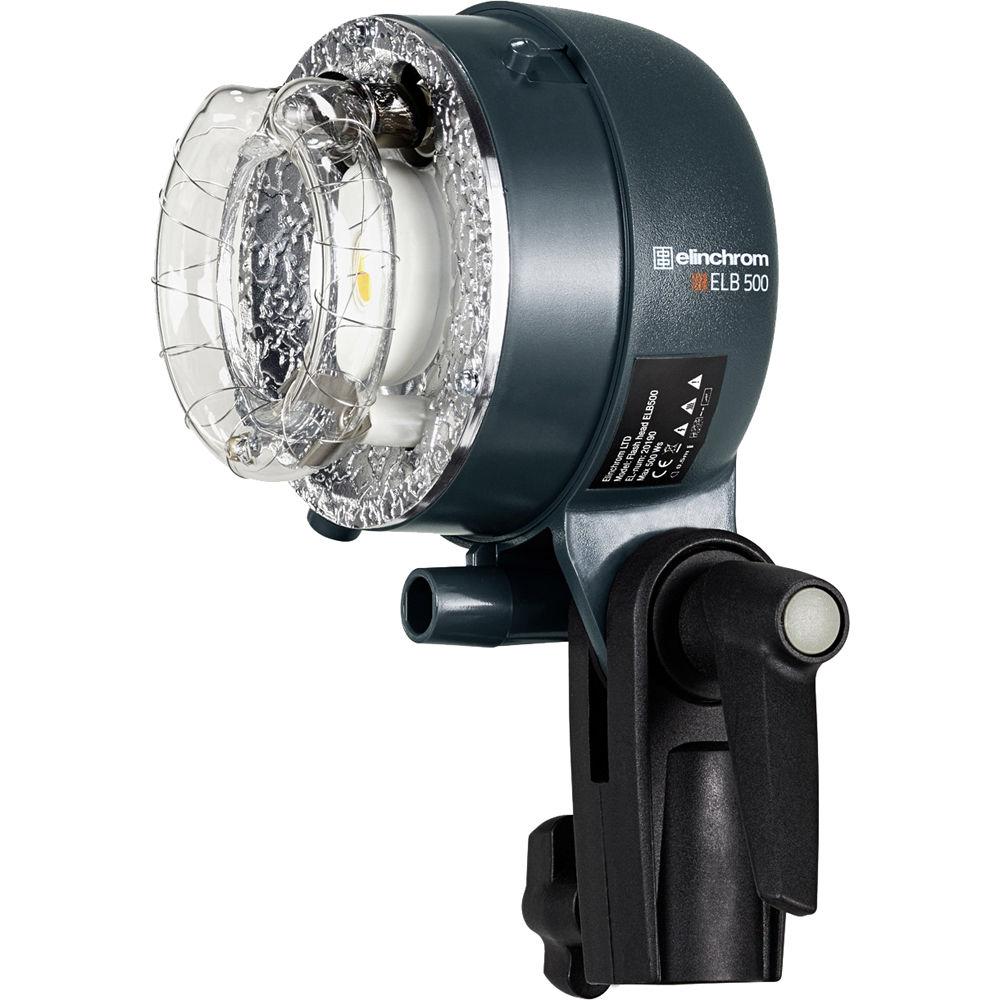

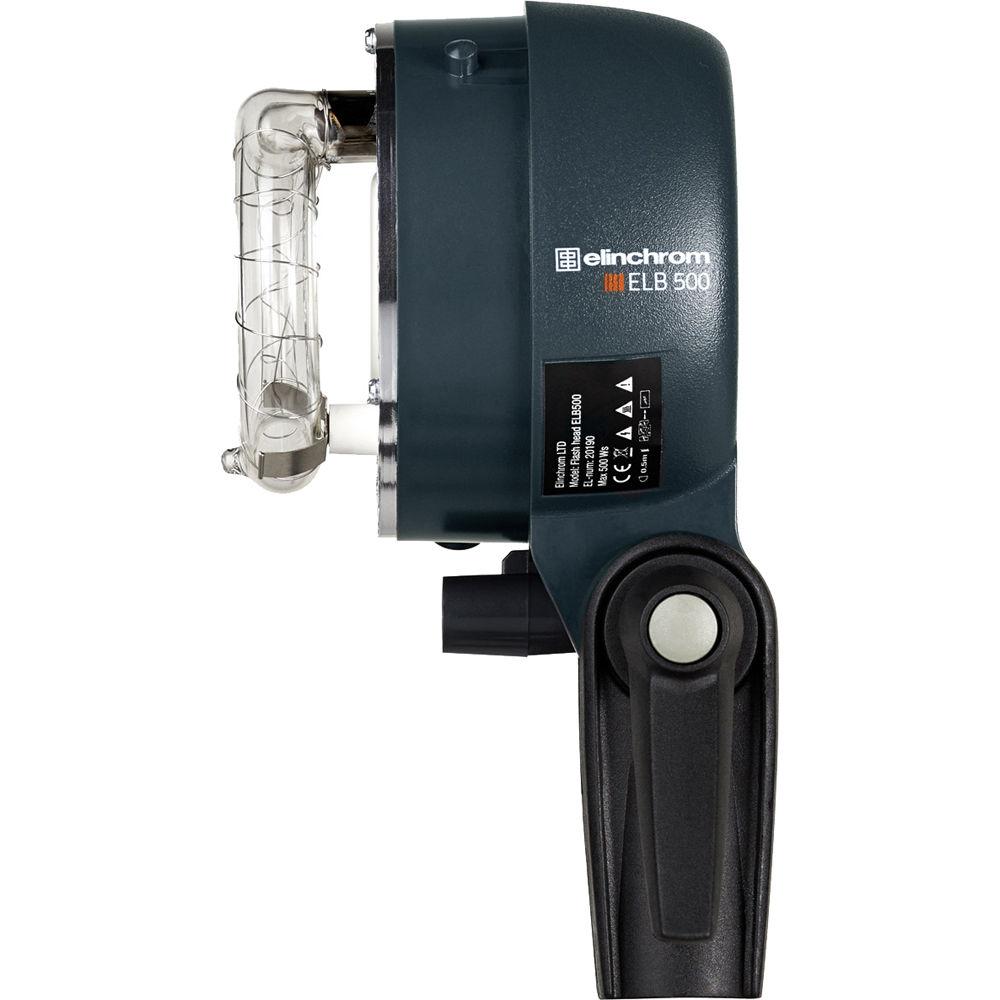

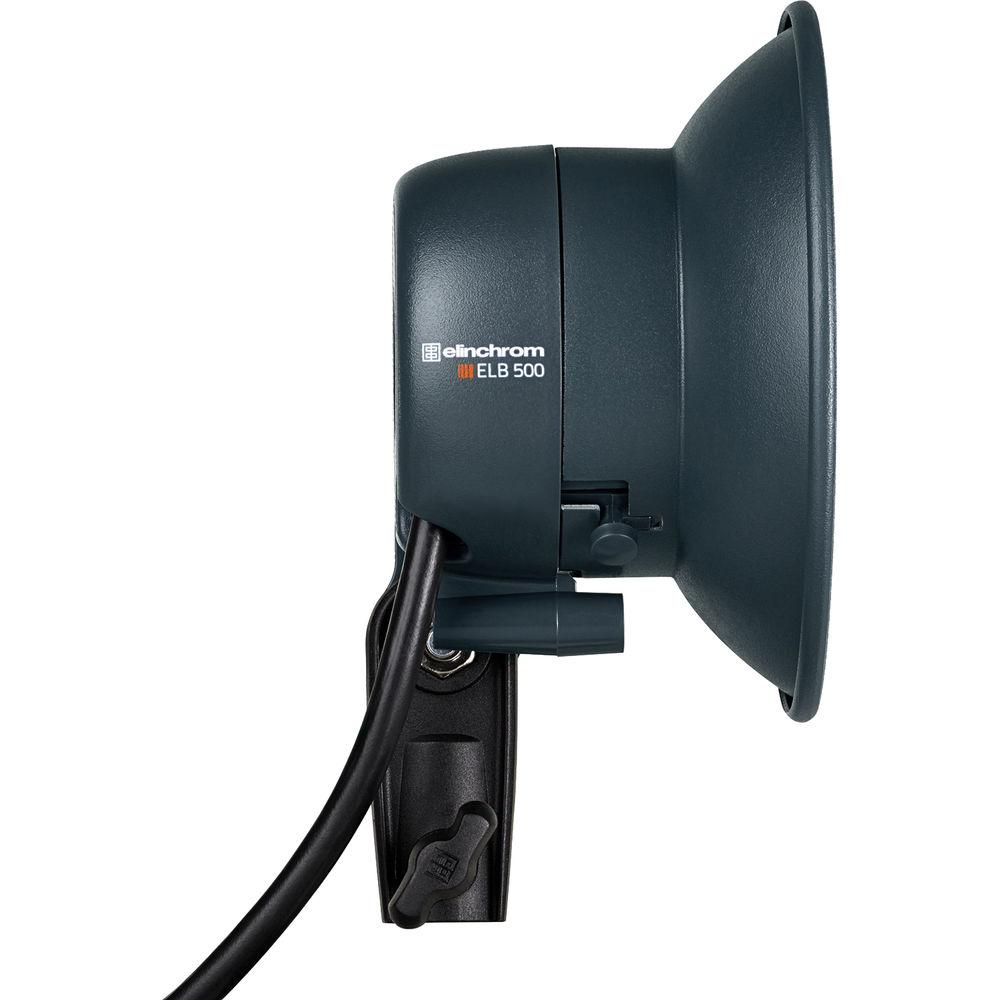

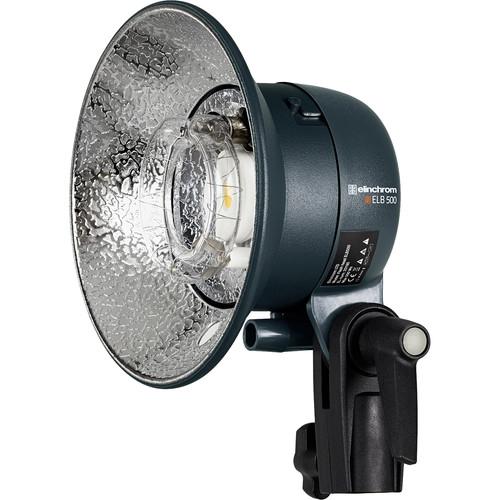

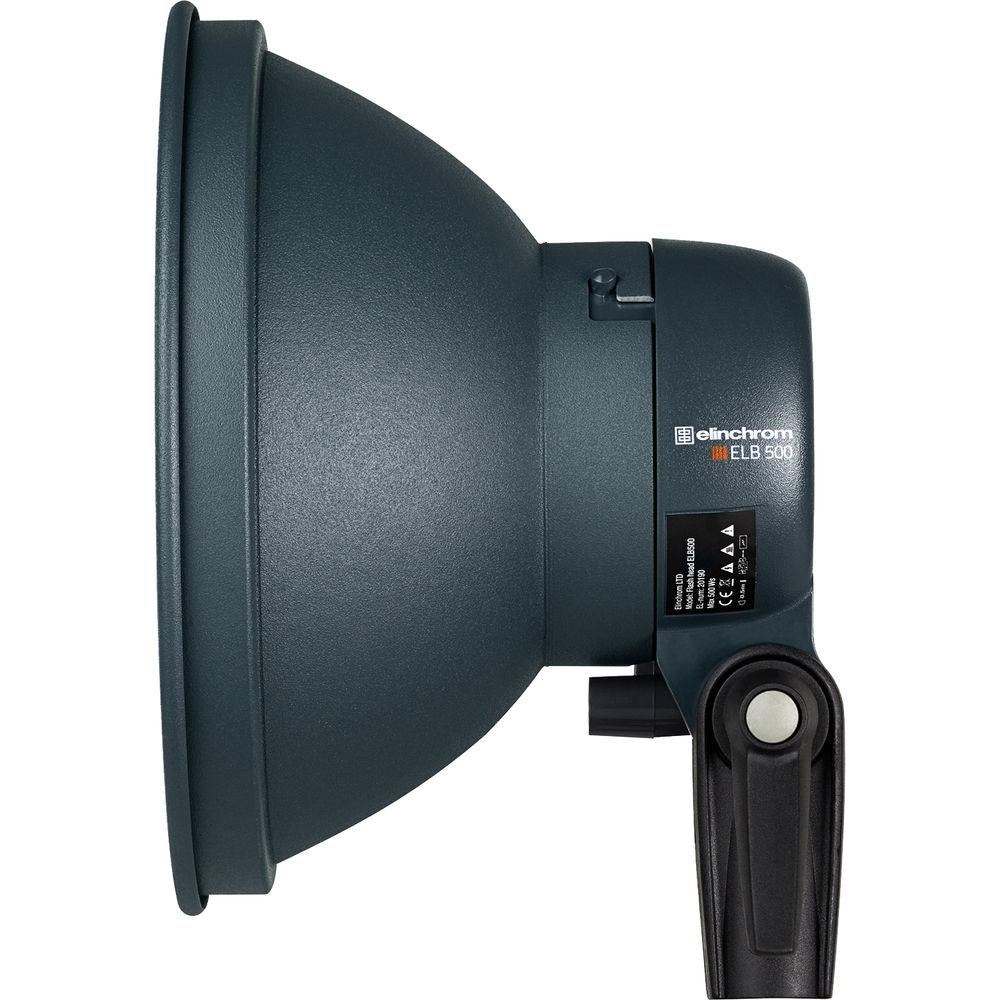

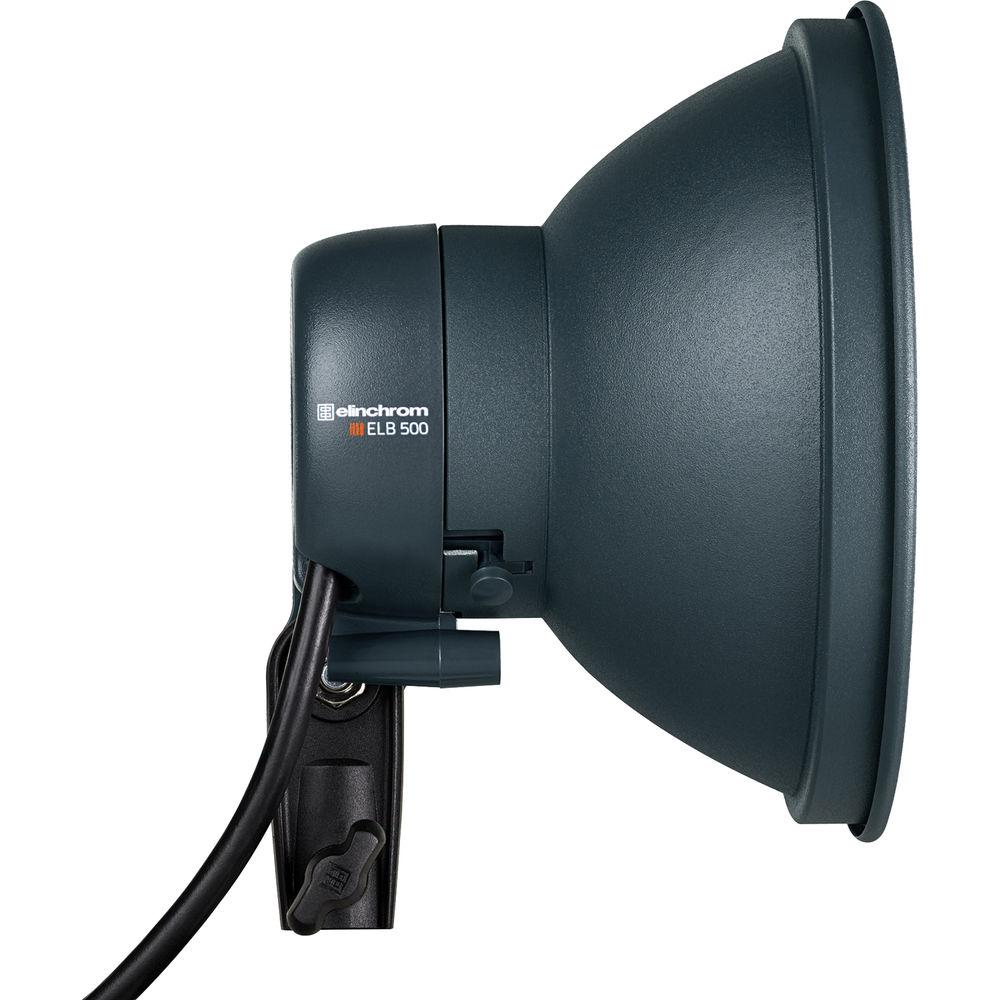

User Manual for Elinchrom ELB 500 TTL Flash Head Click to enlarge the picture
Contents of the user manual for the Elinchrom ELB 500 TTL Flash Head
- Product category: Battery Powered Heads Elinchrom
- Brand: Elinchrom
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Elinchrom Battery Powered Heads
 |
User manual for the Elinchrom ELB 500 TTL Flash Head contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Elinchrom product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Elinchrom user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Elinchrom product will considerably shorten its lifespan!
|

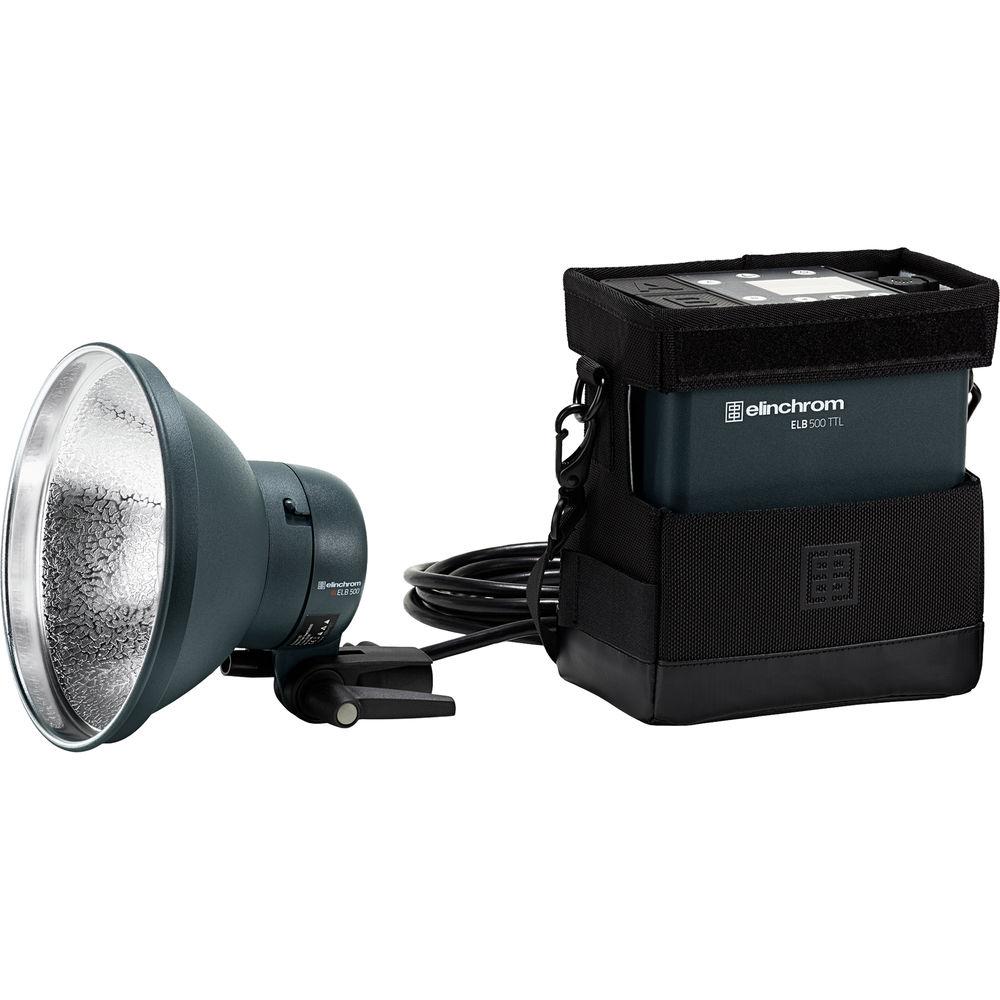

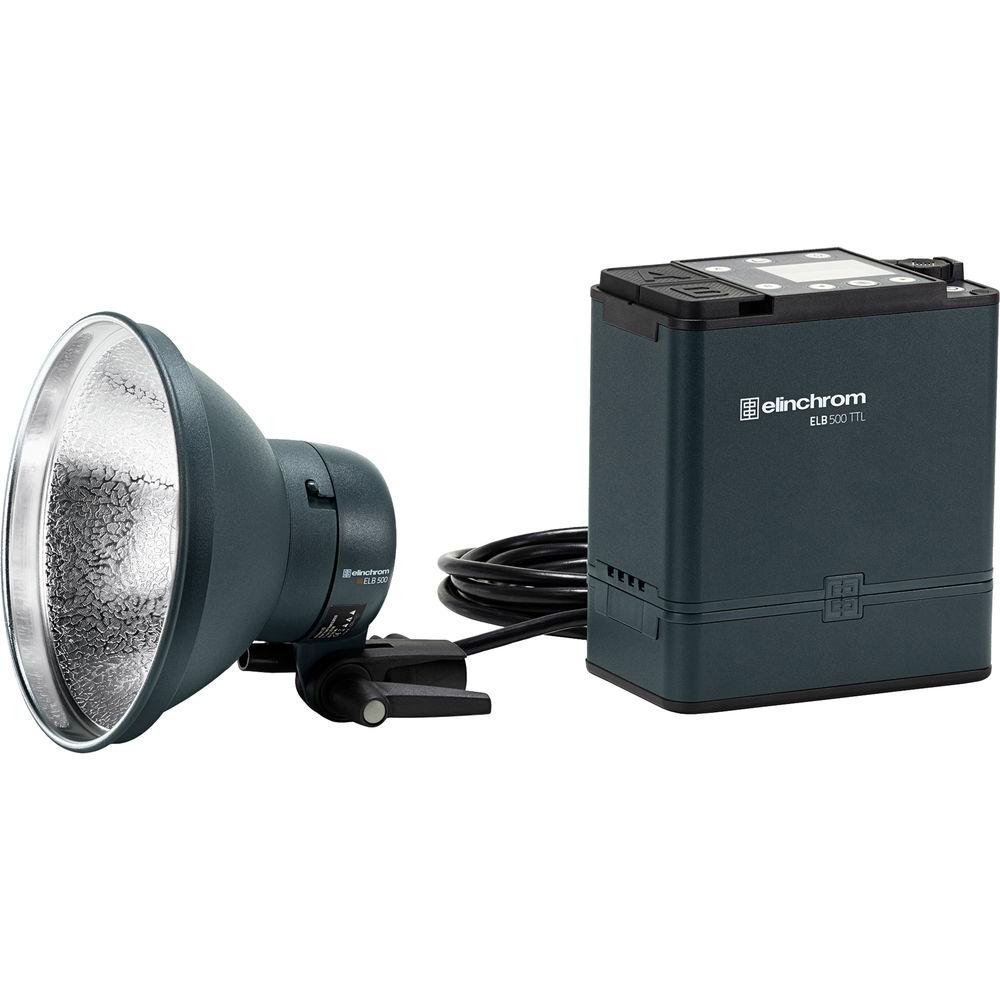

Product description Elinchrom Combines Power and Portability in ELB 500 TTL Flash Read More Made exclusively for the ELB 500 TTL battery-powered pack, the ELB 500 TTL Flash Head from Elinchrom has a compact form factor of 3.5 x 3.1 x 6.3" and weighs just 1.5 lb making it ideal for hand-holding or mounting overhead on supports such as a boom. Its Quadra front accessory mount (Q-Mount) is compatible with Portalite softboxes, and can also use full-sized Elinchrom or Profoto softboxes with an optional adapter. The flash head is capable of achieving flash durations as short as 1/3400 sec. in Normal Mode and 1/20,000 sec in Action Mode for special effects. It has a 14W LED modeling light that draws minimal power from the pack's battery, a 5/8" receiver for stand mounting, and comes with an 8' cable for connection to the ELB 500 TTL. In the Box Elinchrom ELB 500 TTL Flash Head 8' Cable Flash Tube Protective Cap Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Elinchrom ELB 500 TTL Flash Head in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersElinchrom ELB 500 TTL Specs | Maximum Watt/Seconds | 500 | | Changeable Reflector | Yes, Quadra Mount (Q-Mount) | | Color Temperature | Flash Head: 5500K @ full power (+/-200K over 7 stops)
Flash Head Power Stability: 0.05%
Modeling Light: 5200K @ full power (CRI 90) | | Flash Duration | Action Mode: 1/20,000 sec
Normal Mode: 1/3400 sec | | Cable Length | 8.0' / 2.4 m | | Modeling Light | 14 W LED (50 W halogen equivalent)
Modes: On/Off, free adjustment, proportional, timer, visual confirmation
Control: on ELB 500 TTL pack | | Fan Cooled | No | | Mount | 5/8" (16 mm) Receiver
7.0 mm Umbrella fitting | | Dimensions | 3.5 x 3.1 x 6.3" / 9.0 x 8.0 x 16 cm | | Weight | 1.5 lb / 0.68 kg | | | | Package Weight | 2.2 lb | | Box Dimensions (LxWxH) | 1.0 x 1.0 x 1.0" |
Rating100% users recommend this product to others. And what about you?
This product has already been rated by 84 owners. Add your rating and experience with the product.
