Product description

  • ELC Pro HD - features

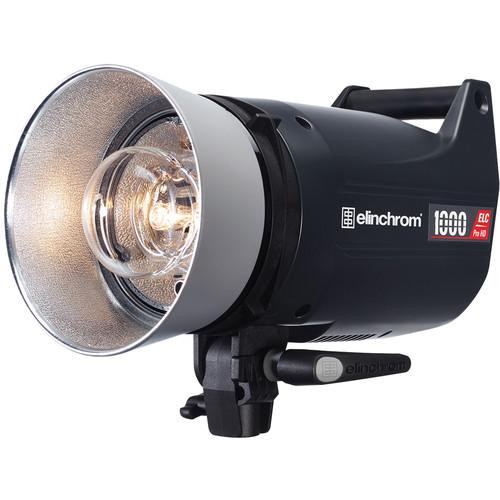

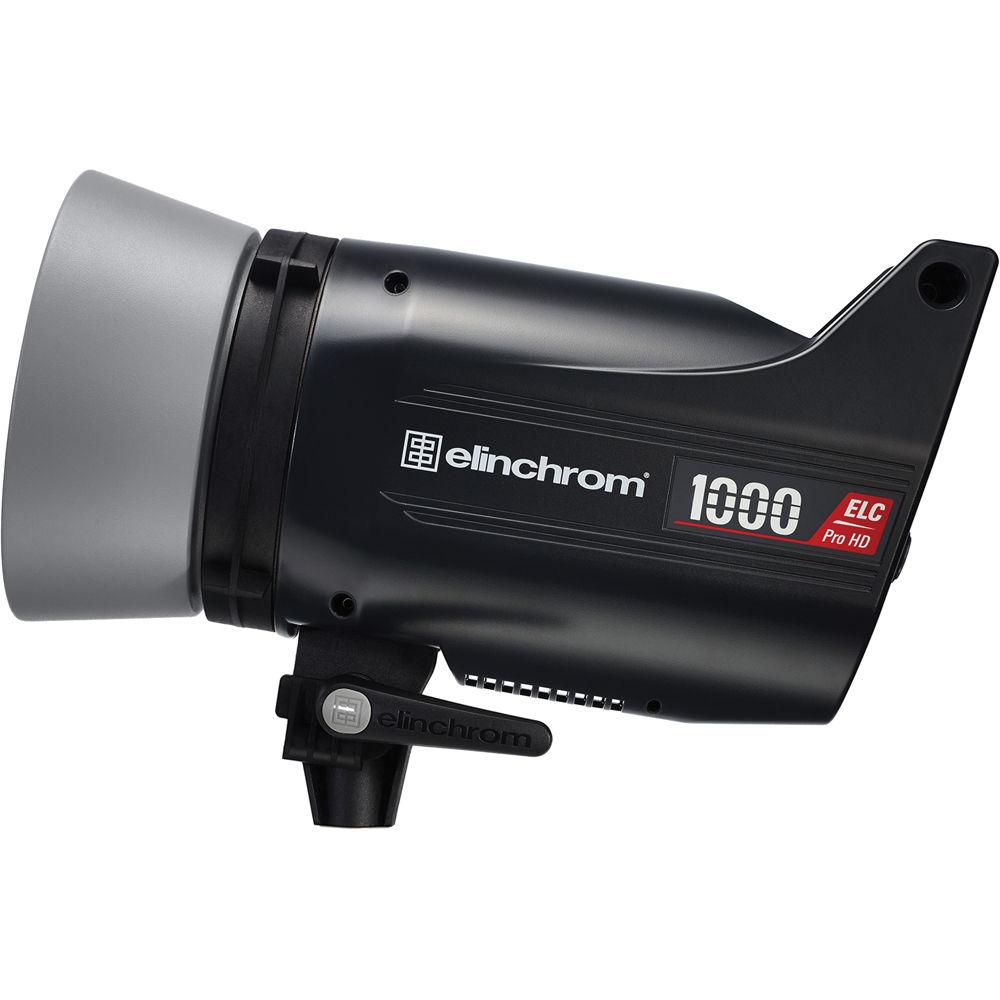

The ELC Pro HD 1000 Flash Head from Elinchrom is evidence of the company's continued commitment to pushing the envelope in monolight design. Elinchrom has packed the ELC Pro HD 1000 with professional features we've come to expect from a flash head of this caliber and added quite a bit more. Short recycling times coupled with fast flash durations make freeze-motion, stop-action shooting possible. In fact, up to 20 frames per second is possible at minimum power. An intelligent low noise, temperature activated fan keeps the head cool and lengthens the life of both the flash tube and modeling lamp. A pre-flash detector lets you integrate your on-camera flash into your studio system. Power, variable continuously from 7 to 1,000W/s, can be mimicked by the 300W proportional modeling lamp to preview your effects. Although Elinchrom provides one, you can swap the sync cord with a separately purchased 8-channel transceiver for wireless triggering from your camera. The head has one built-in to receive the signal. Flash modes allow you to address special situations. The Sequential Mode enables triggering up to 20 ELCs in bursts or in a continuous cycle. Delayed Mode offers a choice of first or second curtain syncing while Strobo Mode allows single frame stroboscopic action sequences. Finally, the auto-sensing multi-voltage power supply means that you can use the ELC Pro HD 1000 anywhere in the world.
    Features
  • Built-in EL-Skyport receiver for triggering
  • EL-Skyport with 8 frequency channels with 4 groups
  • EL-Skyport Speed Sync mode for synchronization up to a 1/320 sec. on enabled SLR cameras
  • Intelligent pre-flash detector system to enable the use of ELC units with speedlights
  • 8 f-stop range
  • Action-freezing flash durations of 1/1,430 @ full power (t0.5) and as short as 1/5,260 sec. at 80W/s
  • Stable even at fastest recycling times
  • Up to 20 flashes per second
  • Consistent color temperature with +/- 150K°
  • Power Auto-dump
  • Multi-voltage auto-detection: 90-265VAC excluding modeling lamp
  • Low 5V sync voltage safe for all digital camera systems
  • Intelligent low-noise fan spins slower or faster depending on the internal temperature of the unit
  • Impact resistant and fire-retardant body shell
  • Accessory bayonet permits use of the complete range of light modifiers
    The Elinchrom Standard

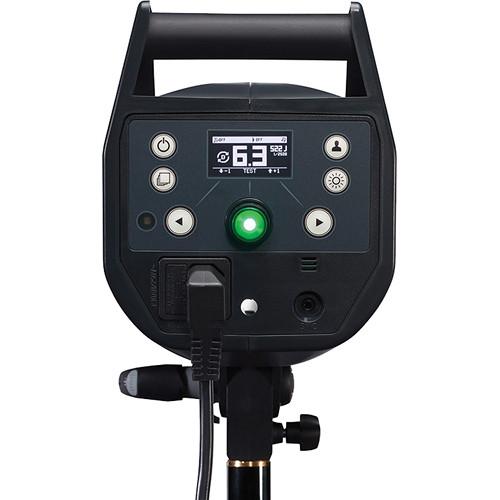

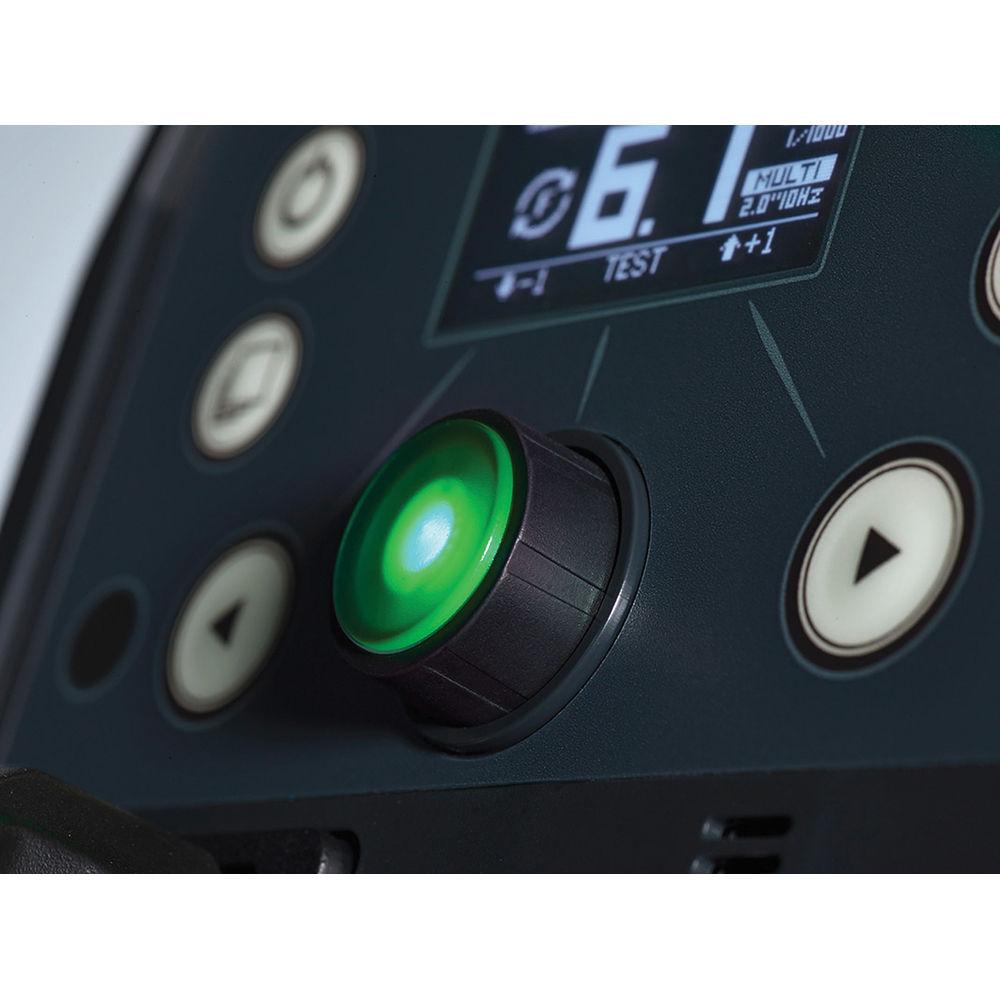

  • OLED display for information and clarity
  • Dashboard for an enhanced experience
  • Precise control
    Flash Modes
  • Sequence Mode allows you to sequentially trigger up to 20 ELCs, in bursts or as a continuous cycle to utilize the high frame rate of your camera
  • Delayed Mode provides the option of first or second curtain sync and everything in-between
  • Strobo Mode allows you to take a picture with stroboscopic effects in a single frame
UPC: 719821377955 In the Box Elinchrom ELC Pro HD 1000 Flash Head
  • Mains Cable
  • Sync Cable
  • Modeling Lamp (300W)

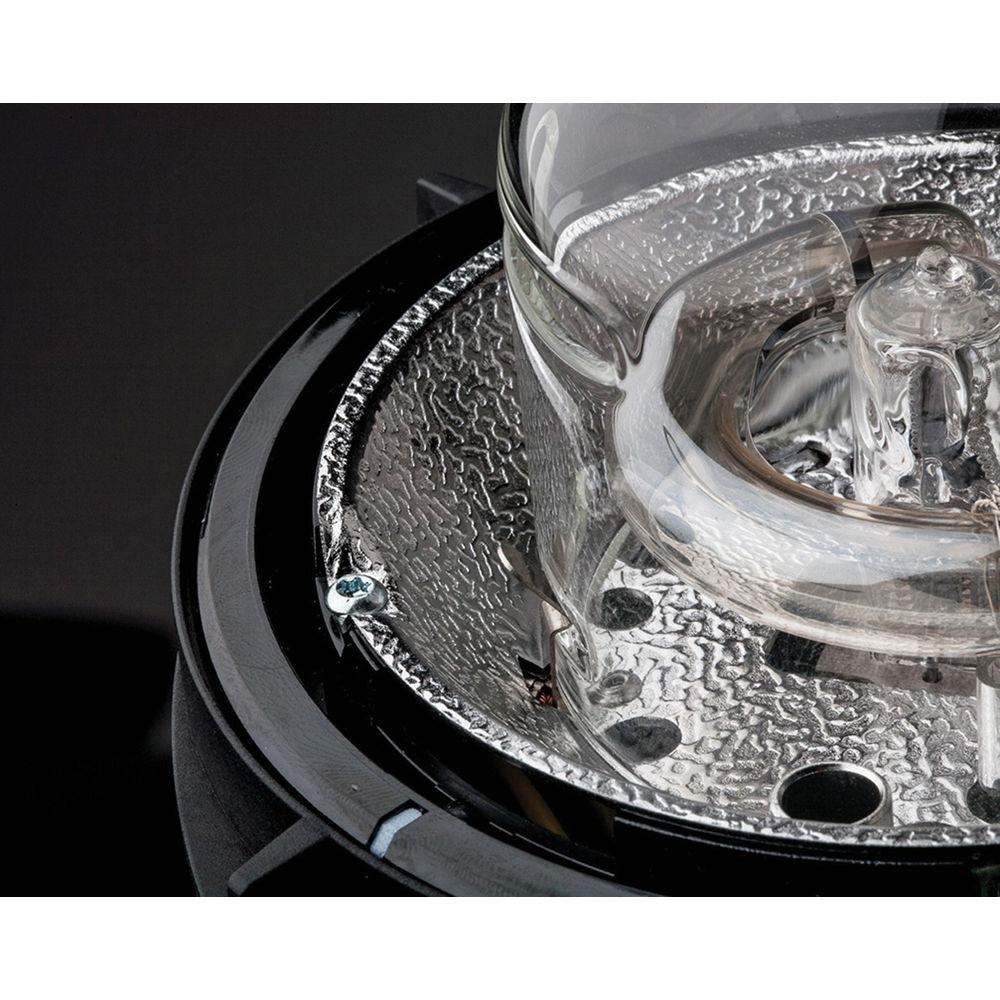

  • Glass Dome
  • Protective Cap
  • Reflector (6.3"/90°)
  • Limited 2-Year Warranty
  • Table of Contents




    Upload User Manual

    Have you got an user manual for the Elinchrom ELC Pro HD 1000 Flash Head in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

    To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
    Upload PDF user manual Upload DOC user manual
    Please enter here the link to the user manual of this product:





    OR

    Enter here the file with the user manual of this product from your computer/phone:
    (60MB max; Permitted formats: PDF)

    0%


    Technical parameters

    Elinchrom ELC Pro HD 1000 Specs

    Maximum Power 7 to 1000 Ws
    Power Control 8 Stops in 1/10-Stop Increments
    Guide Number 298' / 90.8 m at 3.3' / 1 m, ISO100 with Reflector
    Flash Duration t.5: 1/1430 to 1/2780 Sec
    Recycle Time 1.2 to 4 Sec ()
    Color Temperature 5500K
    Flash Ready Indicator Audio, Visual
    Reflector Changeable
    Accessory Fitting Type Bowens S Type, Elinchrom Umbrella Shaft
    Type Tungsten
    Base Type GX6.35
    Wattage 300 W
    Control Modes Free Set, Full On, Proportional
    Sync Type Infrared, Optical, Radio
    Wireless Channels / Groups 8 / 4
    Interface PC Sync (3.5 mm)
    Sync Voltage 5 V
    AC Input Voltage 90to265 VAC, 50 / 60 Hz
    Circuit Protection Fuse
    Display OLED
    Auto Dump Yes
    Fan Cooled Yes
    Dimensions H: 8.2 x W: 5.5 x L: 12.4" / H: 21.0 x W: 14.0 x L: 31.5 cm, Including Cap
    Weight 6.4 lb / 2.9 kg
    Package Weight 11.1 lb
    Box Dimensions (LxWxH) 18.2 x 9.5 x 8.4"
