User Manual for Elinchrom ELC Pro HD 500 Flash Head Click to enlarge the picture
Contents of the user manual for the Elinchrom ELC Pro HD 500 Flash
- Product category: Monolights Elinchrom
- Brand: Elinchrom
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Elinchrom Monolights
 |
User manual for the Elinchrom ELC Pro HD 500 Flash contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Elinchrom product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Elinchrom user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Elinchrom product will considerably shorten its lifespan!
|

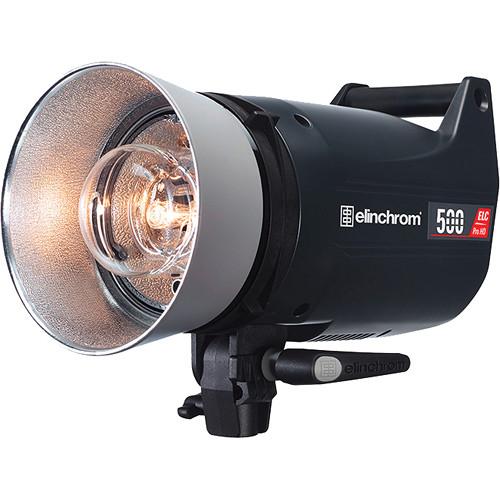

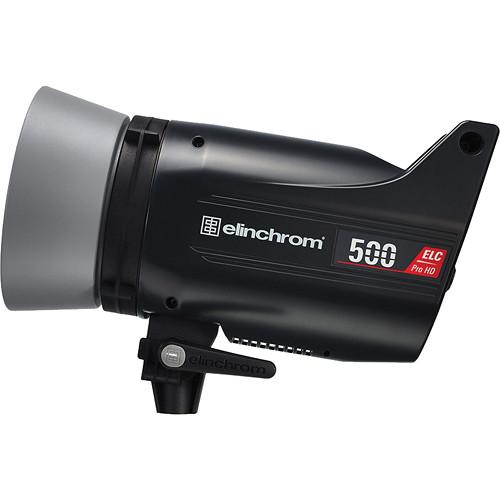

Product description The ELC Pro HD 500 Flash Head from Elinchrom is evidence of the company's continued commitment to pushing the envelope in monolight design. Elinchrom has packed the ELC Pro HD 500 with professional features we've come to expect from a flash head of this caliber and added quite a bit more. Short recycling times coupled with fast flash durations make freeze-motion, stop-action shooting possible. In fact, up to 20 frames per second is possible at minimum power. An intelligent low noise, temperature-activated fan keeps the head cool and lengthens the life of both the flash tube and modeling lamp. A pre-flash detector lets you integrate your on-camera flash into your studio system. Power, variable continuously from 7 to 500W/s, can be mimicked by the 300W proportional modeling lamp to preview your effects. Although Elinchrom provides one, you can swap the sync cord with a separately purchased 8-channel transceiver for wireless triggering from your camera. The head has one built-in to receive the signal. Flash modes allow you to address special situations. The Sequential Mode enables triggering up to 20 ELCs in bursts or in a continuous cycle. Delayed Mode offers a choice of first or second curtain syncing while Strobo Mode allows single frame stroboscopic action sequences. Finally, the auto-sensing multi-voltage power supply means that you can use the ELC Pro HD 500 anywhere in the world. - Features
-
- Built-in EL-Skyport receiver for triggering
- EL-Skyport with 8 frequency channels with 4 groups
- EL-Skyport Speed Sync mode for synchronization up to a 1/320 sec. on enabled SLR cameras
- Intelligent pre-flash detector system to enable the use of ELC units with speedlights
- 8 f-stop range
- Action-freezing flash durations of 1/2,330 @ full power (t0.5) and as short as 1/5,000 sec. at 53W/s
- Stable even at fastest recycling times
- Up to 20 flashes per second
- Consistent color temperature with +/- 150K°
- Power Auto-dump
- Multi-voltage auto-detection: 90-265VAC excluding modeling lamp
- Low 5V sync voltage safe for all digital camera systems
- Intelligent low noise fan spins slower or faster depending on the internal temperature of the unit
- Impact resistant and fire retardant body shell
- Accessory bayonet permits use of the complete range of light modifiers
- The Elinchrom Standard
-

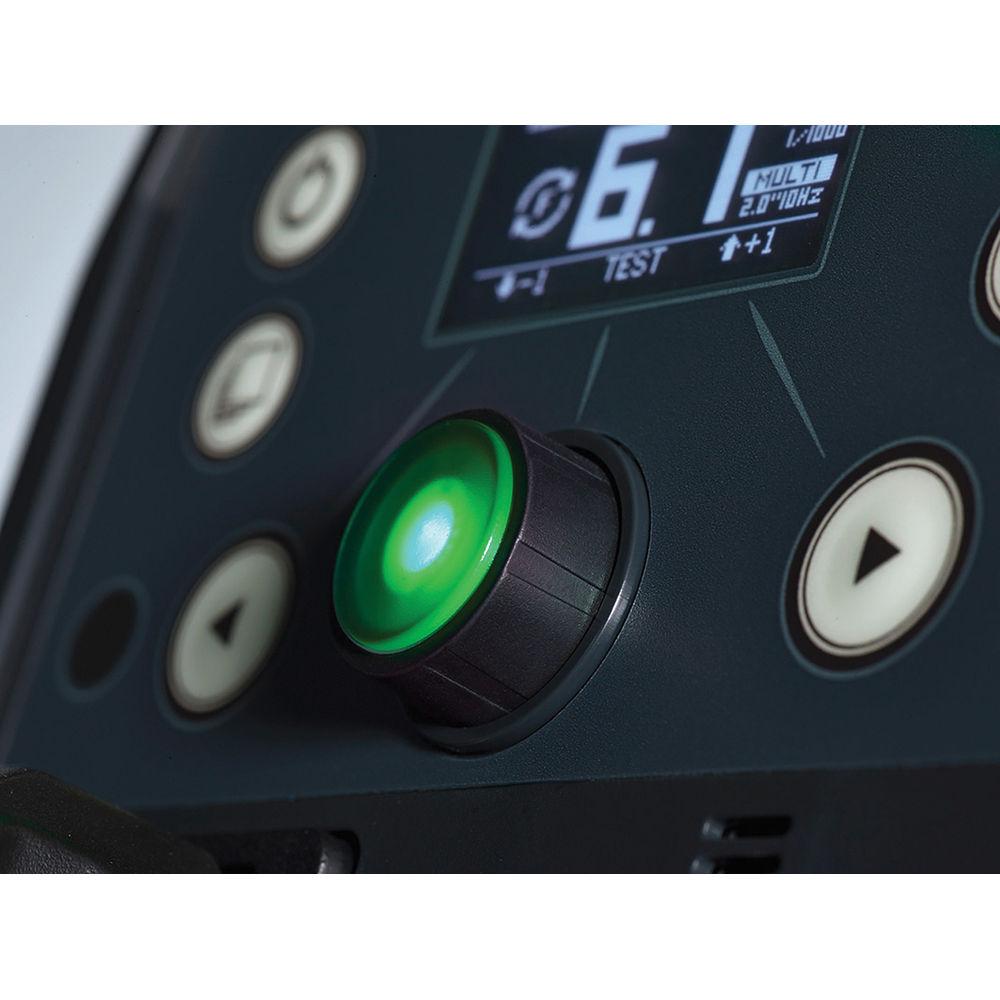

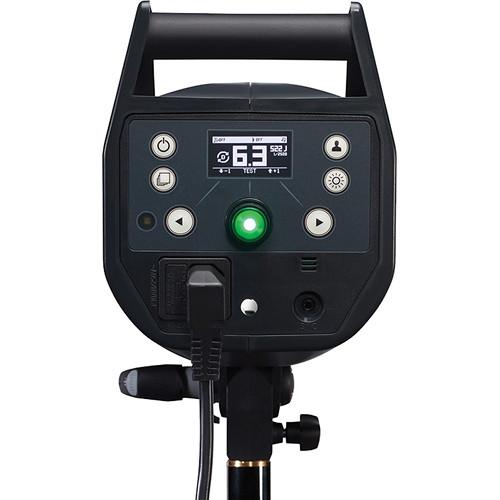

- OLED display for information and clarity
- Dashboard for an enhanced experience
- Precise control
- Flash Modes
-
- Sequence Mode allows you to sequentially trigger up to 20 ELCs, in bursts or as a continuous cycle to utilize the high frame rate of your camera
- Delayed Mode provides the option of first or second curtain sync and everything in-between
- Strobo Mode allows you to take a picture with stroboscopic effects in a single frame
UPC: 719821377948 In the Box Elinchrom ELC Pro HD 500 Flash Head Mains Cable Sync Cable Modeling Lamp (300W) Glass Dome Protective Cap Reflector (6.3"/90°) Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Elinchrom ELC Pro HD 500 Flash Head in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersElinchrom ELC Pro HD 500 Specs | | | Maximum Power | 7 to 500 Ws | | Power Control | 7 Stops in 1/10-Stop Increments | | Guide Number | 212.6' / 64.8 m at 3.3' / 1 m, ISO100 | | Flash Duration | t.5: 1/2940 to 1/2330 Sec | | Recycle Time | 0.6 to 2.0 Sec () | | Color Temperature | 5500K | | Flash Ready Indicator | Audio, Visual | | Reflector | Changeable | | Accessory Fitting Type | Bowens S Type, Elinchrom Umbrella Shaft | | | | Type | Tungsten | | Wattage | 300 W | | Control Modes | Free Set, Full On, Proportional | | | | Sync Type | Infrared, Optical, Radio | | Wireless Channels / Groups | 8 / 4 | | Interface | PC Sync (3.5 mm) | | Sync Voltage | 5 V | | | | AC Input Voltage | 90to265 VAC, 50 / 60 Hz | | Circuit Protection | Fuse | | | | Display | None | | Auto Dump | Yes | | Fan Cooled | Yes | | Dimensions | H: 8.2 x W: 5.5 x L: 12.4" / H: 21.0 x W: 14.0 x L: 31.5 cm, Including Cap | | Weight | 5.18 lb / 2.35 kg | | | | Package Weight | 9.85 lb | | Box Dimensions (LxWxH) | 18.3 x 9.7 x 8.5" |
