User Manual for Elinchrom Litemotiv 190cm Parabolic Softbox Click to enlarge the picture
Contents of the user manual for the Elinchrom Litemotiv 190cm Parabolic Softbox
- Product category: Softboxes Elinchrom
- Brand: Elinchrom
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Elinchrom Softboxes
 |
User manual for the Elinchrom Litemotiv 190cm Parabolic Softbox contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Elinchrom product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Elinchrom user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Elinchrom product will considerably shorten its lifespan!
|

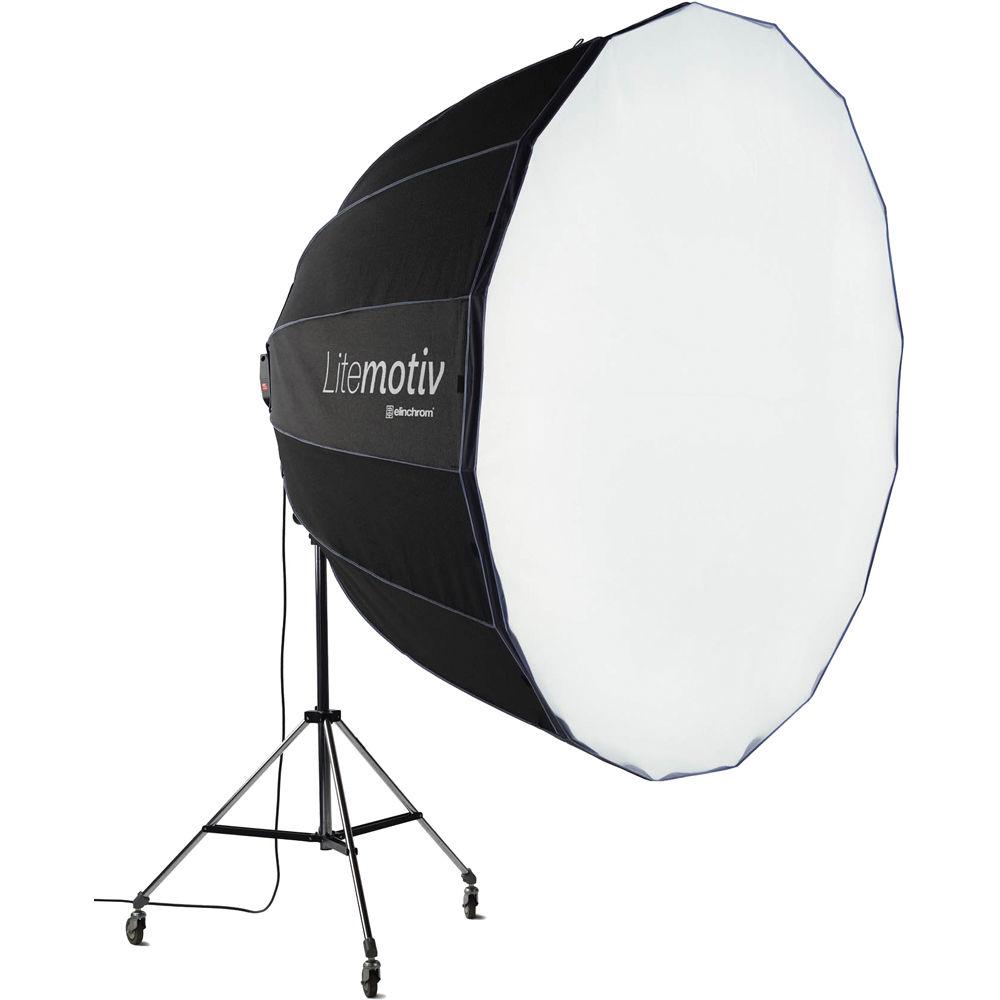

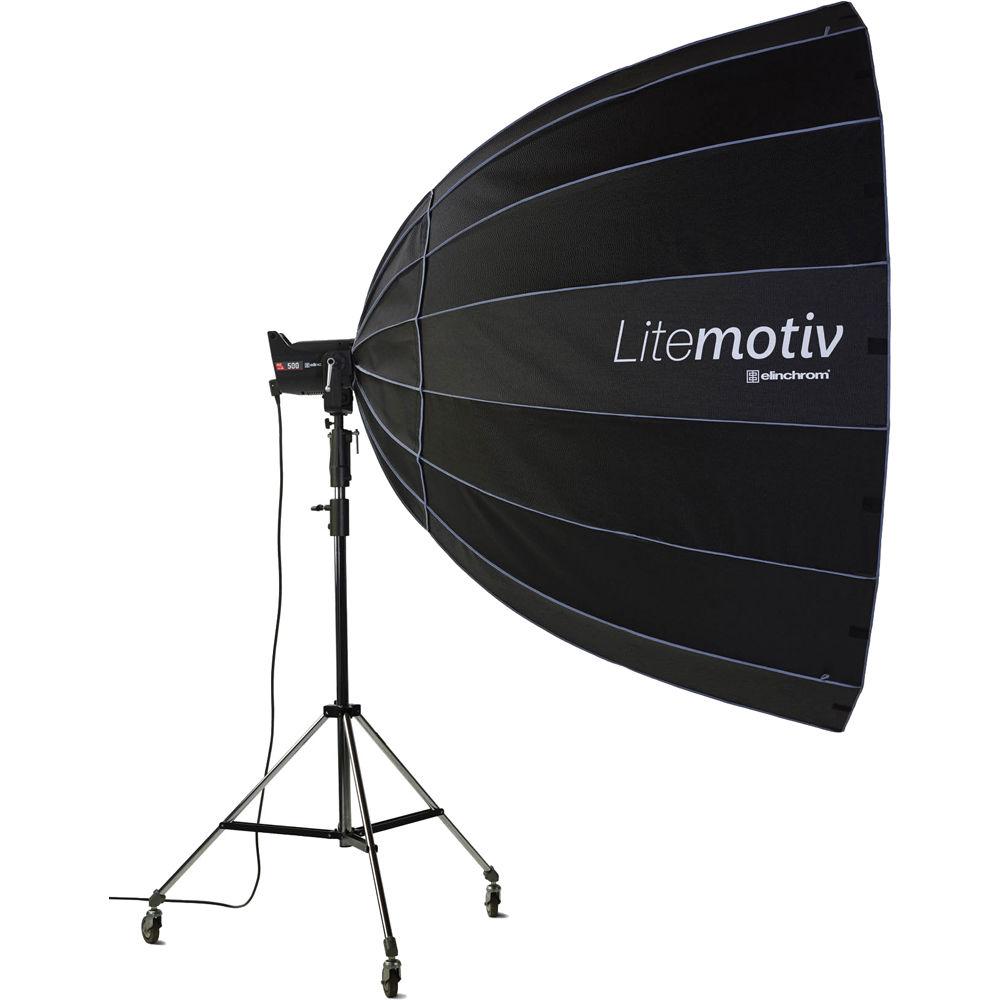

Product description The Litemotiv 190cm Parabolic Softbox from Elinchrom is a logical extension of their softbox range. The 16-sided softbox is ideal for portraiture since its form factor renders pleasing circular catchlights in subject's eyes, while the Litemotiv's large surface area wraps the soft light around the subject. Optimal results can be achieved using any combination of the unit's removable front and inner diffusers as well as optional deflectors that reduce hotspots. The Litemotiv requires separate purchase of a heavy duty bracket for use. The Elinchrom bracket enables precise and easy positioning for all Elinchrom heads. Profoto, Bowens, and Broncolor Pulso brackets are also available. - 16 Rods
- The 16 anodized rods are heat-resistant, enabling work with high-temperature light sources and creating ideal catchlights for portraiture, The rods are made of flexible aluminum to follow the parabolic shape of the Litemotiv. The color coding of the bracket and rods enable trouble-free assembly. These studio softboxes feature convenience features such as a removable rear cover that makes them simple to setup and disassemble
- More Light
- The fabric of the Litemotiv softboxes is unique. It offers 30% more light output than the standard Rotalux fabric used for the Portalite while being just as lightweight. It also offers the same distinctive Elinchrom look as the other softboxes but with the addition of heat-resistance which allows the use of hot lights up to 650W
- Support Bracket
- Designed to support the Litemotiv 120cm and the larger 190cm, this separately purchased bracket takes all of the stress off the attached flash head in use while providing easy positioning of it. Elinchrom, Bowens S-Mount, Broncolor Pulso and Profoto brackets are available
- Double Diffusion

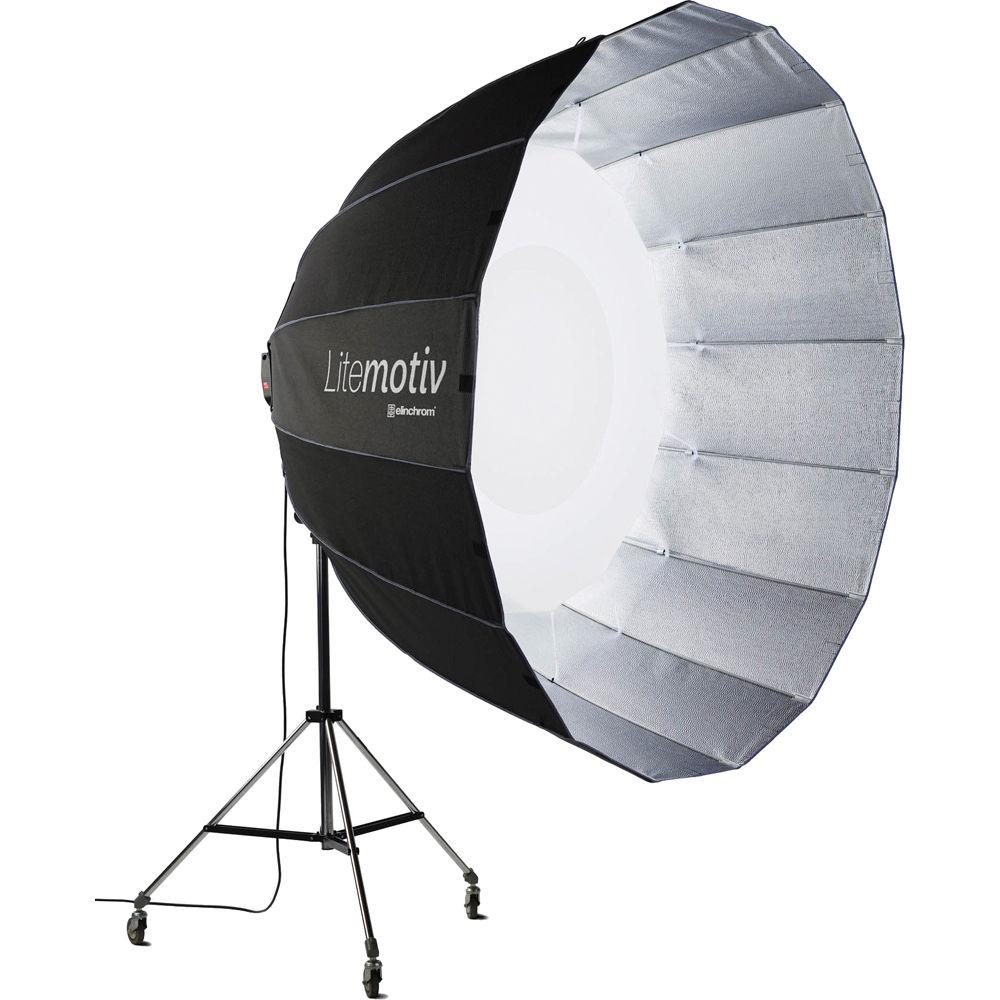

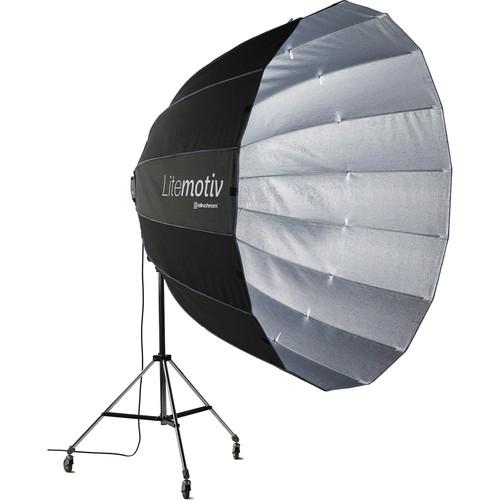

- The double diffusion panels have been specially designed to produce very soft light. The inner diffuser also incorporates a central circular panel to avoid hotspots, thus offering the most homogenous light possible. It is possible to remove both diffusers to obtain a very crisp and contrasty light, similar to a beauty dish but much larger
- Optional Deflectors
- Elinchrom compacts and flash heads offer a unique centered umbrella fitting for umbrellas and deflectors. This gives photographers the freedom to easily modify the hardness / softness of their lights. Deflectors can eliminate, soften or tone sharp shadow edges and hotspots
UPC: 763000631123 In the Box Elinchrom Litemotiv 190cm Parabolic Softbox Inner Diffuser Front Diffuser Case Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Elinchrom Litemotiv 190cm Parabolic Softbox in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersElinchrom Litemotiv Parabolic Specs | Shape | Parabolic | | Compatibility | Speed rings available for Elinchrom, Bowens, Broncolor Pulso, Profoto | | Removable Front Face | Yes | | Removable Interior Baffle | Yes | | Accepts Grids | No | | Requires Speed Ring | Yes | | Size | Front diameter: 74.8" (190 cm)
Depth: 47.2" (120 cm) | | | | Package Weight | 9.8 lb | | Box Dimensions (LxWxH) | 65.5 x 8.6 x 4.5" |
Rating60% users recommend this product to others. And what about you?
This product has already been rated by 79 owners. Add your rating and experience with the product.
