User Manual for Elinchrom Quadra Action Flash Head Click to enlarge the picture
Contents of the user manual for the Elinchrom Quadra Action Flash Head
- Product category: Battery Powered Heads Elinchrom
- Brand: Elinchrom
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Elinchrom Battery Powered Heads
 |
User manual for the Elinchrom Quadra Action Flash Head contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Elinchrom product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Elinchrom user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Elinchrom product will considerably shorten its lifespan!
|

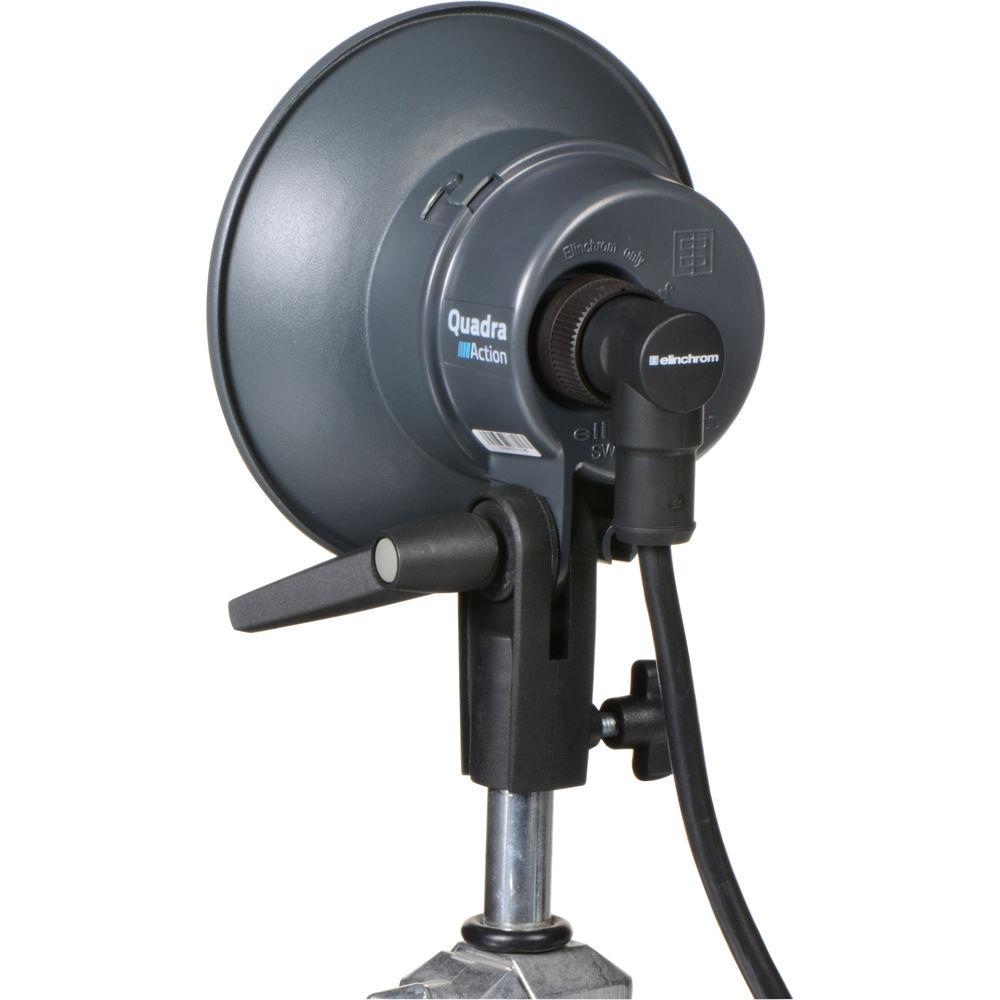

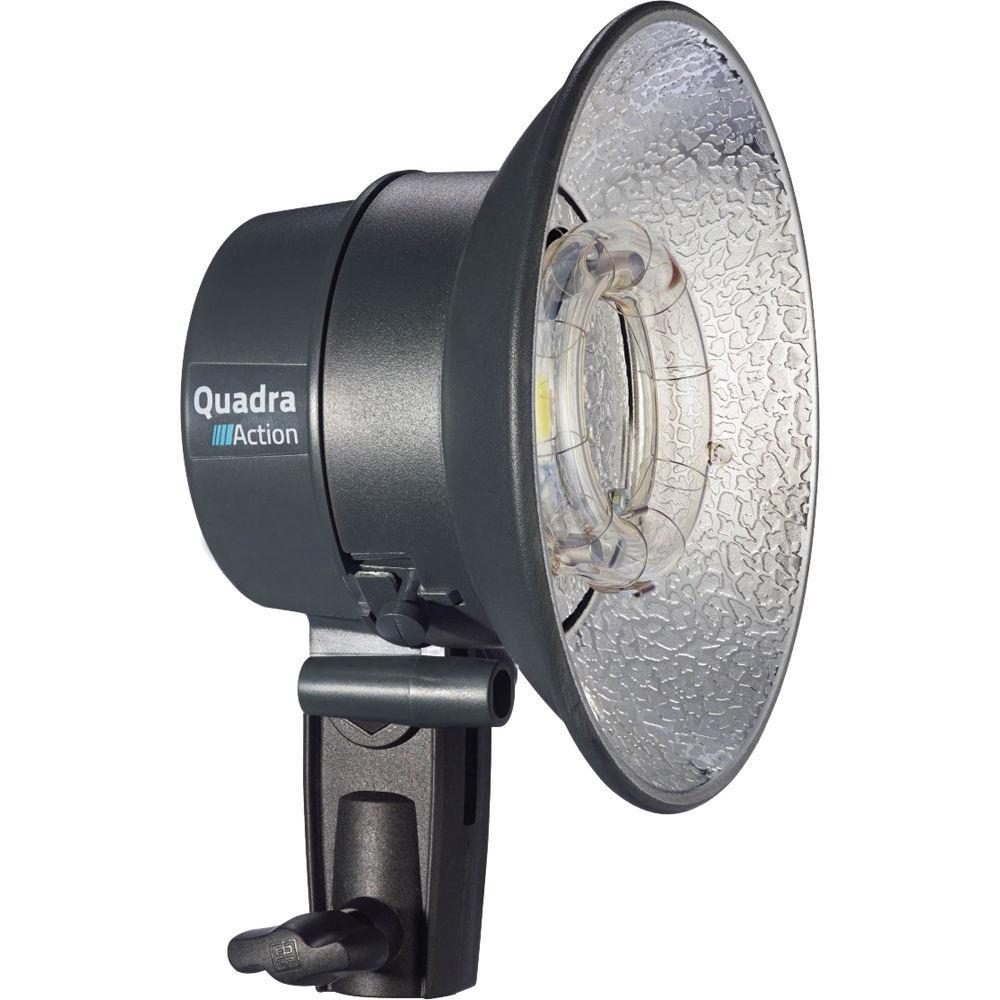

Product description The Quadra Action Flash Head from Elinchrom is a lightweight 10 oz, portable flash head with a flash duration of 1/5700 of a second. Therefore, the fast flash duration can freeze motion to capture a fast-moving subject completely still. The flash head is smaller than most conventional heads on the market, and it will travel to places where normal-sized heads cannot. The 20W LED pilot light enables you to see where your shadows fall, and the light is equivalent to a 50W halogen lamp. The plug-in flash tube is replaceable, a 5.3" reflector is included, and the umbrella holder accommodates EL Umbrellas up to 41" in diameter. Furthermore, if you want to use standard-sized accessories from Elinchrom, the Quadra Reflector Adapter is required. Additionally, the included 8.2' flash cable is interchangeable, and there are many optional cable extensions available to choose from. - Replaceable plug-in flash tube with a short flash duration of 1/5700 of a second
- 20W LED pilot light that is equivalent to a 50W halogen lamp
- Compact, lightweight, and portable head, which weighs 10 oz
- 8.2' interchangeable flash cable with optional cable extensions
In the Box Elinchrom Quadra Action Flash Head EL 11001 8' Head Cable for Quadra 5.3" (13.5 cm) Standard Reflector for Quadra Flash Head Multifunction Cap for Ranger Quadra Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Elinchrom Quadra Action Flash Head in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersElinchrom Action Specs | Maximum Watt/Seconds | 400 | | Flash Duration | As short as 1/5700 of a second | | User Replaceable Flashtube | Yes | | Changeable Reflector | Yes | | Circuit Protection | Yes | | Cable Length | 8.2' (2.5 m) | | Modeling Light Wattage | 20 W LED; 50 W tungsten equivalent | | Modeling Light On/Off Switch | Yes | | Fan Cooled | No | | Dimensions | 4.3 x 3.5 x 3.1" (11 x 9 x 8 cm) | | Weight | Head: 10 oz (283 g) | | | | Package Weight | 2.9 lb | | Box Dimensions (LxWxH) | 10.75 x 8.35 x 7.85" |
Rating100% users recommend this product to others. And what about you?
This product has already been rated by 19 owners. Add your rating and experience with the product.
