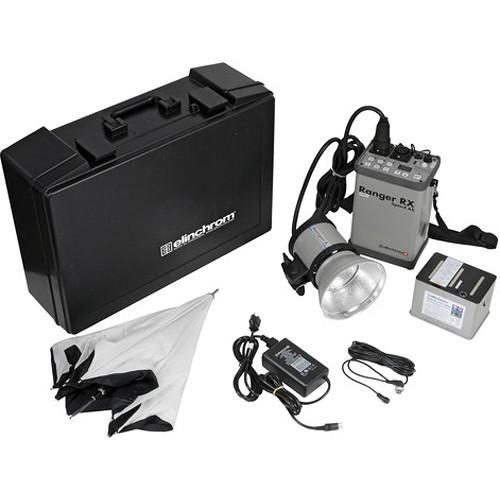

User Manual for Elinchrom Ranger RX Speed AS and A Head Kit

• Product category: Battery Powered Heads Elinchrom
• Brand: Elinchrom
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for Elinchrom Battery Powered Heads

Product description

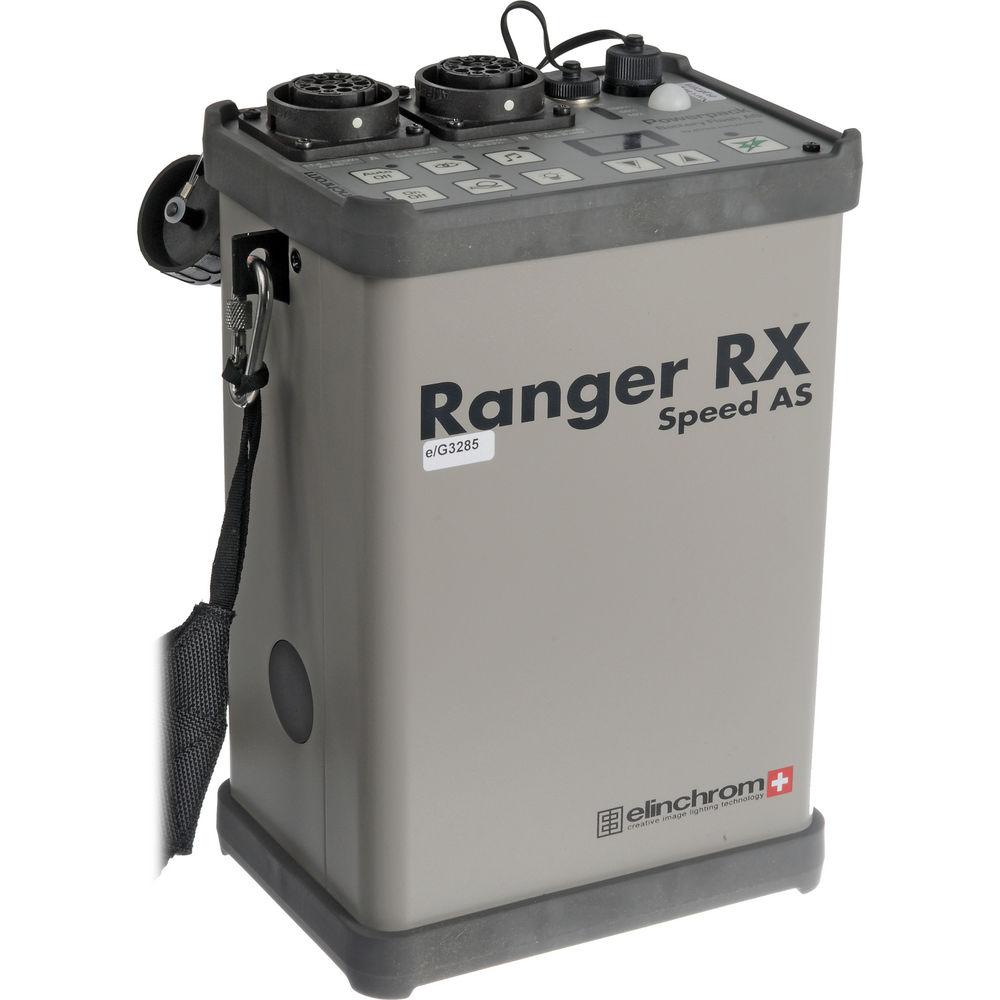

• Ranger RX Speed AS Asymmetrical Battery Powered Pack This is the Elinchrom Ranger RX Speed AS Asymmetrical Battery Powered Pack. The "RX" signifies the ability to be fired by a remote control handset, or computer. The "AS" indicates the ability of the 1100Ws power pack to divide power to each of 2 heads asymmetrically. The "Speed" indicates very short flash duration (when using an "A" model flash head). A special remote control is available to allow control over settings and firing from a computer or handset. Two dedicated heads are available: FreeLite S and FreeLite A. Following the same head designations as other flash heads in the Elinchrom family, the A "Action" heads provide ultra-fast flash duration, whereas the S Heads produce a "Standard" flash duration (considered extremely fast compared to other brand's flash heads). Lower the power to 17Ws, and switch to slow recycle and up to 5100 exposures can be made. Elinchrom Ranger has flash durations as short as 1/4310 sec. (with 2 "A" heads attached), ideal for sports, fashion, and theatre photography. Controls on the pack permit changing the output in 0.1 stop increments in an easy-to-read digital display.
  Compact Design
  • Easily transportable, fits easily into many location cases.
  Weatherproof
  • Special sealed controls and capped flashhead connectors, sealed bottom, battery drawer access from side of unit.
  8.5 F-Stop Range
  • 17 - 1100Ws, digitally controlled in 0.1 stop increments.
  Fast Recycle Time
  • 2.5 seconds @ full power.
  Recycle Indication
  • 2 LED's and an Audible Switchable Beep signify flash is ready to fire.
  Fast Recharging
  • The multi-voltage charger can charge a battery in 3 hours to full power, inside the unit, or externally.
  Conserves Battery Power
  • Automatically switches off 5 minutes after the last operation.
    LED's indicate remaining battery power.
  Built in Slave
  • The photo cell is adapted to trigger in bright ambient light.
  Auto Dump
  • Allows access to lower power selections without the need to manually dump a higher power first.
  Memory
  • Retains all previous settings since last use.
  Compatible
  • An adapter cable (11095) is available to use existing Elinchrom heads with the Ranger pack.
  UPC: 719821247425

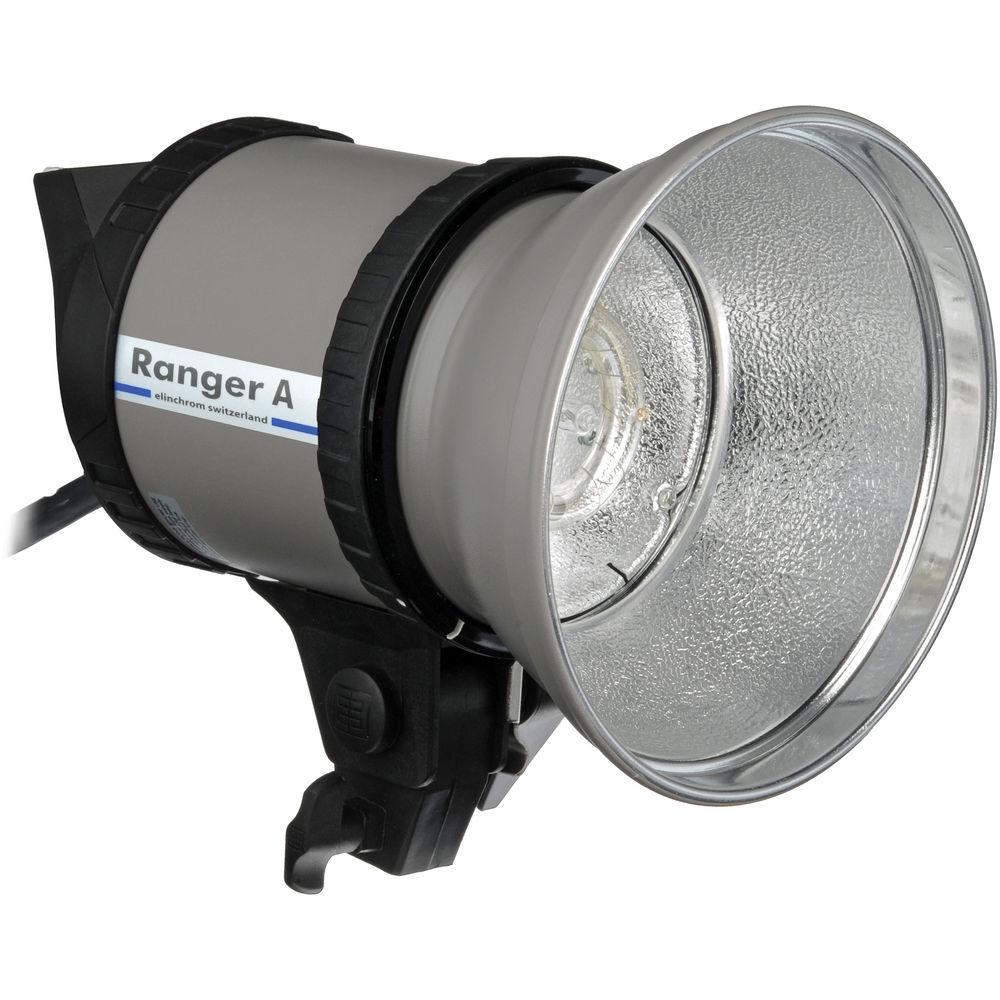

• Ranger Free Lite A Flash Head The Elinchrom FreeLite A Flash Head is dedicated to the new Elinchrom Ranger battery-powered pack. It is an ideal choice for anyone requiring the shortest possible flash duration. It features Elinchrom's unique short flash duration flashtube, capable of 2400 w/s output and designed to withstand the heating stresses associated with rapid full power shooting. The Free Lite A features a 16', low resistance power cable, modeling light switch and safety fuse.Elinchrom's extensive line of reflectors, softboxes, accessories are compatible, and available separately. This is a flash head only. It requires an Elinchrom Ranger Power Pack.
  Compact Design
  • Compact and lightweight, fitting into standard existing Elinchrom cases.
  Changeable Reflector
  • Elinchrom standard bayonet, plus additional security breech lock. Accepts all Elinchrom/Prolinca accessories since 1974.
  Modeling Lamp Switch
  • Features a switch to turn the modeling light on or off.
  Asymmetric Distribution
  • Even though the Ranger Power Supply has symmetrical distribution only, the photographer is able to achieve a 2:1 ratio between the "A" and "S" series of heads. This works because the "A" heads have a duration up to 1/3250 second while the "S" heads have a duraton up to 1/1600 second. The "A" head is twice as fast, and draws twice the energy of the "S" head creating a 2:1 ratio.

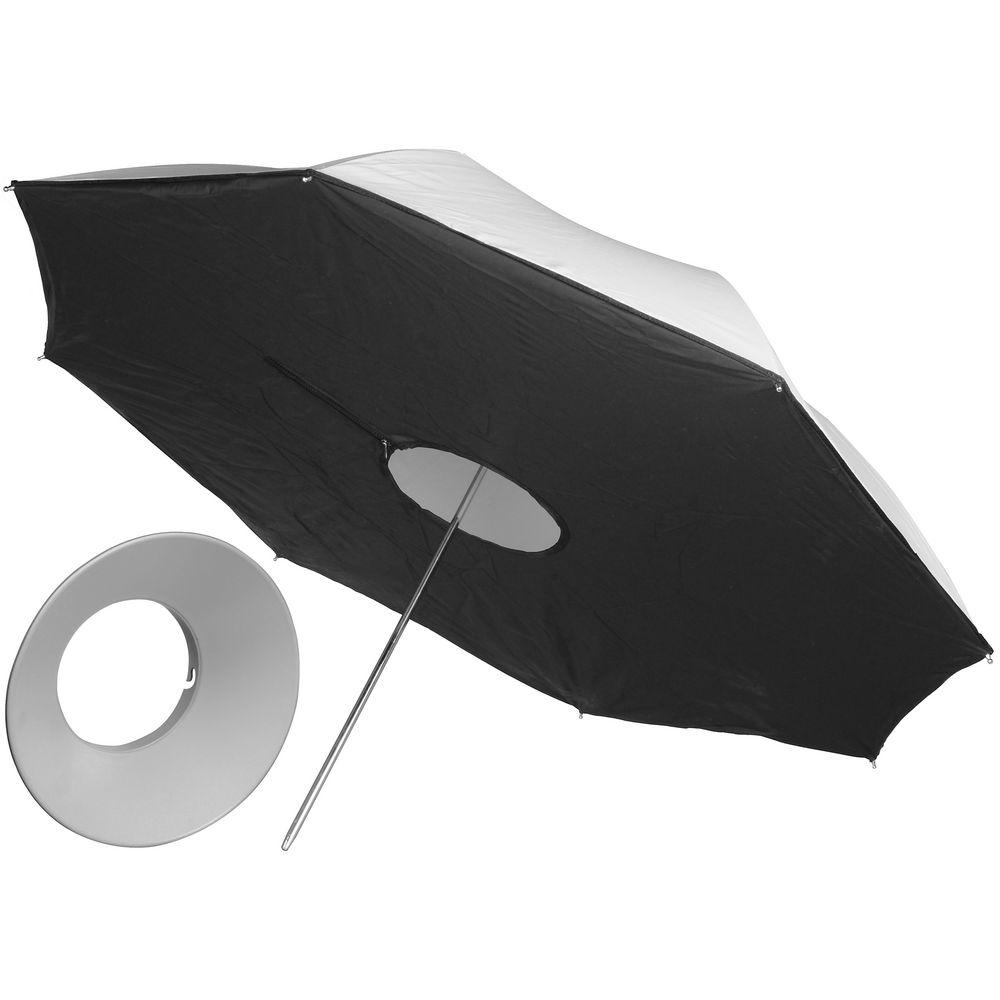

  Umbrella Socket
  • Centralized umbrella socket for optimized and even light distribution.

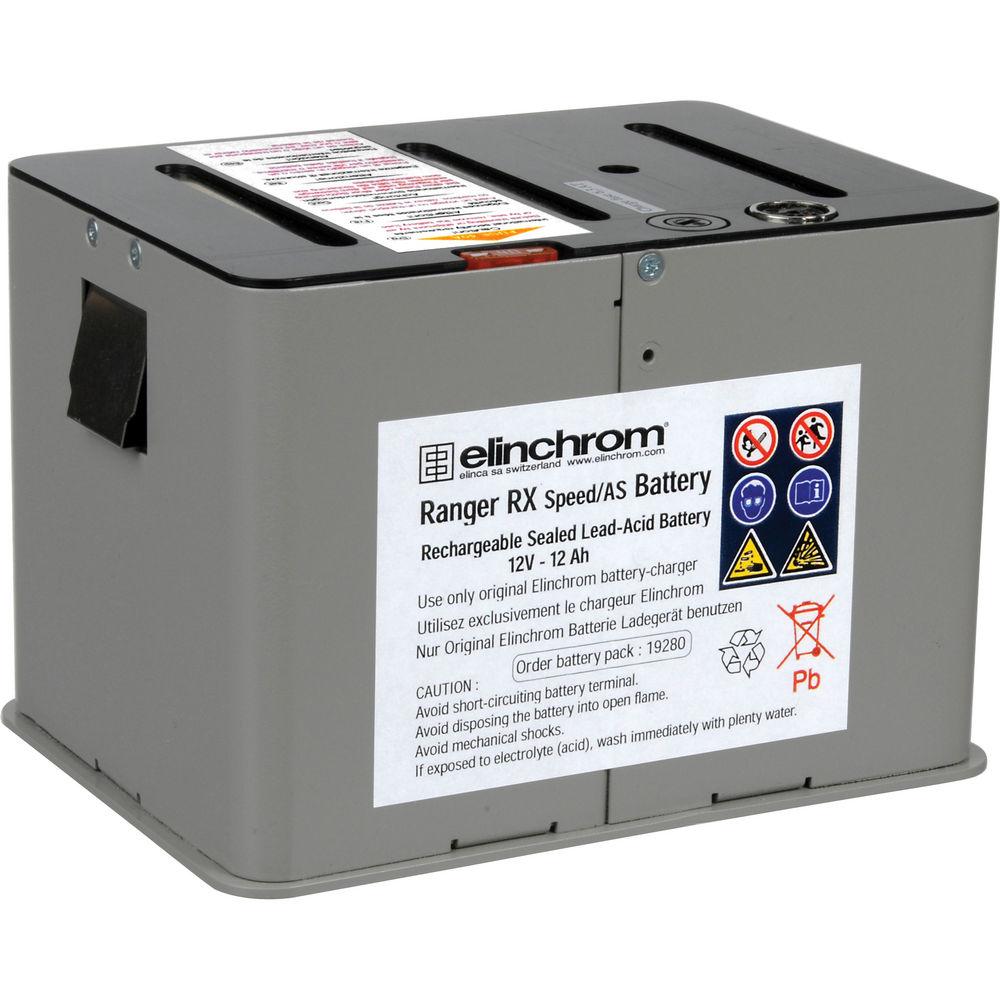

• Battery with Holder for Ranger RX Speed AS Pack This is a Battery with Holder for Elinchrom Ranger RX Speed AS Pack.
  The holder adds convenience by making battery change faster.
  • Recharges in approximately 3 hours with optional charger
  • No memory -- may be recharged at any level of depletion
• 7" Grid Reflector, for Elinchrom For use with existing 7" circular honeycomb grids from Elinchrom and various other manufacturers. A patented, durable bayonet locking system provides positive instant mounting to all Elinchrom flash heads.
• Ranger RX to Skyport RX Adapter The Elinchrom Ranger RX to Skyport RX Adapter is a the necessary adapter that makes it possible to use the EL-Skyport Receiver with Ranger RX units.

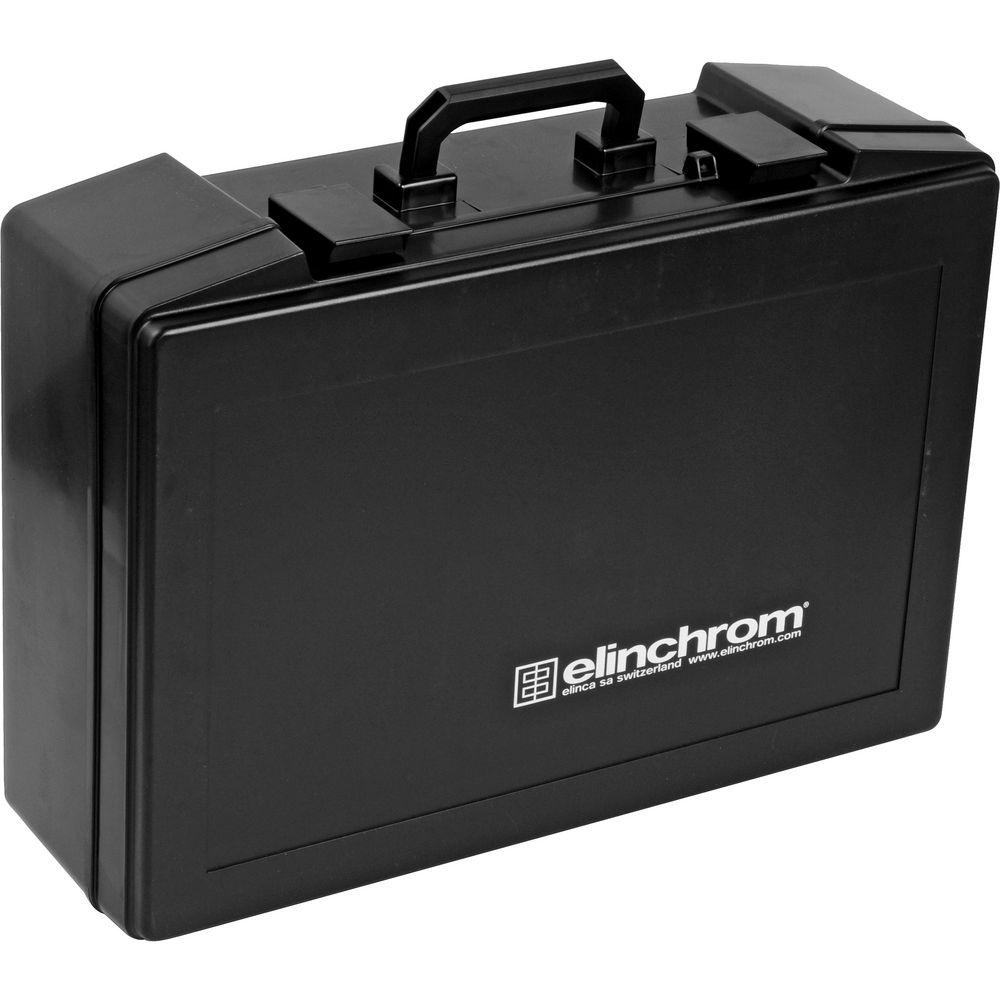

• EL 33215 Ranger Hard Shell Case The Elinchrom EL 33215 Hard Shell Case is made to carry and protect an Elinchrom Ranger RX battery unit or Digital RX 1200/2400 digital power pack, with one or two flash heads, cables and accessories.
  • Molded plastic case made to carry power pack with one or two heads.
  • It is carried with a folding handle.
  • Compatible with Elinchrom Ranger RX or Digital RX 1200/2400 power pack with one or two heads, cables and accessories

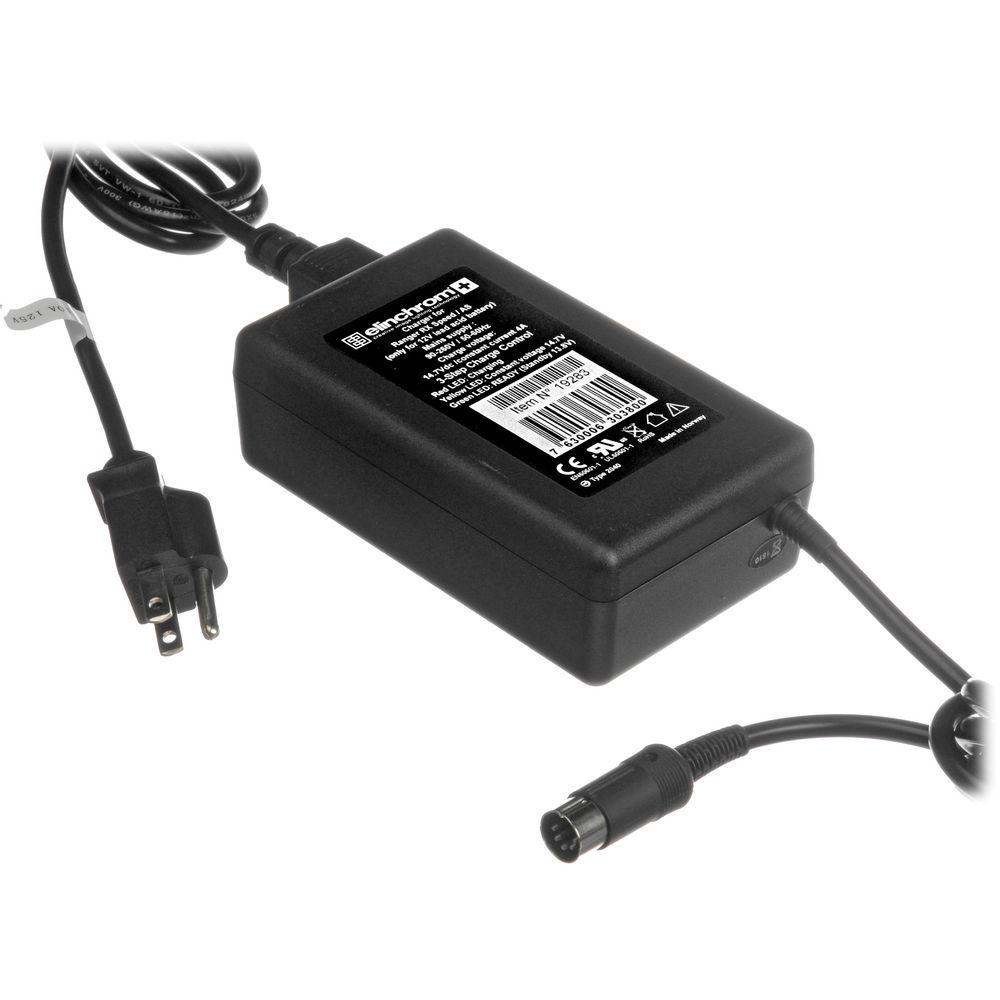

• Rapid Charger for Ranger Power Pack (115-230VAC)

• Battery with Holder for Ranger RX Speed AS Pack

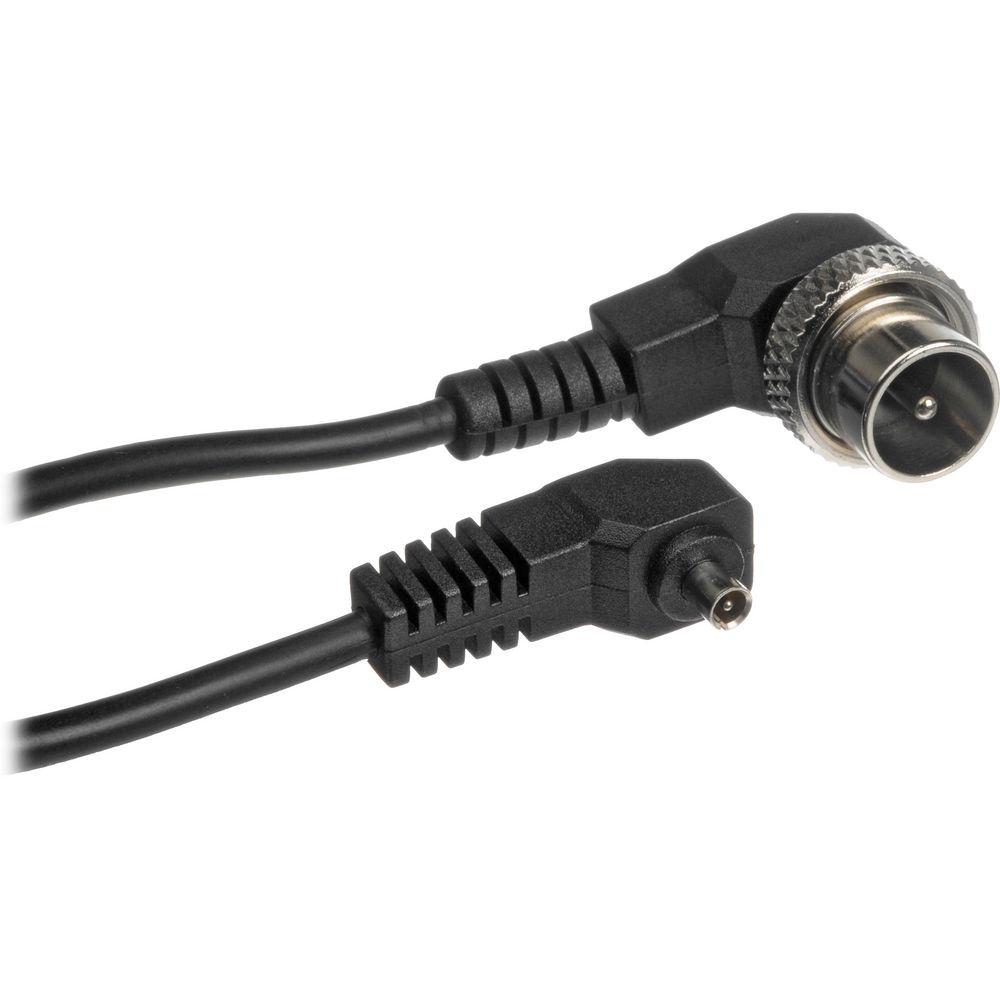

• PC to Amphenol Sync Cord (16')

• Shoulder Strap

• 2 Year Manufacturer's Warranty

• 3000w/s Flashtube

• 100W/12V Modeling Lamp for Free Lite Heads

• Two Year Manufacturer's Warranty

• 1 Year Manufacturer's Warranty Note: Charger not included

• 1-Year Warranty

• 2-Year Warranty

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• Ranger RX Speed AS Asymmetrical Battery Powered Pack

  Maximum Watt/Seconds	1100
  Guide Number	f64.1 @ 6.6' (2 m), ISO 100
  Recycle Time	Fast @ max power: 2.5 sec
  Flash Duration	@ t 0.5: 1 or 2 A Heads: 1/2300 sec.- 1/4310 sec.
  Flash Variability	8.5 F-Stops in 0.1 stop increments, 1100 to 17.5 w/s
  Voltage Stabilization	Yes, +/- 1%
  Distribution	Asymmetrical
  Head Outlets	2
  Flash Ready Indicator	Charge Ready Light, Switchable Audible Beep
  Operating Voltage	12V, 7A
  Built-in Slave Cell	Optical, Special remote
  Circuit Protection	Yes
  Fan Cooled	No
  Auto Dump	Yes
  Number of Flashes @ Full Power	250 flashes @ full power @ slow recycle
  Battery Charge Time	3 hours
  Dimensions	7.4" x 5.5" x 11" (19 x 14 x 28 cm)
  Weight	17.6 lb (8 kg) including battery

  Box Dimensions (LxWxH)	14.1 x 10.1 x 9.5"

• Ranger Free Lite A Flash Head

  Maximum Watt/Seconds	2400
  User Replaceable Flashtube	Yes
  Changeable Reflector	Yes
  Circuit Protection	Fuse
  Cable Length	16.4' (5 m)
  Modeling Light Wattage	100W/12V (23045)
  Modeling Light On/Off Switch	Yes
  Protective Glass Dome	No
  Fan Cooled	No
  Dimensions	9.4 x 5.3" (23.9 x 13.5 cm)
  Weight	4.8 lbs (2.2 kg)

  Box Dimensions (LxWxH)	12.5 x 9.4 x 8.0"

• Battery with Holder for Ranger RX Speed AS Pack

  Box Dimensions (LxWxH)	8.0 x 7.0 x 6.2"

• 7" Grid Reflector, for Elinchrom

  Box Dimensions (LxWxH)	9.134 x 7.402 x 5.827"

• Ranger RX to Skyport RX Adapter

  Box Dimensions (LxWxH)	3.0 x 2.1 x 0.6"

• EL 33215 Ranger Hard Shell Case

  Closure Type	Latch
  Carry and Transport Options	Handle
  Material of Construction	Plastic
  Exterior Dimensions (W x H x D)	18 x 25.5 x 8.5" / 45.7 x 64.8 x 21.6 cm

  Box Dimensions (LxWxH)	25.4 x 19.0 x 8.8"
