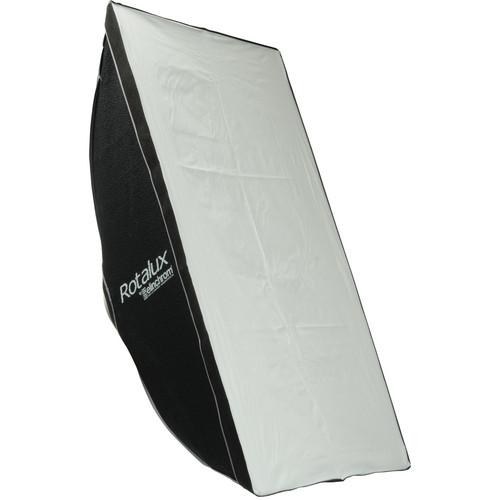

User Manual for Elinchrom Rotalux Softbox 24 x 31.5" Click to enlarge the picture
Contents of the user manual for the Elinchrom Rotalux Softbox 24 x 31.5"
- Product category: Softboxes Elinchrom
- Brand: Elinchrom
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Elinchrom Softboxes
|
User manual for the Elinchrom Rotalux Softbox 24 x 31.5" contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Elinchrom product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Elinchrom user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Elinchrom product will considerably shorten its lifespan!
|
Product description The Elinchrom 24 x 31.5" (60 x 80 cm) Rotalux Softbox is designed for the exclusive use of Elinchrom flash heads. The featherweight box features a matte-black crinkle exterior with distinctive gray rip-piping and a reflective silver interior. The shoot-through design uses both a removable internal baffle and removable, flush-mounted front face to soften the light. Another innovative feature which distinguishes Elinchrom softboxes from others is the lightweight dedicated speed-ring, which utilizes knurled, spring-action sockets to connect the four stainless rods which form the frame of the box, to the ring. This allows easy assembly of the box in a de-tensioned state. The user then simply pivots the sockets 90 degrees until they lock into place to tension it for use. As a further convenience Elinchrom provides a durable, dot-patterned nylon case with a flat bottom designed to hold the de-tensioned Rotalux without dissembling it.The rectangular 24 x 31.5" (60 x 80 cm) shape is ideal for head-and-shoulders portraiture, as a hairlight for groups or for reflective products and glassware. - Shape
- The 24 x 31.5" (60 x 80 cm) shape is ideal for head-and-shoulders portraiture, as a hairlight for groups or for reflective products and glassware.
- Quick Setup, Breakdown
- Lightweight, dedicated speed-ring utilizes knurled, spring-action sockets to connect the four stainless rods which form the frame of the box.
- Storage
- Fits assembled but de-tensioned in the included case, ready to set up again in seconds.
UPC: 719821300595 In the Box Elinchrom Rotalux Softbox 24 x 31.5" (60 x 80 cm) Storage case Poles (set 4) Speed Ring 1 f-stop Front Diffusion Cloth Removable Internal Baffle Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Elinchrom Rotalux Softbox 24 x 31.5" in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersElinchrom EL26175 Specs | Size | 24 x 31.5" (60 x 80 cm) | | Shape | Rectangle | | Compatibility | Elinchrom flash only | | Removable Face | Yes | | Removable Baffle | Yes | | Accepts Grids | No, flush front-face | | Requires Speed Ring | Dedicated Elinchrom ring (included) | | | | Package Weight | 3.35 lb | | Box Dimensions (LxWxH) | 22.8 x 9.3 x 2.9" |
