User Manual for Elinchrom Rotalux Stripbox Click to enlarge the picture
Contents of the user manual for the Elinchrom Rotalux Stripbox
- Product category: Softboxes Elinchrom
- Brand: Elinchrom
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Elinchrom Softboxes
 |
User manual for the Elinchrom Rotalux Stripbox contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Elinchrom product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Elinchrom user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Elinchrom product will considerably shorten its lifespan!
|

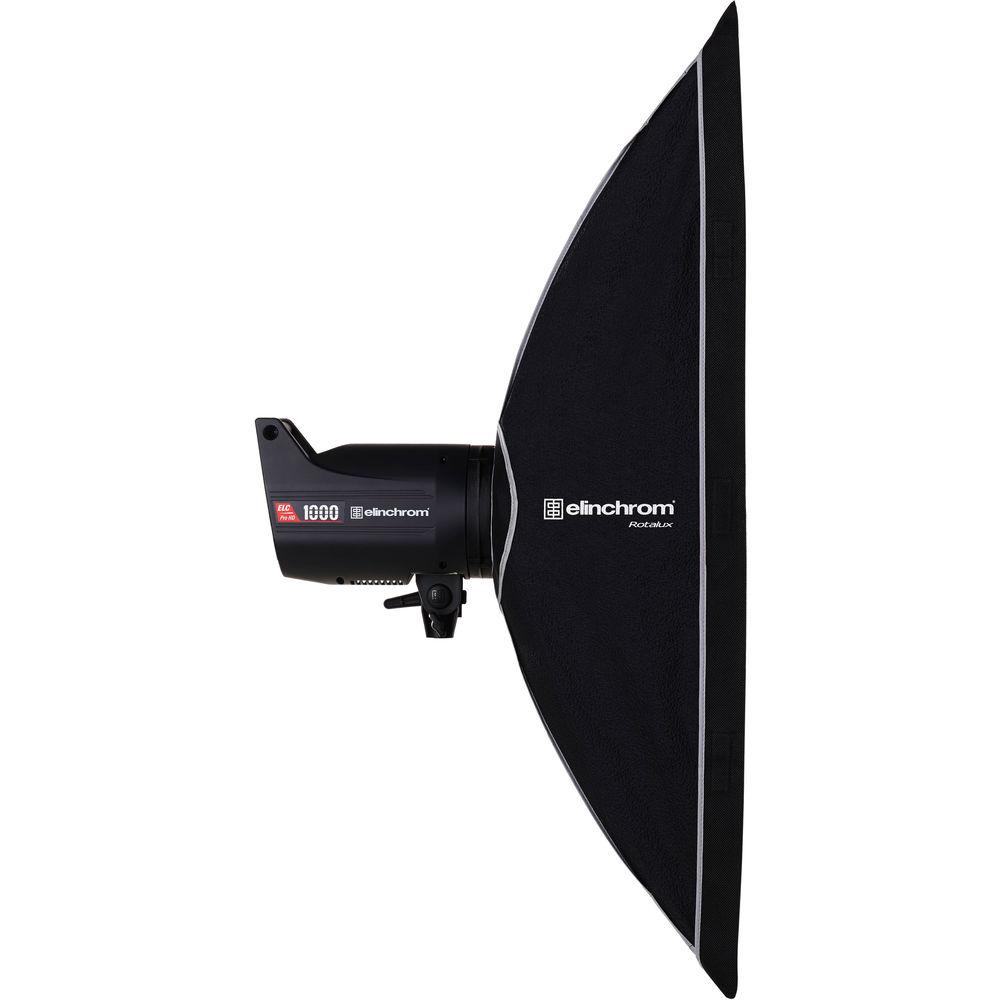

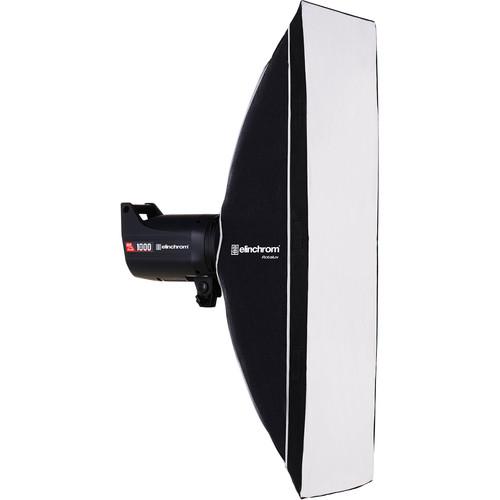

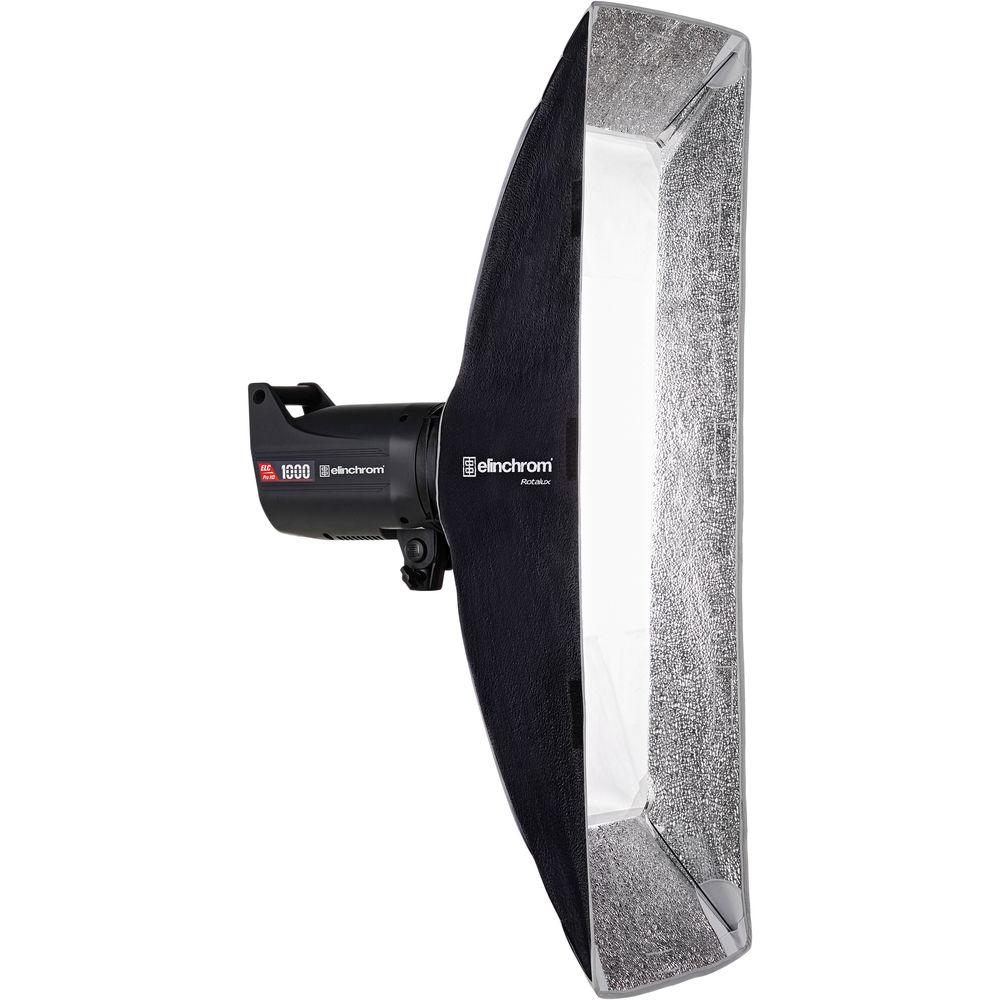

Product description With its unique long rectangular form factor, it's clear why the 14 x 35" Rotalux Stripbox from Elinchrom is a favorite of people, product, and fashion photographers. The shape is ideal for edge or side lighting a subject or product; using as a hairlight; or rendering long, elegant highlights on glassware and reflective objects. The softbox has an exterior white diffuser and an interior diffuser that can each be used alone for varying degrees of contrast, or removed for a punchy high contrast look. The Stripbox has a silver interior for maximum output and comes with a bag for storage and transport.The Rotalux Stripbox is compatible with several accessories that are sold separely. Optional translucent deflectors can be used to bounce light to the back of the Stripbox, to remove the hotspot and further soften the light. A hooded diffuser can be used to limit spill light. An optional "strip diffuser", which is actually a mask, narrows the beam spread. A speed ring is required to attach the Rotalux Stripbox to your light. The spring-loaded sockets on your speed ring allow you to mount the support poles in untensioned sockets, then snap them into place, permitting it to rotate 360 degrees. - Benefits
-
- Second internal diffuser
- Included carrying bag
- Gray rip piping
- Hooded diffuser is available - reduces the spread of light
- Optional diffuser mask narrows the beam spread
In the Box Elinchrom Rotalux Stripbox (35 x 90cm / 14 x 35") 4 x Metal Rods Front Diffuser Interior Diffuser Case Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Elinchrom Rotalux Stripbox in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersElinchrom Stripbox Specs | Size | 14 x 35 x 9.8" (35 x 90 x 25 cm) | | Shape | Long Rectangle | | Interior | Silver | | Compatibility | Major flash brands | | Removable Front Face | Yes | | Removable Interior Baffle | Yes | | Accepts Grids | Yes | | Requires Speed Ring | Separately purchased for Elinchrom, S-Mount Bowens, Broncolor Pulso, Hensel EH, AlienBee, Balcar, Comet, and Profoto OCF | | Weight | 2.13 lb (0.97 kg) | | | | Package Weight | 2.0 lb | | Box Dimensions (LxWxH) | 23.0 x 9.0 x 3.0" |
Rating60% users recommend this product to others. And what about you?
This product has already been rated by 91 owners. Add your rating and experience with the product.
