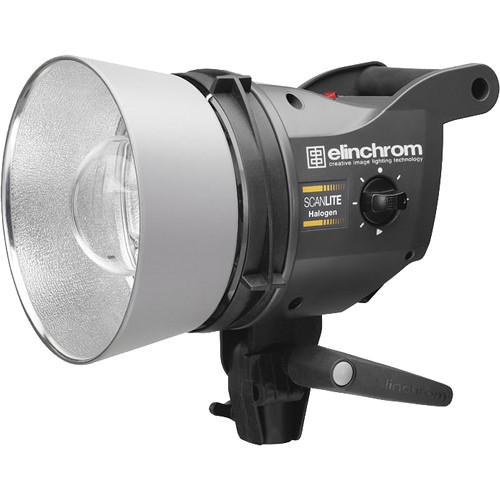

User Manual for Elinchrom SCANLITE Halogen Light Click to enlarge the picture
Contents of the user manual for the Elinchrom SCANLITE Halogen Light
- Product category: Tungsten Lights Elinchrom
- Brand: Elinchrom
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Elinchrom Tungsten Lights
|
User manual for the Elinchrom SCANLITE Halogen Light contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Elinchrom product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Elinchrom user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Elinchrom product will considerably shorten its lifespan!
|
Product description The 120-230 VAC Elinchrom SCANLITE Halogen Light is a constant tungsten hot light featuring built-in spot to flood zoom control for modifying the intensity to suit a variety of lighting options. Zoom control is accessible on both the right and left sides of the housing and, when paired with the optional 8.25" reflector, 20° to 50° beam angles can be achieved. A built-in, centered 7mm fitting facilitates the use of umbrellas and other standard light modifiers, or additionally, an extra fitting is available for use of other umbrella shaft sizes.
The SCANLITE accepts either 300 or 650W halogen lamps and features an intelligent low noise fan cooling system that can determine how quickly to spin depending on the internal temperature of the head. Overheat protection will shut down the light if high temperatures are detected, and will automatically turn back on once cool.
A large handle with rubber grip enables easier mounting to 5/8" light stands and the included transparent glass dome offers protection to the optional lamps. It accepts standard bayonet-locking reflectors for further light modification. - Accepts optional 300 or 650W halogen lamps for constant 3200K output.
- Multi-voltage 120-230 VAC depending on lamp and fuse configuration.
- Zoom control enables versatile light output quality from flood to spot intensities. When used with the optional 8.25" metal reflector, 20° to 50° beam angles can be achieved.
- Zoom control is accessible on either side of the housing and a large handle with rubber grip further benefits overall handling.
- Intelligent low noise fan cooling system determines how quickly to spin the fan in order to prolong sustained use. If the light overheats, this system will automatically shut down the light and turn back on once cool.
- Center 7mm umbrella fitting accepts standard umbrellas; extra fitting is also included to accept other umbrella shaft sizes.
- Compatible with standard 5/8" studs for mounting to most light stands.
- Accepts standard bayonet-locking metal reflectors.
- Transparent glass dome is included to offer protection to optional halogen lamps.
UPC: 719821344988 In the Box Elinchrom SCANLITE Halogen Light (120-230 VAC) Mains Cable 24918 Transparent Glass Dome Protective Cover Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Elinchrom SCANLITE Halogen Light in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersElinchrom Scanlite Specs | Rating | 650 W maximum | | Socket (Lampholder) | GX 6.35 2-pin | | Lens (Condenser) | Not specified by manufacturer | | Mounting | Standard 5/8" mount | | Cable | Included mains cable, length not specified by manufacturer | | Weight | 9.6 x 6.1 x 8.1" / 24.5 x 15.5 x 20.5 cm (with protective cover) | | Dimensions | 2.6 lb / 1.2 kg (with protective cover, glass dome, and halogen lamp) | | | | Package Weight | 6.0 lb | | Box Dimensions (LxWxH) | 16.4 x 9.8 x 8.3" |
Rating70% users recommend this product to others. And what about you?
This product has already been rated by 91 owners. Add your rating and experience with the product.
