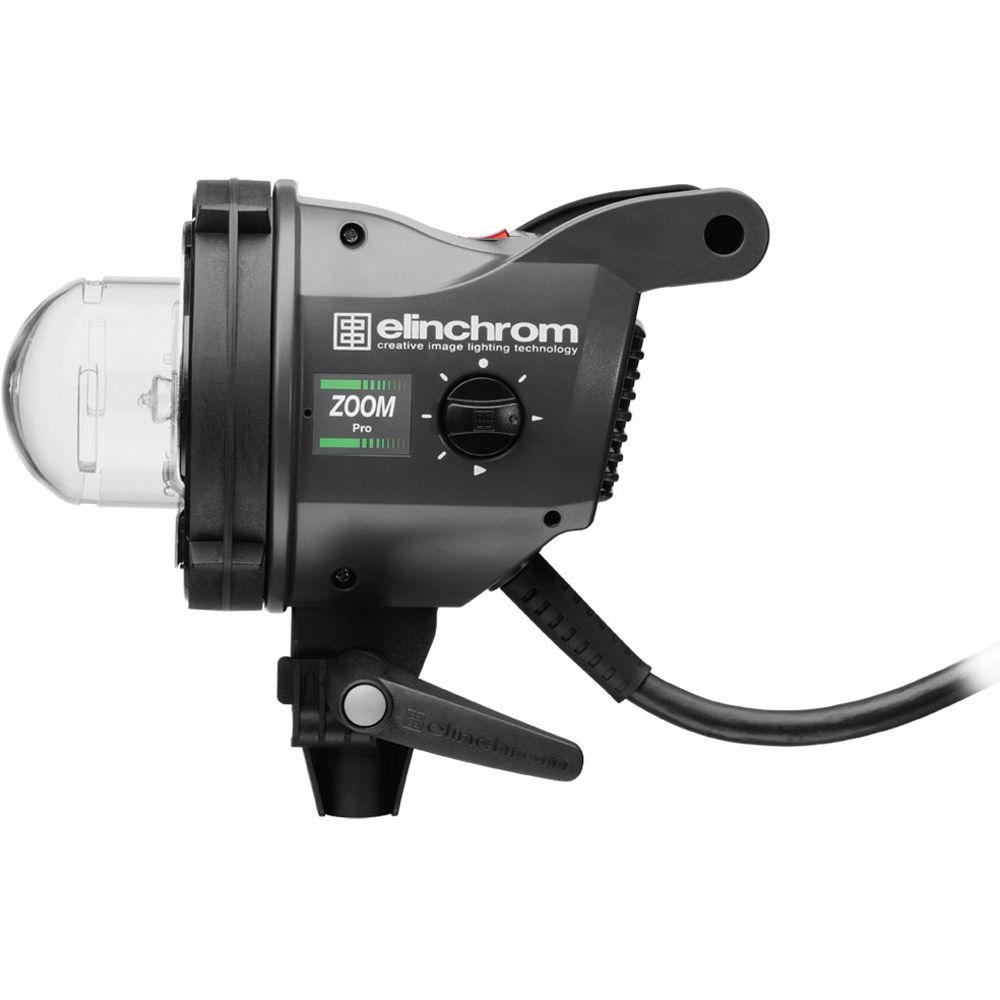

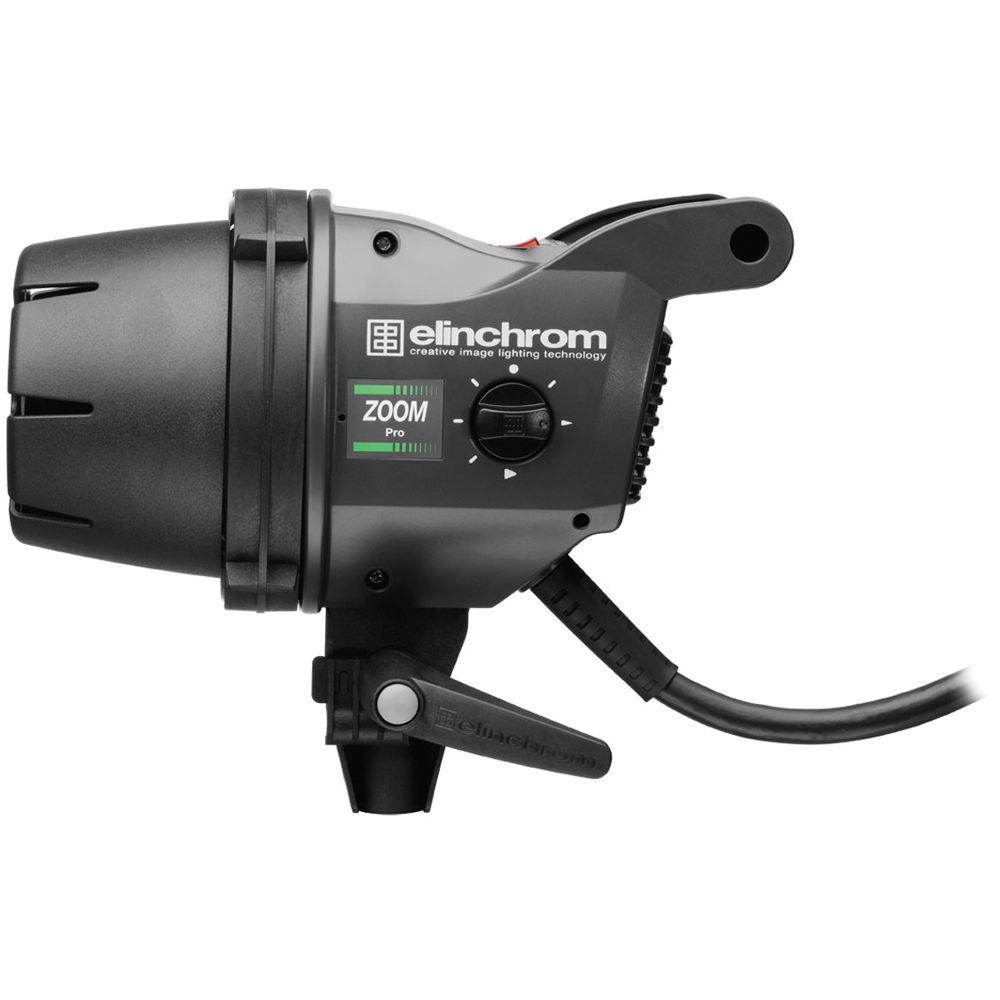

Product description The Elinchrom Zoom Pro Head is compatible with all Elinchrom power packs made in or after 1981. Its Intelligent Flash Cooling system responds to the heat generated by the 300W modeling lamp and 3,000W/s flash tube by running faster at peak performance and slower at lower power, thus extending the life both. The head derives its name from the unique focusing design that allows you to move the flash tube closer or further away from the reflector like an open face hot light for harder or softer effects or to perfectly fill the accessory in use.While the recycling time is determined by the pack in use, suffice it to say that the Zoom Pro can handle anything in the Elinchrom family of products. The head features a clear, protective glass dome and has a built-in 90° reflector which is perfect for umbrellas or soft boxes. A standard, built-in Elinchrom bayonet mount gives you access to the huge array of legendary EL-Reflector and Rotalux light shaping tools. - Characteristics and Features
-

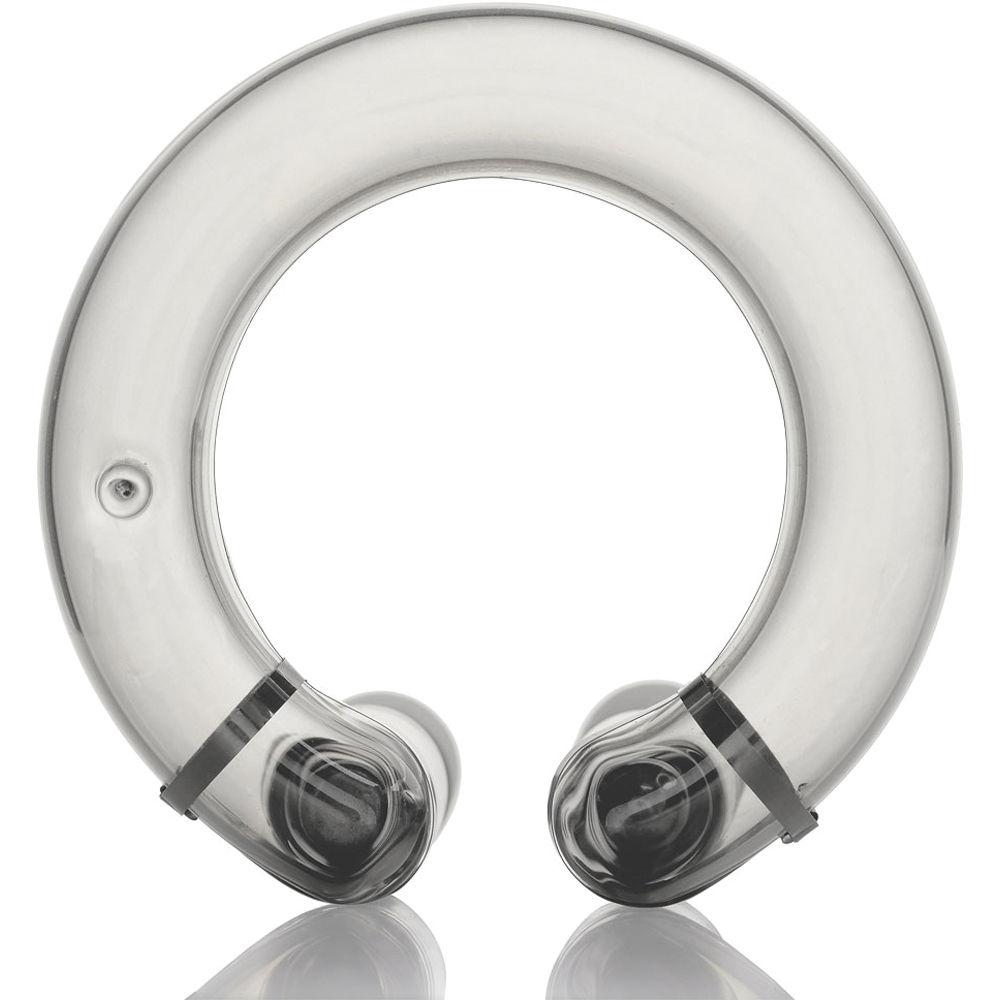

- Small user-replaceable, plug-in UV coated flash tube with short flash durations and better power control.

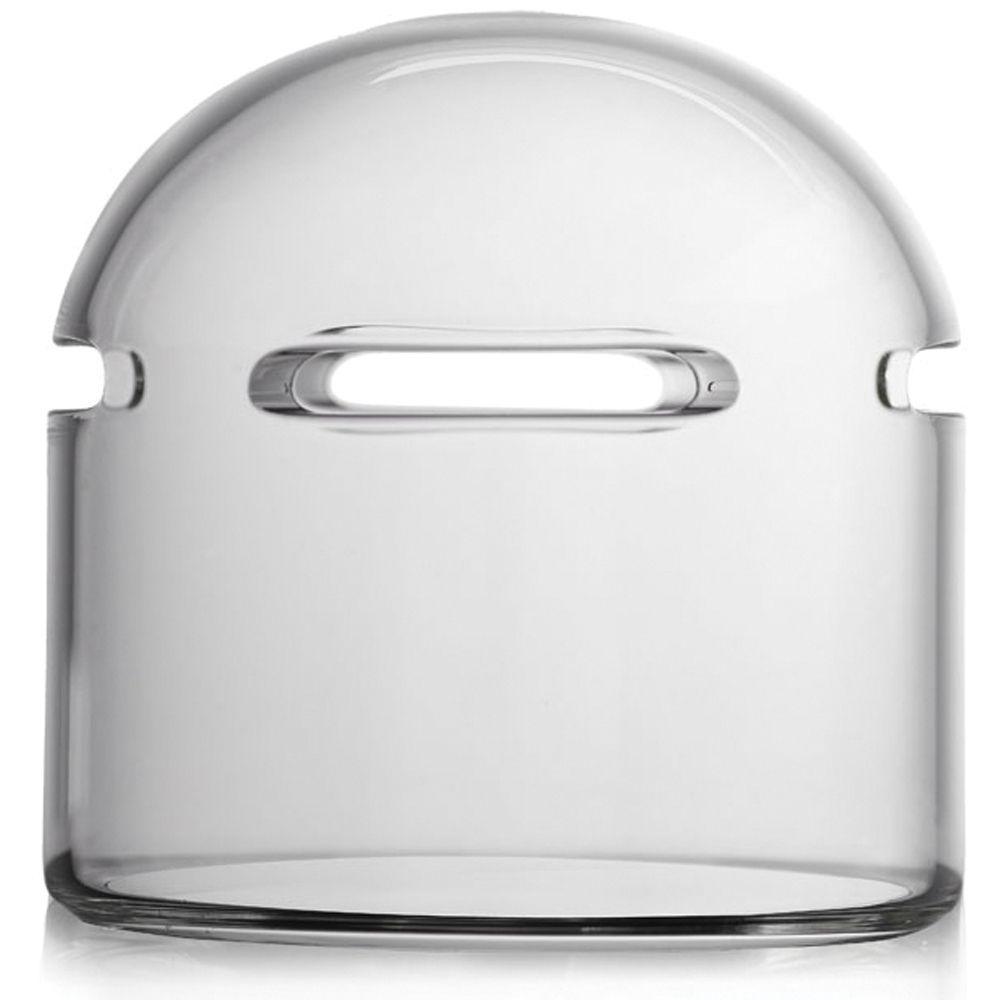

- Included transparent, security glass dome.
- The Zoom Head can be either used with 110 or 230 V Elinchrom power packs. Swap the halogen modeling lamp and fuse to conform to the correct voltage.
- Efficient built-in reflector, with a 90° light distribution to maximize softbox performance. Additionally, there's a zoom function for the flash tube and modeling lamp for a wider or more focused light beam when used with reflectors.
- Reflector-bayonet mount with breech locking ring fits all Elinchrom reflectors since 1974. Huge EL-Reflector and ROTALUX softbox range.
- Centered umbrella fitting with additional umbrella holder at the tilt head.
- Efficient low-noise fan-cooling. The fan spins slowly at low temperatures and fast when the head heats up.
- Illuminated on/off modeling lamp switch, with LED overheat indication. The halogen modeling lamp shuts off when the red warning LED lights up, until the head cools down. The flash function remains active.
- Aluminum chassis with fire resistant housing.
- Extremely lightweight, only 5.0 (2.3 kg), including the 16.4' (5 m) heavy-duty flash cable.
UPC: 719821335382 In the Box Elinchrom Zoom Pro Head Flash Tube Clear Glass Dome Modeling Lamp - 300 watts/120 volts faayqfxued Protective Cover 1 Year Manufacturer's Warranty on Flash Head 180 Day Warranty on Flash Tube Table of Contents
|
Upload User Manual
Have you got an user manual for the Elinchrom Zoom Pro Head in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersElinchrom Zoom Pro Specs Maximum Watt/Seconds | 3,000W/s | User Replaceable Flashtube | Yes | Compatibility | All reflectors from 1974 on and all packs from 1981 on | Changeable Reflector | Yes | Circuit Protection | Fuse | Cable Length | 16.4' (5.0 m) | Modeling Light Wattage | 300W | Modeling Light On/Off Switch | Yes | Protective Glass Dome | Clear | Fan Cooled | Yes, electronically temperature controlled | Mount | 5/8" (16 mm) | Dimensions | With protective cover: 9.6 x 4.1 x 8.0" (245 x 105 x 205 mm) With glass dome: 9.4 x 4.1 x 8.0" (240 x 105 x 205 mm) | Weight | 5.0 lb (2.3 kg) | | Package Weight | 7.2 lb | Box Dimensions (LxWxH) | 16.3 x 9.7 x 8.3" |
