User Manual for Elite Screens 165" VMAX2 Series Projector Screen Click to enlarge the picture
Contents of the user manual for the Elite Screens 165" VMAX2 Series Projector
- Product category: Electric Screens (Square & 4:3 Formats) Elite Screens
- Brand: Elite Screens
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Elite Screens Electric Screens (Square & 4:3 Formats)
 |
User manual for the Elite Screens 165" VMAX2 Series Projector contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Elite Screens product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Elite Screens user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Elite Screens product will considerably shorten its lifespan!
|

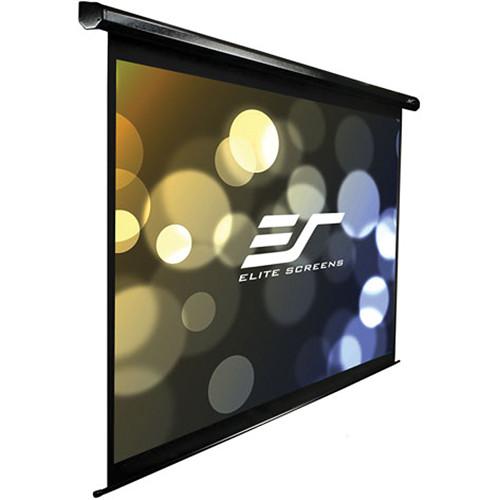

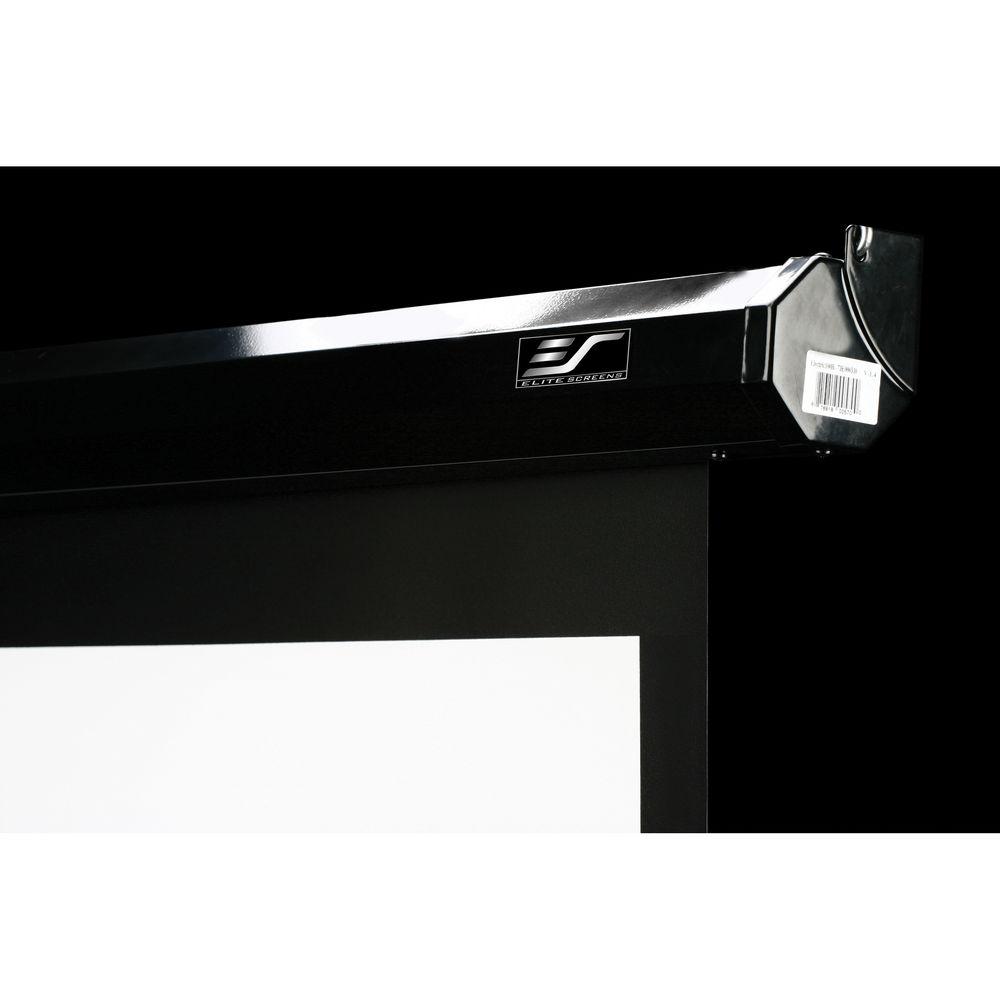

Product description The 165" VMAX2 Series Projector Screen from Elite Screens is an electric/motorized front projection screen. It uses an all-steel casing construction including the end caps. It includes a 1.1 gain projection surface and 160˚wide viewing angle and is suitable for most applications. The VMAX2 has various control options such as a 5-12 V trigger port, which uses a standard RJ-45 connection and synchronizes the screen's drop and rise with your projector's power cycle. Elite Screens MaxWhite FG fiberglass-backed screen material is easy to clean and durable for daily use. Screen Material - MaxWhite FG fiberglass-backed screen material is durable and easy to clean
- 160 degree wide viewing angle for commercial and residential presentations
- Black backed screen material eliminates light penetration for superior color reproduction
- Black masking enhances picture contrast
Casing & Installation - Durable metal casing comes in white
- Suitable for wall/ceiling installations
- Ships fully assembled with three-prong power connection, which is plug-and-play
- Optional in-ceiling trim kits
Motor System - Synchronized motor is silent, energy efficient, and enhances product longevity
Control System - Radio Frequency (RF) remote has 100' (30.5 m) range
- Infrared remote and wall switch
- Internal IR/RF low voltage receivers
- 5-12 V trigger synchronizes with projector
MaxWhite Screen Material - MaxWhite screen material is easy to clean and durable for daily use. The material is black-backed to eliminate light penetration while its textured projection surface helps to eliminate moiré or hot spotting
Installation - It comes with 2-30" (5.1-76.2 cm) of top black masking borders along with side and bottom masking to enhance the format of your presentation to avoid projection overshoot
UPC: 876818005458 In the Box Elite Screens 165" VMAX2 Series Projector Screen (MaxWhite FG) Bubble Level 3 Way Wall Switch Infrared Remote 2 x AAA Batteries Infrared Eye Receiver 12 Volt Trigger Limited 3-Year Warranty Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Elite Screens 165" VMAX2 Series Projector Screen in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersElite Screens VMAX165XWV2 Specs | Compatibility | Elite Screens Series: Manual, Manual SRM, Tripod, Tripod Pro, Spectrum, VMAX2, ezCinema, ezCinema Plus | | Diagonal Viewing Size | 165" (419.1 cm) | | Aspect Ratio | 4:3 | | Gain | 1.1 | | Screen | MaxWhite FG | | Viewing Angle | 160° | | Viewing Area | 132 x 99" (335.3 x 251.5 cm) | | Certifications | ETL, FCC, CE, CB GOSTCE & ISO9001:2008 Certified
GREENGUARD Indoor Air Quality and GREENGUARD Children & Schools Certified | | Plenum | Suitable for air-handling spaces | | Dimensions | Case Length: 143.8" (365.3 cm)
Screen Width: 135.9" (345.2 cm)
View Width: 132" (335.3 cm)
View Height: 99" (251.5 cm)
Bar Length: 140.4" (356.6 cm)
Screen Material to Bar: 105.8" (268.7 cm)
Overall Height: 109.9" (27.2 cm)
End Cap Height: 4.1" (10.4 cm)
End Cap Width: 3.1" (7.9 cm)
Power Cord Length: 98.4" (249.9 cm) | | Weight | 46.9 lb. (21.3 kg) | | | | Package Weight | 57.9 lb | | Box Dimensions (LxWxH) | 146.5 x 6.5 x 6.3" |
