User Manual for Elite Screens CURVE235-158A1080P3 Lunette 61.7 x 145" Fixed Frame Projection Screen Click to enlarge the picture
Contents of the user manual for the Elite Screens CURVE235-158A1080P3 Lunette 61.7 x
- Product category: Fixed Frame Screens Elite Screens
- Brand: Elite Screens
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Elite Screens Fixed Frame Screens
 |
User manual for the Elite Screens CURVE235-158A1080P3 Lunette 61.7 x contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Elite Screens product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Elite Screens user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Elite Screens product will considerably shorten its lifespan!
|

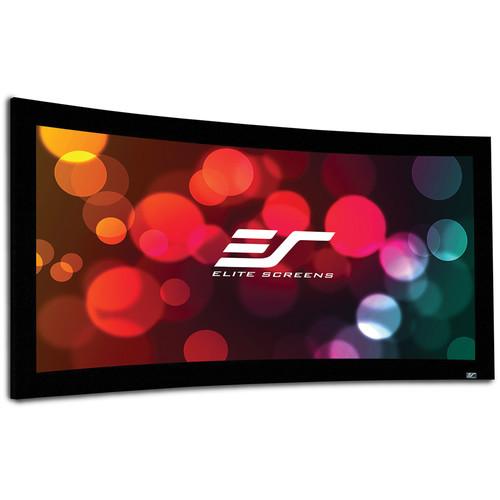

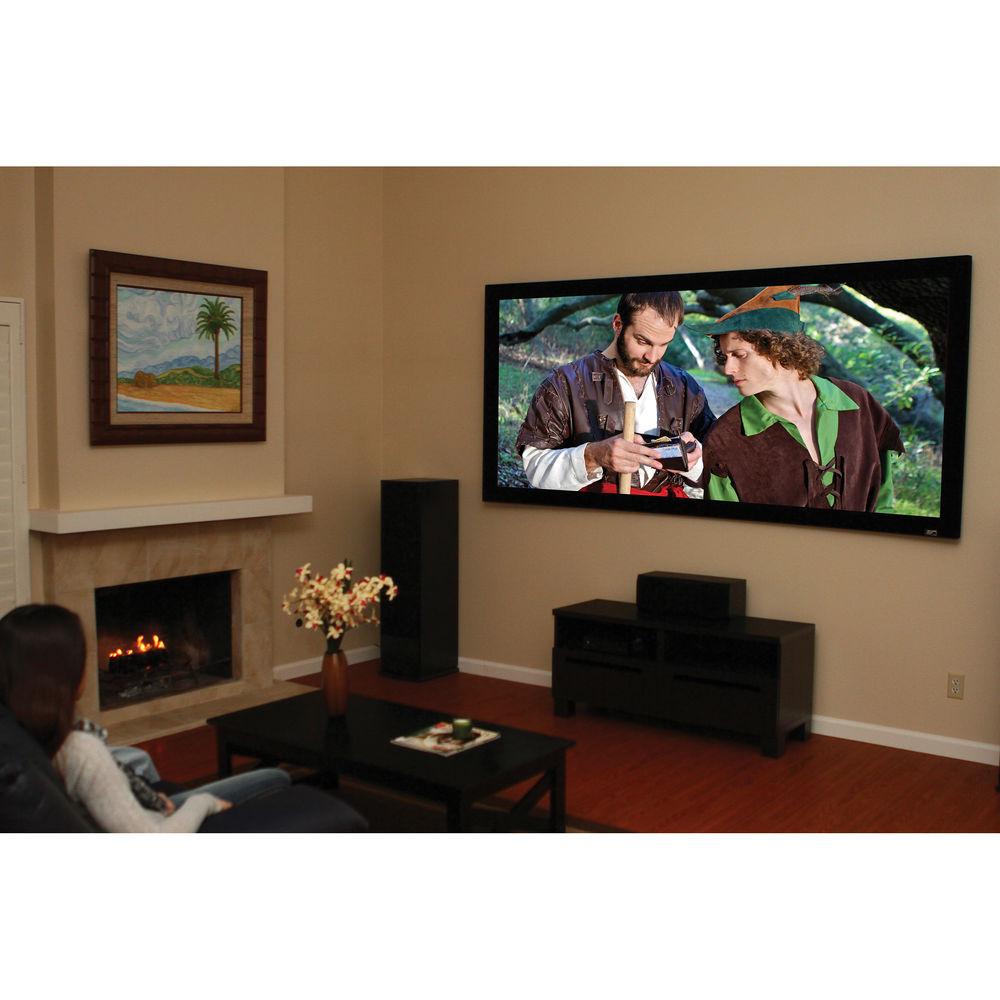

Product description The CURVE235-158A1080P3 Lunette 61.7 x 145" Fixed Frame Projection Screen from Elite Screens features a curved screen designed to extend into the viewer's peripheral vision to create a more immersive viewing experience. To further enrich the experience, the screen enables placement of the right, center, and left channel speakers behind the it. Placing the primary speakers being the screen helps bring picture and sound into tighter unity.
Another benefit of a curved frame design is that it helps eliminate a visual artifact known as "pincushion effect". Pincushion effect happens when the distance to the right and left edges of the projected image are greater than the distance to the center, resulting in a image resembling an hourglass laying on its side. This effect is due to the fact that because light has to travel farther to reach the edges than the center the image tends to become more spread out the further it gets from center. Curving the screen allows the light to travel the same distance to reach any point on the screen surface, thereby yielding a uniform picture. - AcousticPro 1080P3 Screen Surface
- The AcousticPro1080P3 is an acoustically transparent front projection material. The angular weave eliminates the moire effect while presenting warm neutral colors. The AcousticPro1080P3 enables speaker placement behind the screen without affecting audio quality
- Acoustically Transparent Matte White (angular tight weave)
- Gain: 1.0
- 180° viewing angle
- Optimized for 1080p projection; supports 4K and active 3D projection
- Mean attenuation of -3.09 dB
- Key Features
-
- Curvature enhances contrast levels with decreased incident light while creating a heightened sense of immersion
- 40' fixed radial curvature also eliminates the pincushion effect

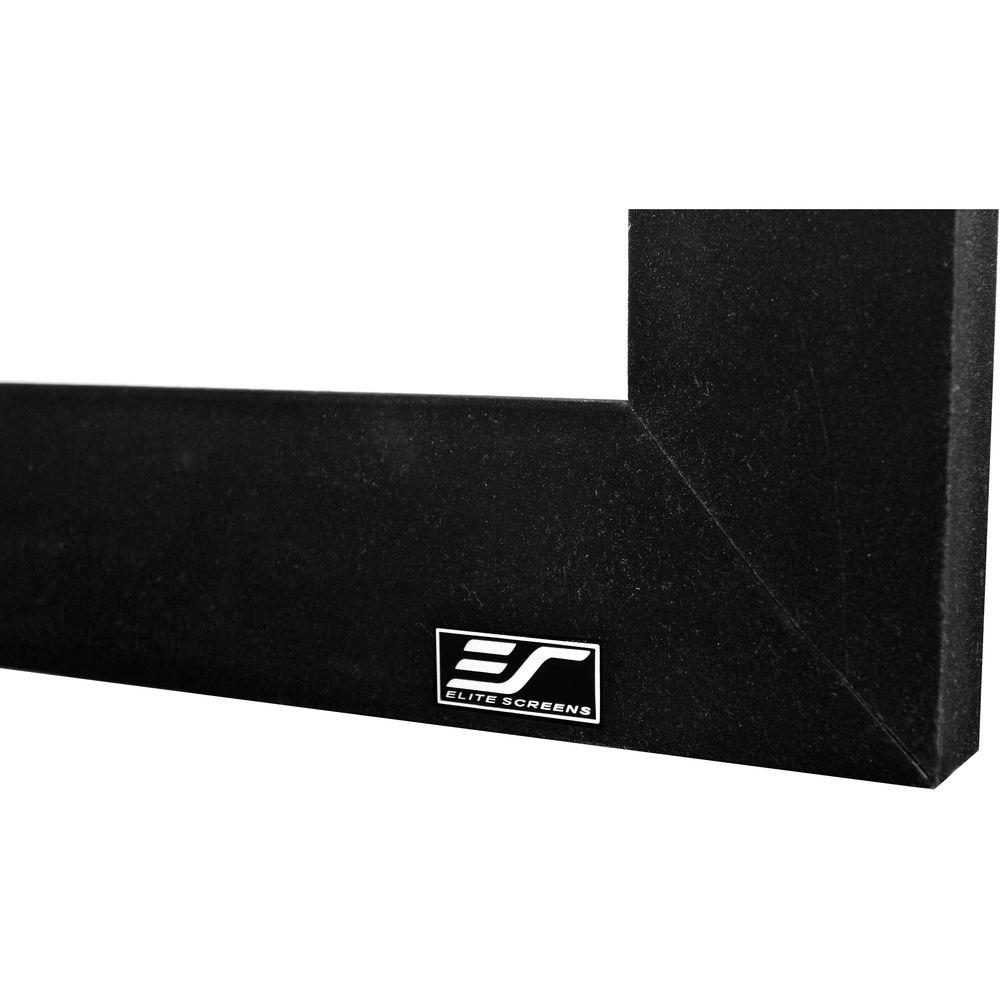

- Velvet covered 3.5" width aluminum frame border
- Sliding wall mounts provide adjustable horizontal centering
- Adjustable fix plates provide equal tension over the entire projection surface
UPC: 848448014971 In the Box Elite Screens CURVE235-158A1080P3 Lunette 61.7 x 145" Fixed Frame Projection Screen Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Elite Screens CURVE235-158A1080P3 Lunette 61.7 x 145" Fixed Frame Projection Screen in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersElite Screens CURVE235-158A1080P3 Specs | | | Front/Rear Projection | Front | | Aspect Ratio | 2.35:1 | | Style | Wall | | | | Viewing Area | 61.7 x 145.0" / 156.7 x 368.3 cm | | Diagonal | 158.0" / 401.3 cm | | | | Gain | 1.0 | | Viewing Angle | 180 degrees |
Rating60% users recommend this product to others. And what about you?
This product has already been rated by 59 owners. Add your rating and experience with the product.
