Elite Screens ezFrame Fixed Frame Projection

Search your instruction manual in PDF to download

User Manual for Elite Screens ezFrame Fixed Frame Projection Screen

Click to enlarge the picture
Elite Screens ezFrame Fixed Frame Projection Screen Contents of the user manual for the Elite Screens ezFrame Fixed Frame Projection
  • Product category: Fixed Frame Screens Elite Screens
  • Brand: Elite Screens
  • Description and content of package
  • Technical information and basic settings
  • Frequently asked questions – FAQ
  • Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
  • Authorized service for Elite Screens Fixed Frame Screens

Elite Screens ezFrame Fixed Frame Projection Screen Elite Screens ezFrame Fixed Frame Projection Screen Elite Screens ezFrame Fixed Frame Projection Screen
User manual for the Elite Screens ezFrame Fixed Frame Projection contain basic instructions that need to be followed during installation and operation. Before starting your appliance, the user manual should be read through carefully. Follow all the safety instructions and warnings, and be guided by the given recommendations. User manual is an integral part of any Elite Screens product, and if it is sold or transferred, they should be handed over jointly with the product. Following the instructions for use is an essential prerequisite for protecting health and property during use, as well as recognition of liability on the part of the manufacturer for possible defects should you make a warranty claim. Download an official Elite Screens user manual in which you will find instructions on how to install, use, maintain and service your product.

And do not forget – unsuitable use of a Elite Screens product will considerably shorten its lifespan!



Product description

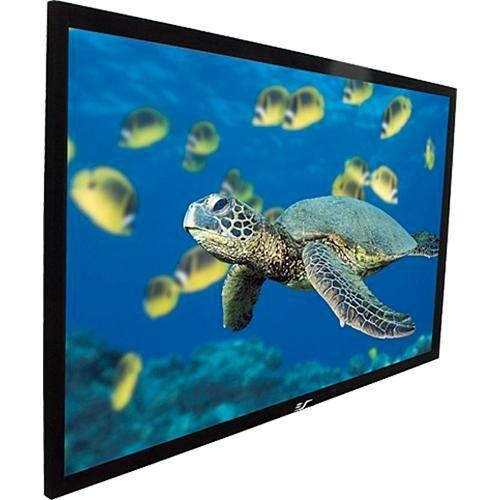

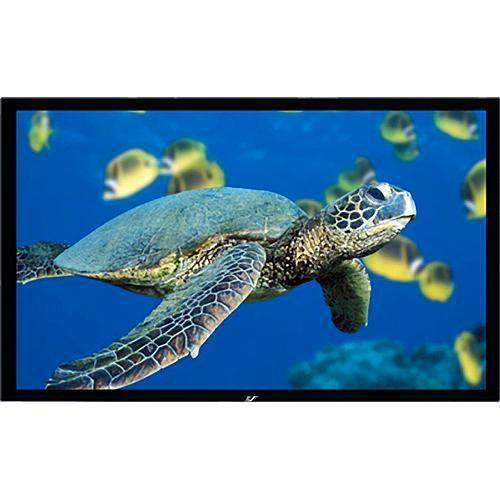

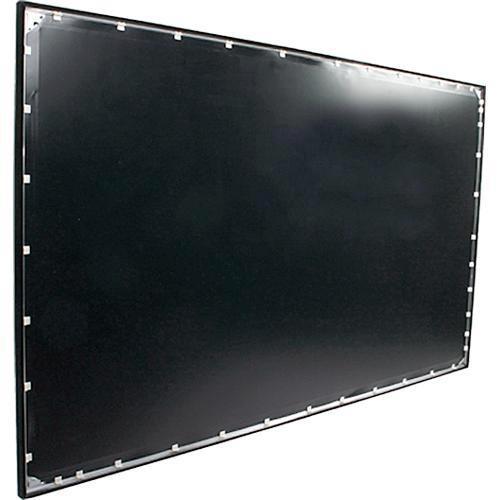

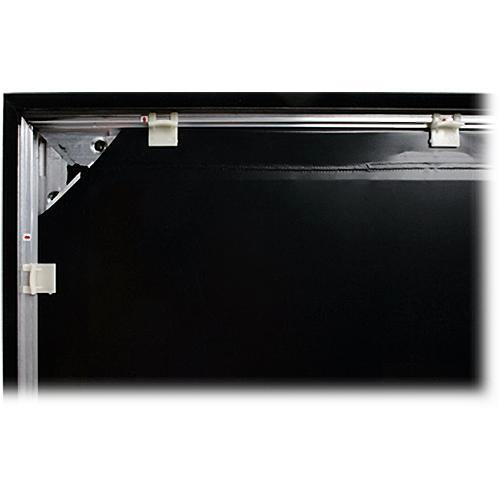

The 73.6 x 130.7" ezFrame Fixed Frame Projection Screen from Elite Screens is wall mountable with sliding mounts for precise horizontal centering. The anodized black aluminum frame has a black velour covering to absorb any excess spill light from your projector. This feature helps keep your audience's attention focused on the image. The rear side has detachable black backing material that eliminates any potential bleed-through from a backlit source. The mildew-resistant and flame-retardant screen surface can be cleaned with a damp soft cloth and warm water. The tensioning feature assures a flat, undistorted image. The four sides of the screen material have holes through which slide four tensioning rods. These rods also provide additional rigidity to the frame. The tensioning rods are then fitted into the frame and held in place by fix plates. Touch fasteners on the fix plates hold the backing material in place. The entire design creates a tensioned screen with a taut, flat surface. AcousticPro1080P3 is an acoustically transparent screen material representing an enhancement over the previous P2 version. It is still designed for 1080p (1920x1080) projector resolutions but has a thinner angular weave with smaller perforations to allow the sound to penetrate from rear mounted speakers. It delivers excellent off-axis luminance. The material is also designed to eliminate the moiré effect - a watery appearance where parallel lines are off center. Image color is neutral with uniform diffusion. As previously mentioned, its black backing material eliminates any bleed-through. The screen faeture a mean attentuation of -3.09dB at 8k to 20kHz. It is also compatible with 4K and Active 3D projectors. UPC: 848448000905 In the Box Elite Screens ezFrame Fixed Frame Projection Screen (73.6 x 130.7")
  • Fix Plates
  • Center Support Bar
  • Assembly Hardware
  • Limited 2-Year Warranty
  • Limited 3-Year Warranty
  • Table of Contents




    Upload User Manual

    Have you got an user manual for the Elite Screens ezFrame Fixed Frame Projection Screen in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

    To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
    Upload PDF user manual Upload DOC user manual
    Please enter here the link to the user manual of this product:





    OR

    Enter here the file with the user manual of this product from your computer/phone:
    (60MB max; Permitted formats: PDF)

    0%


    Technical parameters

    Elite Screens R150WH1-A1080P3 Specs

    Style ezFrame Fixed Frame
    Front/Rear Projection Front
    Mount Wall
    Finish AcousticPro1080P3; mildew-resistant, flame-retardant
    Tension Control Tensioned
    Keystone Control No
    Overall Size 78.3 x 135.4 x 1.6" (198.9 x 343.9 x 4.1 cm)
    Image Size 73.6 x 130.7" (186.9 x 332.0 cm)
    Diagonal 150" (381.0 cm)
    Format HDTV
    Aspect Ratio 16:9
    Gain 1.0
    Viewing Angle 160°
    Masking Options Not Applicable
    Voltage Not Applicable
    Integrated Control Not Applicable
    Control Options Not Applicable
    Color Frame: Black
    Velour: Black
    Material Anodized aluminum
    2.4" velour surfacing
    Length Not Applicable
    Weight 42.8 lb (19.4 kg)
    Package Weight 55.9 lb
    Box Dimensions (LxWxH) 82.8 x 12.5 x 4.6"
