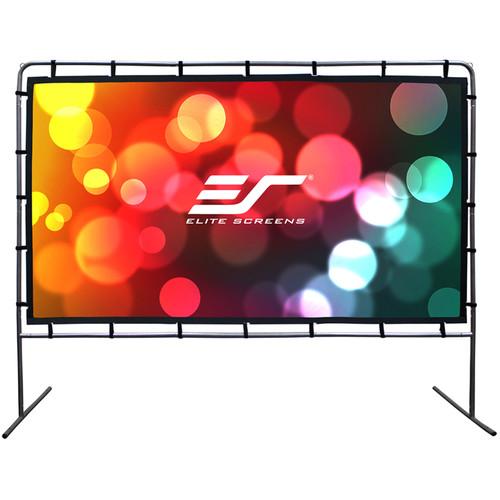

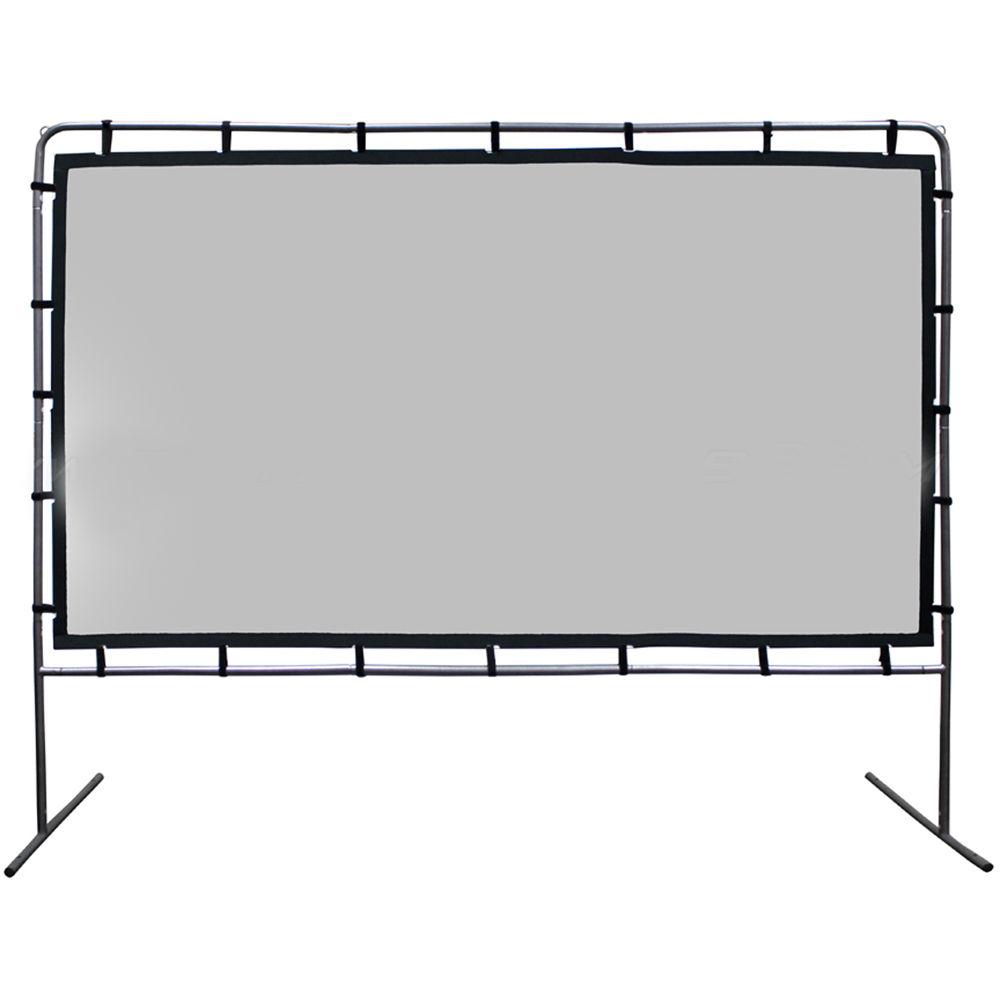

User Manual for Elite Screens OMS103HR 50.5 x 89.8" Yard Master Series 1 Rear Projection Outdoor Screen Click to enlarge the picture
Contents of the user manual for the Elite Screens OMS103HR 50.5 x 89.8"
- Product category: Folding Screens Elite Screens
- Brand: Elite Screens
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Elite Screens Folding Screens
 |
User manual for the Elite Screens OMS103HR 50.5 x 89.8" contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Elite Screens product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Elite Screens user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Elite Screens product will considerably shorten its lifespan!
|

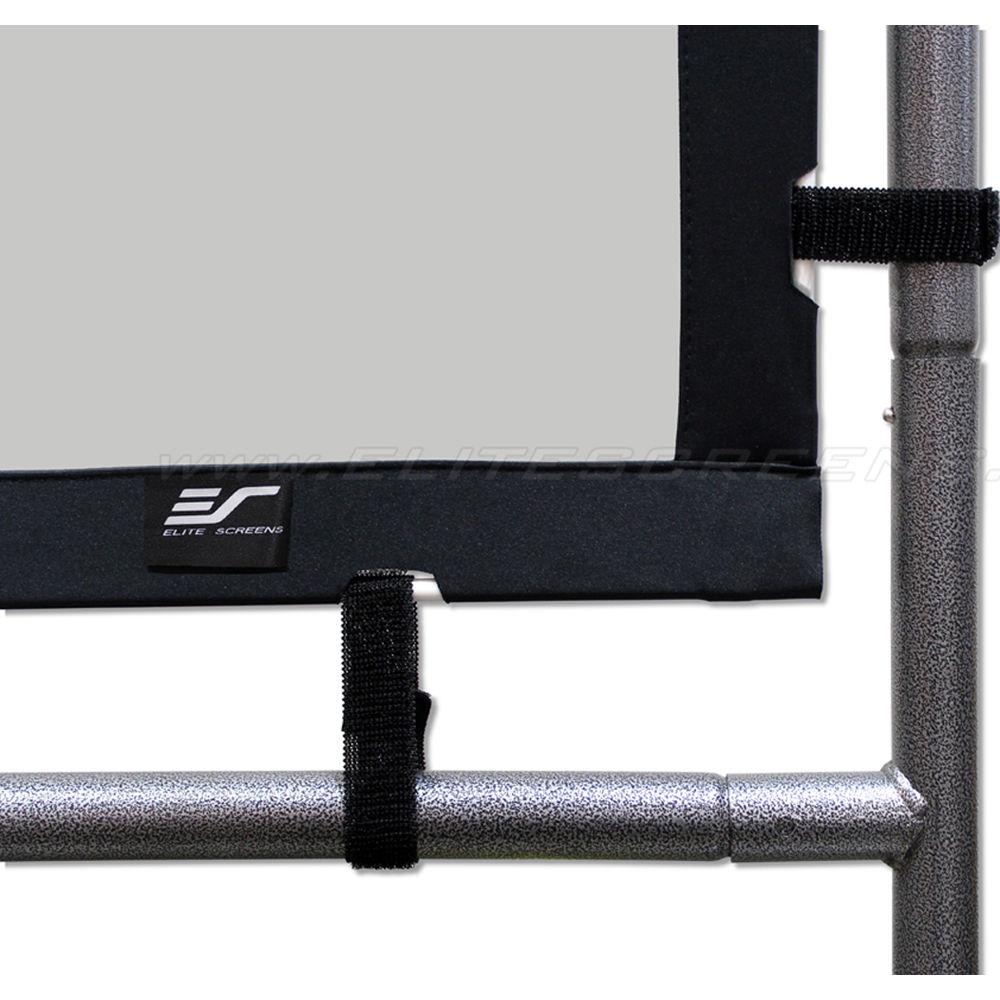

Product description The OMS103HR Yard Master Series 1 Rear Projection Outdoor Screen from Elite Screens provides a durable and heavy-duty option for outdoor projection at picnics or outdoor shows. It is durable enough to be used rain or shine, though it should not be stored out in the elements. Ropes and eight ground stakes provide stability from light winds. The WraithVeil rear projection surface attaches to the frame with hook-and-loop fasteners. WraithVeil is a textured PVC viewing surface designed for use in rear projection applications, such as retail signage or restaurants. Gain at 0° is 2.2. The surface is fastened into place with corner grommets. For added tensioning to the surface, the grommets can also be attached to a garage door frame, a wall, trees, or pole supports. A surface coating enhances color reproduction and black level contrast with wide uniformity. A wide 160° (±80° left and right) viewing angle is suitable for large outdoor audiences. It is mildew-resistant and can be cleaned with mild soap and water on a cotton cloth. Note: Use of this product is not recommended in gusty winds over 20 mph. While the screen is weather-resistant, it should not be stored outside. Use the included carry bag. - Ideal for any outdoor activities, such as camping, parks or movies in the backyard
- Heavy-duty frame construction for all types of weather
- Setup and takedown is simple and quick with portable carrying bag for easy storage/transportation
- Kit includes ropes and 8 stakes for wind stability
UPC: 848448006754 In the Box Elite Screens OMS103HR 50.5 x 89.8" Yard Master Series 1 Rear Projection Outdoor Screen 4 x Fiberglass Poles 4 x Ring Stakes 4 x Curved Stakes 4 x Guy-Ropes Assembly Hardware Carrying Bag 11.8" Hook-and-Loop Fastener Bands (20-25) 11.8" Button Bands (7-12) Limited 2-Year Warranty Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Elite Screens OMS103HR 50.5 x 89.8" Yard Master Series 1 Rear Projection Outdoor Screen in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersElite Screens OMS103HR Specs | Applications | Outdoor movie screen for camping, picnics, backyards, retreats, barbecues, pool parties, DJ events, and movie nights | | Screen Material | WraithVeil | | Viewing Area | 50.5 x 89.8" (128.3 x 228.1 cm) | | Diagonal Size | 103" (261 cm) | | Aspect Ratio | 16:9 | | Gain | 2.2 | | Viewing Angle | 160° | | Hardware | Frame with legs
T-Leg Height: 23.6" (59.9 cm) | | Masking | 4 side black masking border
Top Border: 5.5" (13.9 cm)
L/R Border: 4.5" (11.4 cm) | | Care & Cleaning | Can be easily cleaned with mild soap and water | | Dimensions | Overall: 98.8 x 85.0" (250.9 x 215.9 cm)
Screen Material to Ground: 29.1" (73.9 cm) | | Net Weight | 32.2 lb (14.6 kg) | | Gross Weight | 35.7 lb (16.2 kg) | | | | Box Dimensions (LxWxH) | 40.94 x 18.11 x 4.52" |
Rating70% users recommend this product to others. And what about you?
This product has already been rated by 61 owners. Add your rating and experience with the product.
