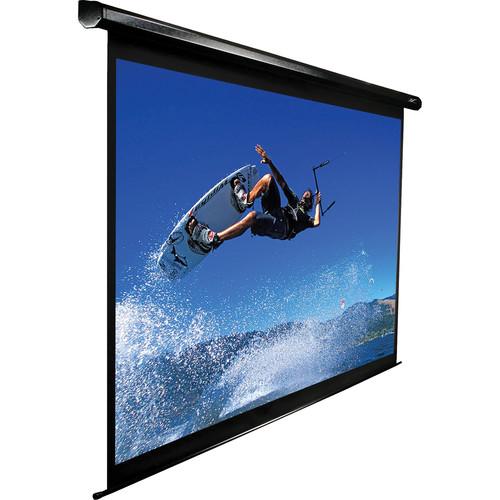

User Manual for Elite Screens Spectrum Series 110" Electric Motorized Front Projection Screen Click to enlarge the picture
Contents of the user manual for the Elite Screens Spectrum Series 110" Electric
- Product category: Electric Screens (Wide Formats) Elite Screens
- Brand: Elite Screens
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Elite Screens Electric Screens (Wide Formats)
 |
User manual for the Elite Screens Spectrum Series 110" Electric contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Elite Screens product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Elite Screens user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Elite Screens product will considerably shorten its lifespan!
|

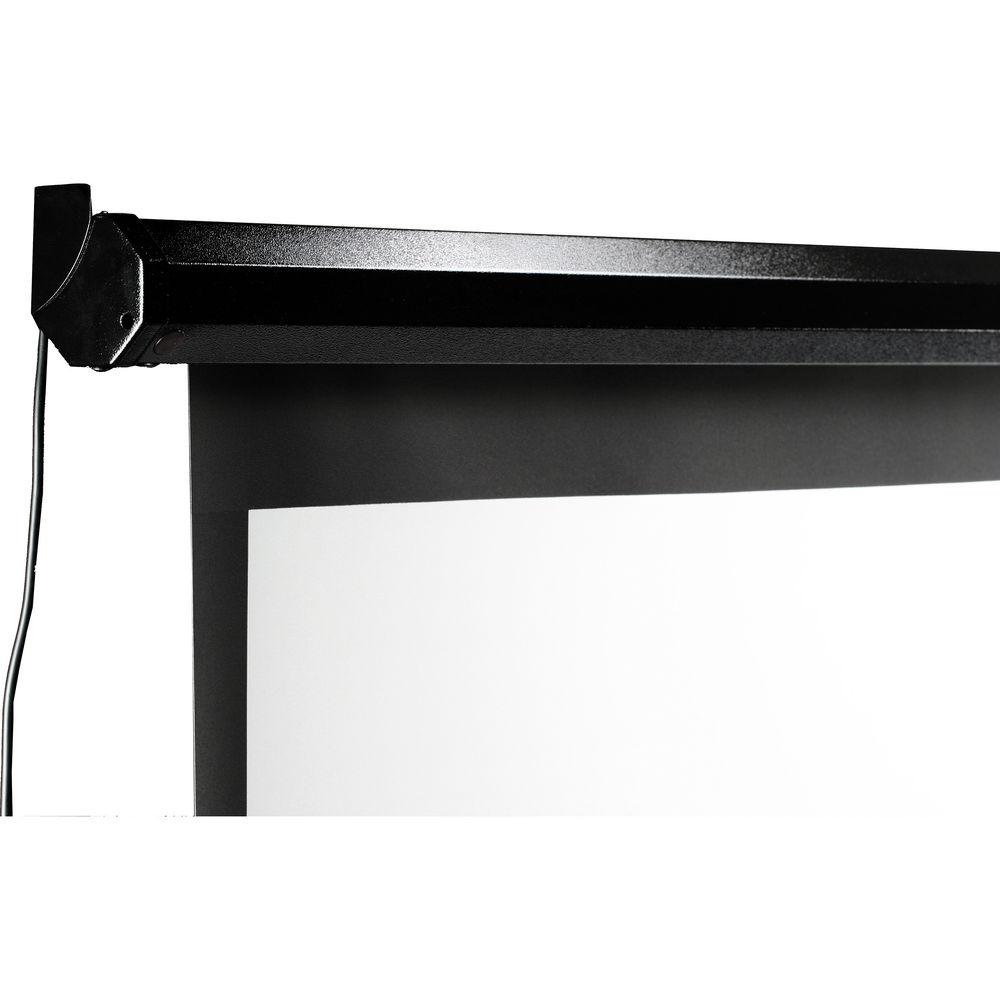

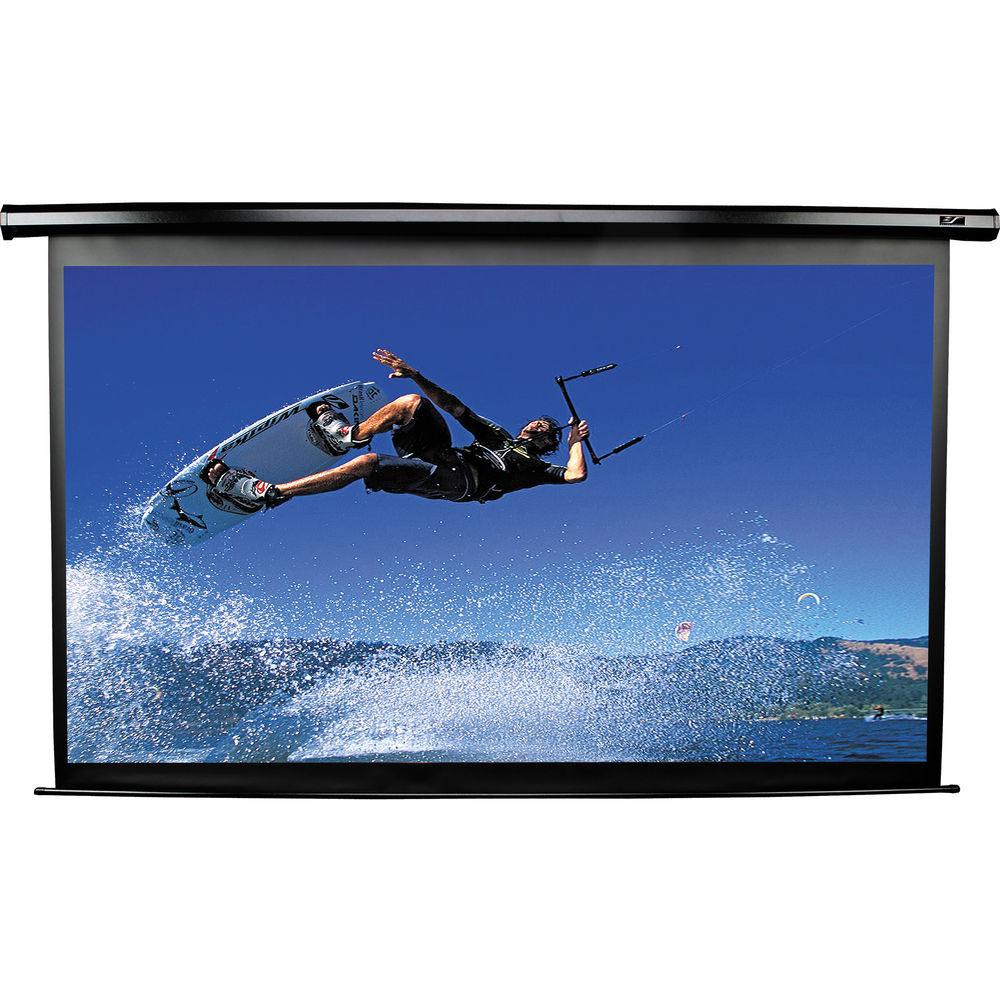

Product description The black Spectrum Series 110" Electric/Motorized Front Projection Screen from Elite Screens is made of MaxWhite material that is easy to clean and durable for daily use. With the 1.1 gain and 160° wide viewing angle, it is suitable for most applications from commercial to home theater presentations. Screen material comes with standard black backing to eliminate light penetration while its textured projection surface helps to eliminate Moiré or “hot spotting".The built-in 5-12V trigger input allows your screen to synchronize its drop & rise with the projector’s power cycle. The screen deploys when the projector powers up and will retract when the projector powers down. Screen Material - MaxWhite material is durable and easy to clean
- 160° wide viewing angle with 1.1 gain
- 4K Ultra HD Ready (on MaxWhite material)
- Standard black masking borders
Total Control - Infrared (IR) remote control
- Detachable 3-way wall switch
- Built-in 5-12V trigger port enables drop/rise operation to synchronize with the projector's power cycle
- 12V trigger cable included
- Low-voltage internal IR receiver
- RJ45 input port allows easy integration with 3rd party control systems
- Optional RF Remote, wireless 5-12V trigger, universal 5-12V trigger (for projectors that don't have a trigger output port) and In-wall switch

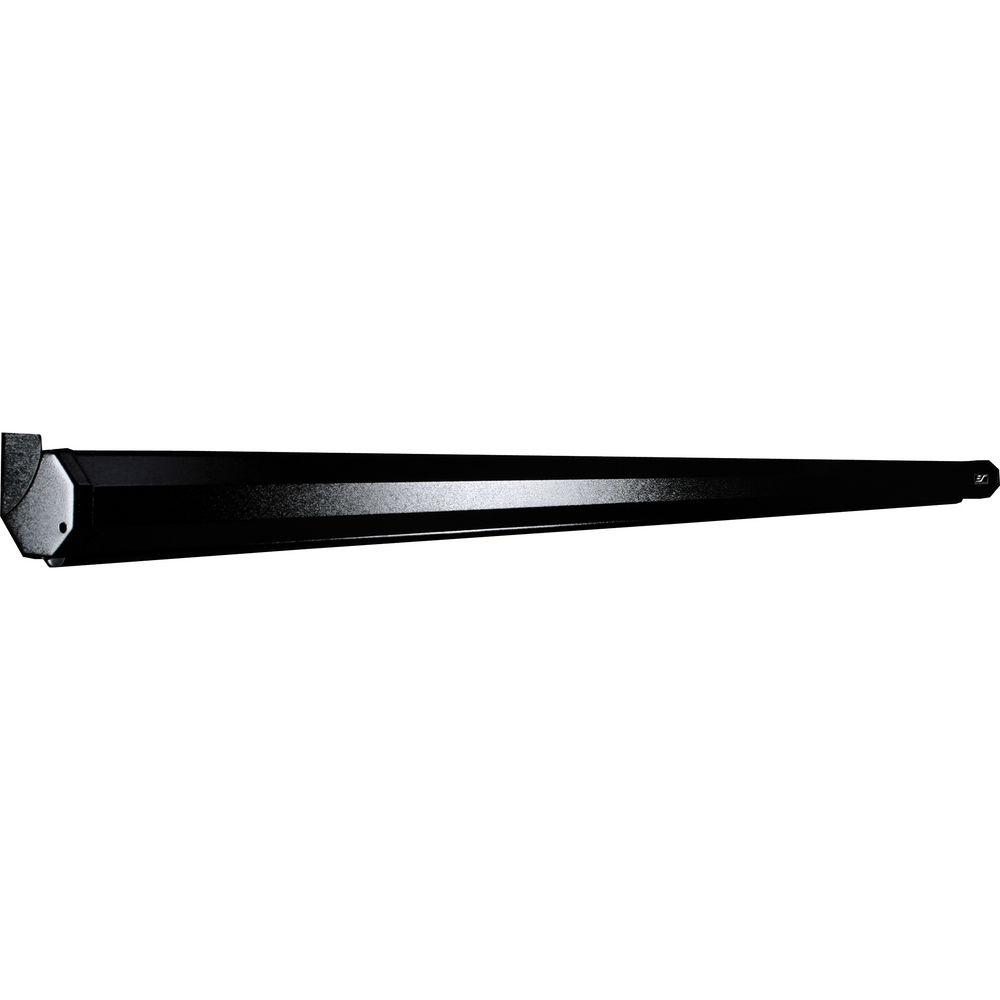

Design and Installation - Durable casing for wall/ceiling installations
- Pre-assembled with 3-prong power connection ready to plug & play
- Optional in-ceiling trim kit and 6" and 12" L brackets
Quality and Reliability - Synchronous motor allows silent operation with extended operational longevity and low power consumption
- Certified by AMX and CRESTRON
- GREENGUARD and GREENGUARD Gold UL 2818 Certified
UPC: 848448020767 In the Box Elite Screens Spectrum Series 110" Electric/Motorized Front Projection Screen (Black) IR Remote Control 3-Way Wall Switch 2 x AAA Battery Bubble Level 12V Trigger Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Elite Screens Spectrum Series 110" Electric Motorized Front Projection Screen in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersElite Screens ELECTRIC110H Specs | Nominal Diagonal | 110" (279.4 cm) | | Aspect Ratio | 16:9 | | Screen Material | MaxWhite | | Gain | 1.1 | | Case Length | 109.2" (277.6 cm) | | Borders | Top Black Border: 8" (20.3 cm) | | Viewing Size | W x H: 96 x 54" (243.8 x 137.1 cm) | | Cable Length | 70.9" (180.0 cm) | | Weight | 23.6 lb (10.7 kg) | | | | Package Weight | 32.0 lb | | Box Dimensions (LxWxH) | 114.0 x 6.0 x 6.0" |
