User Manual for Elite Screens Spectrum2 Motorized Projection Screen with 12" Drop Click to enlarge the picture
Contents of the user manual for the Elite Screens Spectrum2 Motorized Projection Screen
- Product category: Electric Screens (Wide Formats) Elite Screens
- Brand: Elite Screens
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Elite Screens Electric Screens (Wide Formats)
 |
User manual for the Elite Screens Spectrum2 Motorized Projection Screen contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Elite Screens product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Elite Screens user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Elite Screens product will considerably shorten its lifespan!
|

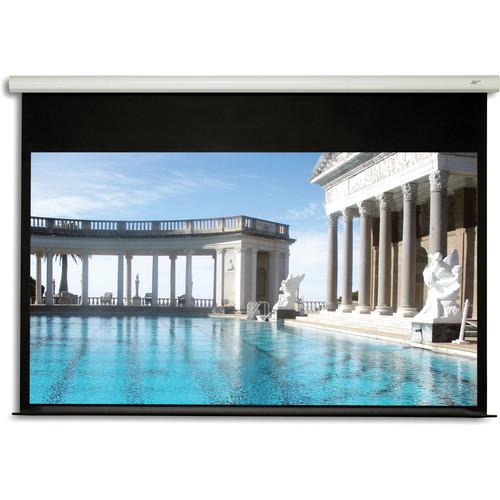

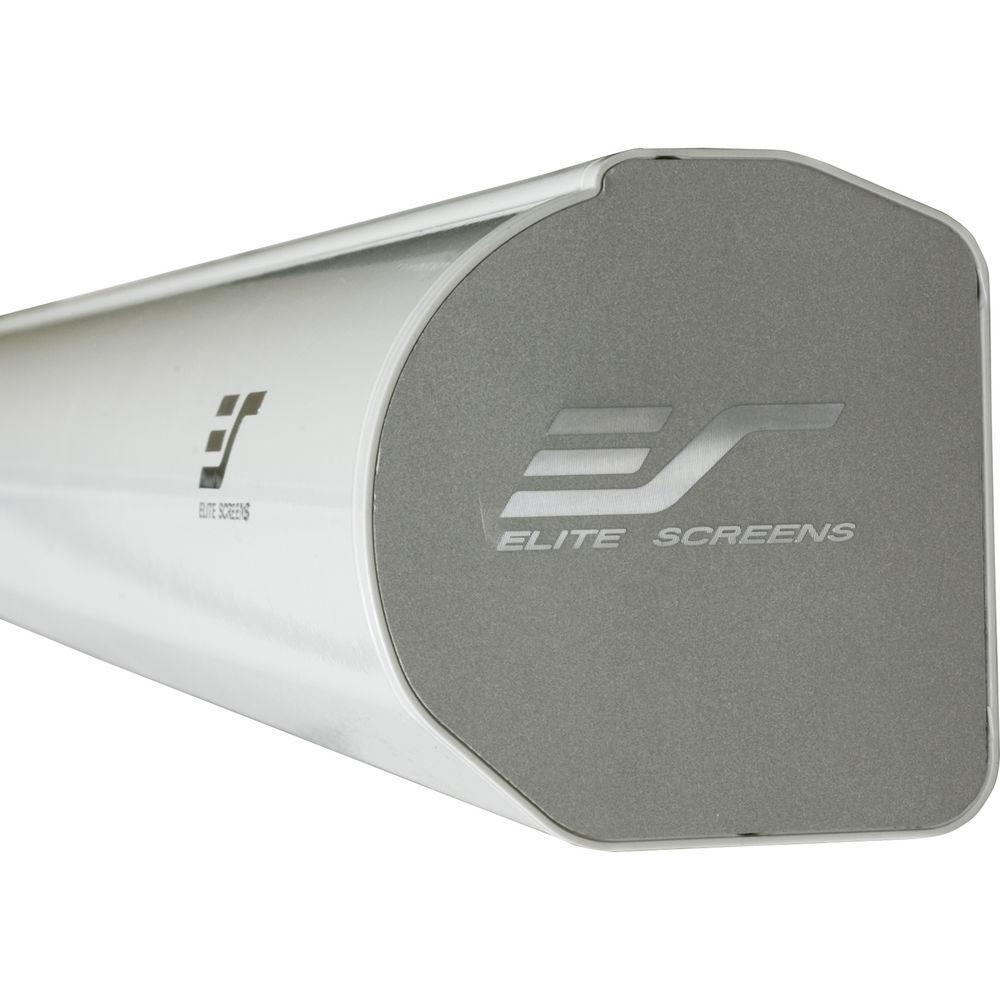

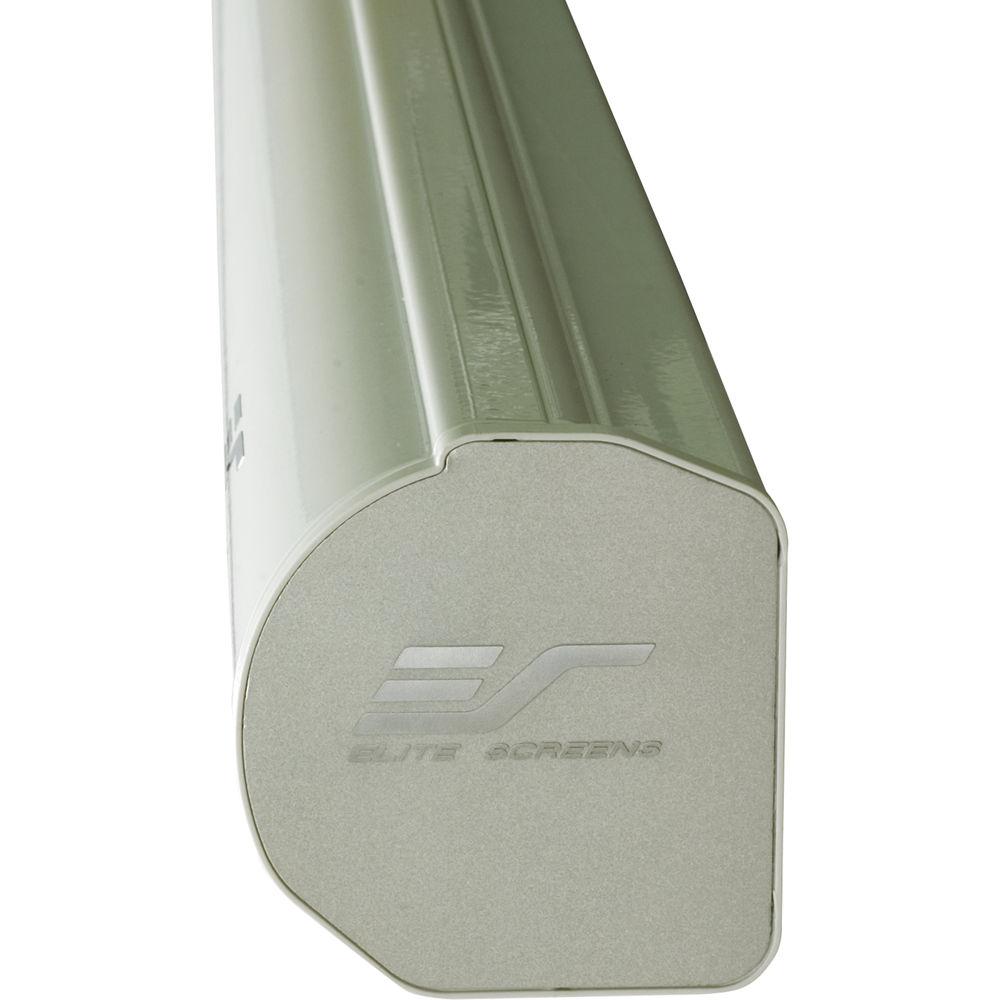

Product description The 59.0 x 104.7" Spectrum2 Motorized Projection Screen with 12" Drop from Elite Screens features Plug and Play design, an aluminum casing with white enamel finish, and moisture and flame-resistant screen surface. The screen also comes with GREENGUARD certification assuring that the Spectrum2 has met strict emissions limits for construction materials and indoor use.Installation is straightforward and expedited by the included floating brackets that can be first secured to wall studs, and the screen aligned at a later date. There are also quick-release tabs that promote rapid set up and tear down. When the screen is hung from the ceiling, the 12" drop lowers the projection surface enough to provide neck relief, since it negates the need to tilt your head back to view the image.The 4-sided, 2.0" black masking borders help eliminate excess light from projector spill. The black backing on the material enhances contrast and prevents any backlit light source from intruding on the image. With a view angle of 160°, it's easy to see your projection from just about anywhere in the room. The tubular motor has a built-in 3-way up/stop/down switch and 3-prong, 11.5' power cord suitable for North American outlets. It also includes an auto cut-off in case of overheating.MaxWhite FG is a matte white surface designed for high-end DLP and LCD projection. It has a multi-layer weave with a textured surface reinforced with fiberglass for strength as well as providing uniform image diffusion. As a result of its construction, it resists warping. Color and contrast are precise. The black backing eliminates any bleed-through. It can be cleaned with mild soap and water. - Motor
-
- The tubular 85W motor has a rotating axle typically used in screens, awnings, and roller blinds
- The screen's overall running time of 4 minutes also has an auto shut off/cool down function in case of overheating
- It allows swift operation with a good weight tolerance and operational lifespan
- Installation
-
- Plug and Play design
- Floating brackets for rapid wall/ceiling mounting
- Ships fully assembled
- GREENGUARD Certification
-
- Comes with an environmental anti-hazard certification that states the item has met strict chemical emissions limits as set by the GREENGUARD Environmental Institute (GEI) and testing protocol followed by the US Environmental Protection Agency
UPC: 848448005351 In the Box Elite Screens Spectrum2 Motorized Projection Screen with 12" Drop (59.0 x 104.7") 2 x Wall Brackets Bubble Leveler Mounting Hardware Limited 2-Year Warranty Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Elite Screens Spectrum2 Motorized Projection Screen with 12" Drop in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersElite Screens SPM120H-E12 Specs | | | Style | Spectrum2 with 12" Drop | | Front/Rear Projection | Front | | Mount | Wall or ceiling | | Finish | MaxWhite FG; mildew-resistant, flame-resistant | | Tension Control | Non-tensioned | | Keystone Control | No | | | | Overall Size | 77.0 x 111.9 x 3.5" (195.6 x 284.2 x 8.9 cm) | | Image Size | 59.0 x 104.7" (149.9 x 265.9 cm) | | Diagonal | 120" (304.8 cm) | | Format | HDTV | | Aspect Ratio | 16:9 | | Gain | 1.1 | | Viewing Angle | 160° | | Borders | Left/Right: 2.0" | | Masking Options | Not Applicable | | | | Voltage | 110 VAC / 60 Hz
3-prong, 11.5' (3.5 m) power cord suitable for North American outlets | | Integrated Control | 3-way integrated up/stop/down control switch
Running Time: 4 minutes | | Control Options | Remote control kit ZPM-RT equipped with an RJ45 port, IR and RF Remote Control, IR EYE Sensor, and a 12V Trigger Cable
ZTF220V transformer for foreign use | | | | Color | White | | Material | Aluminum | | Length | 111.9" (284 cm) | | | | Package Weight | 37.39 lb | | Box Dimensions (LxWxH) | 115.0 x 6.5 x 6.0" |
