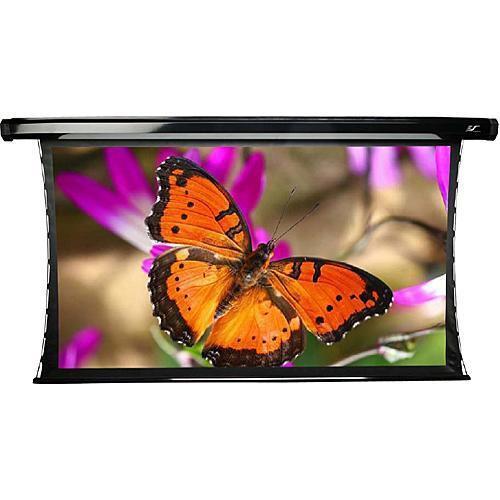

User Manual for Elite Screens TE100VW2-E12 Cinetension 2 Motorized Projection Screen Click to enlarge the picture
Contents of the user manual for the Elite Screens TE100VW2-E12 Cinetension 2 Motorized
- Product category: Electric Screens (Square & 4:3 Formats) Elite Screens
- Brand: Elite Screens
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Elite Screens Electric Screens (Square & 4:3 Formats)
|
User manual for the Elite Screens TE100VW2-E12 Cinetension 2 Motorized contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Elite Screens product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Elite Screens user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Elite Screens product will considerably shorten its lifespan!
|
Product description The Elite 60 x 80" Cinetension 2 Motorized Projection Screen gives you complete control over your presentation. Suitable for home and business, this rugged aluminum screen comes complete with two remotes (IR and RF) as well as a 12V trigger that allows you to synchronize the up/down function with your projector's motor. The RF control gives you the freedom to be 100' away from your screen making this an excellent screen choice for educational institutions that use large lecture halls. To operate projection screens from one or more locations, a control system is required. The Low Voltage Control System was designed specifically for that purpose. It features ease of installation and operates at the touch of a button from a switch or transmitter. Generally, the screen can be controlled in four different ways: Low Voltage Switch Control, Radio Frequency Remote Control, Infrared Remote Control and Auxiliary Control. The plug & play design of the Cinetension 2 is an added bonus since it is ready to go out of the box. All mounting hardware is included (bracket wrench, wall screws and bubble level) and is backed by Elite's excellent 2-year replacement warranty. Premium Screen Material - CineWhite Tension material provides uniform flatness in a versatile material making it a favorite for consumers and installers alike
- Standard 4-side black masking borders
- Available in 4:3, 16:9, 16:10, and 2.35:1 aspect ratios
- Diagonal sizes range from 84 - 150"
- Rear projection material models also available
Total Control Options - Standard Infrared (IR) and Optional ZR800D IR Universal Learning Remote system
- Standard Radio Frequency (RF) remote control operates screen from 100' away
- Low-voltage detachable 3-way wall switch for in-line control
- Extended IR "eye" sensor for in-ceiling Infrared operation
- Built-in 5-12 volt trigger port (RJ-45) enables Drop/Rise operation to synchronize with the projector's power cycle
- Optional wireless 5-12 volt (model ZSP-TR01) projector trigger
Easy Installation - Floating installation brackets provide easy alignment with wood studs to accommodate a wall or ceiling installation
- Aluminum housing with enamel coating is moisture resistant
- Adjustable vertical limit switch regulates screen's drop/rise settings
- Shipped ready to plug & play with installation kit containing brackets, screws, and bubble leveler included
- Optional in-ceiling trim kit
- Optional extended 11x4" or 12x8" L brackets
Quality and Reliability - Tubular motor allows swift operation with a superior weight tolerance and operational lifespan
In the Box Elite Screens TE100VW2-E12 Cinetension 2 Motorized Projection Screen (60 x 80") Infrared (IR) Remote Control Radio Frequency (RF) Remote Control Mounting Hardware Bubble Level Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Elite Screens TE100VW2-E12 Cinetension 2 Motorized Projection Screen in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersElite Screens TE100VW2-E12 Specs | | | Style | Cinetension 2 | | Front/Rear Projection | Front | | Mount | Wall or Ceiling | | Finish | CineWhite | | Tension Control | Tensioned | | Keystone Control | Not Applicable | | | | Overall Size | 82.5 x 99.3 x 5.0" (209.6 x 252.2 x 12.7 cm) | | Image Size | 60 x 80" (1.5 x 2 m) | | Diagonal | 100" (2.54 m) | | Format | Video | | Aspect Ratio | 4:3 Aspect Ratio | | Gain | 1.1 | | Viewing Angle | 160° | | Masking Options | Masking borders are standard
Comes with extra 12" drop | | | | Voltage | 110 VAC, 60 Hz | | Integrated Control | Infrared (IR) and Radio Frequency (RF) | | Control Options | In-wall wireless 3-way switch
Wireless 5-12V trigger | | | | Color | Black | | Material | Aluminum | | Length | 96" (2.4 m) | | | | Shipping Weight | 59.5 lb (27.0 kg) | | | | Package Weight | 5.0 lb | | Box Dimensions (LxWxH) | 103.5 x 9.8 x 7.5" |
