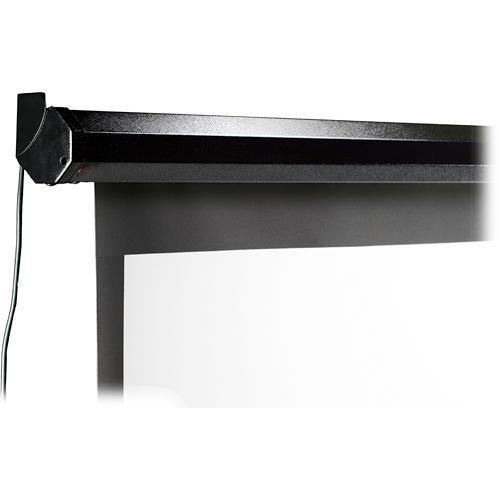

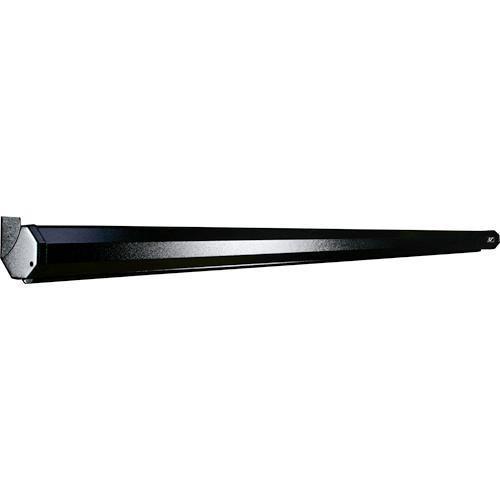

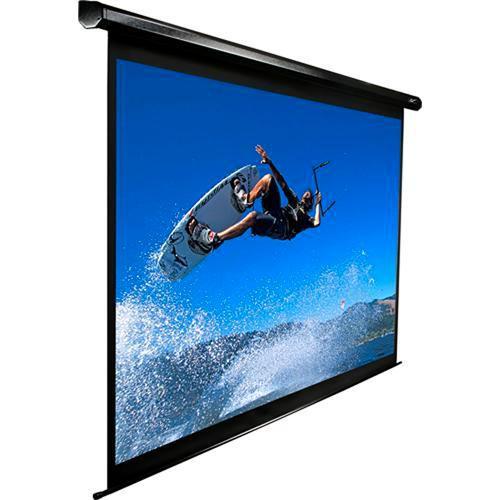

User Manual for Elite Screens VMAX150UWH2-E24 VMax2 Motorized Projection Screen Click to enlarge the picture
Contents of the user manual for the Elite Screens VMAX150UWH2-E24 VMax2 Motorized Projection
- Product category: Electric Screens (Wide Formats) Elite Screens
- Brand: Elite Screens
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Elite Screens Electric Screens (Wide Formats)
 |
User manual for the Elite Screens VMAX150UWH2-E24 VMax2 Motorized Projection contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Elite Screens product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Elite Screens user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Elite Screens product will considerably shorten its lifespan!
|
Product description The Elite VMax2 Motorized Projection Screen is a simple and elegant screen for business or educational purposes. With its all-steel construction, black casing, and integrated IR and RF controls, this screen is a winner when it comes to your ability to maintain control over the projection environment. This series comes with standard 2-30" of black masking borders which give you an edge when it comes to eliminating "projection overshoot". The screen also has an excellent pre-set limit for vertical adjustments. This prevents "screen drift" and ensures that the screen stops at the desired projection height. The screen material is MaxWhite - a high gain material with a wide viewing angle (160°). The standard black masking borders give the screen a finished and professional appearance and help to keep your audience's attention on the screen. It is black-backed to increase image saturation as well as being textured which helps eliminate hot spots (moire). This surface is also easy to clean.In addition to the standard 2-year warranty,. Elite offers a 3-Year Parts and Labor Premium Warranty for All Government, Education, Military, and House of Worship Purchases. Total Control - Standard Infrared (IR) remote control
- Detachable 3-way wall switch
- Includes Radio Frequency (RF) remote to operate from up to 100' away without the necessity of line of sight
- Built-in 5-12 volt trigger input enables Drop/Rise operation to synchronize with the projector's power cycle
- Low-voltage internal IR/RF receivers
- CAT5 cable wit RJ-45 connector for easy extension of the 5-12 volt trigger/IR "eye" receiver/3-way wall switch
- Optional wireless 5-12 volt trigger available (model# ZS-TR01)
- Optional in-wall up/down switch
Installation - Durable metal casing for wall/ceiling installation
- Ships fully assembled with 3-prong power connection ready to plug & play
- Built-in adjustable vertical limit switch to regulate drop/rise settings
- Optional in-ceiling trim kit and 6", 12", 18" L bracket
Quality and Reliability - Synchronous motor allows silent operation with extended operational longevity and low power consumption
- 2-year parts and labor premium warranty
- 3-year parts and labor premium warranty for all Government, Education, Military, and House of Worship purchases
UPC: 876818005533 In the Box Elite Screens VMAX150UWH2-E24 VMax2 Motorized Projection Screen (73.5 x 130.8", 120V) RF Remote Control Infrared Remote Control Bubble Leveler Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Elite Screens VMAX150UWH2-E24 VMax2 Motorized Projection Screen in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersElite Screens VMAX150UWH2-E24 Specs | | | Style | Vmax2 | | Front/Rear Projection | Front | | Mount | Wall or ceiling | | Finish | MaxWhite | | Tension Control | Non-tensioned | | Keystone Control | Not Applicable | | | | Overall Size | 84.9" (2.2 m) | | Image Size | 73.5 x 130.8" (1.9 x 3.3 m) | | Diagonal | 150" (3.8 m) | | Format | HDTV | | Aspect Ratio | 16:9 | | Masking Options | Standard black masking borders | | | | Voltage | 120V, 60Hz | | Integrated Control | IR remote
Detachable 3-way wall switch, RF remote
Built-in 5-12 volt trigger input enables Drop/Rise operation to synchronize with the projector's power cycle | | Control Options | Optional wireless 5-12 volt trigger available (model# ZS-TR01)
Optional in-wall up/down switch | | | | Color | Black | | Material | Steel | | Length | 143.9" (3.7 m) | | | | Shipping Weight | Not Specified by Manufacturer | | | | Package Weight | 41.9 lb | | Box Dimensions (LxWxH) | 146.8 x 5.9 x 5.5" |
Rating80% users recommend this product to others. And what about you?
This product has already been rated by 37 owners. Add your rating and experience with the product.
