Elmo HS-G1 Huddle Space Collaboration Hub

Search your instruction manual in PDF to download

User Manual for Elmo HS-G1 Huddle Space Collaboration Hub with 8 HDMI Inputs

Click to enlarge the picture
Elmo HS-G1 Huddle Space Collaboration Hub with 8 HDMI Inputs Contents of the user manual for the Elmo HS-G1 Huddle Space Collaboration Hub
  • Product category: Presenter & Document Camera Accessories Elmo
  • Brand: Elmo
  • Description and content of package
  • Technical information and basic settings
  • Frequently asked questions – FAQ
  • Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
  • Authorized service for Elmo Presenter & Document Camera Accessories

Elmo HS-G1 Huddle Space Collaboration Hub with 8 HDMI Inputs Elmo HS-G1 Huddle Space Collaboration Hub with 8 HDMI Inputs Elmo HS-G1 Huddle Space Collaboration Hub with 8 HDMI Inputs Elmo HS-G1 Huddle Space Collaboration Hub with 8 HDMI Inputs
User manual for the Elmo HS-G1 Huddle Space Collaboration Hub contain basic instructions that need to be followed during installation and operation. Before starting your appliance, the user manual should be read through carefully. Follow all the safety instructions and warnings, and be guided by the given recommendations. User manual is an integral part of any Elmo product, and if it is sold or transferred, they should be handed over jointly with the product. Following the instructions for use is an essential prerequisite for protecting health and property during use, as well as recognition of liability on the part of the manufacturer for possible defects should you make a warranty claim. Download an official Elmo user manual in which you will find instructions on how to install, use, maintain and service your product.

And do not forget – unsuitable use of a Elmo product will considerably shorten its lifespan!



Product description

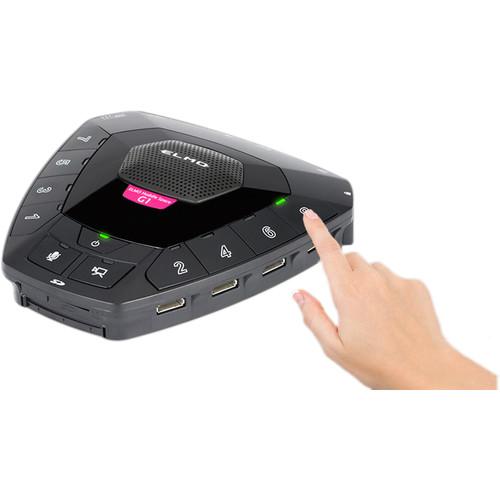

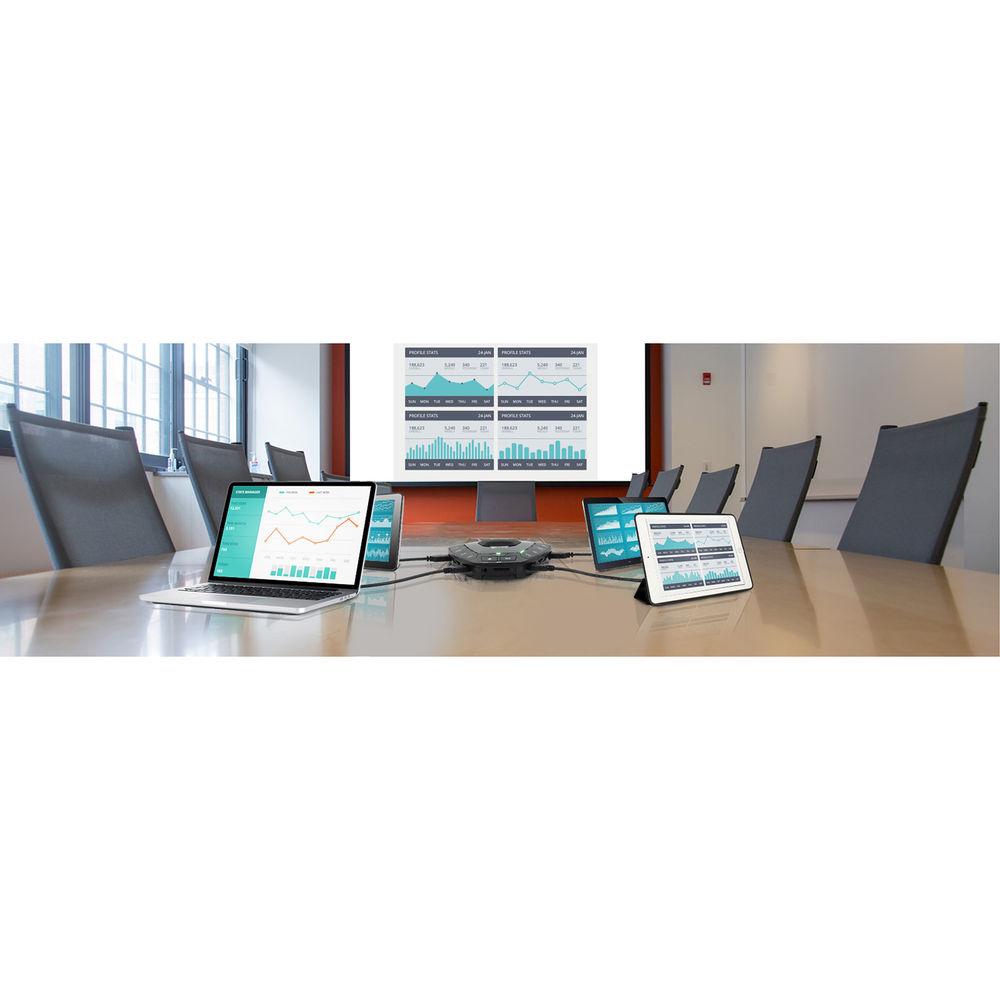

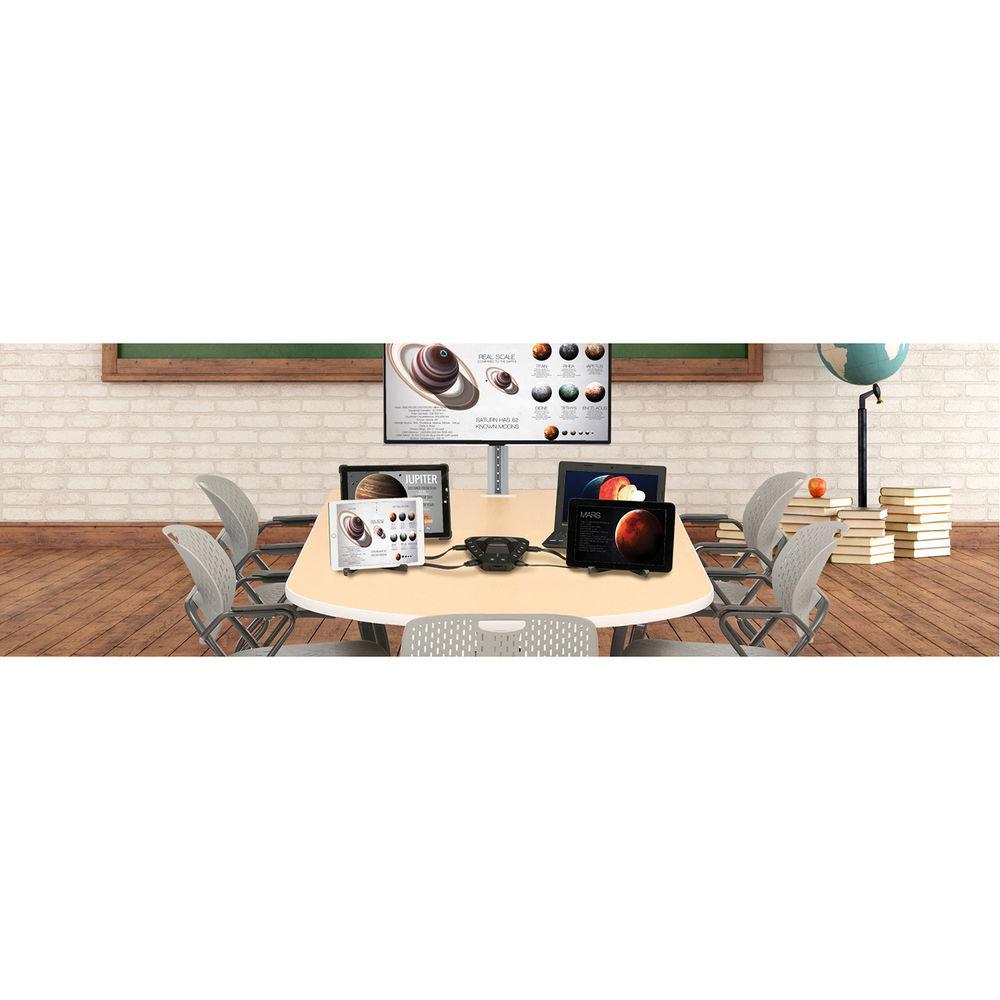

The Elmo HS-G1 Huddle Space 8-HDMI Input Collaboration Hub enables you to switch among, and record input from, up to eight HDMI devices. This hub works with devices such as iPads, Chromebooks, Windows/Mac/Android tablets, and document cameras. Switching between sources is easily accomplished with the press of a button. Since video/audio is output via cable, using the hub does not drain your network resources. Suitable for classroom use, the HS-G1 Huddle Space can capture its users' comments as material is presented, using the built-in conferencing microphone. Video output options include HDMI and RGB. Both still images and video can be recorded to an SD card (not included). An optional battery pack (not included) is available for added portability and the hub is also compatible with third-party wireless HDMI transmitters (not included). The hub incorporates LED lights that indicate various status modes. Note: Audio from connected devices may be output but not recorded; audio from the built-in microphone is recorded

Key Features

  • The Huddle Space hub is compatible with any HDMI device, accommodating a wide range of user devices
  • Easily switch among the eight HDMI inputs with the press of a button
  • HDMI or RGB video output
  • Video and audio are output via cable, saving your network bandwidth for other uses

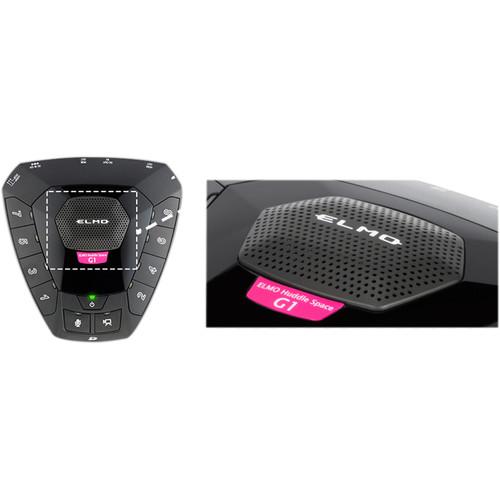

  • The built-in microphone can be used to capture users' comments while viewing the presented material
  • An optional battery pack and third-party wireless HDMI transmitter (neither included) may be used to increase the hub's portability
  • LED lights indicate the hub's various status modes
UPC: 008404104546 In the Box Elmo HS-G1 Huddle Space Collaboration Hub with 8 HDMI Inputs
  • AC Adapter
  • AC Power Cord
  • 3' HDMI Type-A Cable
  • 3' HDMI Type-A to Micro-HDMI Cable
  • Limited 3-Year Warranty
  • Table of Contents




    Upload User Manual

    Have you got an user manual for the Elmo HS-G1 Huddle Space Collaboration Hub with 8 HDMI Inputs in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

    To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
    Upload PDF user manual Upload DOC user manual
    Please enter here the link to the user manual of this product:





    OR

    Enter here the file with the user manual of this product from your computer/phone:
    (60MB max; Permitted formats: PDF)

    0%


    Technical parameters

    Elmo 2700 Specs

    Power Source 12 VDC
    AC Adapter Input 100~240 VAC
    Power Consumption 7 W
    Compatible Devices Input: AV devices with HDMI output
    Output: AV devices with various input ports
    Input Terminals Mono electret condenser microphone
    8 x HDMI Type-A
    1 x DC jack
    Output Terminals 1 x RGB mini D-sub 15-pin female
    1 x WHDI module Type-A power
    1 x HDMI Type-A
    External Control 1 x USB 2.0 Type-B
    Memory Interface 1 x SD card slot
    USB Interface Specification: USB 2.0-compliant
    Transfer Speed: (rate varies based on computer performance/USB bus)
    High Speed: 480 Mbps
    Full Speed: 12 Mbps
    Power Supply: Self-powered (USB bus does not supply power)
    Output Modes Output Mode Slide Switch:
    Selectable: HDMI, RGB
    Video Recording Format H.264/MP4
    Video Resolutions 1080p/1080i/720p/XGA (dependent on connected device)
    Maximum: 1080p/60
    Still Image Format JPEG
    Operating Temperature 32 to 104°F / 0 to 40°C
    Humidity (Non-Condensing) 30~85%
    Dimensions 6.52 x 6.77 x 1.71" / 165.6 x 171.93 x 43.5 mm
    Weight 2.2 lb / 1 kg
    Package Weight 4.0 lb
    Box Dimensions (LxWxH) 10.2 x 9.2 x 5.7"
