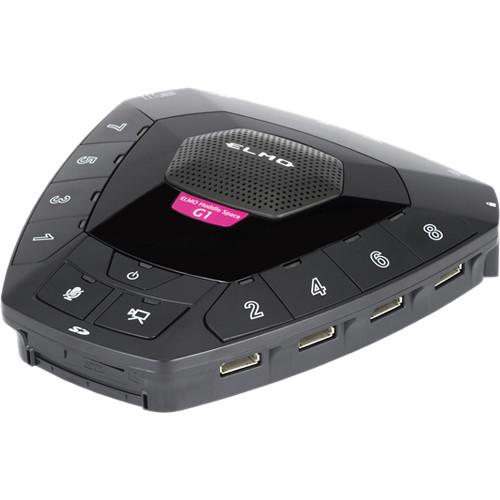

Product description In this kit, Elmo combines their HS-G1 Huddle Space Collaboration Hub with their MX-1 Visual Presenter. Suited for educational applications, the MX-1 document camera can be used to highlight text and/or objects. The resulting images can then be shared with your classroom or group via the HS-G1 Collaboration Hub. Designed for group participation, the hub has eight HDMI inputs and is compatible with Android/Chromebook/Mac/Windows and other HDMI devices. No one can call the HS-G1 a bandwidth hog; since video/audio is output using cable, using the hub will not strain your network resources. A built-in conferencing mic on the hub allows a teacher or group leader to hear the users' comments as a variety of material is presented. The HS-G1 hub can output up to 1080p/60 using its HDMI or RGB ports. The MX-1 Visual Presenter captures UHD video at up to 4K/30 fps or HD video at up to 1080p/60 fps. This slim, flexible, lightweight document camera features an 8x digital zoom, a 13MP, 1/3" CMOS sensor, 180° image rotation, and an on/off-switchable LED head lamp. Used together with an intermediary PC, the MX-1 and HS-G1 enable you to add the document camera's text/object image feed to the array of video outputs from the collaboration hub. Note: A PC with a USB input and an HDMI output is required when using the MX-1 with the HS-G1; the MX-1 connects to the PC's USB port and the PC is linked to the HS-G1 using the PC's HDMI port. The Elmo Connect Box (available separately) may also be used to provide an HDMI connection to the MX-1. - HS-G1 Huddle Space Collaboration Hub with 8 HDMI Inputs The Elmo HS-G1 Huddle Space 8-HDMI Input Collaboration Hub enables you to switch among, and record input from, up to eight HDMI devices. This hub works with devices such as iPads, Chromebooks, Windows/Mac/Android tablets, and document cameras. Switching between sources is easily accomplished with the press of a button. Since video/audio is output via cable, using the hub does not drain your network resources. Suitable for classroom use, the HS-G1 Huddle Space can capture its users' comments as material is presented, using the built-in conferencing microphone. Video output options include HDMI and RGB. Both still images and video can be recorded to an SD card (not included). An optional battery pack (not included) is available for added portability and the hub is also compatible with third-party wireless HDMI transmitters (not included). The hub incorporates LED lights that indicate various status modes. Note: Audio from connected devices may be output but not recorded; audio from the built-in microphone is recorded
Key Features - The Huddle Space hub is compatible with any HDMI device, accommodating a wide range of user devices
- Easily switch among the eight HDMI inputs with the press of a button
- Video and audio are output via cable, saving your network bandwidth for other uses
- The built-in microphone can be used to capture users' comments while viewing the presented material
- An optional battery pack and third-party wireless HDMI transmitter (neither included) may be used to increase the hub's portability
- LED lights indicate the hub's various status modes

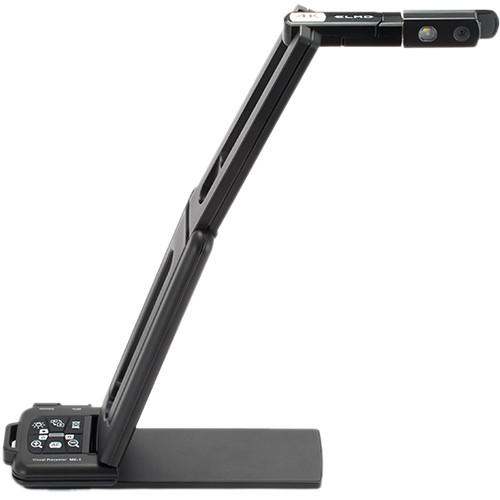

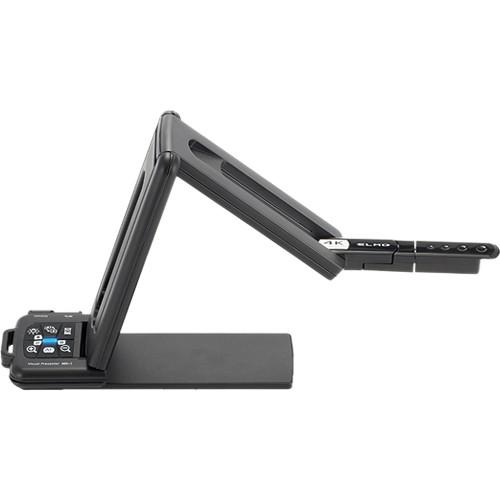

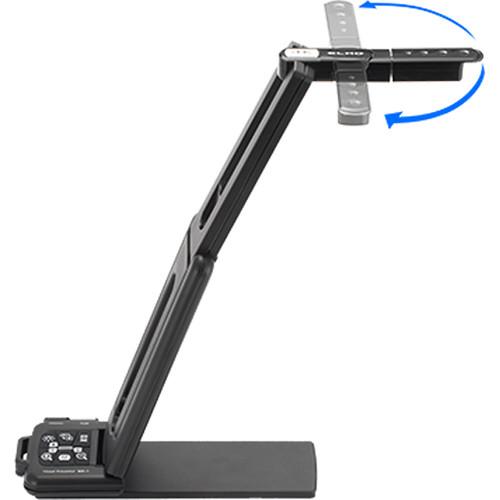

UPC: 008404104546 - MX-1 Visual Presenter The MX-1 Visual Presenter from Elmo delivers 4K imaging at up to 30 fps and full 1080p video at up to 60 fps. This document camera is powered via a USB 3.0 Micro-B interface, enabling delay-free viewing of moving objects. For a larger choice of display options, the separately available Connect Box expansion module features HMDI and RGB interfaces. A 1/3" CMOS sensor provides 13MP images and the 8x digital zoom enables you to see fine details of displayed objects. The MX-1 also features a 14.7" x 11" image area, 180° image rotation, and an off/off switchable LED lamp head. Auto or manual control is available for focus, exposure, white balance, and several other functions. The slim, flexible MX-1 Visual Presenter weighs in at slightly over one pound. It has a removable baseplate with a smaller magnetic bottom underneath, enabling you to attach the unit to a metal surface. Navigation buttons provide easy access to popular controls such as image rotation, brightness level, zoom, and auto focus. The downloadable Image Mate 4 software provides various effects and controls for further refining your images.
Key Features - Display documents and objects in up to 4K/30 Ultra HD or 1080p/60 HD video
- A fast USB 3.0 port enables viewing of moving objects without delay
- An 8x digital zoom and 1/3", 13MP CMOS sensor help to provide optimal images
- Optional Connect Box expansion module (not included) provides HDMI and RGB output ports
- Navigation buttons provide easy access to controls such as image rotation, brightness level, zoom, and auto focus
- The downloadable Image Mate 4 software offers further control for fine-tuning your images
- Flexible, slim, lightweight form factor for portability
- The baseplate can be removed to reveal a smaller, magnetic base for use on metal surfaces
UPC: 008404104478 In the Box Bundle Items HS-G1 Huddle Space Collaboration Hub with 8 HDMI Inputs sxcqaqezvwtdvee - 3' HDMI Type-A to Micro-HDMI Cable
MX-1 Visual Presenter - USB 3.0 Type-A to Micro-B Cable
Table of Contents
|
Upload User Manual
Have you got an user manual for the Elmo HS-G1 Huddle Space Hub & MX-1 Visual Presenter Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - HS-G1 Huddle Space Collaboration Hub with 8 HDMI Inputs
Power Source | 12 VDC | AC Adapter Input | 100~240 VAC | Power Consumption | 7 W | Compatible Devices | Input: AV devices with HDMI output Output: AV devices with various input ports | Input Terminals | Mono electret condenser microphone 8 x HDMI Type-A 1 x DC jack | Output Terminals | 1 x RGB mini D-sub 15-pin female 1 x WHDI module Type-A power 1 x HDMI Type-A | External Control | 1 x USB 2.0 Type-B | Memory Interface | 1 x SD card slot | USB Interface | Specification: USB 2.0-compliant Transfer Speed: (rate varies based on computer performance/USB bus) High Speed: 480 Mbps Full Speed: 12 Mbps Power Supply: Self-powered (USB bus does not supply power) | Output Modes | Output Mode Slide Switch: Selectable: HDMI, RGB | Video Recording Format | H.264/MP4 | Video Resolutions | 1080p/1080i/720p/XGA (dependent on connected device) Maximum: 1080p/60 | Still Image Format | JPEG | Operating Temperature | 32 to 104°F / 0 to 40°C | Humidity (Non-Condensing) | 30~85% | Dimensions | 6.52 x 6.77 x 1.71" / 165.6 x 171.93 x 43.5 mm | Weight | 2.2 lb / 1 kg | | Box Dimensions (LxWxH) | 10.2 x 9.2 x 5.7" | - MX-1 Visual Presenter
| Sensor | 1/3.1" CMOS | Sensor Resolution | 13 MP | Zoom | 8x (Digital) | Aperture | f/2.0 | Frame Rate | 3840 x 2160 @ 30 fps 1920 x 1080 @ 60 fps | Effective Pixels | 4160 x 3120 | | Capture Area | 14.7 x 11" / 37.4 x 28.1 cm | | Image Rotation | 0
