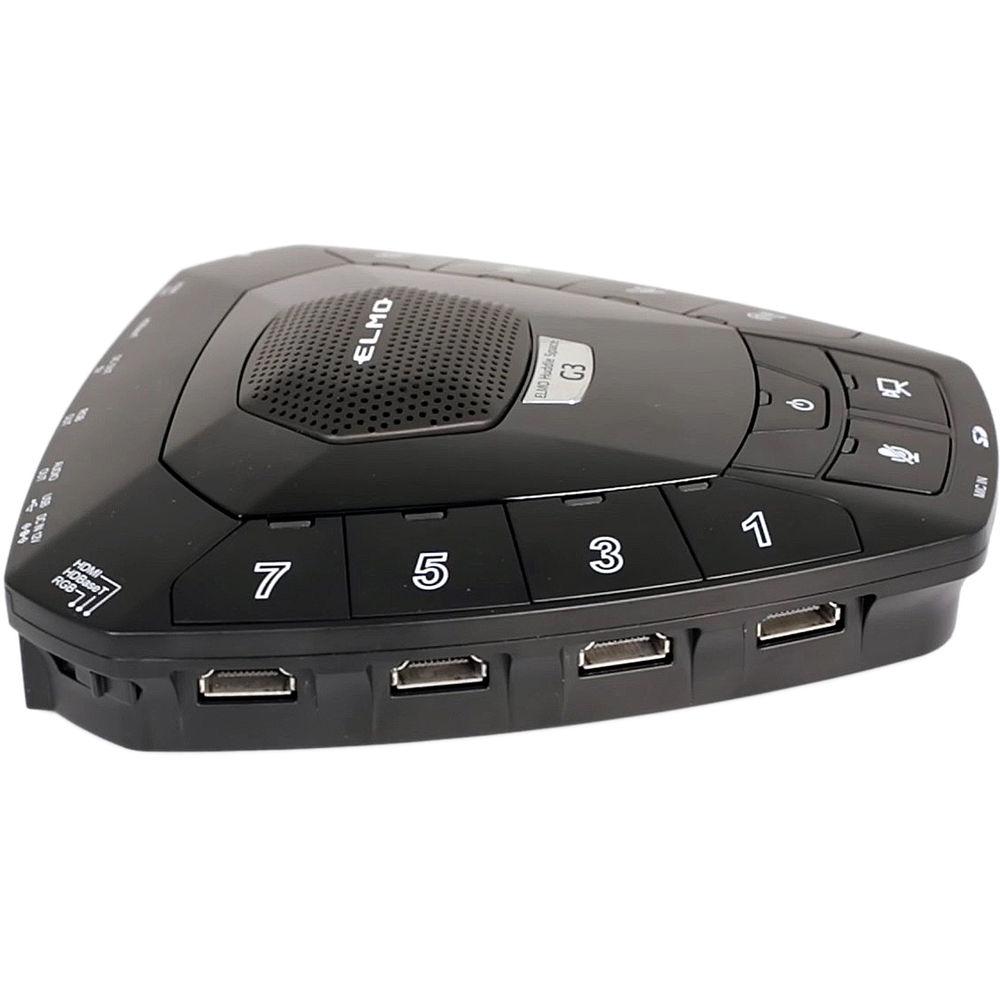

User Manual for Elmo HS-G3 Huddle Space 8-HDMI Input Collaboration Hub Click to enlarge the picture
Contents of the user manual for the Elmo HS-G3 Huddle Space 8-HDMI Input
- Product category: Presenter & Document Camera Accessories Elmo
- Brand: Elmo
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Elmo Presenter & Document Camera Accessories
 |
User manual for the Elmo HS-G3 Huddle Space 8-HDMI Input contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Elmo product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Elmo user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Elmo product will considerably shorten its lifespan!
|

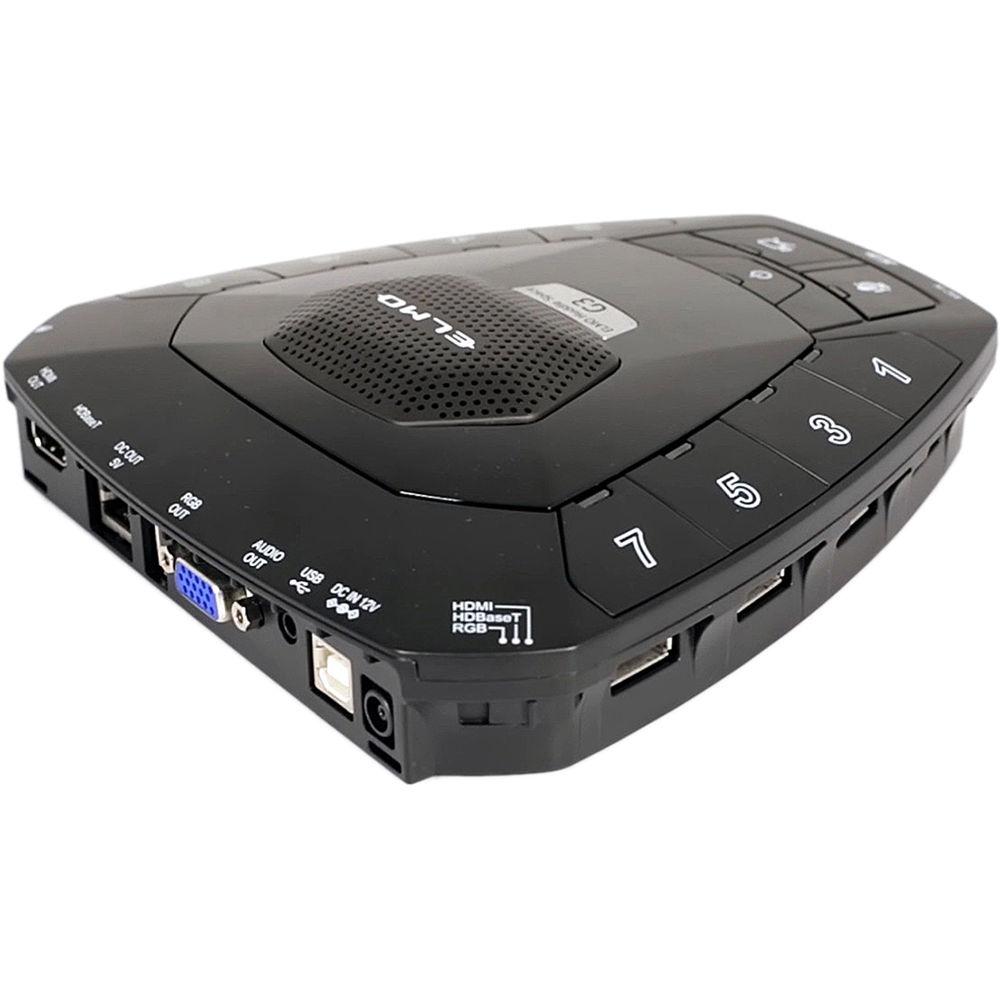

Product description The Elmo HS-G3 Huddle Space 8-HDMI Input Collaboration Hub enables you to switch among, and record input from, up to eight HDMI devices. This hub works with devices such as iPads, Chromebooks, Windows/Mac/Android tablets, and document cameras. Switching between sources is easily accomplished with the press of a button. Since video/audio is output via cable, using the hub does not drain your network resources. Suitable for classroom use, the HS-G3 Huddle Space can capture its users' comments as material is presented, using either the built-in conferencing microphone or a mic connected to the 3.5mm line-in jack (external mic not included). Video output options include HDMI, HDBaseT and RGB. The HDBaseT port may be used with a third party HDBaseT device (not included) to transmit video over Cat6 or higher cable. Audio may be output via the 3.5mm line-out jack. Both still images and video can be recorded to an SD card or to a drive (not included) via the USB 2.0 out port. The HS-G3 Huddle Space includes an IR remote control. An optional battery pack (not included) is available for added portability and the hub is also compatible with third-party wireless HDMI transmitters (not included). The hub incorporates LED lights that indicate various status modes. Note: Audio from connected devices may be output but not recorded; audio from the built-in microphone is recorded Key Features - The Huddle Space hub is compatible with any HDMI device, accommodating a wide range of user devices

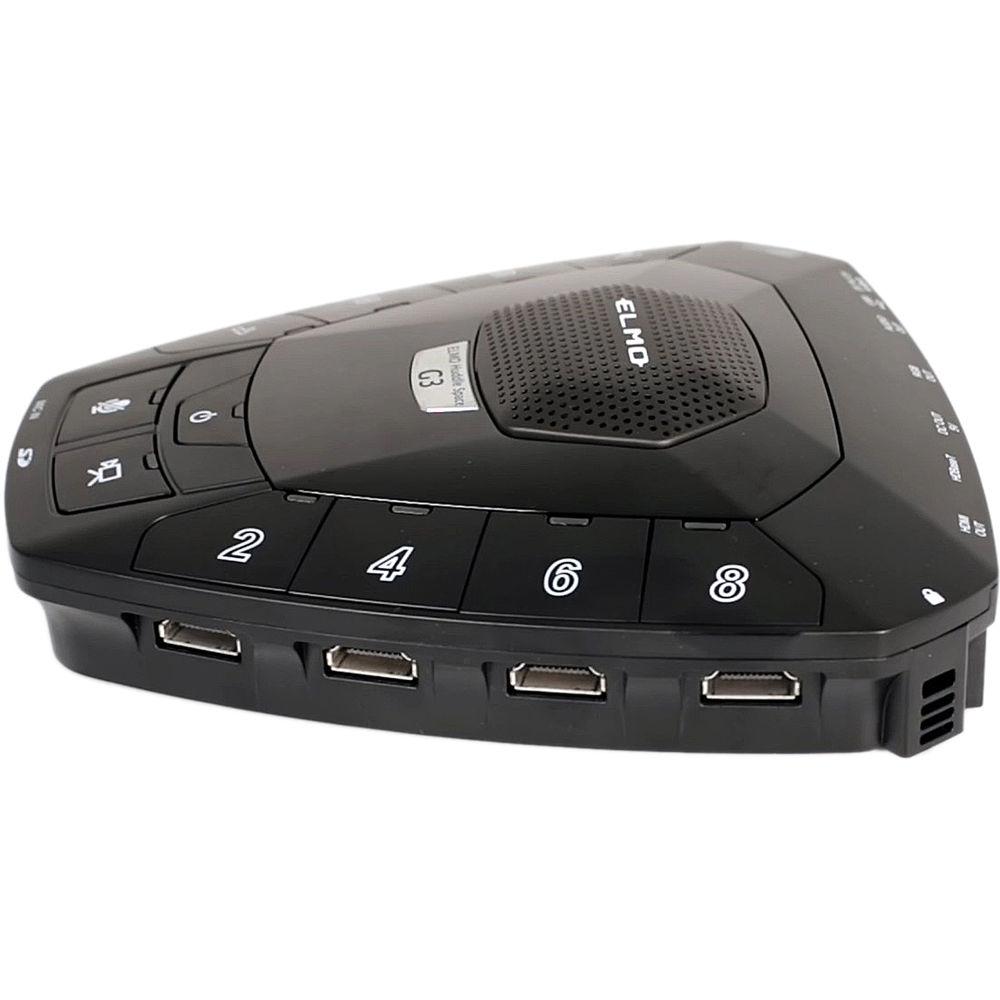

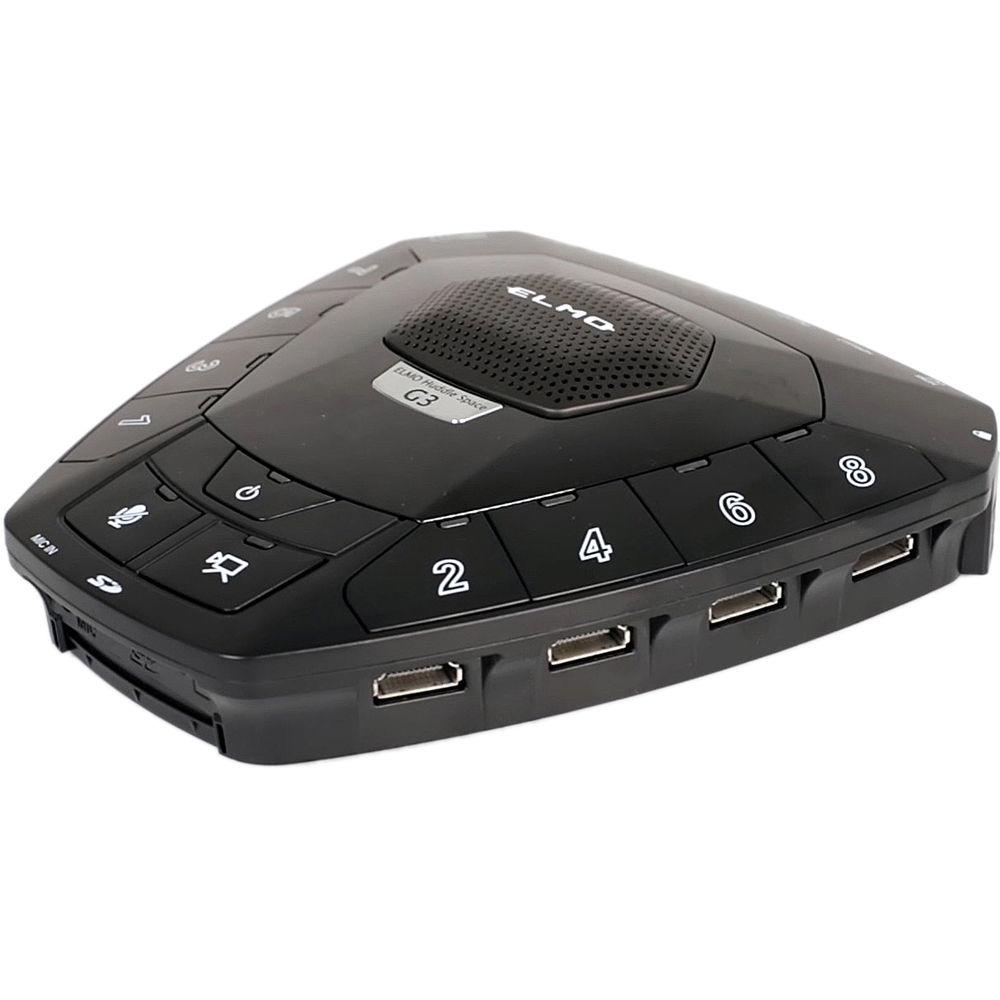

- Easily switch among the eight HDMI inputs with the press of a button
- HDMI, HDBaseT or RGB video output, plus a line-out audio jack
- Video and audio are output via cable, saving your network bandwidth for other uses

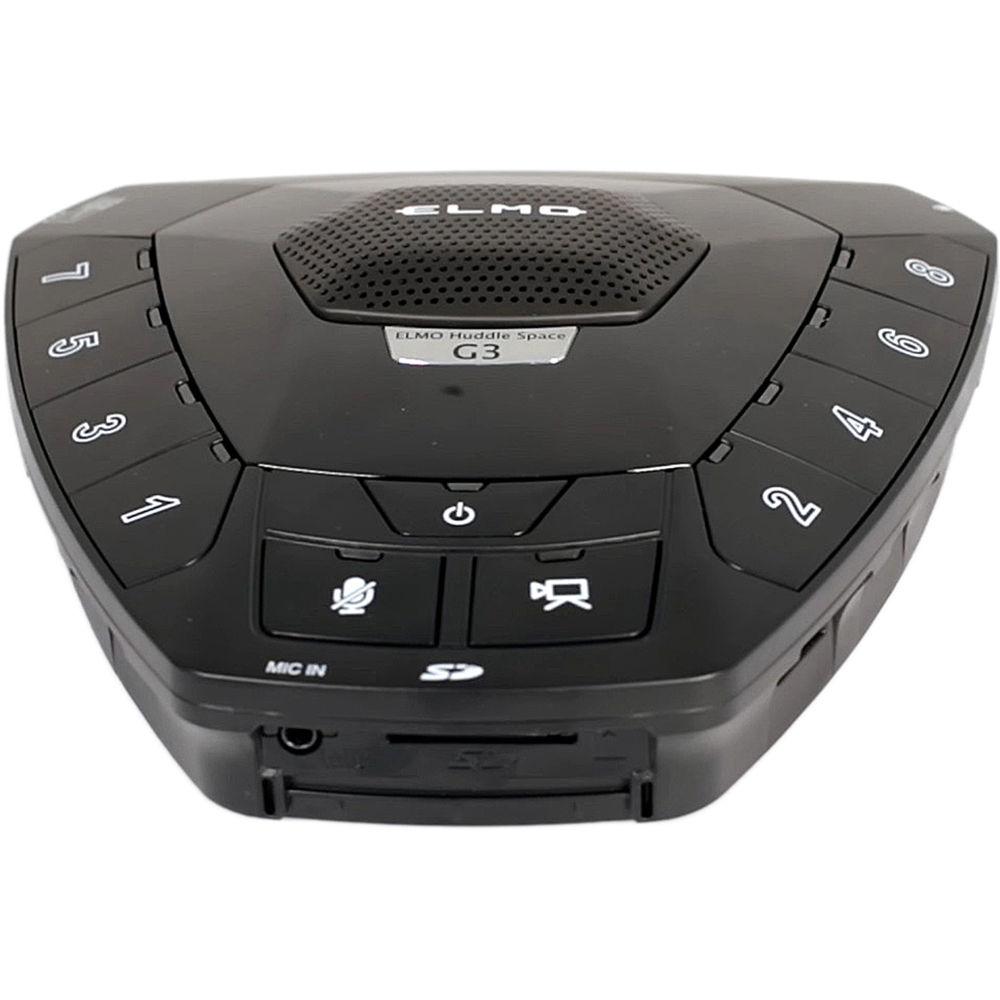

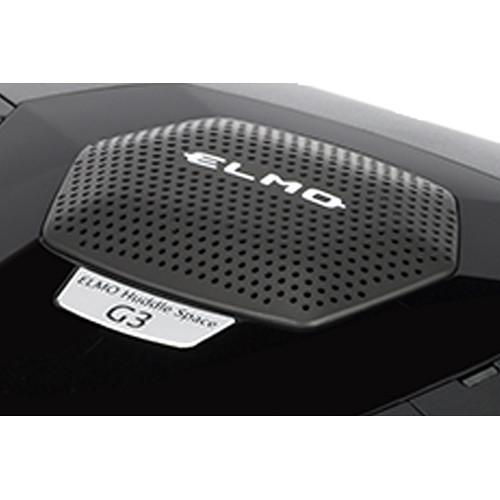

- The built-in microphone or an external mic (not included) can be used to capture users' comments while viewing the presented material
- An optional battery pack and third-party wireless HDMI transmitter (neither included) may be used to increase the hub's portability

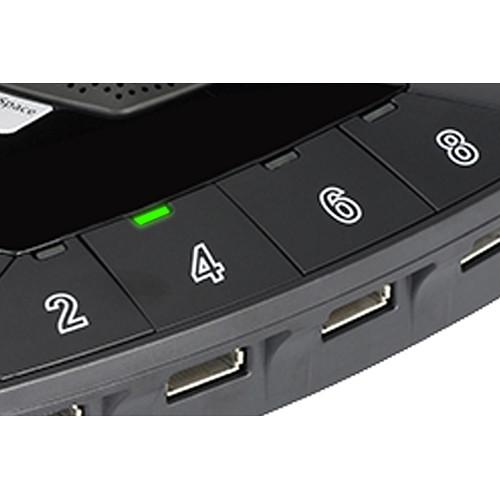

- LED lights indicate the hub's various status modes
UPC: 008404104560 In the Box Elmo HS-G3 Huddle Space 8-HDMI Input Collaboration Hub AC Adapter AC Power Cord USB Cable 3' HDMI Type-A Cable 3' HDMI Type-A to Micro-HDMI Cable IR Remote Control CR2025 Battery Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Elmo HS-G3 Huddle Space 8-HDMI Input Collaboration Hub in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersElmo 2702 Specs | Power Source | 12 VDC | | AC Adapter Input | 100～240 VAC | | Power Consumption | 7 W | | Compatible Devices | Input: AV devices with HDMI output
Output: AV devices with various input ports | | Input Terminals | Mono electret condenser microphone
1 x 3.5 mm mic-in jack
8 x HDMI Type-A

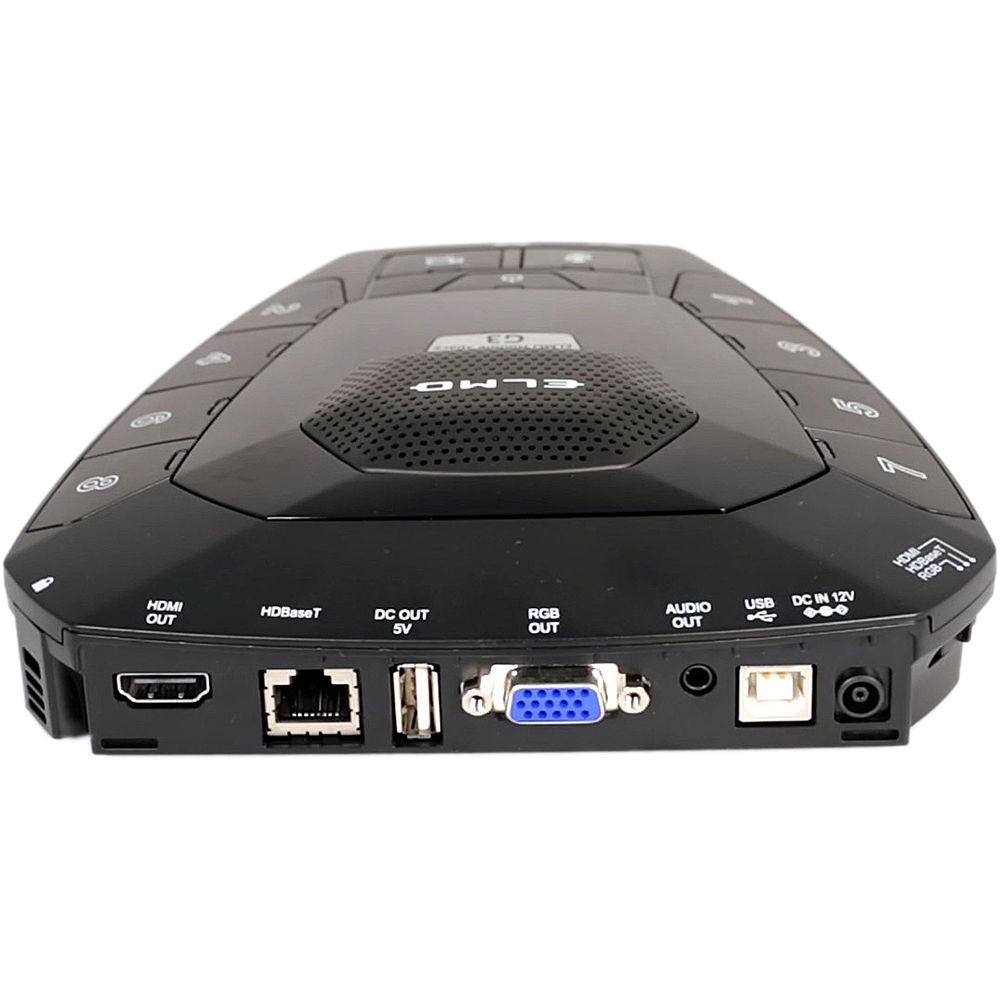

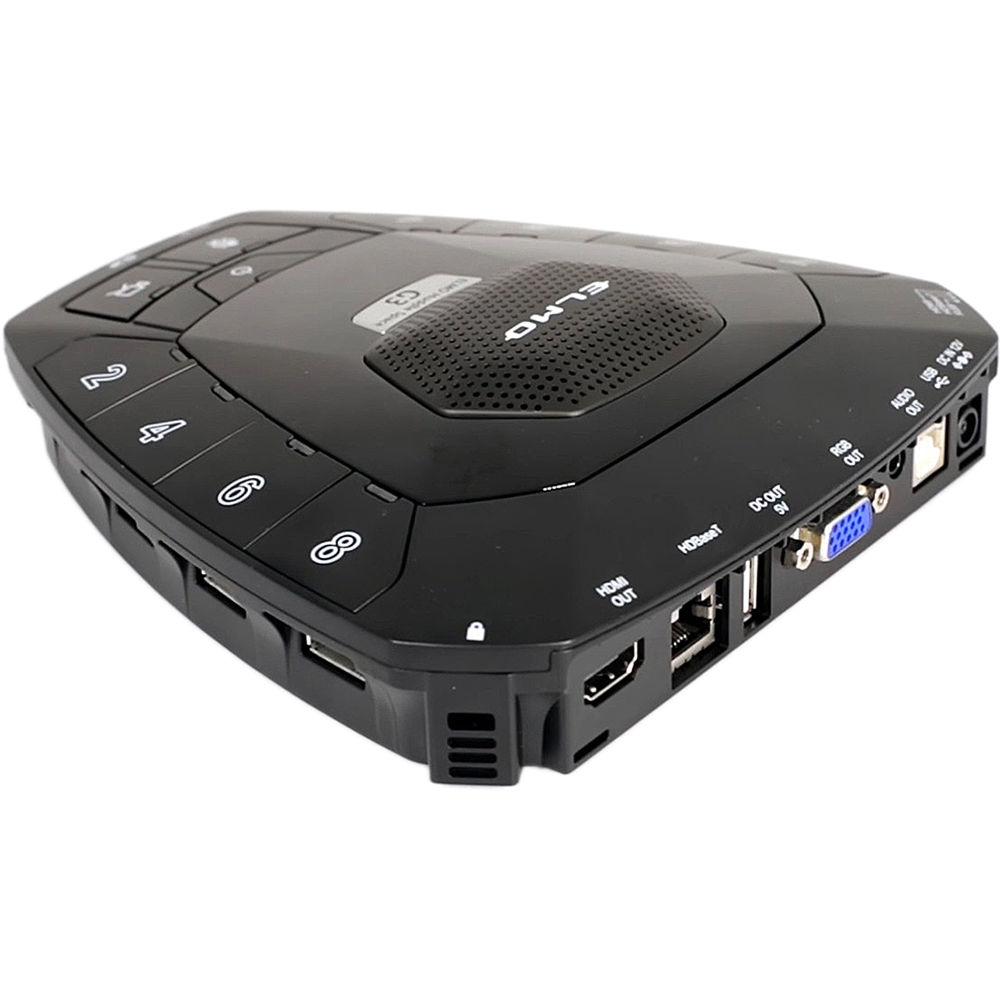

1 x DC jack | | Output Terminals | 1 x RGB mini D-sub 15-pin female
1 x WHDI module Type-A power
1 x HDMI Type-A
1 x 3.5 mm jack line out
1 x HDBaseT (RJ45) | | External Control | 1 x USB 2.0 Type-B | | Memory Interface | 1 x SD card slot | | USB Interface | Specification: USB 2.0-compliant
Transfer Speed: (rate varies based on computer performance/USB bus)
High Speed: 480 Mbps
Full Speed: 12 Mbps
Power Supply: Self-powered (USB bus does not supply power) | | Remote Control | IR pulse-position modulation method | | Output Modes | Output Mode Slide Switch:
Selectable: HDMI, RGB, HDBaseT | | Video Recording Format | H.264/MP4 | | Input Video Resolutions | 1080p/1080i/720p/XGA
Maximum: 1080p/60 | | Output Video Resolutions | Dependent on connected device | | Still Image Format | JPEG | | Operating Temperature | 32 to 104°F / 0 to 40°C | | Humidity (Non-Condensing) | 30～85% | | Dimensions (WxDxH) | 6.52 x 6.77 x 1.71" / 165.6 x 171.93 x 43.5 mm | | Weight | 2.2 lb / 1 kg | | | | Package Weight | 4.15 lb | | Box Dimensions (LxWxH) | 10.3 x 9.2 x 5.8" |
