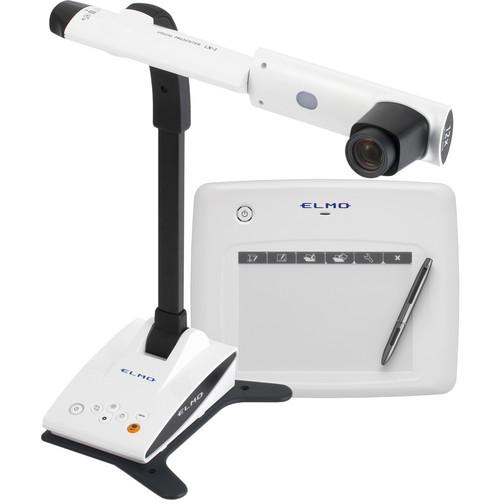

User Manual for Elmo LX-1 Visual Presenter and CRA-1 Wireless Tablet Bundle Click to enlarge the picture
Contents of the user manual for the Elmo LX-1 Visual Presenter and CRA-1
- Product category: Video Presenters & Document Cameras Elmo
- Brand: Elmo
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Elmo Video Presenters & Document Cameras
|
User manual for the Elmo LX-1 Visual Presenter and CRA-1 contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Elmo product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Elmo user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Elmo product will considerably shorten its lifespan!
|
Product description Circle the room and interactively deliver your presentations with the Elmo LX-1 Visual Presenter and CRA-1 Wireless Tablet Bundle. The CRA-1 allows you to control most features of the presenter from up to 50' away. Zoom in on a document or image by up to 96x, capture and output from XGA to 1080p30 video resolution via the VGA, HDMI, and USB outputs, apply effects such as masking and Picture-in-Picture, and much more. With the Visual Presenter featuring an anti-theft security plate, this bundle is ideal for use in the classroom. - TT-LX1 Visual Presenter Connect to HDTVs and projectors and deliver interactive presentations with the compact TT-LX1 Visual Presenter from Elmo.
The TT-LX1 (along with its Wi-Fi enabled relative, the TX-1) is the follow-up to the Elmo TT-12iD Document Camera and is its official replacement in the popular TT series. The TT-LX1 has a smaller footprint but has retained many of the familiar features, such as the positioning of the zoom and autofucus controls on the side of the camera bar. And if you're only planning to use it in one place, an anti-theft security plate is included that allows you to mount down the device to your desk or other surface.
The HDMI input that was available on the predecessor model hasn't been transferred over, but its absence has allowed for the slimmer design and smaller footprint. But other than this, HDMI, USB, and VGA outputs are provided on the rear panel. You can output up to Full HD 1080i or 720p resolution at real-time 30 fps via HDMI, up to 1080p30 via USB 2.0, and 1024 x 768 XGA at 30 fps via VGA.
12x optical and 8x digital zoom give you up to 96x zooming capability, enabling you to see things the human eye cannot, such as the fine details of an image you may want to display in class. Moreover, the TT-LX1 is adjustable at multiple points so you can point the lens pretty much any way you want. The camera bar swings a full 180° sideways, the camera head can be rotated, and the camera neck can be tilted forward.
The fancy stuff, however, gets done in an included software called Image Mate 4 (downloadable for Windows). You can fancy up your documents with various effects, such as Highlight, Picture-in-Picture, Mask, Rotate, and much, much more. Using Image Mate you can save videos to your computer and capture still images from video streams for analysis using the zoom function.
Among the control buttons on the TT-LX1, most of which are also available via Image Mate, are an LED button and Autofocus button. The LED button turns on a light that's right near the camera lens, and the Autofocus button will get your documents in focus near-instantly when you're delivering a presentation.
Via the USB output, you can connect to any Windows computer, laptop, or even tablet, such as Surface Pro, to run Image Mate and control the TT-LX1. The TT-LX1 comes with a North American plug, but supports 100-240V worldwide power input, so you can take it with you to international presentations if you'd like. (Just make sure to use an optional plug adapter.) - Key Features
-
- Interactive document camera / presenter
- Control from Windows PCs/laptops/Surface Pro
- Output to HDTVs/projectors via HDMI (1080i30), USB (1080p30), and VGA
- 12x optical and 8x digital zoom
- Anti-theft security plate included
- Apply effects to documents, such as Highlight, Picture-in-Picture, Mask, Rotate, and more
UPC: 008404104331 CRA-1 Wireless Tablet The CRA-1 Wireless Tablet from Elmo is a wireless tablet, perfect for use in educational settings. The tablet can operate for up to 16 hours thanks to a rechargeable Lithium-Ion battery. It communicates with a Windows-based system wirelessly thanks to the included USB transceiver.
You'll be able to control a digital whiteboard with the tablet, and easily add stamps, text, and images to it via the included software. It's a matter of ease to switch between control over your computer screen and the image shown on the projector, perfect for multitasking during lessons and presentations.
An optional document camera is available for use with the tablet, which further expands its functionality. When used with the camera, the tablet allows you to draw on the live image captured by the camera, control the camera and its functions, and to create lesson materials that contain real objects and digital images. Easy - Functional platform to create an interactive whiteboard experience
- Various recording modes and convenient functions -- including stamp, text input, and image insertion
Optional Document Camera - Draw on the live image that is being captured by the document camera
- Easily control the document camera and its functions
- Create lesson materials containing real objects and digital images
Useful - Compatible with Elmo's TT02RX, CO-10, P10S, and P30S
- Features a 50' (15 m) wireless range
- Operates for up to 16 hours on a full charge
UPC: 008404102771 In the Box Bundle Items TT-LX1 Visual Presenter bwbctavrfeww - AC Power Supply (North American Plug)
CRA-1 Wireless Tablet Table of Contents
|
Upload User Manual
Have you got an user manual for the Elmo LX-1 Visual Presenter and CRA-1 Wireless Tablet Bundle in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - TT-LX1 Visual Presenter
| | | Sensor | 1/2.8" CMOS | | Sensor Resolution | 3.4 MP | | Zoom | 12x (Optical)
8x (Digital) | | Aperture | f/3.2 to 3.6 | | Frame Rate | 1920 x 1080 @ 30 fps | | Effective Pixels | 1920 x 1440 | | | | Capture Area | 17 x 10" / 43.2 x 25.4 cm | | Video Connections | 1 x HD15 VGA Input
1 x HDMI Output | | I/O Connections | 1 x USB 2.0 Mini-B | | I/O Connections | 1 x USB Mini-B USB 2.0 | | | | Operating System Support | Windows | | | | Power Consumption | 8 W | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz | | DC Input Power | 5 VDC | | | | Dimensions | 15.3 x 9.0 x 17.0" / 39.0 x 23.0 x 43.0 cm (In-Use)
7.0 x 9.0 x 17.0" / 18.0 x 23.0 x 43.0 cm (Folded) | | Weight | 5.3 lb / 2.4 kg | | | | Box Dimensions (LxWxH) | 21.7 x 11.4 x 9.3" | - CRA-1 Wireless Tablet
| | | Active Area | 5 x 3" / 12.7 x 7.6 cm | | Connectivity Ports | 1 x Mini-USB | | Dimensions (W x H x D) | 12.4 x 0.9 x 10.1" / 31.4 x 2.2 x 25.7 cm | | | | Battery Type | Lithium-Ion | | Maximum Battery Life | 16 Hours | | Charging Time | 4 Hours | | Operating System Support | Windows | | Weight | 1.48 lb / 0.67 kg | | | | Box Dimensions (LxWxH) | 14.3 x 12.4 x 3.1" |
