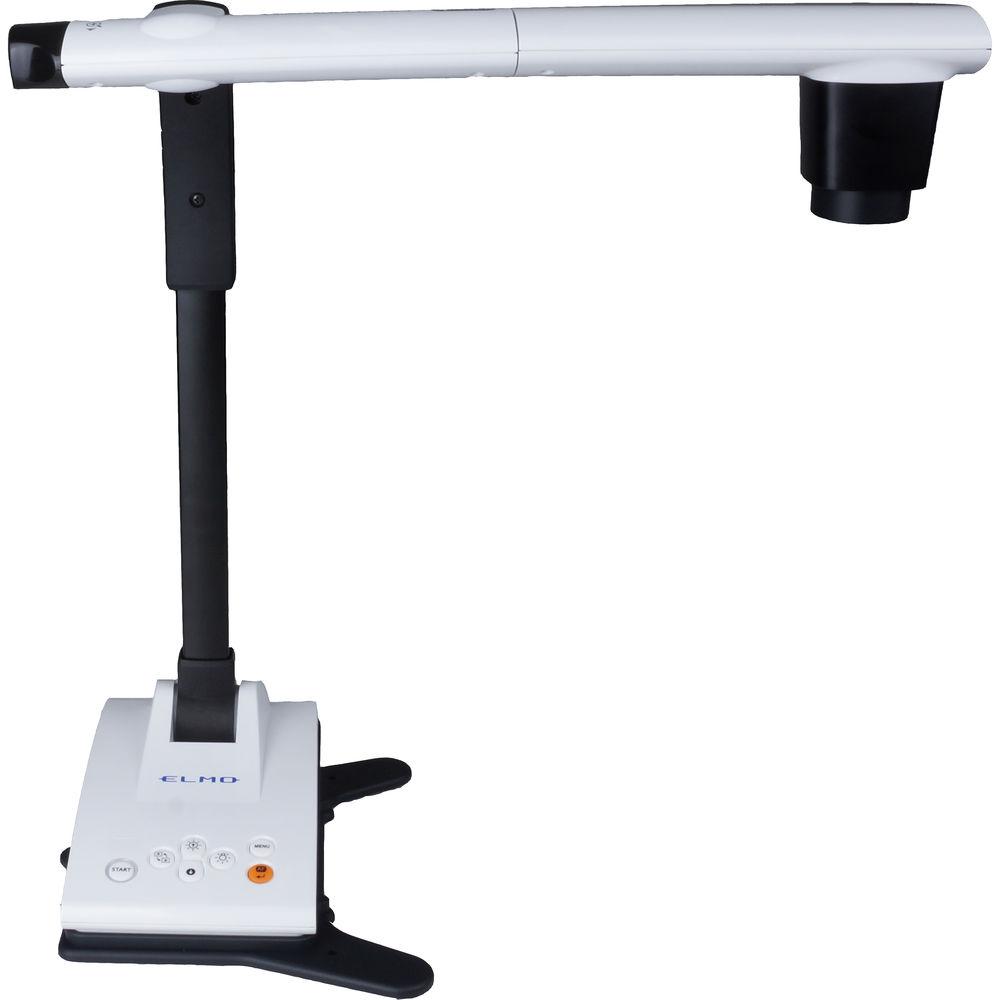

Product description The Elmo 1353-82 Bundle includes the LX-1 Visual Presenter and the CP-EW302N 3000-Lumen WXGA 3-LCD Projector. - TT-LX1 Visual Presenter Connect to HDTVs and projectors and deliver interactive presentations with the compact TT-LX1 Visual Presenter from Elmo.
The TT-LX1 (along with its Wi-Fi enabled relative, the TX-1) is the follow-up to the Elmo TT-12iD Document Camera and is its official replacement in the popular TT series. The TT-LX1 has a smaller footprint but has retained many of the familiar features, such as the positioning of the zoom and autofucus controls on the side of the camera bar. And if you're only planning to use it in one place, an anti-theft security plate is included that allows you to mount down the device to your desk or other surface.
The HDMI input that was available on the predecessor model hasn't been transferred over, but its absence has allowed for the slimmer design and smaller footprint. But other than this, HDMI, USB, and VGA outputs are provided on the rear panel. You can output up to Full HD 1080i or 720p resolution at real-time 30 fps via HDMI, up to 1080p30 via USB 2.0, and 1024 x 768 XGA at 30 fps via VGA.
12x optical and 8x digital zoom give you up to 96x zooming capability, enabling you to see things the human eye cannot, such as the fine details of an image you may want to display in class. Moreover, the TT-LX1 is adjustable at multiple points so you can point the lens pretty much any way you want. The camera bar swings a full 180° sideways, the camera head can be rotated, and the camera neck can be tilted forward.
The fancy stuff, however, gets done in an included software called Image Mate 4 (downloadable for Windows). You can fancy up your documents with various effects, such as Highlight, Picture-in-Picture, Mask, Rotate, and much, much more. Using Image Mate you can save videos to your computer and capture still images from video streams for analysis using the zoom function.
Among the control buttons on the TT-LX1, most of which are also available via Image Mate, are an LED button and Autofocus button. The LED button turns on a light that's right near the camera lens, and the Autofocus button will get your documents in focus near-instantly when you're delivering a presentation.
Via the USB output, you can connect to any Windows computer, laptop, or even tablet, such as Surface Pro, to run Image Mate and control the TT-LX1. The TT-LX1 comes with a North American plug, but supports 100-240V worldwide power input, so you can take it with you to international presentations if you'd like. (Just make sure to use an optional plug adapter.) - Key Features
-
- Interactive document camera / presenter
- Control from Windows PCs/laptops/Surface Pro
- Output to HDTVs/projectors via HDMI (1080i30), USB (1080p30), and VGA
- 12x optical and 8x digital zoom
- Anti-theft security plate included
- Apply effects to documents, such as Highlight, Picture-in-Picture, Mask, Rotate, and more

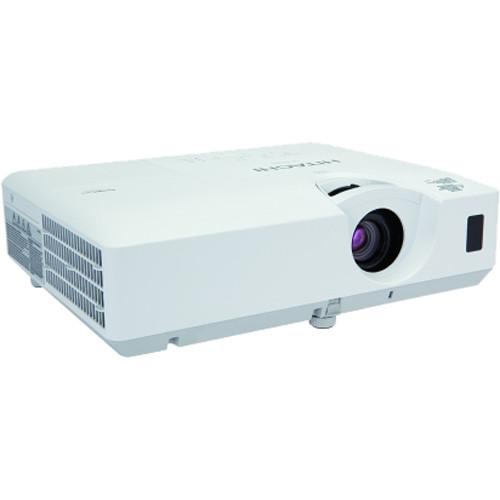

UPC: 008404104331 CP-EW302N 3000-Lumen WXGA 3LCD Projector Present in rooms with ambient light with the Hitachi CP-EW302N 3000-Lumen WXGA 3LCD Projector. It features 3000 lumens of color and white brightness to overcome ambient light in many situations, and its 1280 x 800 WXGA resolution will help keep images and text clear at most viewing distances. HDMI, VGA, and composite video inputs help ensure compatibility with a multitude of source types. The second VGA input can alternately be used as an output to daisy-chain multiple projectors or displays. A built-in 16W speaker eliminates the need for an external sound system, though you can use one with the analog audio inputs and output. The projector is controllable via Ethernet, RS-232, or the included IR remote control. - ImageCare Technology
- ImageCare is a lamp power control function that combines picture performance with energy savings by decreasing energy usage, enhancing contrast ratio, and lengthening lamp life. The result is a lower total cost of ownership and reduced maintenance costs.
- Intelligent Eco and Saver Modes
- These modes automatically change the brightness of the lamp according to the brightness level of the screen. They also automatically change the brightness of the lamp if there is no change in the screen image.
- PIN Lock / MyScreen / MyText
- PIN lock protection can limit projector users. MyScreen PIN lock keeps captured images on the startup screen. Users can set any name logo to MyScreen, clearly identifying ownership. MyText provides the ability to write text on the startup screen such as model name, serial number, or location.
- Network Control, Maintenance, and Security
- Embedded networking gives you the ability to manage and control multiple projectors over your LAN. Features include scheduling of events, centralized reporting, image transfer, and email alerts for reactive and routine maintenance.
UPC: 050585155442 In the Box Bundle Items TT-LX1 Visual Presenter svefwbttdsutbcdeecedwyuwtzd - AC Power Supply (North American Plug)
CP-EW302N 3000-Lumen WXGA 3LCD Projector Table of Contents
|
Upload User Manual
Have you got an user manual for the Elmo LX-1 Visual Presenter with CP-EW302N Projector in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - TT-LX1 Visual Presenter
| Sensor | 1/2.8" CMOS | Sensor Resolution | 3.4 MP | Zoom | 12x (Optical) 8x (Digital) | Aperture | f/3.2 to 3.6 | Frame Rate | 1920 x 1080 @ 30 fps | Effective Pixels | 1920 x 1440 | | Capture Area | 17 x 10" / 43.2 x 25.4 cm | Video Connections | 1 x HD15 VGA Input 1 x HDMI Output | I/O Connections | 1 x USB 2.0 Mini-B | I/O Connections | 1 x USB Mini-B USB 2.0 | | Operating System Support | Windows | | Power Consumption | 8 W | AC Input Power | 100 to 240 VAC, 50 / 60 Hz | DC Input Power | 5 VDC | | Dimensions | 15.3 x 9.0 x 17.0" / 39.0 x 23.0 x 43.0 cm (In-Use) 7.0 x 9.0 x 17.0" / 18.0 x 23.0 x 43.0 cm (Folded) | Weight | 5.3 lb / 2.4 kg | | Box Dimensions (LxWxH) | 21.7 x 11.4 x 9.3" | - CP-EW302N 3000-Lumen WXGA 3LCD Projector
| Display System | 3-Chip LCD | Native Chip Resolution | 1280 x 800 (WXGA) | Supported Resolutions | Maximum: Full HD 1080p - 1920 x 1080 | Max Brightness | 3000 Lumens | Aspect Ratio | Native: 16:10 Supported: 4:3 Supported: 14:9 Supported: 16:9 | Dynamic Contrast Ratio | 2000:1 | Color Depth | 8-Bit (16.78 Million Colors) | Scan | Horizontal: 15 to 106 kHz Vertical: 50 to 120 Hz | | Focus | Manual | Optical Zoom | Manual: 1.2x | Throw Distance | 35 - 453" / 88.9 - 1150.62 cm | Throw Ratio | 1.5 - 1.8:1 | Projection Size | 300.00 - 3000.00" / 762.00 - 7620.00 mm | | Keystone Correction | Vertical: ± 30° | Built-In Speaker | Yes | Speaker Power | 16W | | Inputs/Outputs | 1 x HDMI Audio/Video (Input) 1 x VGA (DE-15) Video (Input) 1 x VGA (DE-15) Video (Input/Output) 1 x Composite (RCA) Video (Input) 1 x RCA Stereo (L/R) Audio (Input) 2 x 1/8" (3.5 mm) Mini Audio (Input) 1 x 1/8" (3.5 mm) Mini Audio (Output) 1 x Ethernet (RJ45) LAN (Input) 1 x USB Control (Input) 1 x RS-232C (Unspecified Connector) Control (Input) | Wireless LAN / Wi-Fi | None | | Lamp Power | 225 W | Expected Lamp Life | Medium Brightness: 5000 Hours Low Brightness: 10,000 Hours | Security | Cable Lock Slot Password Protection Security Bar | AC Input Power | 120 to 240 VAC, 50 / 60 Hz | Power Consumption | Medium Brightness: 330 W | Temperature | Operating 41 to 95°F (5 to 35°C) | Dimensions (W x H x D) | 12.6 x 3.4 x 9.7" / 32.0 x 8.6 x 24.6 cm Excluding protruding parts | Weight | 6.8 lb / 3.1 kg Approximate | | Box Dimensions (LxWxH) | 14.8 x 12.6 x 6.3" |
