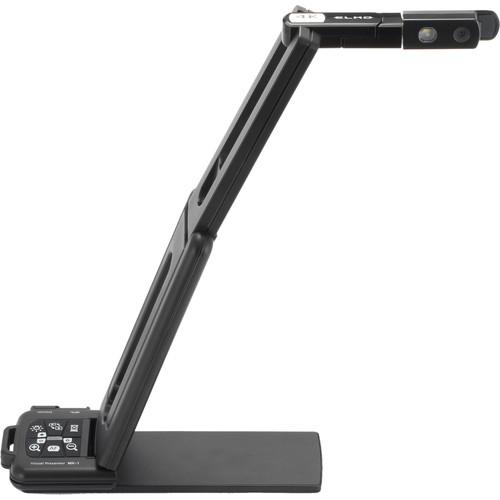

User Manual for Elmo MX-1 Visual Presenter Click to enlarge the picture
Contents of the user manual for the Elmo MX-1 Visual Presenter
- Product category: Video Presenters & Document Cameras Elmo
- Brand: Elmo
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Elmo Video Presenters & Document Cameras
|
User manual for the Elmo MX-1 Visual Presenter contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Elmo product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Elmo user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Elmo product will considerably shorten its lifespan!
|
Product description The MX-1 Visual Presenter from Elmo delivers 4K imaging at up to 30 fps and full 1080p video at up to 60 fps. This document camera is powered via a USB 3.0 Micro-B interface, enabling delay-free viewing of moving objects. For a larger choice of display options, the separately available Connect Box expansion module features HMDI and RGB interfaces. A 1/3" CMOS sensor provides 13MP images and the 8x digital zoom enables you to see fine details of displayed objects. The MX-1 also features a 14.7" x 11" image area, 180° image rotation, and an off/off switchable LED lamp head. Auto or manual control is available for focus, exposure, white balance, and several other functions. The slim, flexible MX-1 Visual Presenter weighs in at slightly over one pound. It has a removable baseplate with a smaller magnetic bottom underneath, enabling you to attach the unit to a metal surface. Navigation buttons provide easy access to popular controls such as image rotation, brightness level, zoom, and auto focus. The downloadable Image Mate 4 software provides various effects and controls for further refining your images. Key Features - Display documents and objects in up to 4K/30 Ultra HD or 1080p/60 HD video
- A fast USB 3.0 port enables viewing of moving objects without delay
- An 8x digital zoom and 1/3", 13MP CMOS sensor help to provide optimal images
- Optional Connect Box expansion module (not included) provides HDMI and RGB output ports
- Navigation buttons provide easy access to controls such as image rotation, brightness level, zoom, and auto focus
- The downloadable Image Mate 4 software offers further control for fine-tuning your images
- Flexible, slim, lightweight form factor for portability
- The baseplate can be removed to reveal a smaller, magnetic base for use on metal surfaces
UPC: 008404104478 In the Box Elmo MX-1 Visual Presenter USB 3.0 Type-A to Micro-B Cable Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Elmo MX-1 Visual Presenter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersElmo MX-1 Specs | | | Sensor | 1/3.1" CMOS | | Sensor Resolution | 13 MP | | Zoom | 8x (Digital) | | Aperture | f/2.0 | | Frame Rate | 3840 x 2160 @ 30 fps
1920 x 1080 @ 60 fps | | Effective Pixels | 4160 x 3120 | | | | Capture Area | 14.7 x 11" / 37.4 x 28.1 cm | | | | Image Rotation | 0
Rating70% users recommend this product to others. And what about you?
This product has already been rated by 48 owners. Add your rating and experience with the product.
