User manual
Elmo MX-1 Visual Presenter & CRA-1

User Manual for Elmo MX-1 Visual Presenter & CRA-1 Wireless Tablet Kit

• Product category: Video Presenters & Document Cameras Elmo
• Brand: Elmo
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for Elmo Video Presenters & Document Cameras

Product description

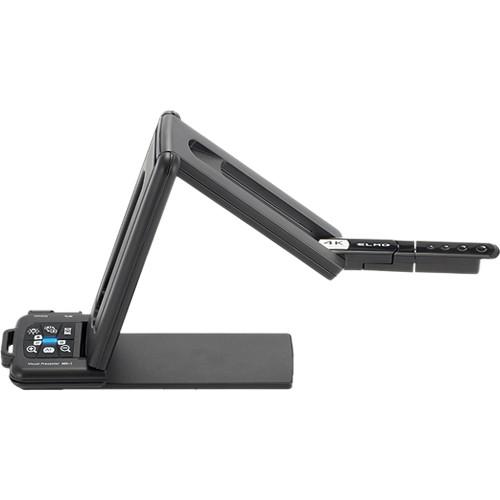

• MX-1 Visual Presenter The MX-1 Visual Presenter from Elmo delivers 4K imaging at up to 30 fps and full 1080p video at up to 60 fps. This document camera is powered via a USB 3.0 Micro-B interface, enabling delay-free viewing of moving objects. For a larger choice of display options, the separately available Connect Box expansion module features HMDI and RGB interfaces. A 1/3" CMOS sensor provides 13MP images and the 8x digital zoom enables you to see fine details of displayed objects. The MX-1 also features a 14.7" x 11" image area, 180° image rotation, and an off/off switchable LED lamp head. Auto or manual control is available for focus, exposure, white balance, and several other functions. The slim, flexible MX-1 Visual Presenter weighs in at slightly over one pound. It has a removable baseplate with a smaller magnetic bottom underneath, enabling you to attach the unit to a metal surface. Navigation buttons provide easy access to popular controls such as image rotation, brightness level, zoom, and auto focus. The downloadable Image Mate 4 software provides various effects and controls for further refining your images.

  Key Features

  • Display documents and objects in up to 4K/30 Ultra HD or 1080p/60 HD video
  • A fast USB 3.0 port enables viewing of moving objects without delay
  • An 8x digital zoom and 1/3", 13MP CMOS sensor help to provide optimal images
  • Optional Connect Box expansion module (not included) provides HDMI and RGB output ports
  • Navigation buttons provide easy access to controls such as image rotation, brightness level, zoom, and auto focus
  • The downloadable Image Mate 4 software offers further control for fine-tuning your images
  • Flexible, slim, lightweight form factor for portability
  • The baseplate can be removed to reveal a smaller, magnetic base for use on metal surfaces
  UPC: 008404104478

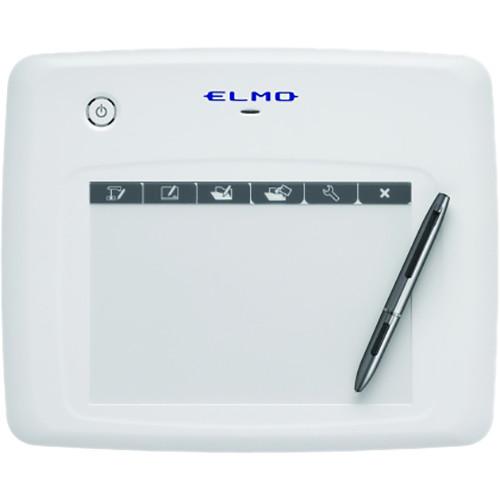

• CRA-1 Wireless Tablet The CRA-1 Wireless Tablet from Elmo is a wireless tablet, perfect for use in educational settings. The tablet can operate for up to 16 hours thanks to a rechargeable Lithium-Ion battery. It communicates with a Windows-based system wirelessly thanks to the included USB transceiver.

  You'll be able to control a digital whiteboard with the tablet, and easily add stamps, text, and images to it via the included software. It's a matter of ease to switch between control over your computer screen and the image shown on the projector, perfect for multitasking during lessons and presentations.

  An optional document camera is available for use with the tablet, which further expands its functionality. When used with the camera, the tablet allows you to draw on the live image captured by the camera, control the camera and its functions, and to create lesson materials that contain real objects and digital images.

  Easy

  • Easy setup for teachers
  • Functional platform to create an interactive whiteboard experience
  • Various recording modes and convenient functions -- including stamp, text input, and image insertion

  Optional Document Camera

  • Draw on the live image that is being captured by the document camera
  • Easily control the document camera and its functions
  • Create lesson materials containing real objects and digital images

  Useful

  • Compatible with Elmo's TT02RX, CO-10, P10S, and P30S
  • Features a 50' (15 m) wireless range
  • Operates for up to 16 hours on a full charge
  UPC: 008404102771

• USB 3.0 Type-A to Micro-B Cable

• Limited 5-Year Warranty

• Pen

• Wireless Adapter

• AAA Battery

• Lithium-Ion Battery

• Limited 1-Year Warranty

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• MX-1 Visual Presenter

  Sensor	1/3.1" CMOS
  Sensor Resolution	13 MP
  Zoom	8x (Digital)
  Aperture	f/2.0
  Frame Rate	3840 x 2160 @ 30 fps 1920 x 1080 @ 60 fps
  Effective Pixels	4160 x 3120

  Capture Area	14.7 x 11" / 37.4 x 28.1 cm

  Image Rotation
