User Manual for Elmo MX-P Document Camera Click to enlarge the picture
Contents of the user manual for the Elmo MX-P Document Camera
- Product category: Video Presenters & Document Cameras Elmo
- Brand: Elmo
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Elmo Video Presenters & Document Cameras
 |
User manual for the Elmo MX-P Document Camera contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Elmo product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Elmo user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Elmo product will considerably shorten its lifespan!
|

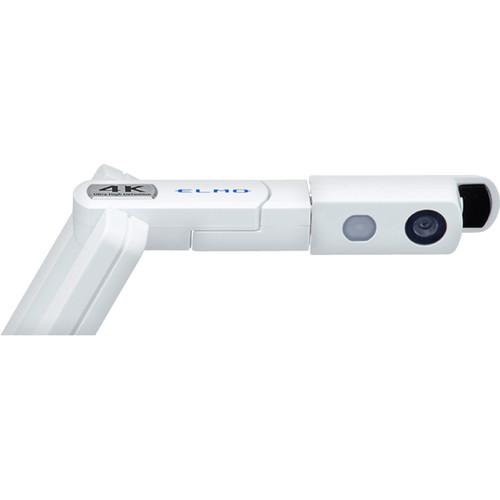

Product description The Elmo MX-P Document Camera captures images in up to Ultra HD 4K resolution at 30 fps and allows you to zoom in by up to 16x on the 4K image. Output the image to a projector, whiteboard, or monitor via the HDMI or VGA outputs to display extremely detailed and sharp, enlarged images. (VGA does not support 4K; a 4K display is required to show 4K images in full detail.)
Included with the document camera is Elmo's Image Mate 4 presentation software (Windows-compatible), which allows you to highlight details within images in many ways, save content, and do much more. Set up the software on your laptop or desktop computer, and easily connect to the computer via the USB 3.0 interface and included USB cable.
The MP-X has a compact design and folds up into even more compact form for travel. With multiple outputs and a lightweight, portable design, it's an ideal solution for delivering presentations on the go. - Key Features
-
- Capture images in Ultra HD 4K resolution at 30 fps or Full HD 1080p at 60 fps
- Up to 16x zoom on a 4K image
- USB 3.0 computer interface

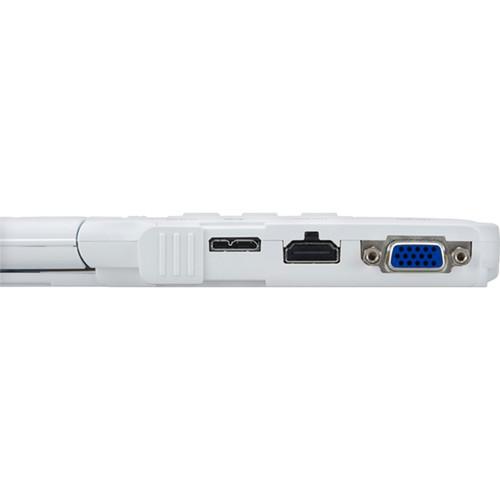

- HDMI and VGA monitor outputs
- Includes Image Mate 4 presentation software (Windows compatible; free download)

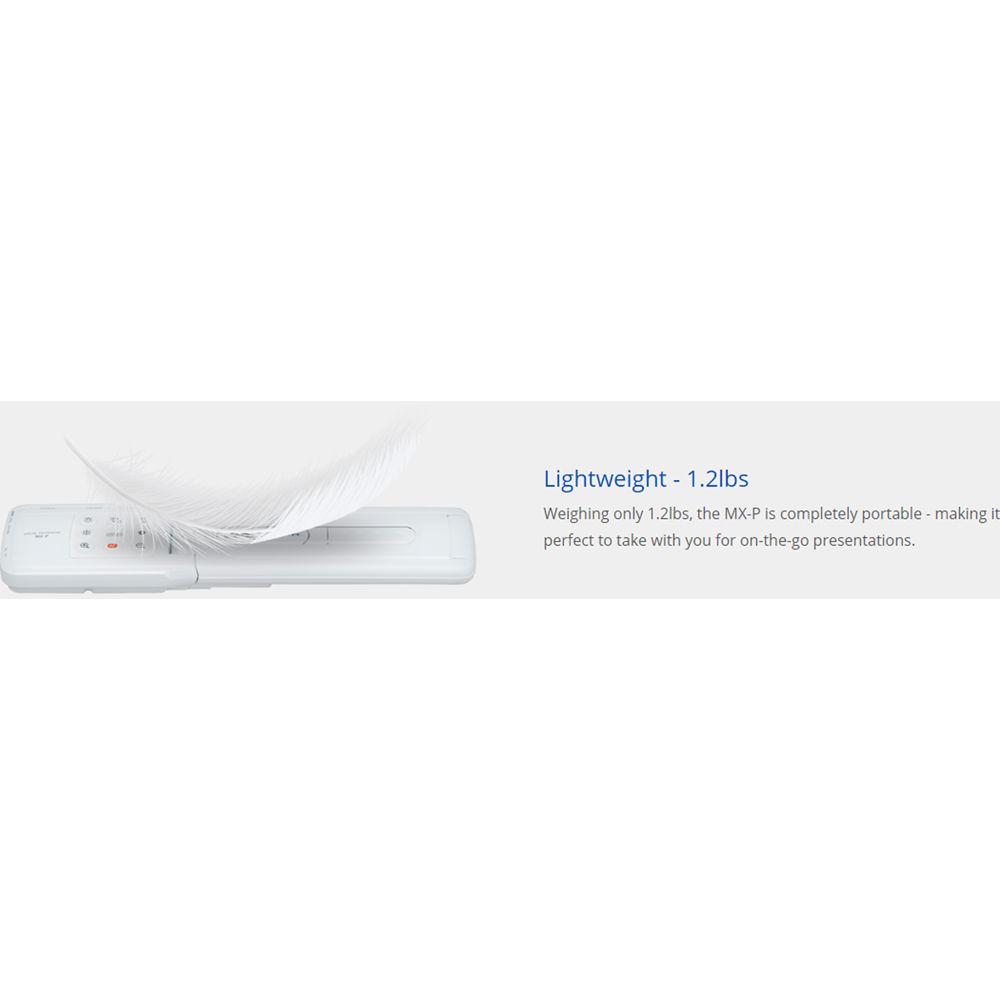

- Lightweight, foldable, portable design for on-the-go presentations
UPC: 008404105062 In the Box Elmo MX-P Document Camera DC Power Cord USB 3.0 Cable AC Adapter Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Elmo MX-P Document Camera in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersElmo MX-P Specs | | | Sensor | 1/3.1" CMOS | | Sensor Resolution | 13 MP | | Zoom | 16x (Digital) | | Aperture | f/2.0 | | Frame Rate | 3840 x 2160 @ 30 fps
1920 x 1080 @ 60 fps | | Effective Pixels | 4160 x 3120 | | | | Capture Area | 14.7 x 11" / 37.4 x 28.1 cm | | Video Connections | 1 x HD15 VGA Output
1 x HDMI Output | | I/O Connections | 1 x USB 3.1 Gen 1 Micro-B | | I/O Connections | 1 x USB Micro-B USB 3.1 Gen 1 | | | | Focal Length | 100 mm to Infinity | | | | Focus Modes | Auto | | Exposure Modes | Auto | | | | Operating System Support | Windows | | | | Power Consumption | 4.6 W | | DC Input Power | 5 VDC | | | | Dimensions | 13.5 x 3.2 x 11.9" / 34.3 x 8.2 x 30.2 cm (In-Use)
11.4 x 3.2 x 0.9" / 29.0 x 8.2 x 30.2 cm (Folded) | | Weight | 1.2 lb / 0.5 kg | | | | Package Weight | 2.43 lb | | Box Dimensions (LxWxH) | 12.45 x 6.65 x 3.25" |
