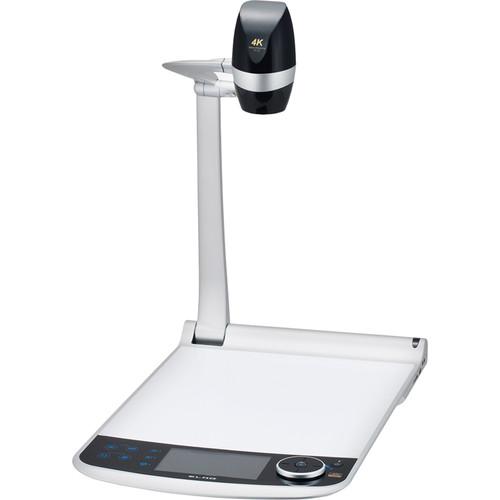

Product description The Elmo PX-30 Document Camera captures 4K video and 12MP still images and lets you output up to UHD 4K video at 30 fps via HDMI, HDBaseT, and USB outputs. It also outputs up to 1080p60 via a VGA output. The HDBaseT output allows you to carry a 4K signal up to 230' or 1080p60 signal 330' to a projector or other display that supports HDBaseT. Video signals connected to one of the HDMI inputs can be recorded to an SD card or USB flash drive, and they can be output over the output ports.

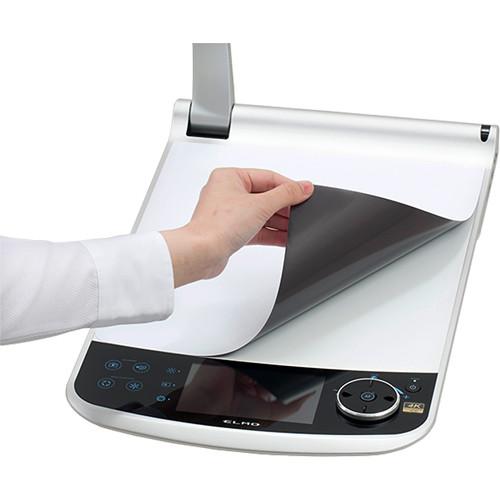

Featuring 12x optical and 2x sensor zoom, the PX-30 allows 24x zooming without image degradation. Add to that 12x digital zoom and you can zoom in on an object by up to 288x (when outputting at 1080p). The physical shooting area of the document camera allows you to capture up to A4 portrait and A3 landscape images. The shooting area is magnetic and can be drawn on by first placing the included whiteboard sheet on top and drawing on the sheet using an optional whiteboard marker. Whatever you draw or any annotations you make can be captured live (or recorded) by the camera and presented live on your output display. The whiteboard sheet is erasable with a supplied sponge. A small but bright LED light is built into the neck of the PX-30 and can be used to illuminate your document/image/subject and reduce glare.
The PX-30 features a 5" touchscreen LCD surrounded by controls. The controls include a zoom jog dial and an autofocus button. Included as a free download with the PX-30 is the Elmo Interactive Toolbox software for Windows and Mac. With the software installed on your computer, you'll be able to perform interactive operations with features such as Sticky Notes, Trimming, Stamps, Time-Lapse Recording, Compare Picture, Mask, Enlarge, Annotate, and more. When you apply these features, you'll see the results on the output display that you have the PX-30 connected to. - Key Features
-
- Capture/output 4K video (30 fps) and 12MP still images

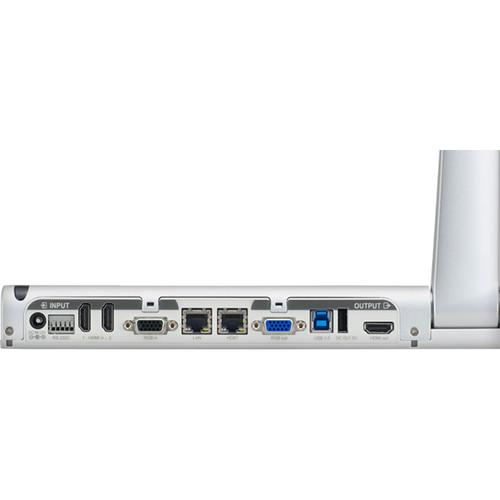

- HDMI, HDBaseT, USB, and VGA outputs
- 230' 4K or 330' 1080p distance extension over HDBaseT
- LAN input for TCP/IP network control
- Record HDMI input signal to an optional SD card/USB flash drive
- RS-232C input
- Up to 288x zoom

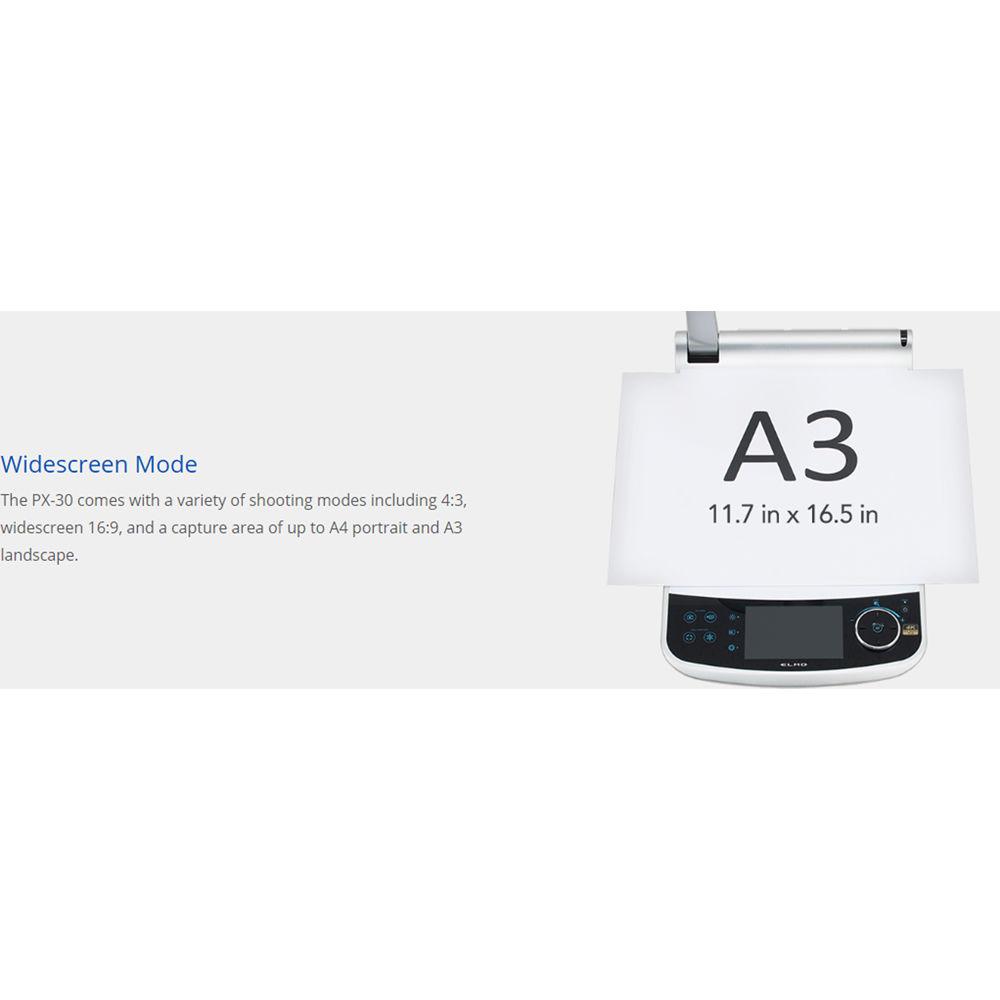

- Capture up to A4 portrait and A3 landscape images
- Draw/annotate on the shooting area by placing an included whiteboard sheet over it
- Built-in LED light
- 5" touchscreen LCD
- Jog dial, autofocus button, and other controls
- Includes free download of ELMO Interactive Toolbox software for Windows and Mac
- Software features: Sticky Notes, Trimming, Stamps, Time-Lapse Recording, Compare Picture, Mask, Enlarge, Annotate, and more
- Mic input (electret computer microphones only), line output
- Remote control included
UPC: 008404104997 In the Box Elmo PX-30 Document Camera AC Adapter AC Power Cord USB 3.0 Cable (4.9') Remote Control CR2025 Lithium Coin Battery for Remote Control Whiteboard Sheet Melamine Sponge for Whiteboard Sheet Caution Sticker Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Elmo PX-30 Document Camera in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersElmo PX-30 Specs | | | Sensor | CMOS | | Sensor Resolution | 12 MP | | Zoom | 12x (Optical)
12x (Digital) | | Frame Rate | 3840 x 2160 @ 30 fps
1920 x 1080 @ 60 fps | | Effective Pixels | 3840 x 2160 (16:9)
3620 x 2640 (4:3) | | | | Capture Area | 17 x 12.6" / 43.2 x 32 cm | | Video Connections | 1 x HD15 VGA Input
1 x HD15 VGA Output
1 x HDMI 1.4 Output
2 x HDMI 1.4 Input | | Audio Connections | 1 x 1/8" / 3.5 mm Line Output
1 x 1/8" / 3.5 mm Microphone Input | | I/O Connections | 1 x RS232C
1 x USB (Unspecified Version) Type-A
1 x USB 2.0 Type-A
1 x USB 3.1 Gen 1 Type-B
2 x RJ45 | | I/O Connections | 1 x RS232C
1 x USB Type-A USB (Unspecified Version)
1 x USB Type-A USB 2.0
1 x USB Type-B USB 3.1 Gen 1
2 x RJ45 | | Media Card Slots | SD/SDHC/SDXC | | | | Focal Length | 50 to 200 mm | | | | Built-In LED Lighting | Yes | | Screen Size | 5" | | Built-In Screen Resolution | 800 x 480 | | Focus Modes | Auto, Manual | | | | Operating System Support | Windows, macOS/OS X | | | | Power Source | Power Adapter | | DC Input Power | 12 VDC | | | | Dimensions | 11.7 x 19.0 x 18.8" / 30.0 x 48.0 x 48.0 cm (In-Use)

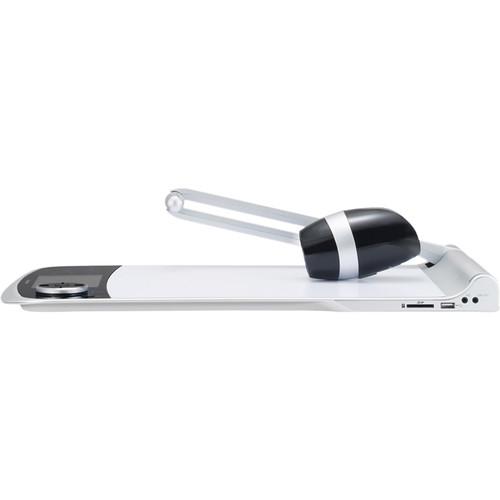

11.7 x 19.0 x 5.2" / 30.0 x 48.0 x 13.2 cm (Folded) | | Weight | 9.9 lb / 4.5 kg | | | | Package Weight | 14.0 lb | | Box Dimensions (LxWxH) | 22.0 x 15.0 x 9.0" |
