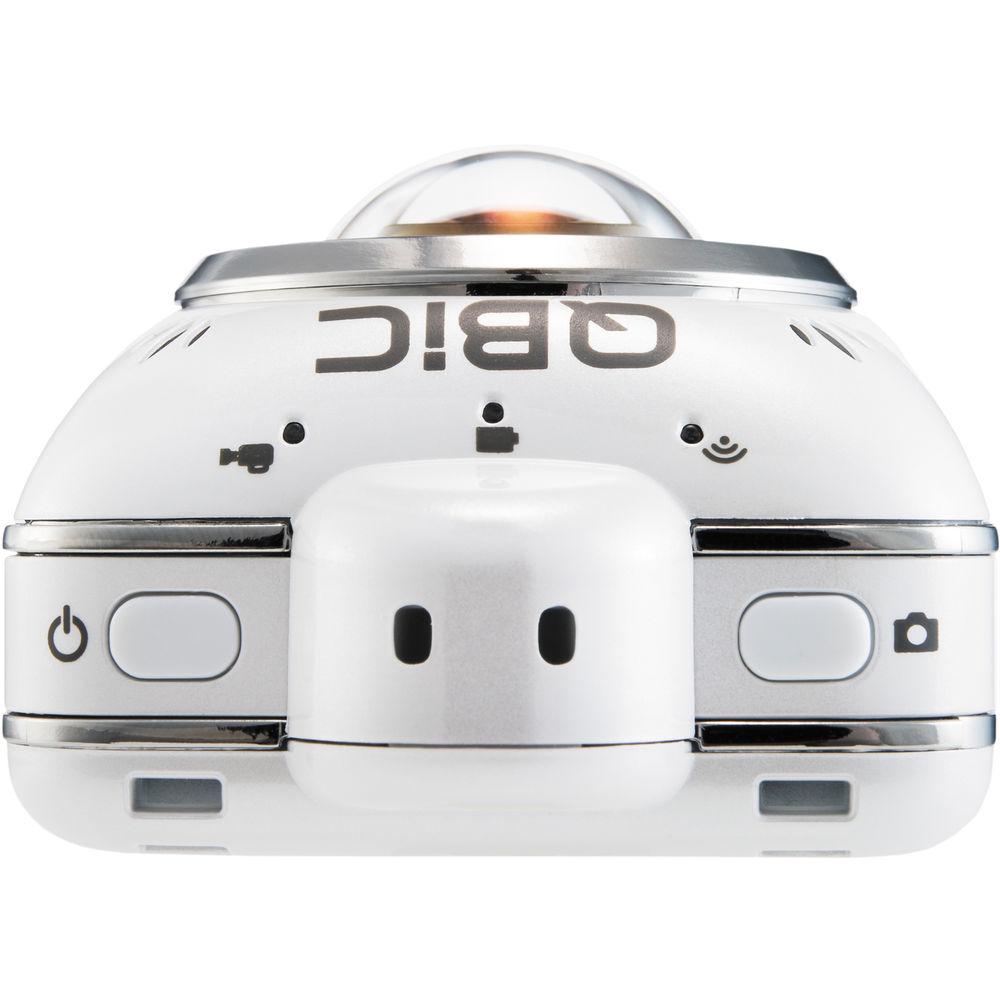

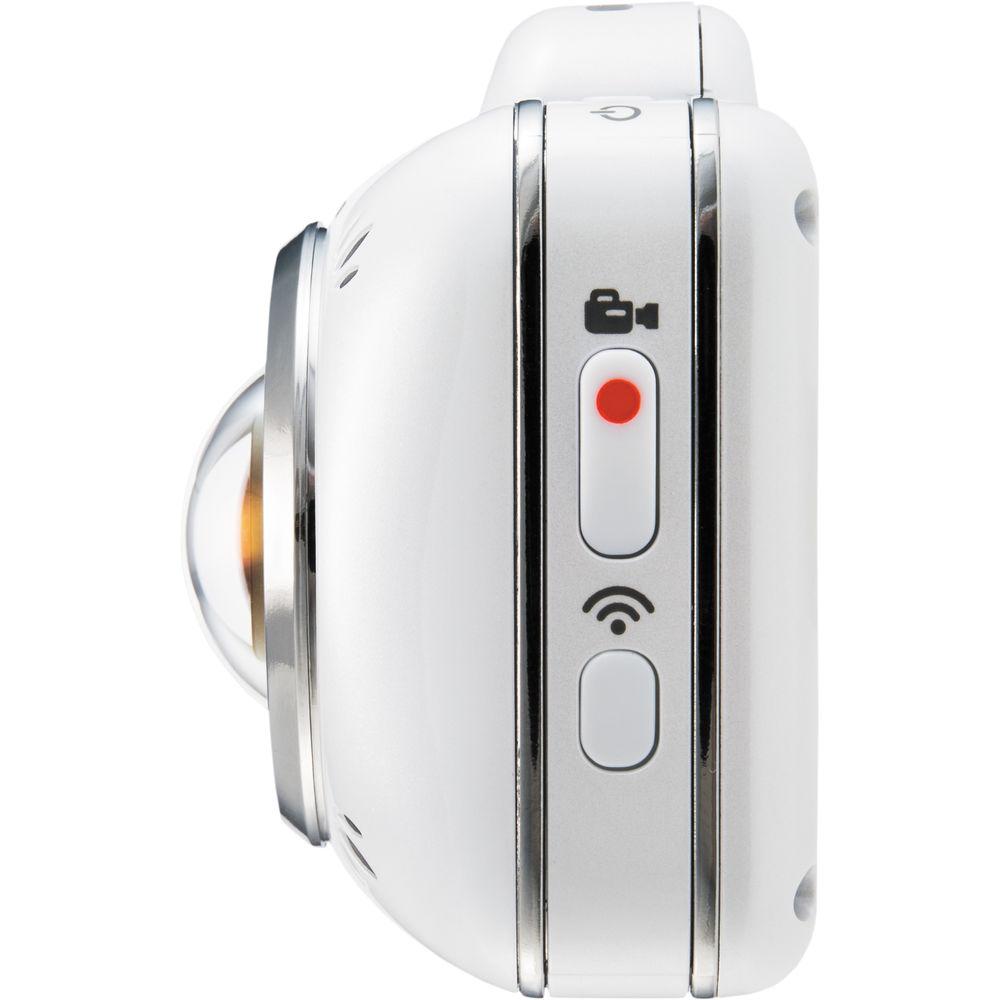

Product description The water-resistant QBiC MS-1 Wide Angle Wearable Camera from Elmo weighs just 3.4 ounces, and is optimized for pairing with a smartphone or other Wi-Fi-enabled mobile device. It can record up 1080p video as well as snap up to 5-megapixel stills. It records footage internally to microSD cards up to 64GB in capacity, and can also stream a live SD image to a connected device for preview or immediate uploading to the Internet. A 185-degree extreme wide angle lens allows helps give footage a truly immersive feel.

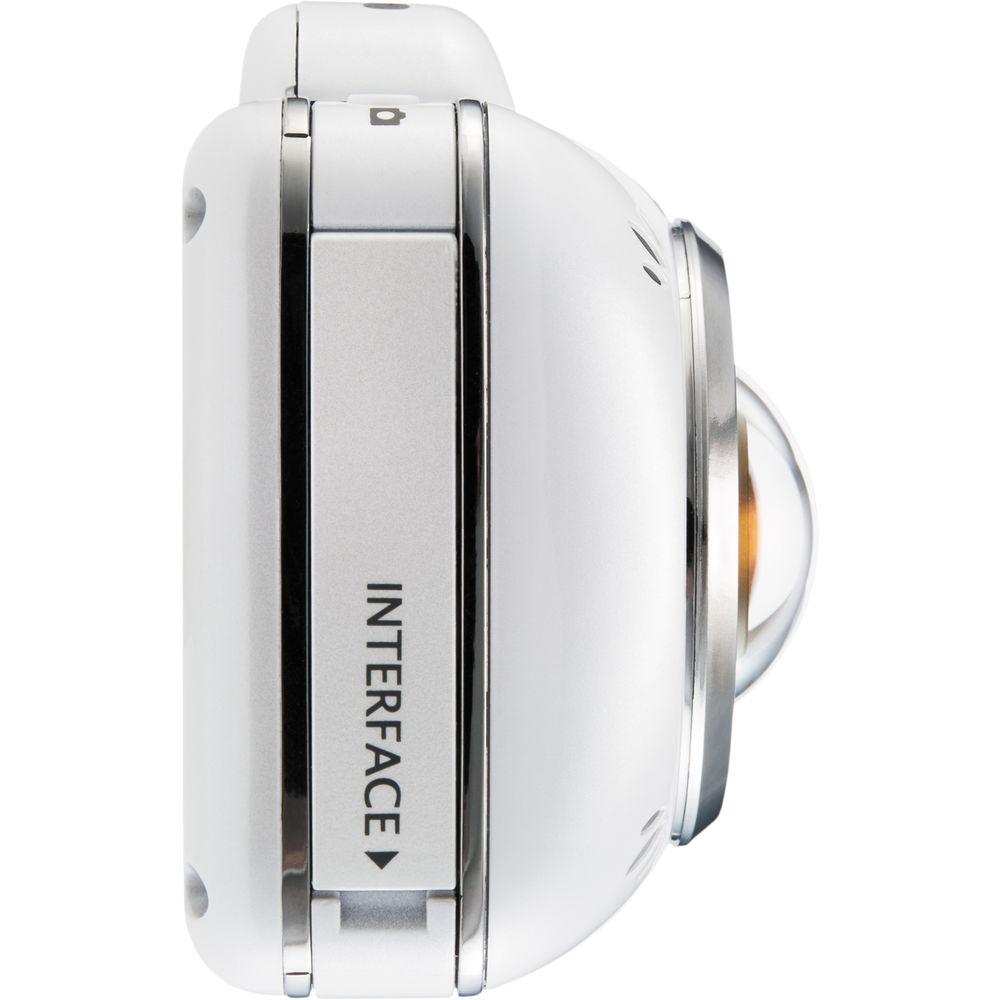

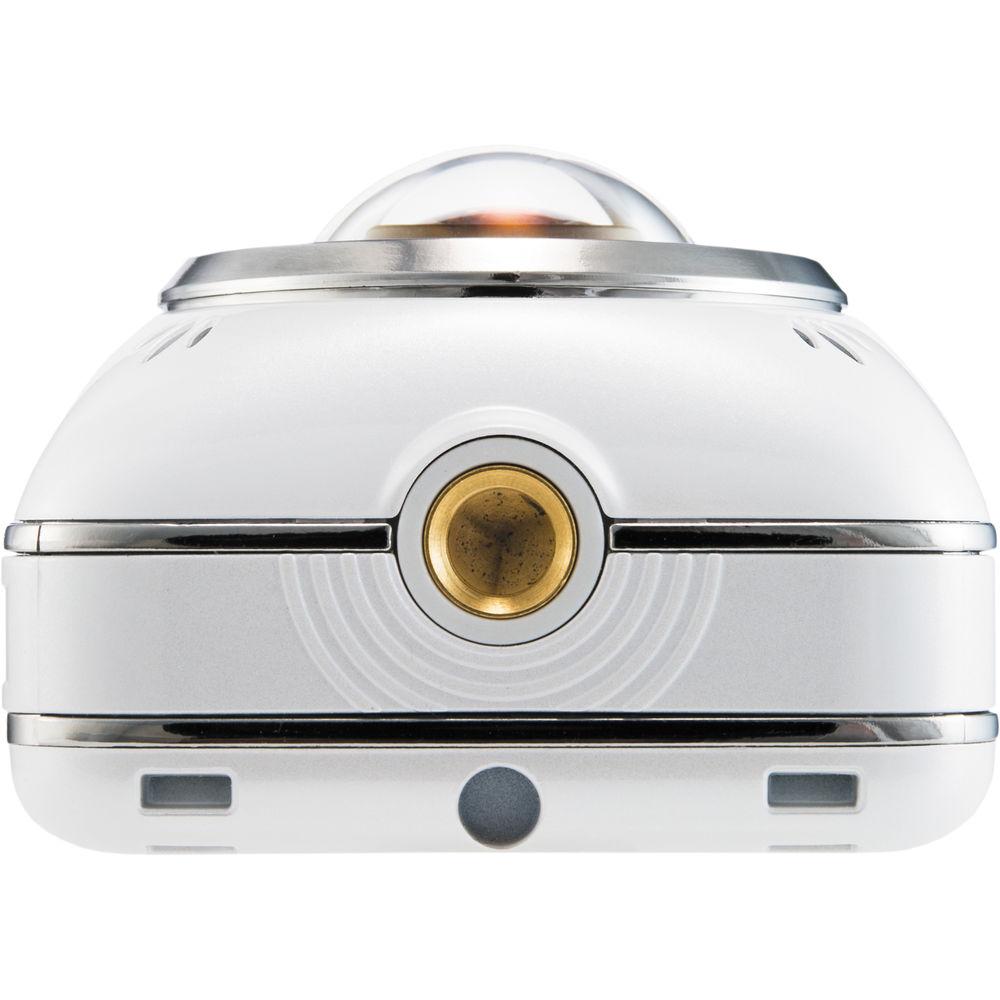

There is a micro-USB port for file transfer and charging, plus a micro-HDMI (type D) port for enjoyment of what you've shot on an HDTV or display. The compact design features a 1/4"-20 socket so that you can attach the MS-1 to tripods, camera poles, action camera mounts, or even directly to your smartphone. The Smart Clip for smartphone mounting, a lens cover, and USB cable are included. The memory card and other mounting accessories are available separately. - Up to 185-Degree Field of View Lens
- An ultra-wide lens helps give videos an immersive feel as well as incorporate as much of the action happening in front of the camera as possible. 185-degrees is available in the 5MP photo setting, while the 3.5MP setting offers 165-degrees, and the 2MP setting offers 135-degrees. At any setting, the lens retains an f/2.0 fixed aperture
- HD and SD Video Recording
- The MS-1 features HD video and stereo audio recording to microSD card. The following video recording settings are supported:
- 1920 x 1080 (1080p): 60p, 30p
- 7280 x 720 (720p): 120p, 60p, 30p
- WVGA (848 c 480): 240p for slow motion
- Shoot up to 5-Megapixel Photos
- There are three photos resolutions: 5MP, 3.5MP, and 2MP. You can take single shot, use the self-timer, take photos in intervals for time-lapse effects, and take a burst of up to 10 photos in rapid succession
- 1920 x 1080 (1080p): 60p, 30p
- 7280 x 720 (720p): 120p, 60p, 30p
- WVGA (848 c 480): 240p for slow motion
- QBiC App for iOS and Android
- By tethering the MS-1 camera to your W-Fi-enabled mobile device, you can share what you've shot to social media sites like Facebook and YouTube. In addition, you can view a live image from the camera on your device's screen as well as control video and photo settings
Note: iOS 8 is currently not supported by the QBiC app - Wi-Fi Streaming
- Not only can you record internally to a microSD card (available separately), you can stream wirelessly to your mobile device in either WQVGA (400 x 240) or WVGA (800 x 480) resolution. The range is up to 100' with a clean line-of-sight (may be shorter indoors or where there is heavy radio interference)
- 0.8" Close Focusing Distance
- Get close up to small objects - such as insects - and open up a whole new world of macro photography. The camera's Wide Dynamic Range feature helps ensure good exposure even if the subject is brightly backlit
- Image Rotation
- Shoot images that are rotated 180-degrees when the camera is placed upside down
- Image Stabilization
- Equipped with electronic blur correction to minimize image instability when recording video
- Distortion Correction
- Digitally correct distortion around the edges of the image when shooting super wide
In the Box Elmo QBiC MS-1 Wide Angle Wearable Camera Lens Cover USB Cable Smart Clip Limited 1-Year Warranty User Manual PDF 983.4kbustddsztsufr Table of Contents
|
Upload User Manual
Have you got an user manual for the Elmo QBiC MS-1 Wide Angle Wearable Camera in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersElmo QBIC MS-1 Specs | | | Maximum Aperture | f/2 | | Minimum Focusing Distance | 0.8" / 20.0 cm | | Angle of View | 185° (5 MP mode)
165° (3.5 MP mode)
135° (2 MP mode) | | | | Recording Media | x microSD/HC/XC (64 GB Maximum) | | Video Format | 1920 x 1080p at 30/60 fps (H.264)
1280 x 720p at 30/60/120 fps (H.264)
848 x 480p at 240 fps (H.264)
800 x 480p (H.264)
400 x 240 (H.264) | | Still Image Resolution | JPEG: 5 Megapixel
JPEG: 3.5 Megapixel
JPEG: 2 Megapixel | | Audio Format | AAC | | | | Image Stabilization | Digital | | White Balance Modes | Auto
Cloudy
Daylight
Fluorescent | | Built-In Mic | Yes | | Built-In Speaker | Yes | | Wi-Fi | Yes | | Tripod Mount | 1/4" - 20 | | | | Outputs | 1 x Micro-HDMI (Type D)
1 x USB Micro-B | | | | Battery | Rechargeable Lithium-Ion Polymer Battery Pack, 3.7 VDC, 1000 mAh
Max Runtime: 2 Hours per Charge | | Charging Method | USB | | Operating Temperature | 32 to 104°F / 0 to 40°C | | Dimensions (W x H x D) | 2.1 x 2.4 x 1.6" / 53.3 x 61.0 x 40.6 mm | | Weight | 3.4 oz / 96.4 g | | | | Package Weight | 0.45 lb | | Box Dimensions (LxWxH) | 4.8 x 3.7 x 2.9" |
